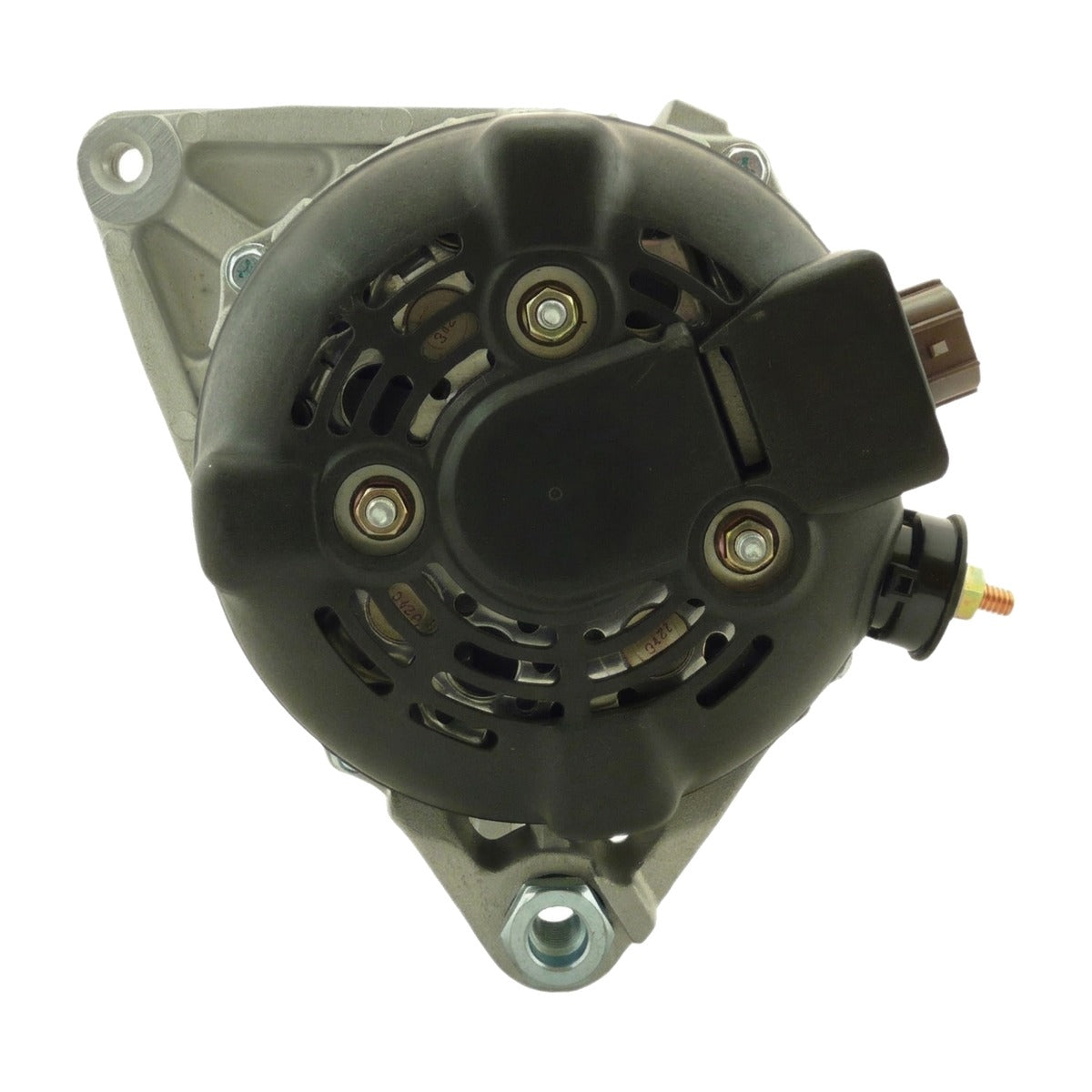

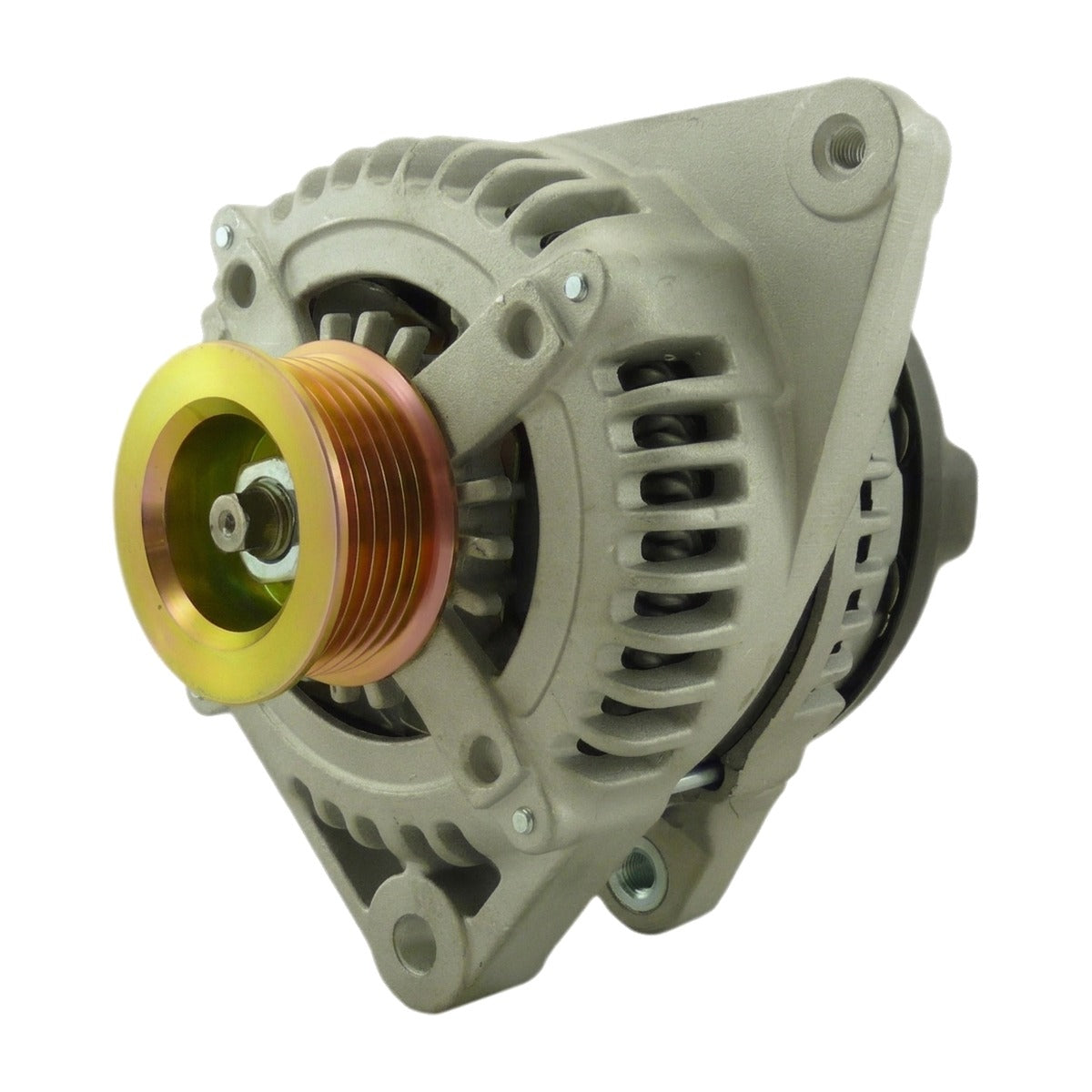

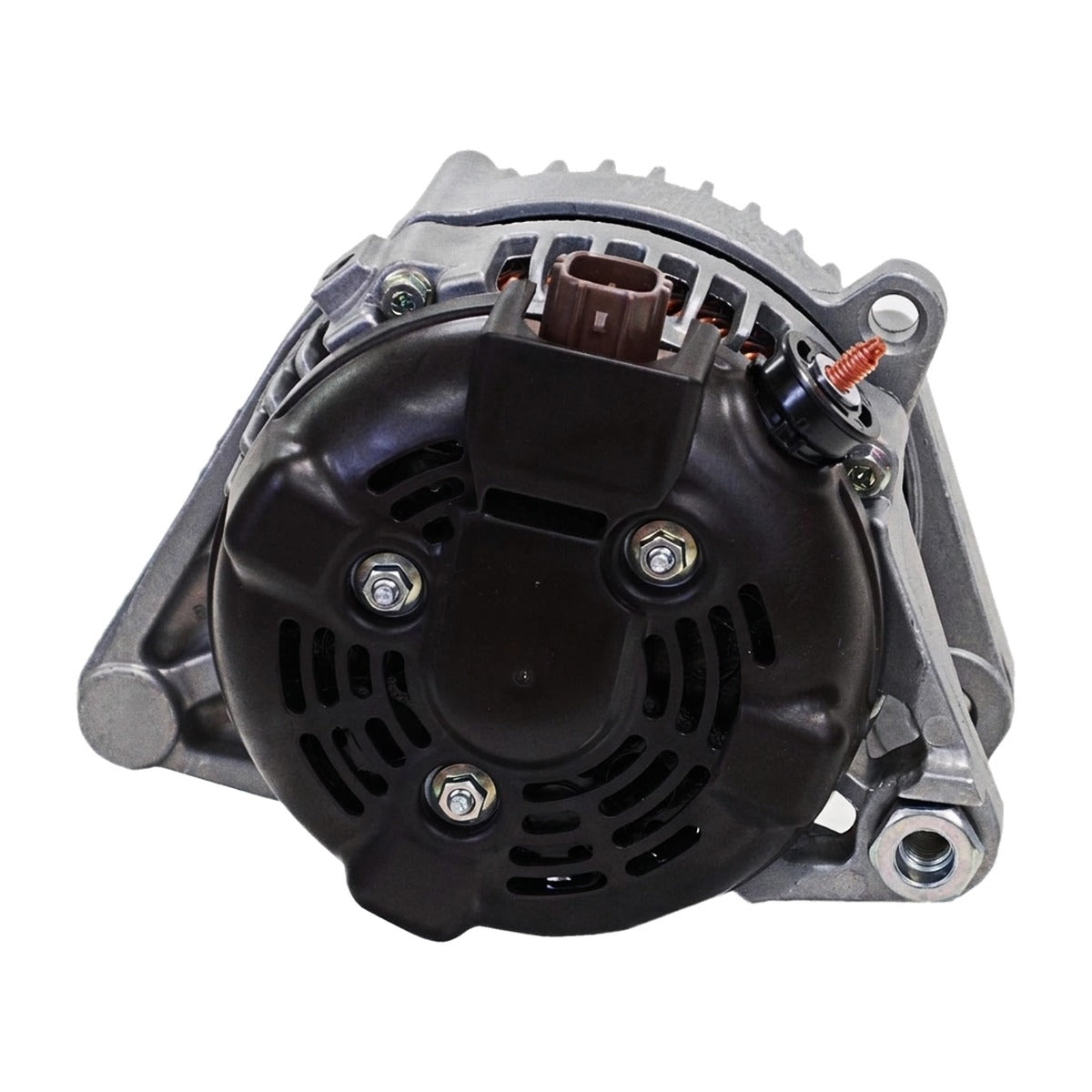

High Output Alternator for Toyota Camry Highlander Solara (2004-2008) 3.0L 3.3L

High-Amp Output Alternator for 2004-2008 Toyota Camry, Highlander, Solara (XV30, XU20)

What it Does: The 250-amp high output alternator replaces the factory charging unit on 2004-2008 Toyota Camry, Highlander, and Solara models to deliver elevated electrical amperage for high-draw aftermarket accessories and prevent voltage drop at idle.

The Stock Toyota Camry, Highlander, Solara Charging System Limitations

Factory charging systems on the 1MZ-FE and 3MZ-FE platforms are limited to 100 to 130-amp ratings. Under modern electrical loads—such as aftermarket audio amplifiers, auxiliary lighting, cooling fans, and winches—the stock alternator suffers from excessive stator heat soak, internal diode breakdown, and severe voltage sag at curb idle (sub-800 RPM). This sustained thermal stress degrades brush contacts, causes dimming headlights, triggers premature battery sulfation, and destabilizes sensitive ECM bus voltages.

The Engineering Solution

Engineered as a direct bolt-in replacement, this 250-amp platform integrates heavy-gauge, high-temperature copper hairpin stator windings and a dynamically balanced rotor to maintain stable 13.5V to 14.5V output across the entire RPM band. Premium sealed dual bearings eliminate parasitic rotational friction and prevent shaft runout under high belt tension. An internal, temperature-compensated solid-state voltage regulator prevents voltage spikes, while heavy-duty internal rectifier diodes manage increased thermal cycles without clipping output. OE-spec mounting brackets, clocking, and plug-and-play wiring harnesses retain direct mechanical and electrical alignment.

What's Included

• 1 High Output 250A Alternator (Part # 11033)

Technical Specifications

Compatibility

• 2004-2006 Toyota Camry 3.0L V6 (1MZ-FE)
• 2004-2006 Toyota Camry 3.3L V6 (3MZ-FE)
• 2004-2007 Toyota Highlander 3.3L V6 (3MZ-FE)
• 2004-2008 Toyota Camry Solara 3.3L V6 (3MZ-FE)

Frequently Asked Questions & Fitment Warnings

Does this fit the XV30 and XU20 Camry, Highlander, Solara?

Yes, this is a direct fit for the 2004-2008 Toyota Camry, Highlander, and Solara equipped with the 1MZ-FE 3.0L or 3MZ-FE 3.3L V6 engines; it does not fit 2.4L 4-cylinder (2AZ-FE) or hybrid models.

Do I need to upgrade my charging cables with this 250A alternator?

To safely carry full 250-amp continuous current without thermal degradation or resistance loss, performing a "Big Three" 1/0 or 4-gauge wiring upgrade on the main alternator positive lead and chassis grounds is strongly recommended.

The Toyota Long-Life Reliability Standard

Built to handle heavy electrical demands without sacrificing the renowned long-range reliability of Toyota's MZ platform, this alternator provides bulletproof power distribution for cross-country highway travel and demanding audio installations alike.
