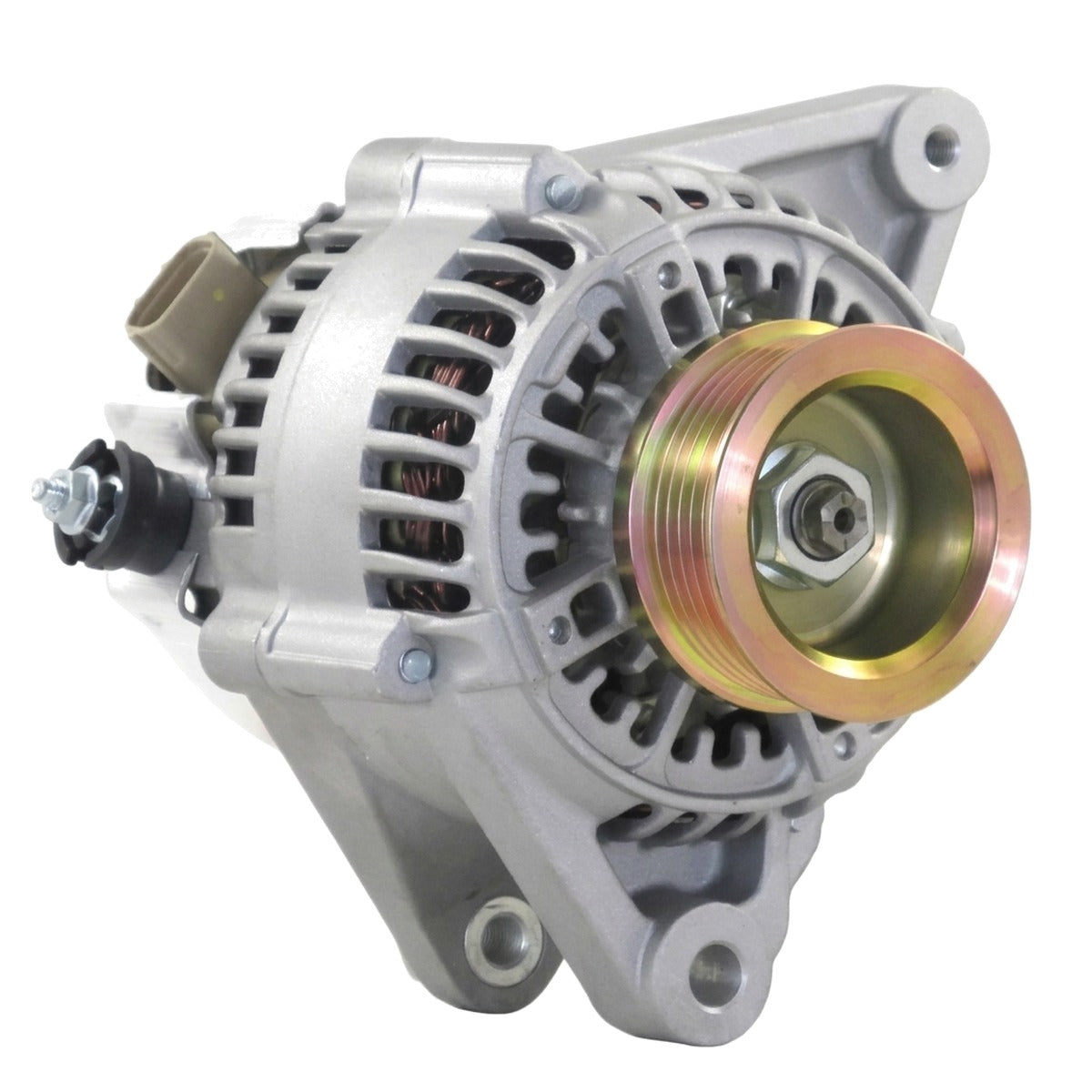

High Output Alternator for Toyota Avalon (1995-1999) 3.0L

High-Output 200A Alternator for 1995-1999 Toyota Avalon (MCX10)

What it Does: The 200-amp high-output alternator replaces the low-output factory charging unit on the 1995-1999 Toyota Avalon to eliminate idle voltage drop and deliver continuous, stable amperage to high-draw electrical accessories.

The Stock Toyota Avalon Charging System Shortcoming

The factory charging system on the MCX10 chassis was engineered for basic stock accessories, producing only 80 to 90 amps from the original Denso assembly. When subjected to additional electrical accessories, secondary cooling fans, or aftermarket audio amplifiers, the factory stator experiences magnetic saturation and severe heat soak. This thermal stress degrades the internal diode trio, leading to significant idle voltage sag, battery drain, and unstable reference voltages across critical sensors on the 1MZ-FE engine.

The Engineering Solution

Manufactured in the USA, this high-output direct-replacement unit increases continuous capacity to 200 amps. Featuring precision heavy-gauge copper windings, premium internal rectifiers, and heavy-duty avalanche diodes, it maintains consistent 14.4-volt output across both idle and high-RPM operating ranges. The housing integrates heavy-duty bearings to withstand high radial belt loads while matching factory mounting tabs and electrical plug configurations for a true drop-in installation, replacing OEM units like 27060-20010 and 13558.

What's Included

• 1x 200 Amp High-Output Alternator

Technical Specifications

Compatibility

• 1995 Toyota Avalon XL / XLS 3.0L V6 (1MZ-FE)
• 1996 Toyota Avalon XL / XLS 3.0L V6 (1MZ-FE)
• 1997 Toyota Avalon XL / XLS 3.0L V6 (1MZ-FE)
• 1998 Toyota Avalon XL / XLS 3.0L V6 (1MZ-FE)
• 1999 Toyota Avalon XL / XLS 3.0L V6 (1MZ-FE)

Frequently Asked Questions & Fitment Warnings

Does this fit the MCX10 Avalon?

Yes, this is a direct bolt-on fit for the 1995-1999 Toyota Avalon equipped with the 1MZ-FE 3.0L V6 engine.

Do I need to upgrade my factory wiring harness with this 200A unit?

Upgrading the primary alternator-to-battery charging cable (Big 3 upgrade) with heavy-gauge 4 AWG or 0 AWG wire is strongly recommended to safely carry the increased 200-amp capacity without line resistance.

The Toyota Caliber

Built to maintain Toyota's benchmark reliability standards, this upgrade supplies smooth, uncompromised direct current to protect sensitive onboard microcontrollers while supporting heavy electrical demands.
