High Output Alternator for Mazda RX-7 (1989-1991) 1.3L

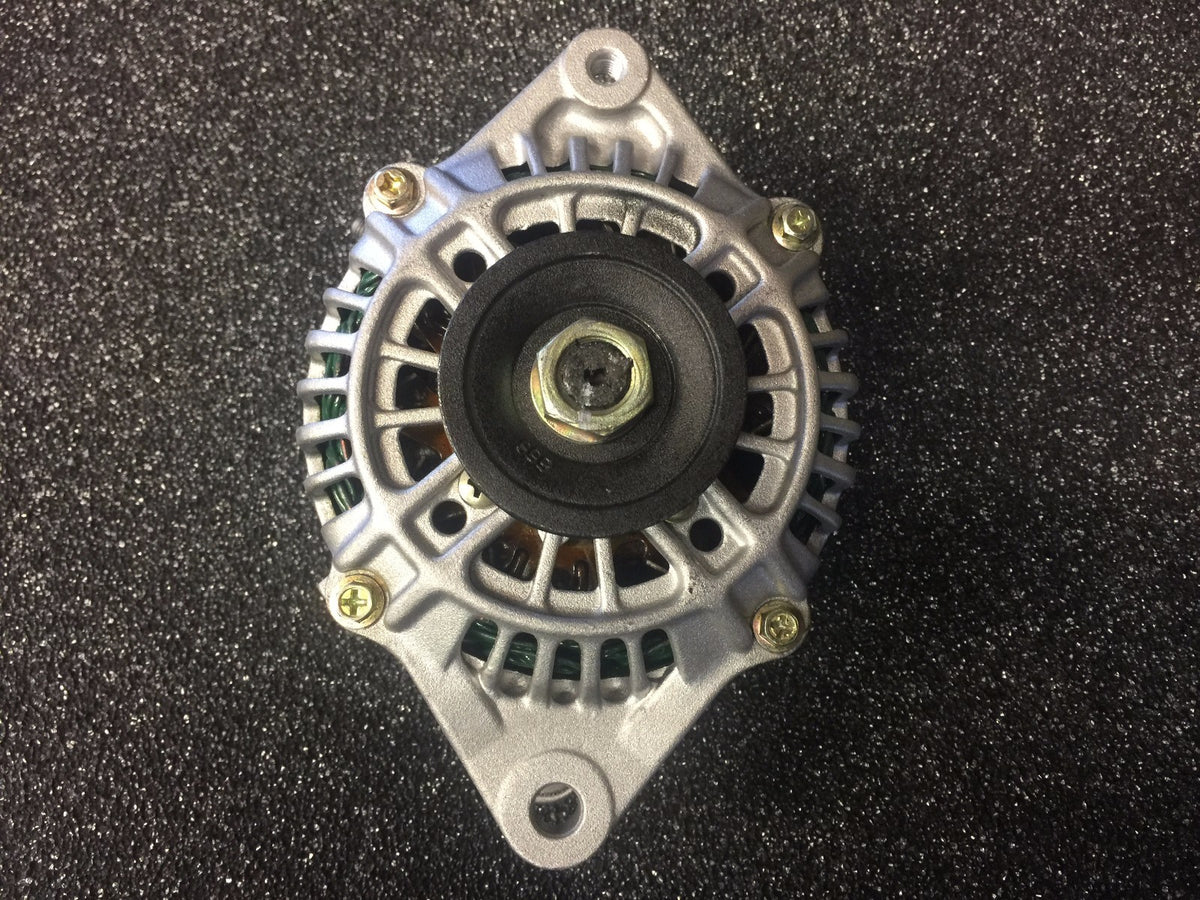

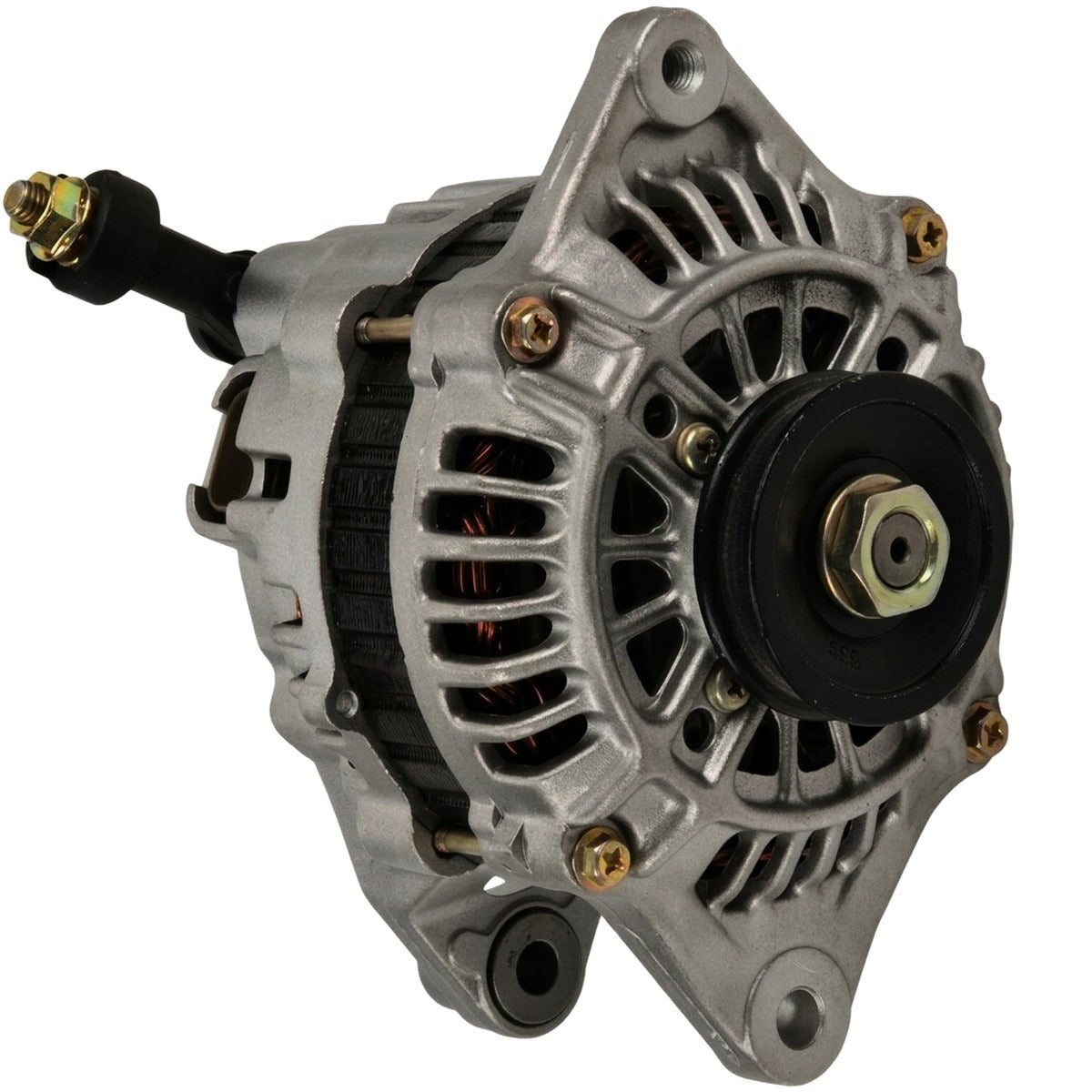

High-Output 160A Alternator for 1989-1991 Mazda RX-7 (FC3S)

What it Does: The High-Output 160A Alternator upgrades the factory charging system on the 1989-1991 Mazda RX-7 to deliver consistent system voltage and eliminate electrical sag under demanding accessory loads.

The Stock Mazda RX-7 Charging Weakness

Factory Series 5 FC3S charging systems rely on an aging 80-amp unit that fails to support modern electrical demands. Severe engine bay thermal soak typical of the 13B rotary engine degrades the factory internal rectifier and regulator diodes. Under low-RPM idle conditions with active loads—such as dual electric fan swaps, high-flow fuel pumps, and aftermarket ignition systems—the stock unit allows voltage to drop below 12.5V, triggering weak spark energy, ignition breakup, and unstable idle control.

The Engineering Solution

Engineered and manufactured in the USA, this 160-amp direct replacement doubles the factory current threshold to provide robust current delivery throughout the entire rev spectrum. Built with heavy-gauge high-conductivity copper windings, heavy-duty insulated brush assemblies, and premium low-friction bearings, this unit dissipates internal heat efficiently. It stabilizes system voltage at a consistent 14.2V to 14.6V under peak electrical demand, maintaining optimal injector pulse width, ignition coil dwell times, and sensor telemetry on both naturally aspirated and turbocharged rotary applications.

What's Included

• 1x High-Output 160-Amp Alternator

Technical Specifications

Compatibility

• 1989 Mazda RX-7 1.3L 13B (Base, GTUs, GXL, Convertible, Turbo II)
• 1990 Mazda RX-7 1.3L 13B (Base, GTUs, GXL, Convertible, Turbo II)
• 1991 Mazda RX-7 1.3L 13B (Base, Coupe, Convertible, Turbo II)

Frequently Asked Questions & Fitment Warnings

Does this fit the FC3S RX-7?

Yes, this is a direct fit for the 1989-1991 Mazda RX-7 equipped with the 13B engine, mounting cleanly to factory FC3S mounting brackets without fabrication.

Do I need to upgrade the main charging cable?

Yes, installing a fused 4-gauge or 2-gauge battery charge lead (Big 3 upgrade) is strongly recommended to safely carry the increased 160-amp capacity without excessive line resistance.

The Mazda Rotary Performance Standard

High-revving rotary engines depend on consistent ignition voltage to prevent misfires under boost and high load. This heavy-duty alternator upgrade ensures uninterrupted electrical delivery, protecting your apex seals and maximizing high-RPM rotary power.
