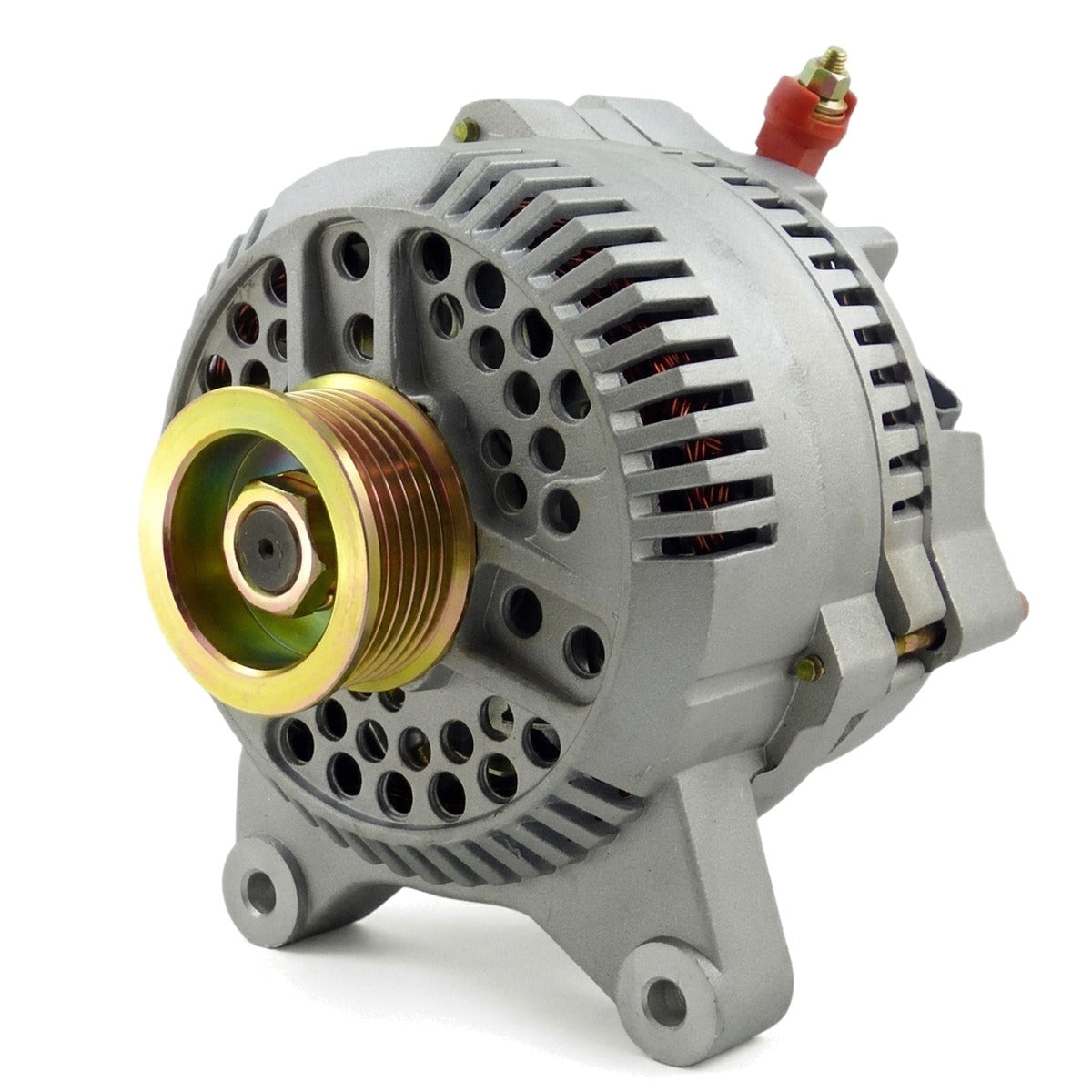

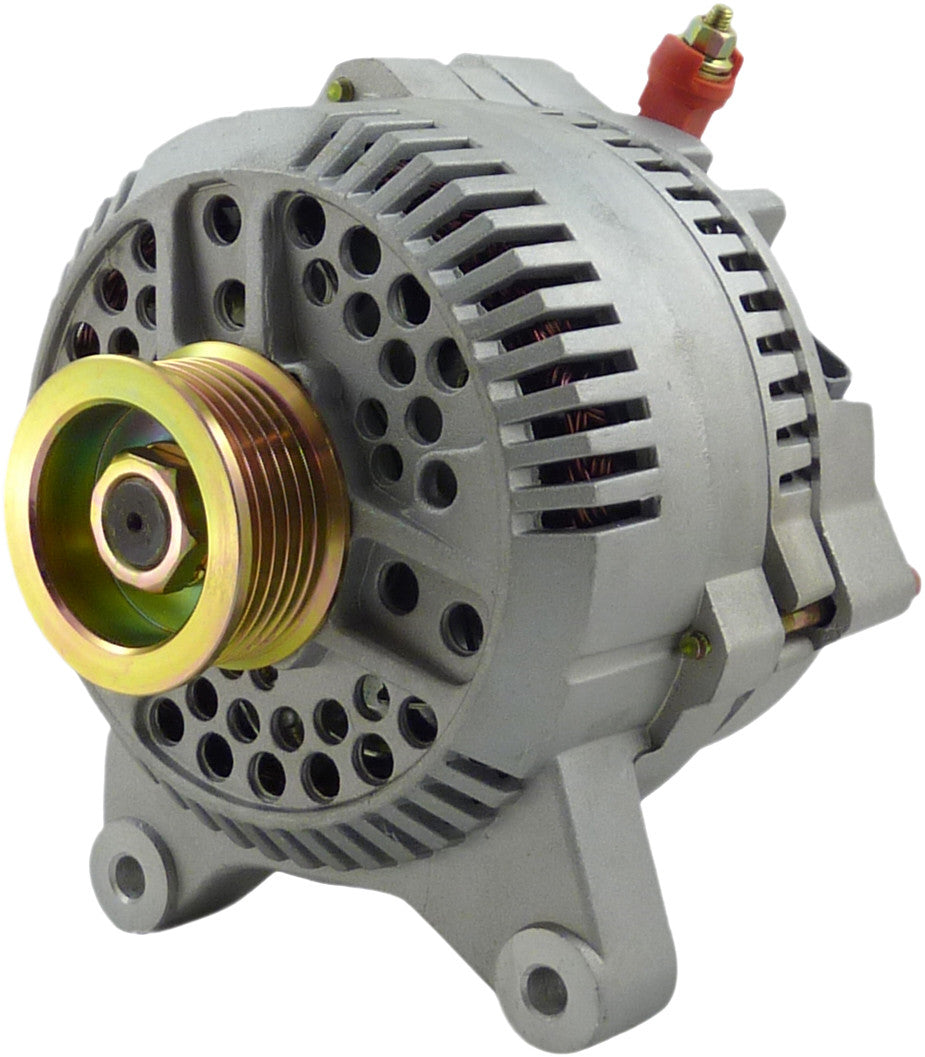

High Output Alternator for Lincoln Navigator (1998-1999) 5.4L

High-Amp Charging 300A Alternator for 1998-1999 Lincoln Navigator (UN93)

What it Does: The 300 Amp High Output Alternator replaces the factory low-amperage charging unit on the 1998-1999 Lincoln Navigator to eliminate idle voltage drop and continuously supply high-amperage electrical current under severe loads.

The Stock Lincoln Navigator Charging Limitations

The factory charging system on the first-generation UN93 platform utilizes a stock 130-amp alternator engineered strictly for base electrical demands. When retrofitted with aftermarket inverters, upgraded audio systems, off-road lighting, or heavy towing accessories, the stock unit suffers severe thermal degradation. Under elevated underhood temperatures, the factory diodes and stator windings in the Modular 5.4L engine bay experience resistance-induced voltage drop, frequently dipping below 12.4 volts at warm curb idle, causing battery drain and erratic auxiliary component operation.

The Engineering Solution

Constructed in the USA, this heavy-duty 300-amp high-output replacement utilizes high-conductivity copper windings, heavy-gauge hairpin stator architecture, and a 12-diode press-fit rectifier to maintain stable 14.4-volt charging. Precision-balanced rotor assemblies and high-temperature heavy-duty bearings prevent high-RPM bearing seizure and heat soak failure. Designed as a direct bolt-on installation, this alternator interfaces seamlessly with the factory accessory drive belt routing while replacing worn OEM units such as F75U10300CA, F75U10300CB, and 7791 without bracket alterations.

What's Included

• 1 x 300 Amp High Output Alternator

Technical Specifications

Compatibility

• 1998 Lincoln Navigator Base 5.4L V8 SOHC (UN93)
• 1999 Lincoln Navigator Base 5.4L V8 DOHC InTech (UN93)

Frequently Asked Questions & Fitment Warnings

Does this fit the UN93 Navigator?

Yes, this is a direct fit for the 1998-1999 Lincoln Navigator equipped with the Modular 5.4L engine.

Do I need to upgrade my main charging cables?

Yes, running an upgraded "Big 3" 0/1-gauge fused power lead from the alternator B+ post directly to the positive battery terminal is required to safely handle the full 300-amp output.

The Lincoln Caliber

Built to sustain heavy full-size luxury SUV duty cycles, this charging unit delivers rock-solid electrical stability, preventing cabin accessory brownouts and supporting heavy towing demands across all operating environments.
