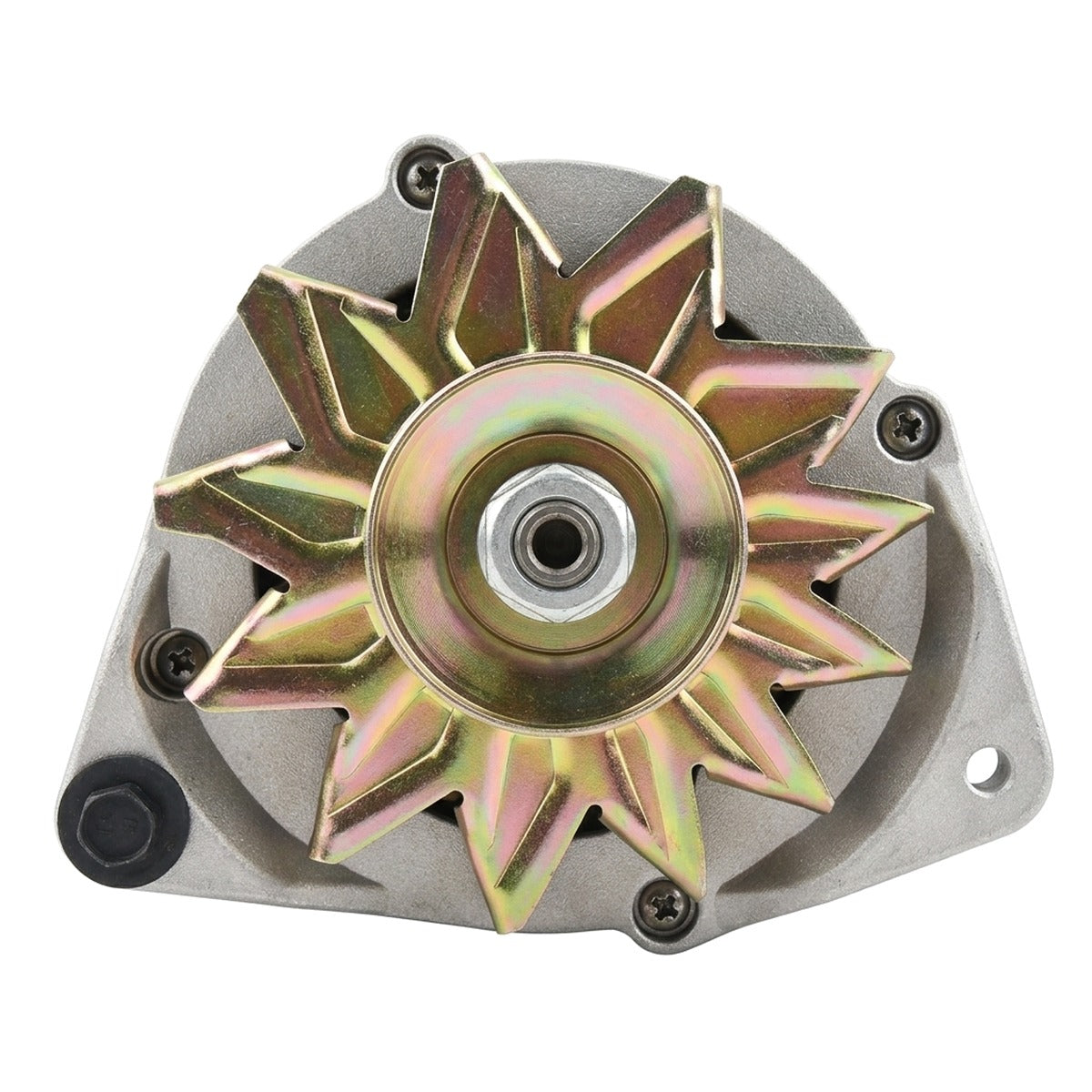

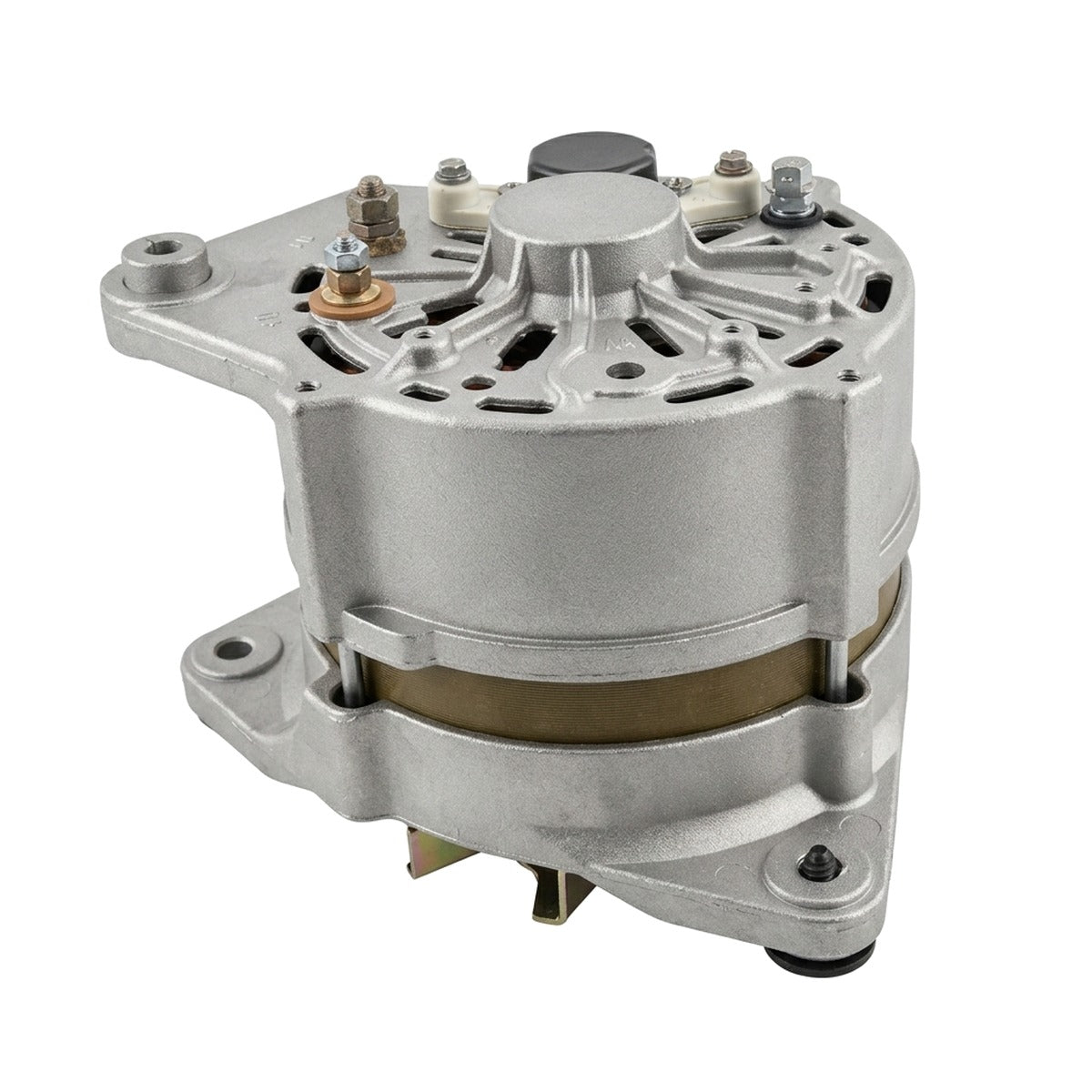

High Output Alternator for Land Rover Range Rover (1989-1992) 3.9L

High-Output 110A Alternator for 1989-1992 Land Rover Range Rover (RRC)

What it Does: The high-output 110-amp alternator upgrades the charging system on the 1989-1992 Land Rover Range Rover to deliver stable operating voltage and eliminate low-RPM electrical strain under heavy vehicle loads.

The Stock Land Rover Range Rover Charging Limitations

Factory charging systems on the first-generation RRC platform were equipped with undersized OEM alternators typically rated between 65 and 80 amps. These units struggle to maintain required system voltage at low engine RPM, creating severe voltage drops when running modern dual batteries, winches, auxiliary trail lighting, and factory dual-blower HVAC systems. In the cramped engine bay of the Rover V8, sustained heat soak degrades the factory diodes and internal regulator, leading to chronic battery discharge, erratic idle from sensor voltage fluctuation, and premature diode failure.

The Engineering Solution

Manufactured in the USA, this 110-amp direct replacement alternator significantly increases idle and cruising amperage output. Featuring precision-wound heavy-gauge copper stators, an efficient rotor design, and heavy-duty heat-dissipating rectifiers, this unit manages thermal stress far better than stock Lucas components. It maintains constant 13.8V to 14.4V charging profiles to preserve battery health and supply clean, continuous power to the Lucas 14CUX electronic fuel injection harness without requiring custom bracket modifications.

What's Included

• 1x High-Output 110-Amp Alternator

Technical Specifications

Compatibility

• 1989 Land Rover Range Rover Classic Base / County 3.9L V8
• 1990 Land Rover Range Rover Classic Base / County 3.9L V8
• 1991 Land Rover Range Rover Classic Base / County / Hunter 3.9L V8
• 1992 Land Rover Range Rover Classic Base / County 3.9L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the RRC Range Rover?

Yes, this is a direct bolt-on fit for the 1989-1992 Land Rover Range Rover equipped with the 3.9L Rover V8 engine, replacing original units matching OEM references 24229A, D, A2516, 334-1875, and 3431875.

Should I upgrade the B+ alternator wiring with this high-output unit?

While this alternator retains standard mounting and terminal connections, installing a dedicated 4-gauge heavy-duty charging wire directly to the battery or starter relay is recommended to maximize charging efficiency and safely handle 110-amp output loads.

The Land Rover Caliber

Engineered for the demands of off-road recovery and remote overland expeditions, this alternator ensures your classic Range Rover maintains unyielding electrical integrity under the harshest trail conditions.
