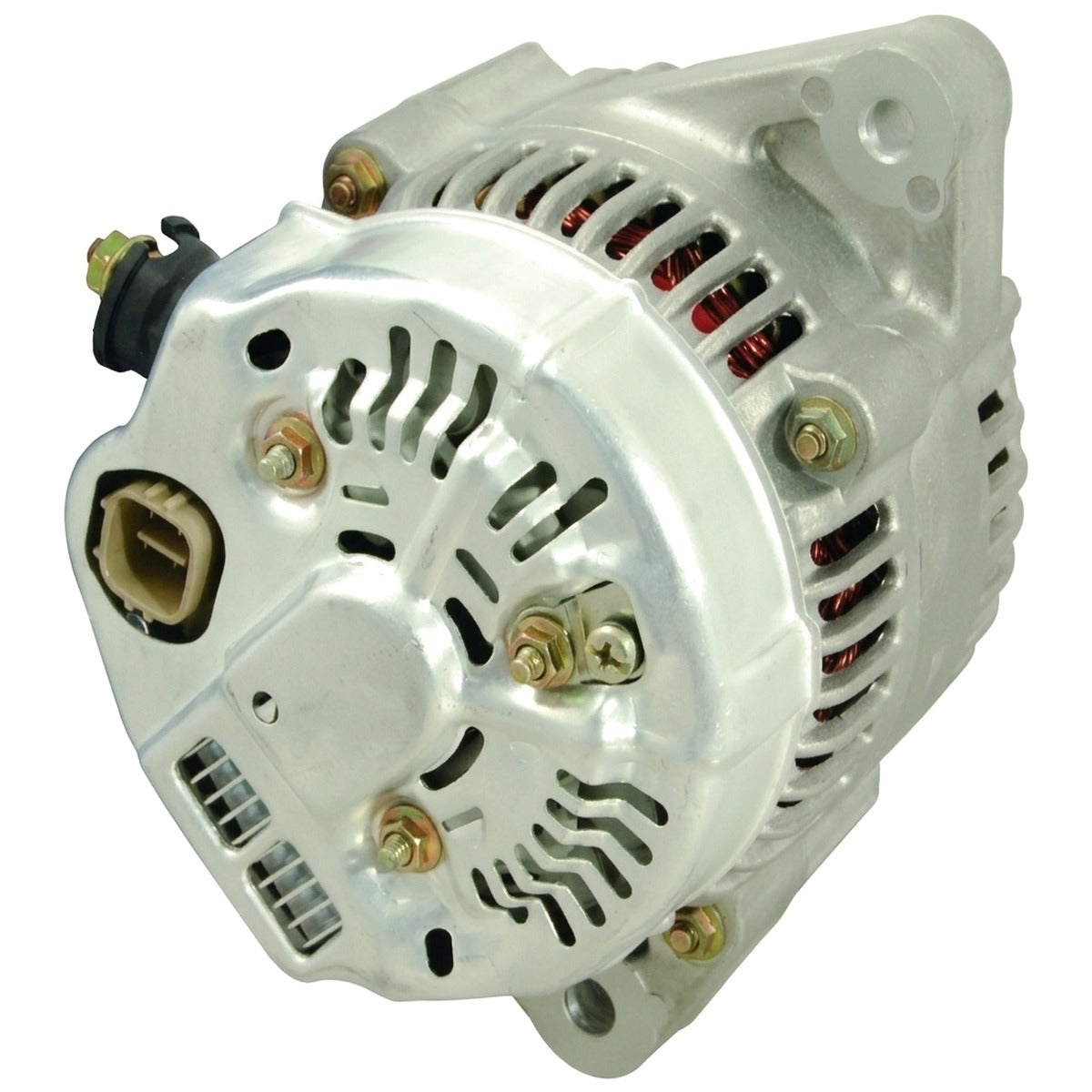

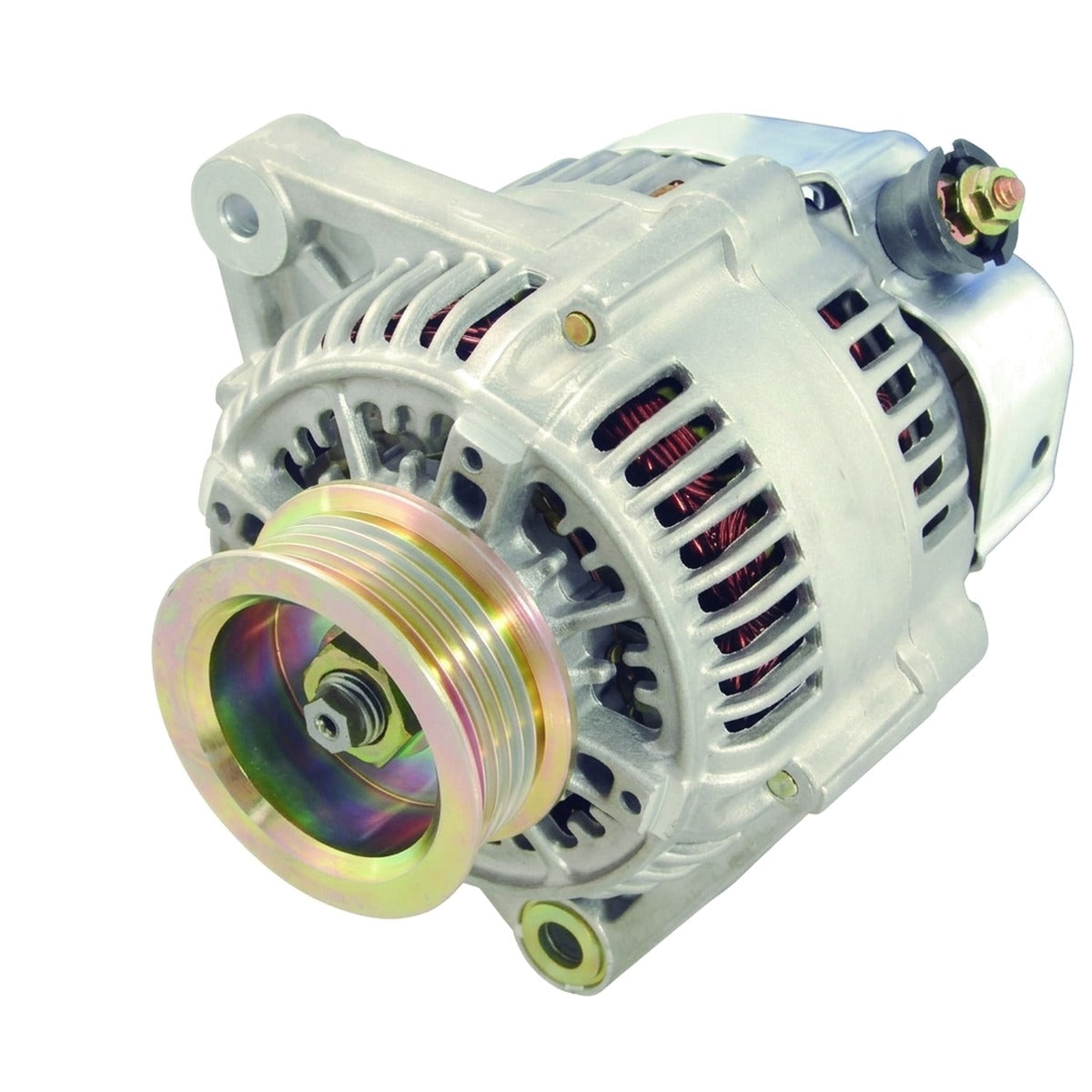

High Output Alternator for Honda Prelude (1997-2001) 2.2L

High-Output 185 Amp Alternator for 1997-2001 Honda Prelude (BB6)

What it Does: The High Output 185-Amp Alternator replaces the low-output factory charging unit on the 1997-2001 Honda Prelude to supply consistent, stable electrical current under demanding auxiliary electrical loads.

The Stock Honda Prelude Charging Deficiencies

The OEM charging system on the 5th generation Prelude was engineered around a modest 80 to 90-amp output. When running modern electronics—such as upgraded audio amplifiers, high-draw electric cooling fans, or high-intensity lighting—the factory alternator struggles to maintain system voltage. At idle and lower RPM thresholds, voltage drop commonly sags below 12.6V, resulting in diode plate overheating, battery drain, dimming instrumentation, and inconsistent primary ignition voltage that degrades spark efficiency on high-revving builds.

The Engineering Solution

Engineered and manufactured in the USA, this high-amperage alternator delivers 185 amps to stabilize current delivery across the entire rev range. Featuring heavy-duty copper hairpin stator windings, high-temperature insulated leads, and heavy-duty avalanche diode rectifiers, this unit manages thermal soak while maintaining high output at low engine speeds. Built to bolt directly into the stock H22A4 bracket assemblies, it retains standard belt geometry and OEM wiring plug integration for a true drop-in mechanical fit.

What's Included

• 1 185-Amp High Output Alternator

Technical Specifications

Compatibility

• 1997 Honda Prelude Base & Type SH (2.2L L4 DOHC VTEC)
• 1998 Honda Prelude Base & Type SH (2.2L L4 DOHC VTEC)
• 1999 Honda Prelude Base & Type SH (2.2L L4 DOHC VTEC)
• 2000 Honda Prelude Base & Type SH (2.2L L4 DOHC VTEC)
• 2001 Honda Prelude Base & Type SH (2.2L L4 DOHC VTEC)

Frequently Asked Questions & Fitment Warnings

Does this fit the BB6 Prelude?

Yes, this is a direct bolt-in fit for the 1997-2001 Honda Prelude BB6 chassis equipped with the 2.2L H22A4 engine.

Should I upgrade my battery charging cable with this unit?

To safely handle up to 185 amps without thermal restriction, upgrading the main alternator-to-battery charging wire to a 4-gauge or larger cable (Big 3 upgrade) is strongly recommended.

The Honda Caliber

Built for the sustained 7,000+ RPM demands of Honda's premier VTEC platform, this charging system delivers the solid amperage required to keep high-performance track and street builds running at peak output.
