High Output Alternator for GMC Sierra (2006-2007) 6.6L

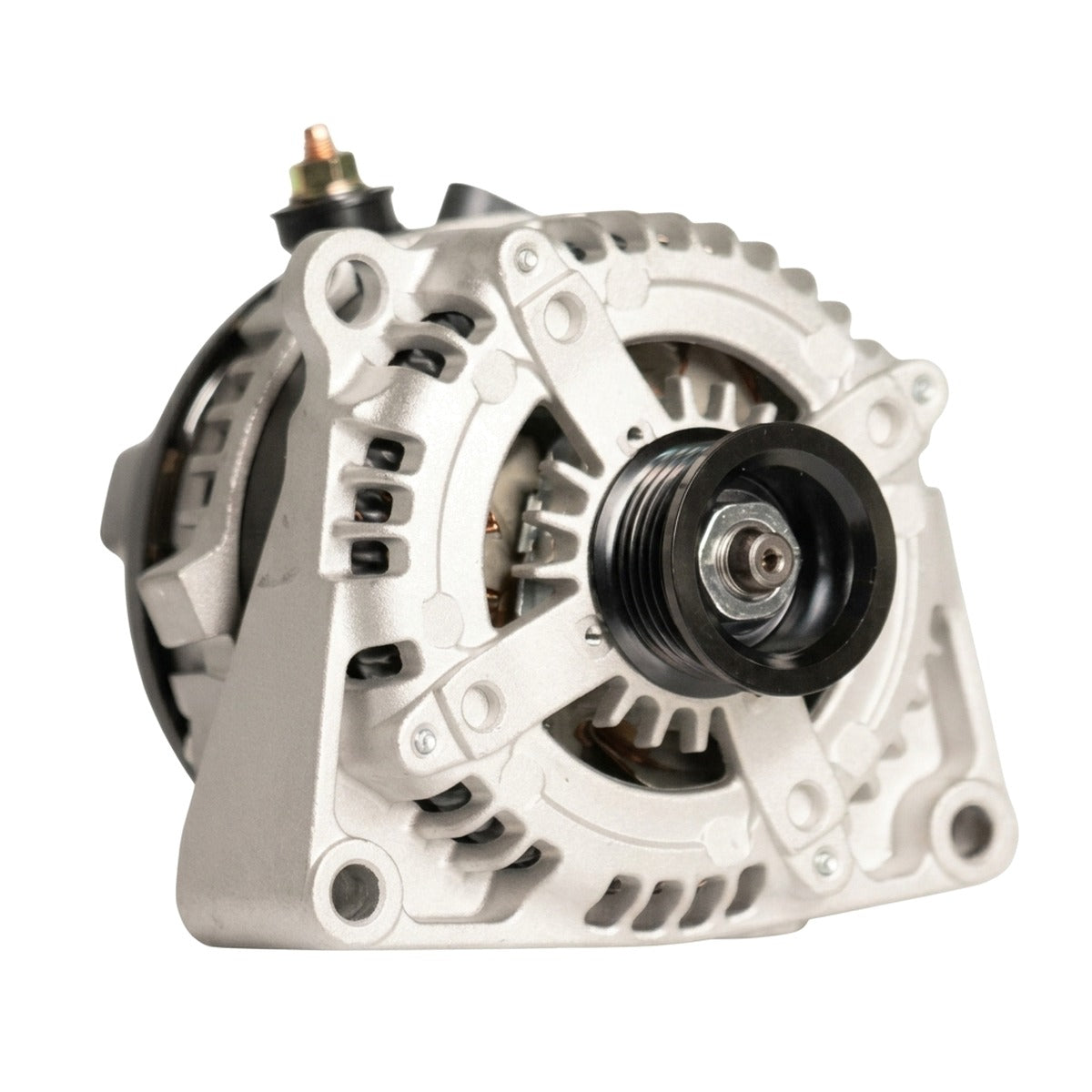

Heavy-Duty 300-Amp High Output Alternator for 2006-2007 GMC Sierra (GMT800)

What it Does: The 300-Amp High Output Alternator replaces the low-output factory charging unit on the 2006-2007 GMC Sierra to deliver reliable, high-amperage current for dual battery setups, winches, plows, and commercial towing equipment without electrical system voltage sag.

The Stock GMC Sierra Charging Weakness

Factory GMT800 trucks equipped with the 6.6L Duramax (LBZ) typically rolled off the assembly line with 105-amp or 145-amp units. In diesel applications with high-draw glow plug cycles, dual battery banks, and aftermarket accessories like onboard air or heavy trailer lighting, the stock stator coils overheat rapidly. Under sustained high-load conditions, internal diodes suffer severe thermal degradation, resulting in extreme voltage drops below 12.2V, flickering instrument clusters, and accelerated battery failure.

The Engineering Solution

This Made in USA 300-amp unit provides a massive reserve capacity over stock. Featuring high-grade copper windings, heavy-duty avalanche diode rectifiers, and an internal bridge rectifier engineered to disperse heat under continuous load, this unit eliminates thermal heat-soak failure. It bolts directly to the factory 6.6L Duramax accessory drive bracket, utilizing standard pulley ratios to maintain exceptional charge rates at idle while handling sustained peak amperage outputs under heavy load.

What's Included

• 1x 300-Amp High Output Alternator

Technical Specifications

Compatibility

• 2006-2007 GMC Sierra 2500 HD 6.6L V8 Turbo Diesel
• 2006-2007 GMC Sierra 3500 / 3500 HD 6.6L V8 Turbo Diesel
• 2007 GMC Sierra 2500 HD / 3500 HD Classic 6.6L V8 Turbo Diesel

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT800 Sierra?

Yes, this is a direct fit for the 2006-2007 GMC Sierra equipped with the 6.6L Duramax engine.

Do I need to upgrade my main power cabling?

While this alternator features a direct-fit bolt pattern and OEM plug configuration, installing a 1/0 AWG Big 3 wiring upgrade is highly recommended to safely handle continuous 300-amp current flow to the battery.

The GMC Heavy-Duty Standard

Built for severe-duty hauling, heavy payload demands, and extreme commercial duty, this alternator ensures uninterrupted power to vital vehicle sensors, glow plugs, and trailer electronics under the toughest trailering conditions.
