High Output Alternator for GMC Savana (2005-2008) 4.3L 5.3L

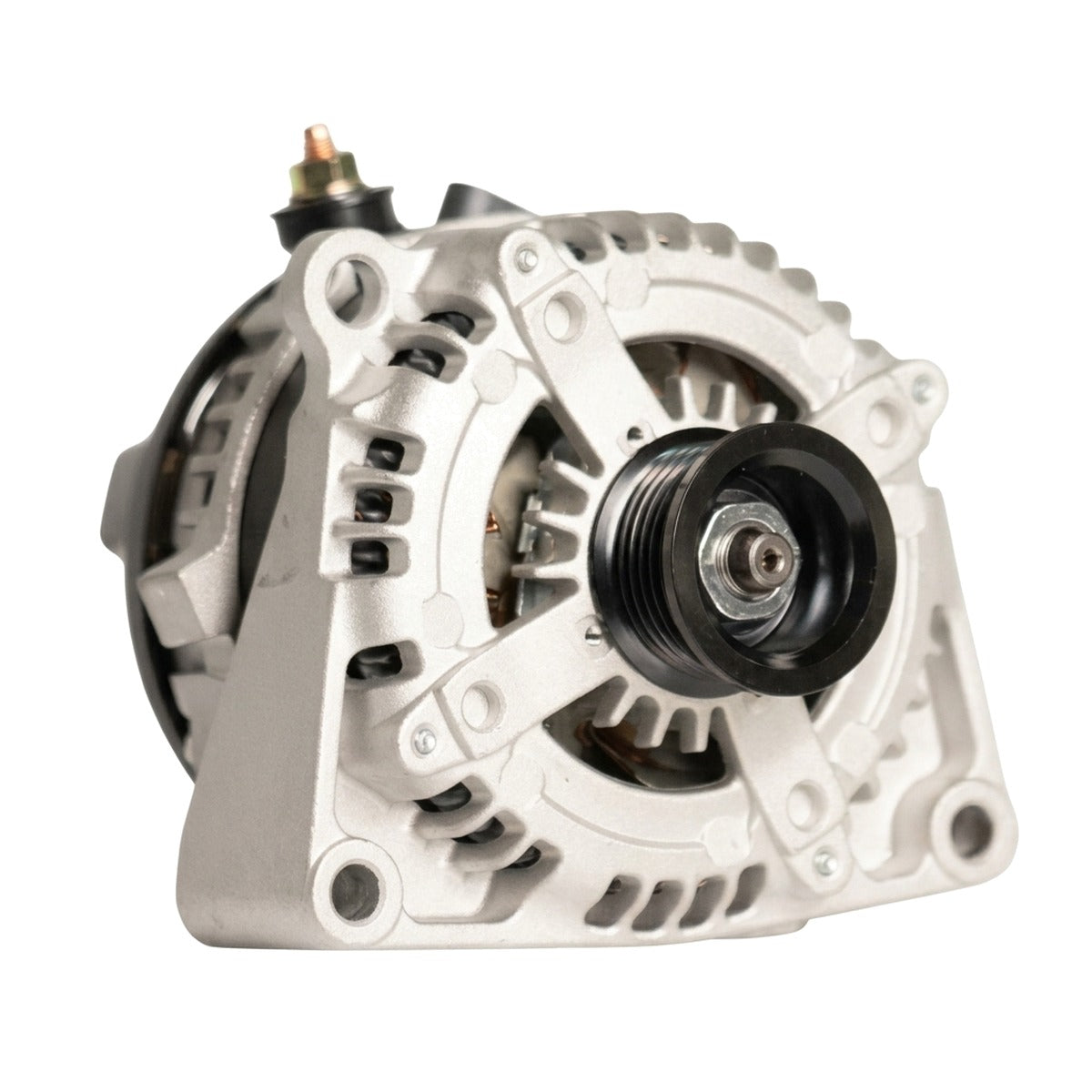

High-Output 300-Amp Replacement Alternator for 2005-2008 GMC Savana (GMT610)

What it Does: The High Output Alternator supplies a sustained 300-amp electrical supply to the 2005-2008 GMC Savana to eliminate voltage drop and support severe auxiliary electrical loads.

The Stock GMC Savana Electrical Bottleneck

Factory charging systems on the GMT610 chassis typically deliver a nominal 105 to 145 amps via the standard Delco or Bosch units. When these work vans are equipped with auxiliary equipment—such as commercial inverters, high-draw lift gates, work lights, or aftermarket audio systems—the OEM stator windings and internal rectifiers reach thermal saturation rapidly. Under high demand, factory charging voltage slumps below 12.6 volts at idle, starving the battery, inducing severe ripple voltage, and causing premature failure of the onboard factory modules and battery banks.

The Engineering Solution

Engineered as a direct bolt-on upgrade, this 300-amp unit features heavy-gauge, high-purity copper windings and an oversized solid-state avalanche diode rectifier to handle immense current without thermal degradation. Balanced rotors maintain structural integrity at high engine RPM, while heavy-duty internal heat sinks dissipate localized stator heat to prevent diode burnout. Direct bolt-in fitment preserves factory belt alignment on both the Vortec 4300 (LU3) and Vortec 5300 (LM7/LMF) belt routing configurations.

What's Included

• 1 300-Amp Alternator

Technical Specifications

Compatibility

• 2005-2008 GMC Savana 1500 / 2500 4.3L V6 (LU3)
• 2005-2008 GMC Savana 1500 5.3L V8 (LM7 / LMF)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT610 Savana?

Yes, this is a direct fit for the 2005-2008 GMC Savana equipped with the 4.3L or 5.3L Vortec engine.

Do I need to upgrade my charging cables to support 300 amps?

Installing a 1/0 AWG "Big Three" wiring upgrade is strongly recommended to safely deliver the full 300-amp capacity without overloading factory wiring harnesses.

The GMC Commercial Standard

Engineered for the rigorous demands of commercial fleet hauling and heavy accessory operation, this heavy-duty unit delivers the reliable continuous power required to keep work vans functional in high-stress, stop-and-go duty cycles.
