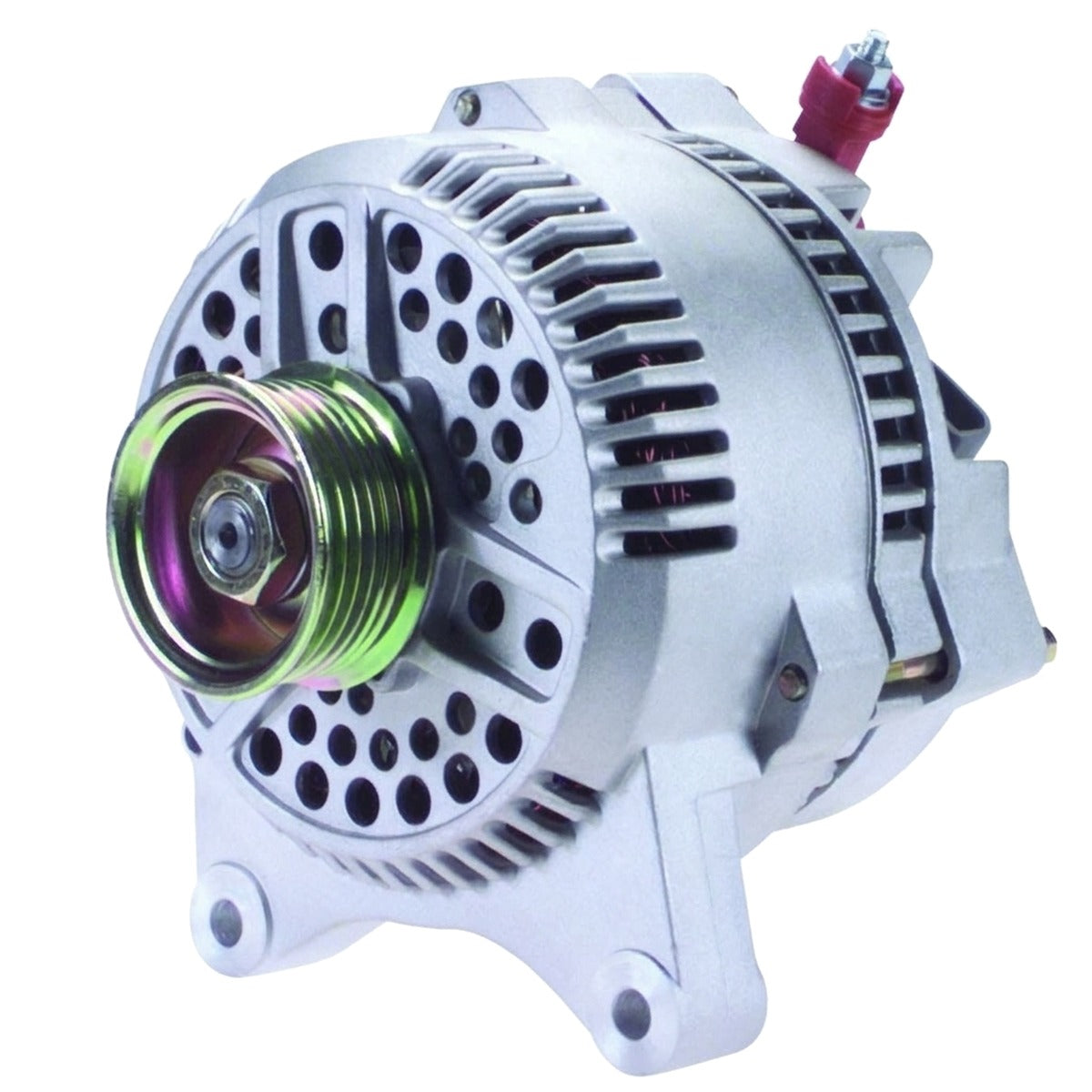

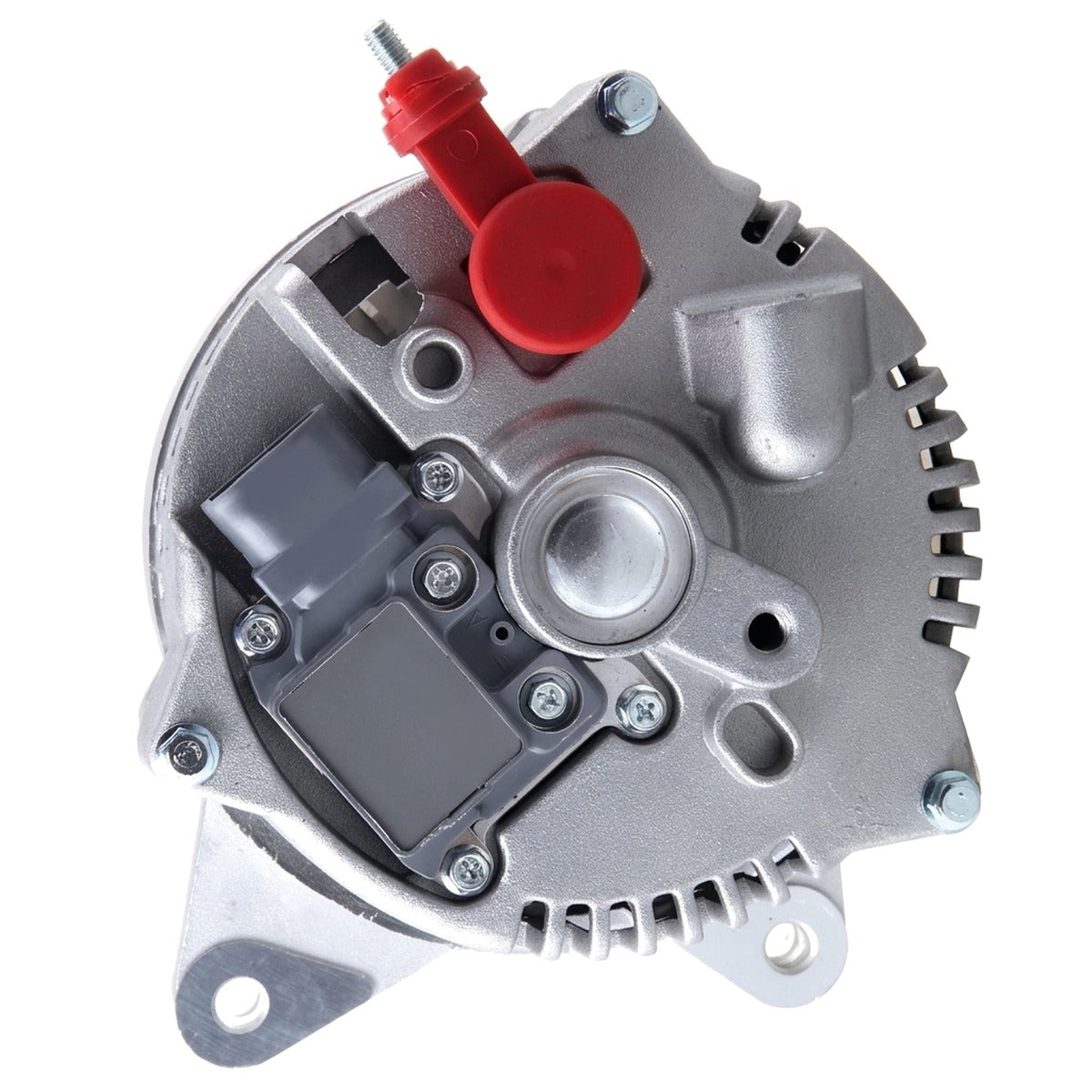

High Output Alternator for Ford Mustang (1996-1998) 4.6L

High-Output 300-Amp Alternator for 1996-1998 Ford Mustang (SN95)

What it Does: The 300-amp high-output alternator replaces the factory charging unit on the 1996-1998 Ford Mustang to deliver stable electrical current under heavy auxiliary loads and eliminate idle voltage drops.

The Stock Ford Mustang Charging Limitation

Factory charging systems on the SN95 platform were engineered around modest factory accessories, utilizing an OEM alternator rated at just 105 to 130 amps. When modifying the 4.6L Modular V8 with high-draw components—such as high-flow electric cooling fans, dual fuel pumps, aftermarket audio systems, or digital ignition boxes—the stock internal diodes and stator overheat rapidly. This thermal stress causes severe voltage drop at idle, diminished ignition spark intensity, erratic sensor readings, and premature diode failure.

The Engineering Solution

Engineered for high-demand applications, this direct-fit 300-amp unit delivers consistent 14.4-volt power stability from idle through redline. Built with heavy-duty copper windings, oversized internal rectifiers, and premium avalanche diodes, it efficiently sheds internal heat to withstand severe engine bay temperatures. The precision-balanced rotor prevents high-RPM failure on the 4.6L Modular V8, ensuring clean voltage supply directly replacing factory units like F6AU-10300-AA and 7776N without requiring bracket modifications.

What's Included

• 1 High-Output 300-Amp Alternator

Technical Specifications

Compatibility

• 1996-1998 Ford Mustang GT 4.6L V8
• 1996-1998 Ford Mustang SVT Cobra 4.6L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the SN95 Mustang?

Yes, this is a direct fit for the 1996-1998 Ford Mustang equipped with the 4.6L Modular V8 engine.

Do I need to upgrade my main charging wire?

Yes, installing a high-amp alternator requires upgrading to a 0-gauge or 4-gauge "Big 3" power cable with an inline fuse to safely handle 300 amps.

The Ford Muscle Caliber

Built to handle sustained wide-open throttle runs and high-load performance builds, this alternator guarantees stable spark energy and clean electrical output across the entire rev range.
