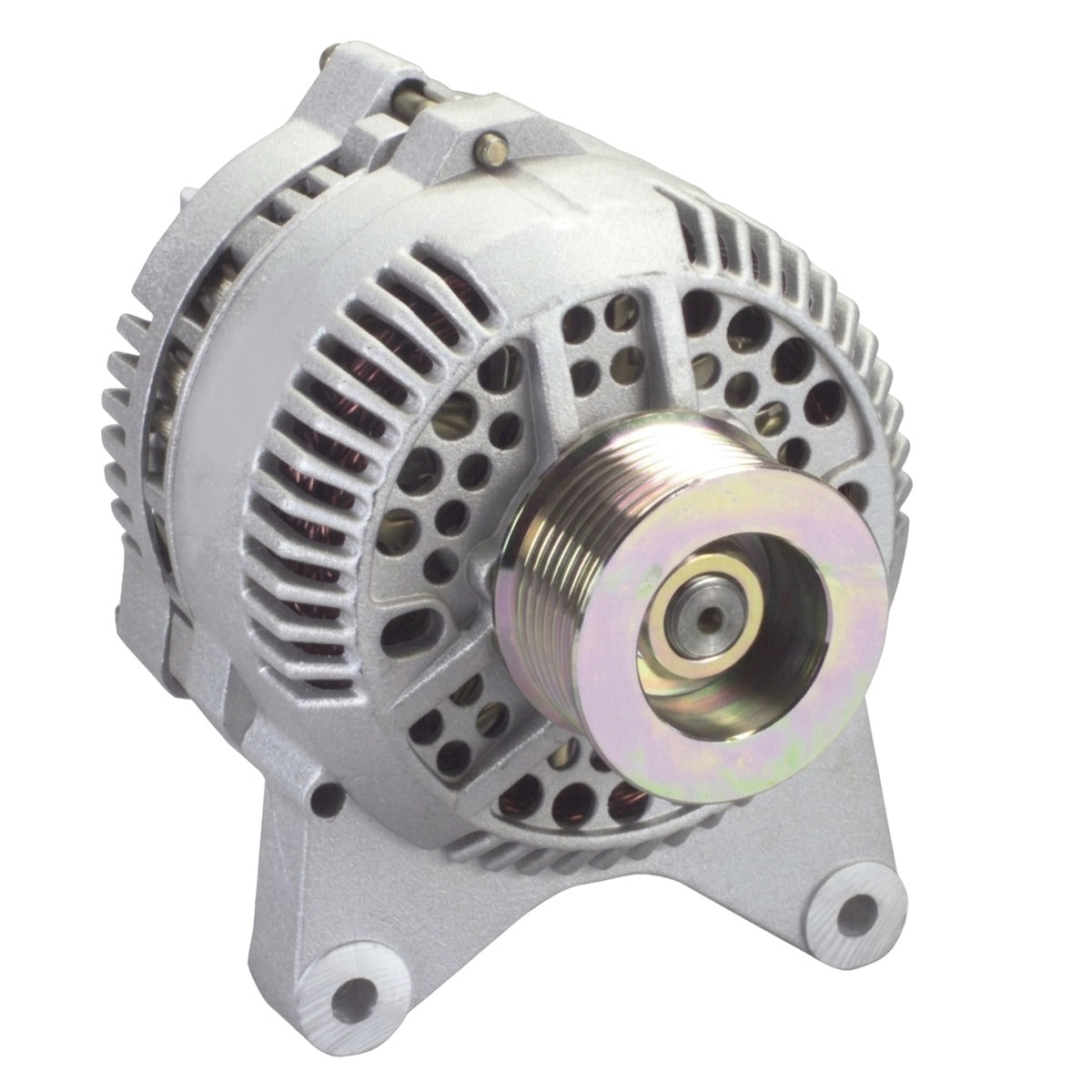

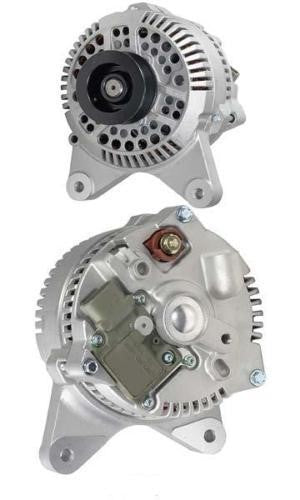

High Output Alternator for Ford F-450 F-550 (1999-2001) 6.8L

High-Output 250-Amp Alternator for 1999-2001 Ford F-450, F-550 (P131)

What it Does: The 250-amp high-output alternator upgrades the factory charging system on 1999-2001 Ford F-450 and F-550 commercial chassis to eliminate voltage sag under heavy electrical loads.

The Stock Ford F-450, F-550 Low-Amperage Bottleneck

Factory commercial P131 platform trucks left the assembly line equipped with modest 95-amp to 130-amp alternators (referencing OE numbers GL497 and F65U-10300-EA). When these commercial trucks run auxiliary work equipment—such as hydraulic dump beds, snow plows, service winches, or high-draw inverters—the stock charging system is quickly overwhelmed. Factory rectifiers overheat, causing acute voltage drops below 12 volts at idle, severe battery sulfation, premature diode burnout, and uncommanded electronic throttle or PCM voltage codes during high-demand operation.

The Engineering Solution

Manufactured in the USA, this heavy-duty 250-amp alternator delivers continuous, reliable electrical stability for the demanding 6.8L Triton V10. Built with oversized heat-sink diode rectifiers, heavy-gauge copper stator windings, and a solid-state internal regulator, it actively mitigates underhood heat soak while delivering substantial current at low idle RPMs. The precision-machined casing maintains factory mounting geometry, OE bolt hole alignment, and correct serpentine pulley offset for a clean bolt-in installation without bracket modification.

What's Included

• 1 x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 1999-2001 Ford F-450 Super Duty 6.8L V10
• 1999-2001 Ford F-550 Super Duty 6.8L V10

Frequently Asked Questions & Fitment Warnings

Does this fit the P131 F-450, F-550?

Yes, this is a direct fit for the 1999-2001 Ford F-450 and F-550 equipped with the 6.8L Triton V10 engine.

Do I need to upgrade my main battery charge cable?

Yes, upgrading to a fused 4-gauge or 1/0-gauge main charging lead (Big 3 upgrade) directly to the battery is strongly recommended to safely carry 250 amps.

The Ford Super Duty Standard

Designed for severe commercial service and high-tonnage hauling, this unit provides the essential current reserve necessary to keep heavy auxiliary fleet equipment running smoothly under peak operating loads.
