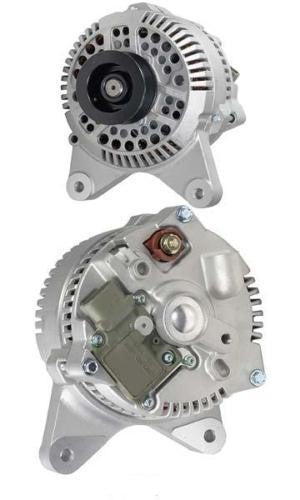

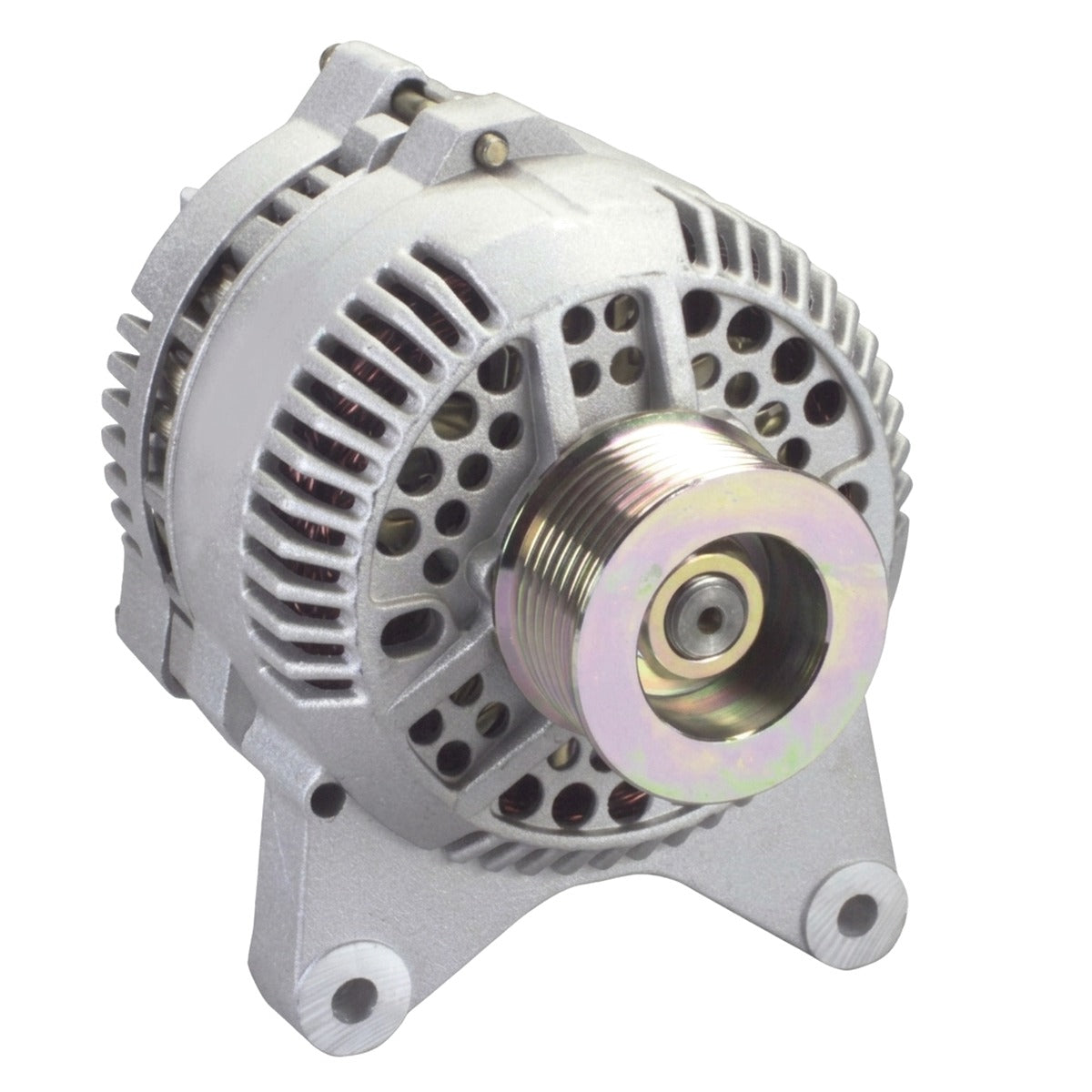

High Output Alternator for Ford F-350 (1999-2001) 5.4L 6.8L

High-Amp 250A Alternator for 1999-2001 Ford F-350 (P131)

What it Does: The 250 Amp High Output Alternator upgrades the factory charging system on the 1999-2001 Ford F-350 to deliver steady continuous electrical current for heavy-duty auxiliary loads, snow plows, and high-draw work equipment.

The Stock Ford F-350 Charging System Deficiencies

Factory Ford P131 Super Duty platforms rolled off the line equipped with standard 95A to 130A alternators that struggle under modern commercial electrical demands. When idling in extreme duty cycles with high-draw equipment—such as auxiliary lighting, hydraulic winches, power inverters, or salt spreaders—the factory Triton Modular platform experiences severe voltage drop. Excessive stator winding resistance and inadequate internal diode heat dissipation accelerate rectifier diode breakdown, leading to chronic battery discharge, flickering cluster electronics, and premature alternator failure caused by relentless thermal saturation.

The Engineering Solution

Engineered and assembled in the USA, this heavy-duty 250-amp unit replaces vulnerable factory units with heavy-gauge copper windings and high-temp precision diodes engineered to minimize internal resistance. Encased in a rugged aluminum housing designed for maximum passive convective cooling, this unit features a heavy-duty internal bridge rectifier, premium sealed bearings, and an internal voltage regulator calibrated to sustain 14.4V across fluctuating RPM ranges. It handles persistent high-amperage draw without thermal throttling or stator shorting, ensuring stable system voltage even under extreme under-hood towing temperatures.

What's Included

• 1 x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 1999-2001 Ford F-350 5.4L V8 Triton
• 1999-2001 Ford F-350 6.8L V10 Triton

Frequently Asked Questions & Fitment Warnings

Does this fit the P131 F-350?

Yes, this is a direct bolt-on fit for the 1999-2001 Ford F-350 equipped with the 5.4L V8 or 6.8L V10 gas engines; it does not fit 7.3L Power Stroke diesel configurations.

Do I need to upgrade my main battery charge wire?

Yes, installing a 0-gauge or 4-gauge "Big 3" power cable upgrade is strongly recommended to safely transfer 250 amps to the battery bank without overheating the stock wiring harness.

The Ford Heavy-Duty Standard

Built to handle punishing commercial haul schedules, plowing cycles, and heavy payload conditions, this unit delivers unyielding charging performance to keep critical heavy-duty Super Duty electronics running cool and dependable under heavy loads.
