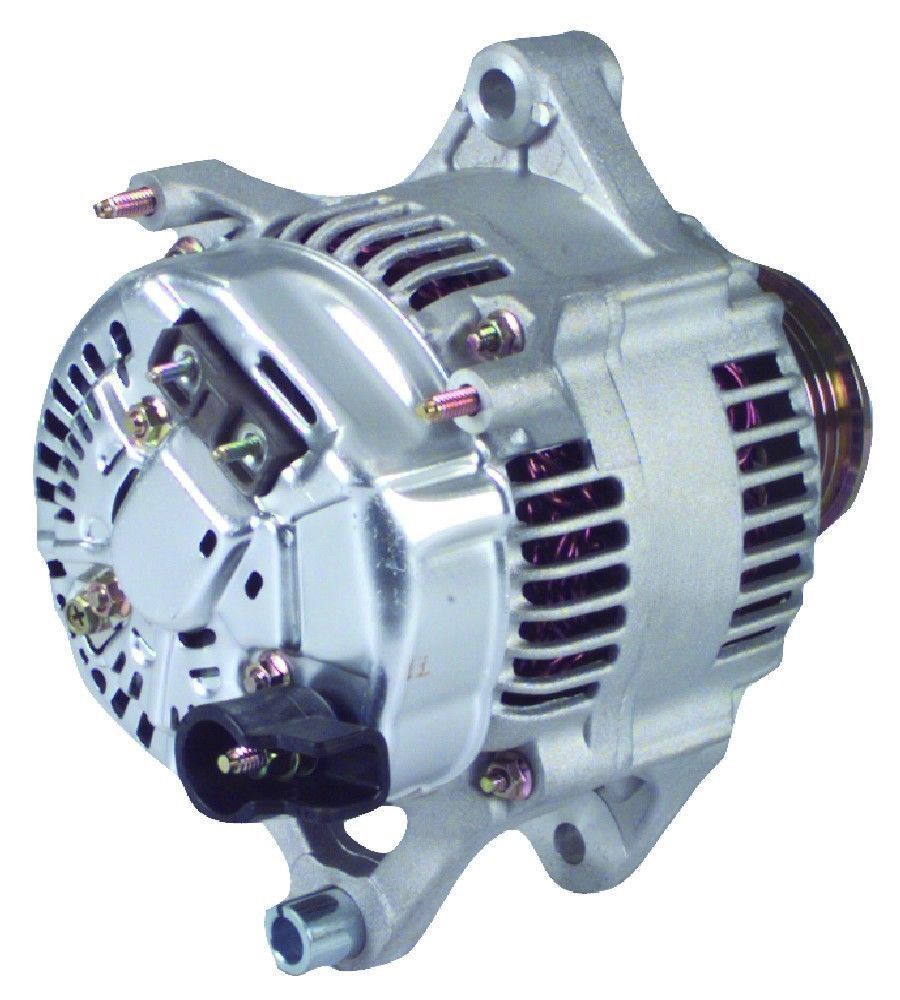

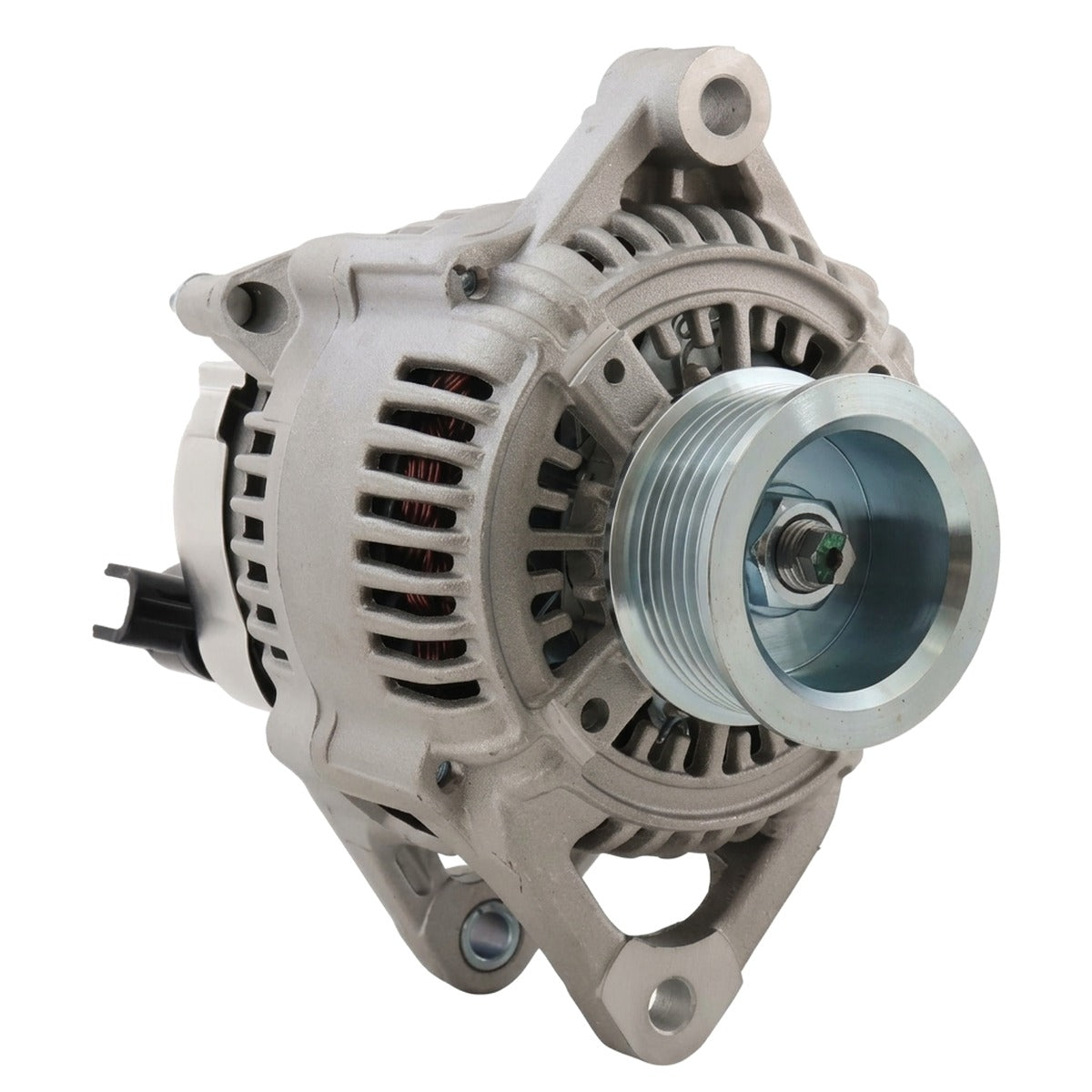

High Output Alternator for Dodge Ram 3500 (1994-1996) 5.9L 8.0L

Heavy-Duty 250-Amp High Output Alternator for 1994-1996 Dodge Ram 3500 (BR)

What it Does: The 250-amp high output alternator replaces the low-output factory charging unit on the 1994-1996 Dodge Ram 3500 to deliver sustained, high-amperage electrical current at idle and full engine load.

The Stock Dodge Ram 3500 Charging System Limitation

Factory Denso charging units installed on the second-generation BR platform Ram 3500 output between 120 and 136 amps, which fails to support heavy commercial equipment, winches, snow plows, and auxiliary lighting. Under sustained electrical draw, factory rectifiers and stator windings suffer severe heat soak, causing sharp voltage drops below 12.6V, premature diode breakdown, and chronic battery undercharging on both the 5.9L Magnum and 8.0L Magnum V10 engines.

The Engineering Solution

Manufactured in the USA, this heavy-duty 250-amp upgrade utilizes high-temperature precision copper windings, premium dual-sealed bearings, and a heavy-duty rectifier equipped with high-amp avalanche diodes to survive intense engine bay heat. Engineered as a bolt-in replacement matching OE bracket geometry, it maintains precise serpentine belt track alignment while stabilizing system voltage at a solid 14.2V to 14.6V across the entire operating RPM range.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 1994-1996 Dodge Ram 3500 5.9L V8
• 1994-1996 Dodge Ram 3500 8.0L V10

Frequently Asked Questions & Fitment Warnings

Does this fit the BR Ram 3500?

Yes, this is a direct fit for the 1994-1996 Dodge Ram 3500 equipped with the 5.9L Magnum or 8.0L Magnum V10 engine.

Do I need to upgrade my main battery charge wire?

Yes, running an upgraded 1/0 or 2-gauge fused positive charging cable directly to the battery is mandatory to safely carry 250 amps without dangerous thermal resistance.

The Dodge Heavy-Duty Standard

Engineered to handle severe commercial towing and sustained low-RPM winch loads, this alternator provides the robust charging reliability required by working heavy-duty Dodge trucks.
