High Output Alternator for Dodge Ram 1500 (2002-2006) 3.7L 4.7L

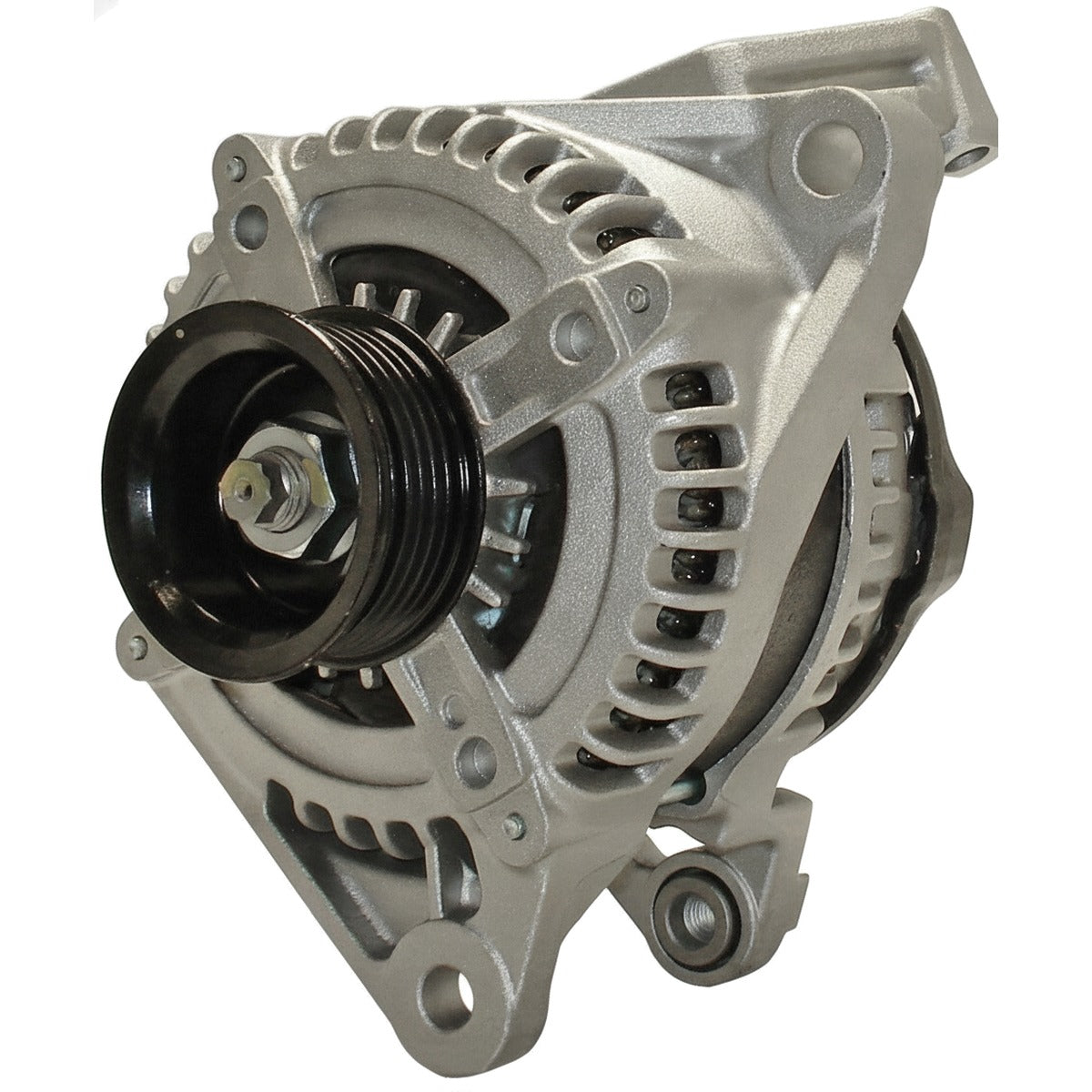

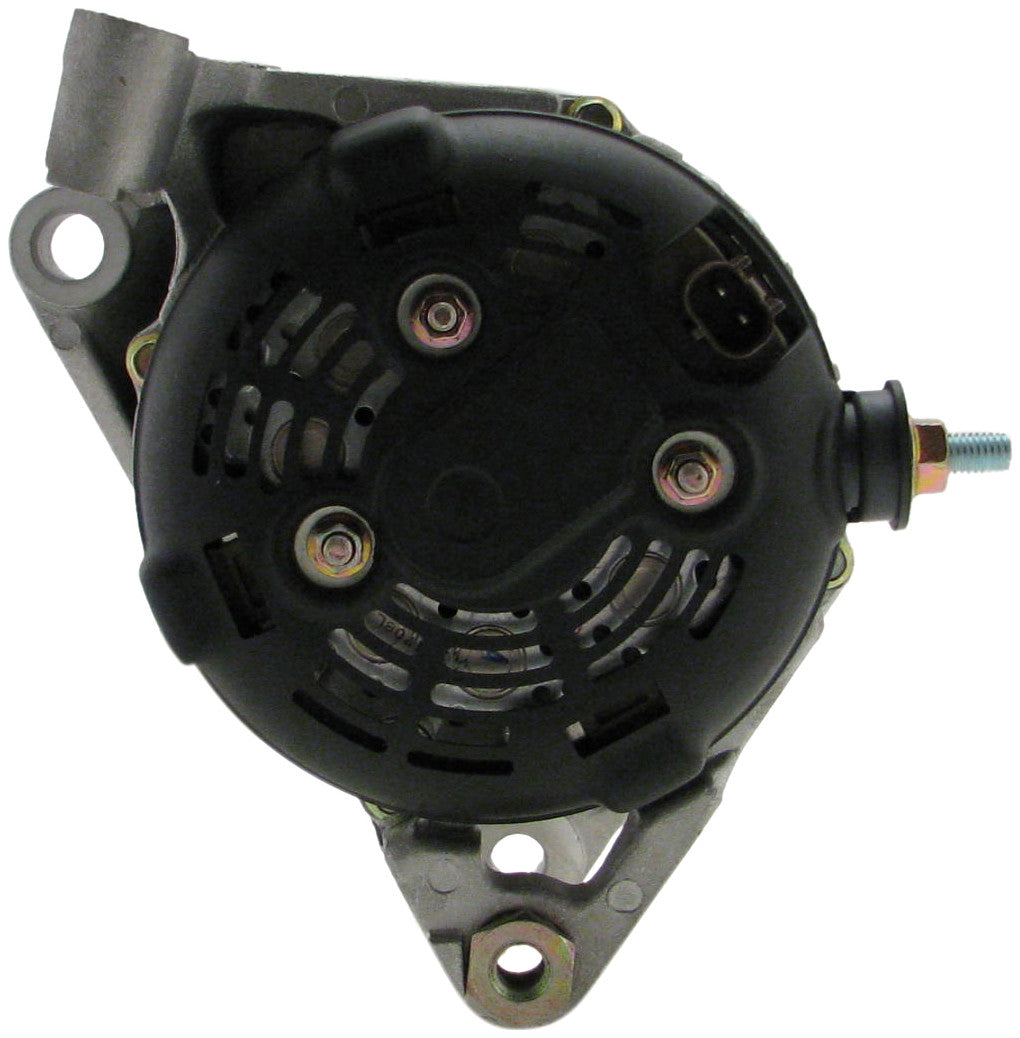

High-Output 250A Alternator for 2002-2006 Dodge Ram 1500 (DR)

What it Does: The 250-Amp High Output Alternator replaces the factory charging unit on the 2002-2006 Dodge Ram 1500 to eliminate voltage drop and deliver reliable, high-amperage electrical current under extreme accessory loads.

The Stock Dodge Ram 1500 Charging Deficit

Factory DR platform trucks equipped with the 3.7L PowerTech V6 or 4.7L PowerTech V8 rolled off the assembly line with standard 136-amp or optional 160-amp alternators. While sufficient for stock electronics, these original units suffer from severe thermal saturation and voltage sag when subjected to aftermarket electrical loads such as winches, snow plows, heavy inverter systems, or high-draw audio setups. Under sustained load at idle, the factory rectifier diodes overheat, reducing charging output to sub-12.8V levels and pulling current directly from the battery, leading to premature cell failure and PCM low-voltage trouble codes.

The Engineering Solution

Engineered as a direct bolt-in upgrade, this 250-amp alternator utilizes heavy-gauge pure copper windings and high-grade silicon steel laminations to dramatically increase low-RPM and peak electrical efficiency. An oversized, heavy-duty internal rectifier with avalanche diodes improves heat dissipation and prevents thermal runaway under sustained amperage draw. Built in a precision-cast aluminum housing with dual internal cooling fans and premium high-temperature bearings, this unit directly interchanges with OEM part numbers 56029700AA and 13912N without bracket modifications.

What's Included

• 1 x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 2002-2006 Dodge Ram 1500 3.7L V6
• 2002-2006 Dodge Ram 1500 4.7L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the DR Ram 1500?

Yes, this is a direct bolt-on fit for the 2002-2006 Dodge Ram 1500 equipped with the 3.7L PowerTech and 4.7L PowerTech engines. This alternator is not compatible with the 5.7L Hemi V8 or 8.3L Viper V10 platforms due to differing mounting bolt patterns and pulley alignments.

Do I need to upgrade my battery cables for a 250A alternator?

A "Big 3" wiring upgrade utilizing 0-gauge or 4-gauge power and ground cables with an inline fuse is strongly recommended to safely carry 250 amps without melting the factory harness.

The Dodge Truck Standard

Whether hauling heavy equipment to the job site or powering emergency trail-recovery accessories, your Ram requires rock-solid charging integrity. This heavy-duty alternator ensures uncompromised electrical stability across severe duty cycles.
