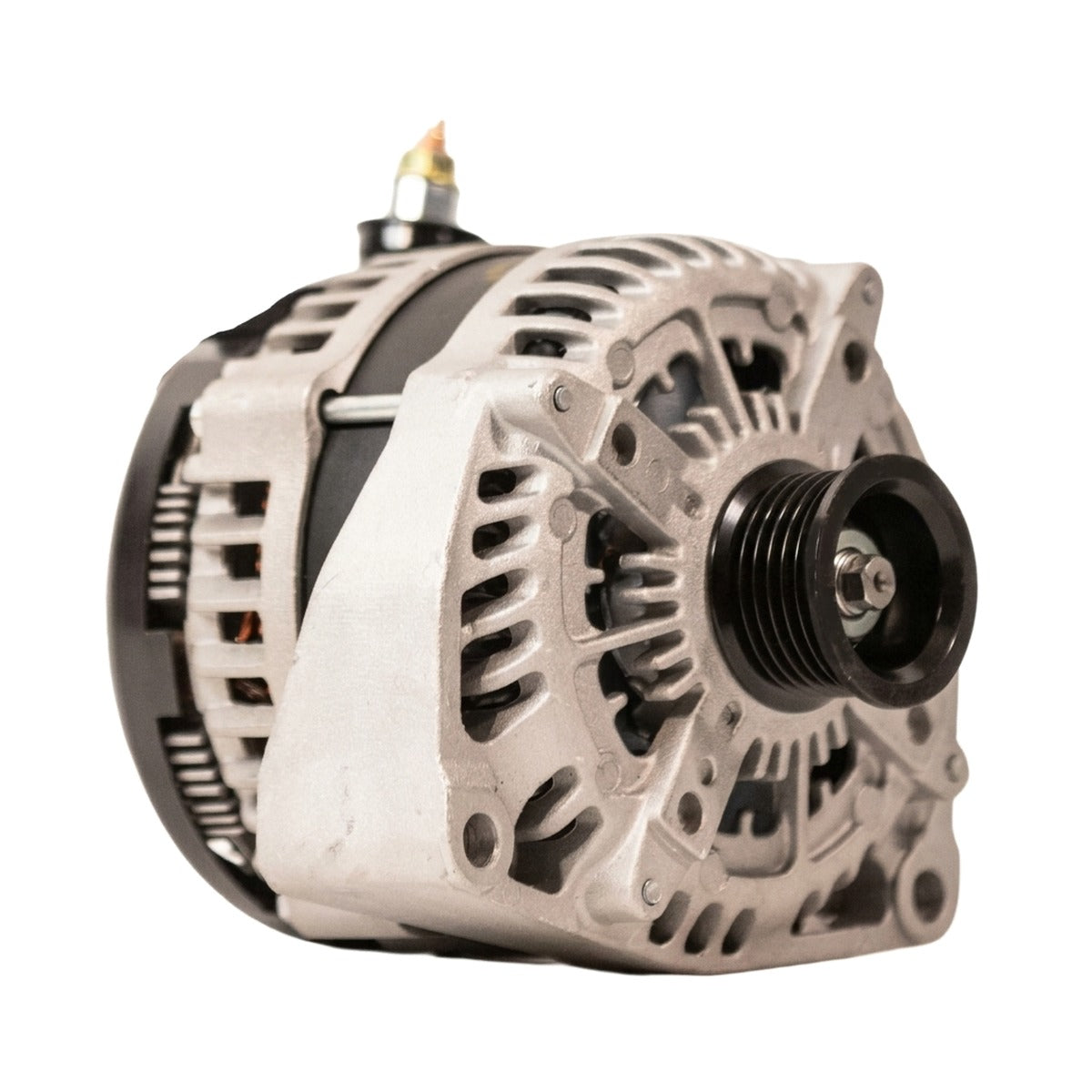

High Output Alternator for Cadillac Escalade (2015-2018) 6.2L

High-Amp 350A Output Alternator for 2015-2018 Cadillac Escalade (GMT K2XL)

What it Does: The 350-amp high output alternator replaces the factory charging unit on the 2015-2018 Cadillac Escalade to eliminate system voltage droop, stabilize CAN-bus electronics, and provide sustained power for high-draw aftermarket accessories.

The Stock Cadillac Escalade Charging Limitations

Factory charging systems on the GMT K2XL platform rely on standard 170-amp or 220-amp alternators engineered solely for factory baseline loads. With modern luxury chassis packing high-current Magnetic Ride Control, electric power steering (EPS), multi-zone climate blowers, and seat heaters, factory units operate near capacity from the showroom floor. When aftermarket audio, auxiliary lighting, or inverters are installed, OEM diode bridges suffer severe thermal stress and heat soak. This leads to excessive voltage drops below 12.8V at idle, premature battery degradation, and nuisance low-voltage trouble codes.

The Engineering Solution

Engineered for high current density, this heavy-duty 350-amp alternator utilizes precision hand-wound copper stators and a reinforced high-efficiency bridge rectifier with heavy-duty press-fit avalanche diodes. The robust housing promotes superior heat dissipation during sustained high-amperage draws, preventing low-RPM voltage drop while running on the factory front-end accessory drive of the L86 engine. Direct-fit casting geometry ensures exact OE alignment without requiring bracket modifications.

What's Included

• 1x 350-Amp High Output Alternator

Technical Specifications

Compatibility

• 2015-2018 Cadillac Escalade (Base, Luxury, Premium, Platinum) 6.2L V8
• 2015-2018 Cadillac Escalade ESV (Base, Luxury, Premium, Platinum) 6.2L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT K2XL Escalade?

Yes, this is a direct fit for the 2015-2018 Cadillac Escalade equipped with the L86 6.2L V8 engine.

Is a "Big 3" wiring upgrade required for this 350A alternator?

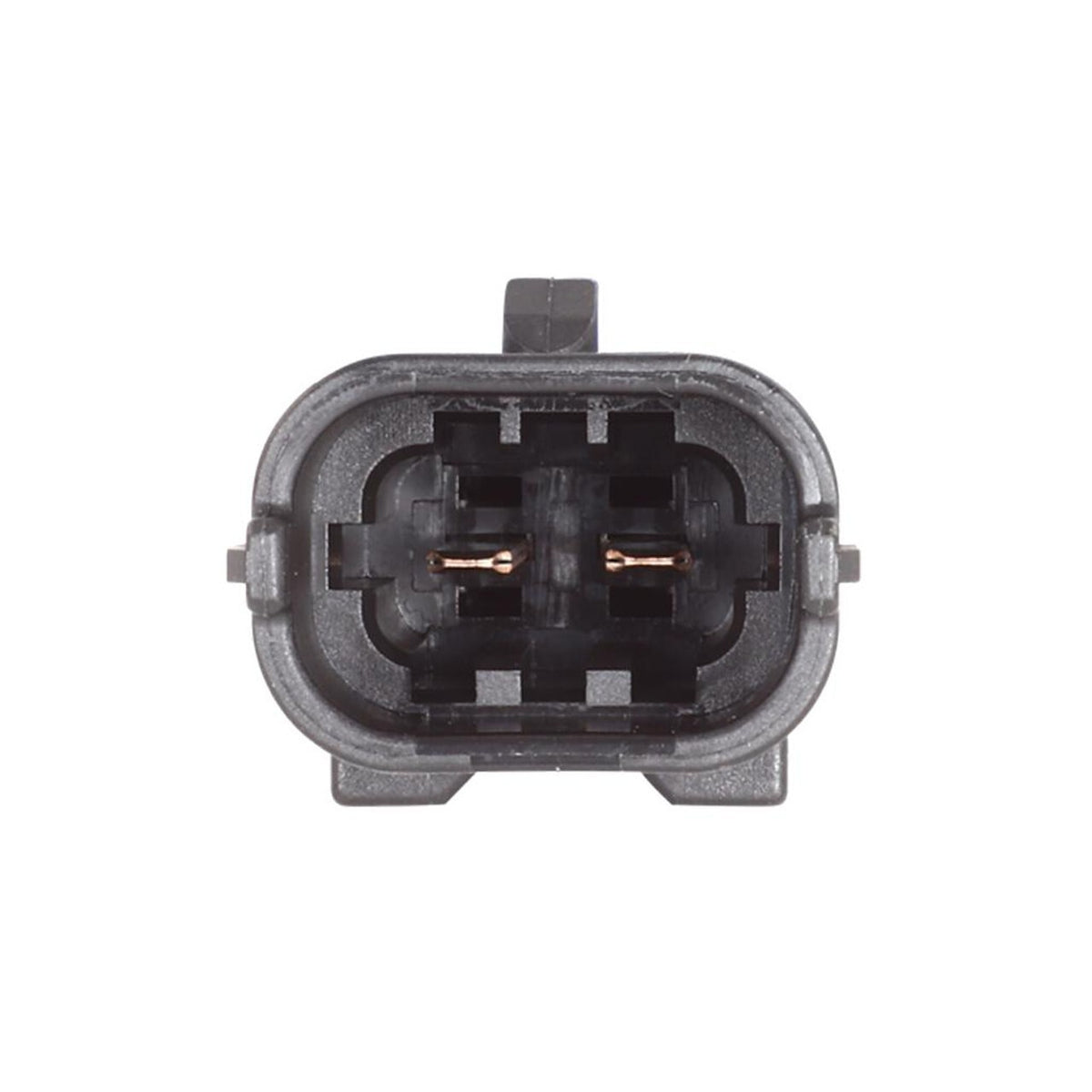

While the alternator bolts to factory brackets and uses OEM plugs, upgrading primary battery positive and ground cables to 0-gauge is strongly recommended to safely deliver 350-amp flow without thermal resistance.

The Cadillac Heavy-Duty Electrical Standard

Built to endure heavy towing, extreme cabin thermal management, and severe accessory loads, this USA-made alternator provides the rugged electrical headroom full-size luxury SUVs require under demanding service duty.
