High Output Alternator for BMW 5 Series (1986-1988) 2.7L 3.5L

High-Output 145-Amp Alternator Upgrade for 1986-1988 BMW 5 Series E28

What it Does: The high output alternator replaces the factory charging unit on the 1986-1988 BMW 5 Series to deliver up to 145 amps, stabilizing bus voltage and supporting high-draw electrical accessories.

The Stock BMW 5 Series Charging Deficiencies

Factory E28 charging systems were originally fitted with modest 80-amp or 90-amp Bosch alternators designed exclusively for stock 1980s electronics. As these classic platforms age, thermal degradation in the stator windings and internal diode leakage result in pronounced voltage drop. Introducing modern electrical demands—such as aftermarket audio amplifiers, high-CFM electric cooling fans, high-output lighting, or auxiliary power supplies—overwhelms the OEM unit. Under load, this causes critical battery discharge at idle, dimming dash illumination, sluggish cranking speeds, and erratic signals to early Motronic engine management computers.

The Engineering Solution

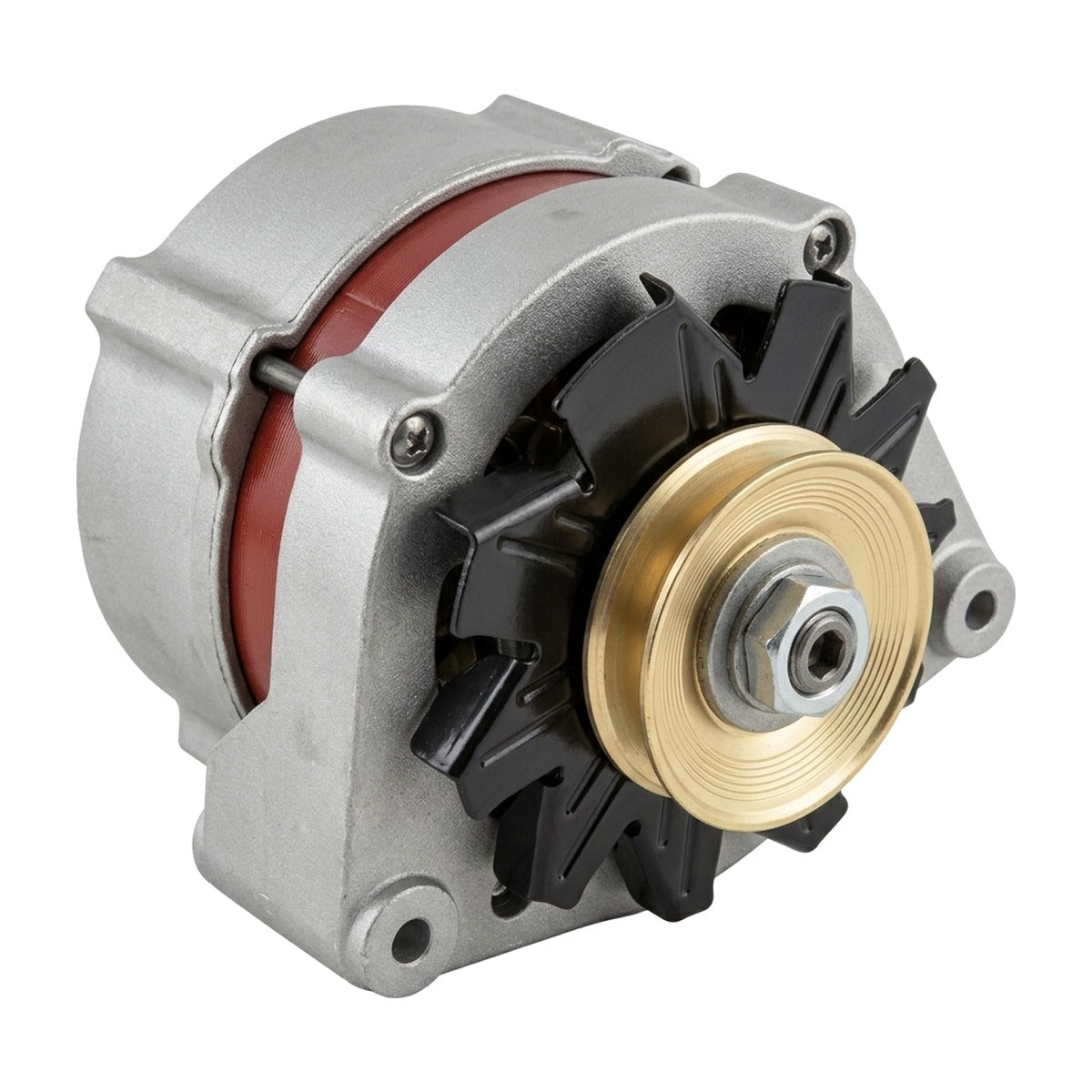

This upgraded AL49X platform increases charging capacity to a solid 145 amps, doubling continuous output headroom across both idle and cruising RPM. Built with high-purity heavy-gauge copper windings and high-temperature silicone diode rectifiers, this unit resists internal heat soak during prolonged operation. It incorporates an internal voltage regulator, an external cooling fan, and a precision-balanced single V-belt pulley. Engineered to direct OEM dimensions, it matches the factory ear mounts and wire harness connectors for straightforward installation without bracket modification.

What's Included

• 1x High Output Alternator (Bosch AL49X-Style, Internal Regulator, External Fan, Single V-Belt Pulley)

Technical Specifications

Compatibility

• 1986-1988 BMW 528e 2.7L (M20B27)
• 1986-1987 BMW 535i 3.5L (M30B34)

Frequently Asked Questions & Fitment Warnings

Does this fit the E28 5 Series?

Yes, this is a direct fit for the 1986-1988 BMW 5 Series equipped with the M20B27 2.7L and M30B34 3.5L inline-six engines.

Do I need to upgrade my charging wire?

For applications drawing sustained heavy loads, upgrading the primary battery charge cable and chassis ground wires is recommended to safely handle the full 145-amp current flow.

The BMW Precision Standard

Maintaining proper operating voltage across a vintage European chassis is essential to protecting sensitive control modules, extending battery service life, and preserving uninterrupted electrical reliability.
