High Flow Exhaust Manifold and Up Pipes for GMC Sierra (2001-2016) 6.6L Diesel 2WD

High-Flow Stainless Exhaust Manifold and Up Pipes for 2001-2016 GMC Sierra (GMT800 / GMT900 / K2XX)

What it Does: The high-flow exhaust manifold and up pipe kit replaces restrictive factory exhaust components on 2001-2016 GMC Sierra 2WD trucks to reduce exhaust gas backpressure and accelerate turbocharger spool.

The Stock GMC Sierra Manifold and Bellows Failure

Factory cast-iron exhaust manifolds on the 6.6L Duramax platforms suffer from severe internal flow choke points—particularly the pinched driver-side manifold designed solely for steering shaft clearance. Over heavy towing cycles, prolonged thermal expansion causes OEM cast units to warp or develop hairline cracks across the flanges. Simultaneously, rigid factory up pipes lack adequate expansion allowance, resulting in ruptured bellows, pressurized soot leakage, elevated exhaust gas temperatures (EGTs), and critical drive pressure loss upstream of the turbine housing.

The Engineering Solution

Engineered from heavy-duty stainless steel, this exhaust manifold and up pipe system yields up to a 55% increase in exhaust flow over factory cast runners. The manifold internal diameters are enlarged and mandrel-profiled to equalize pulse scavenging directly into the turbocharger. The heavy-duty stainless up pipes integrate multidirectional flexible bellows sections to isolate torsional engine twist and severe heat cycling. The result is optimized exhaust velocity, reduced thermal load on the cylinder heads, and rapid transient boost response under sustained load.

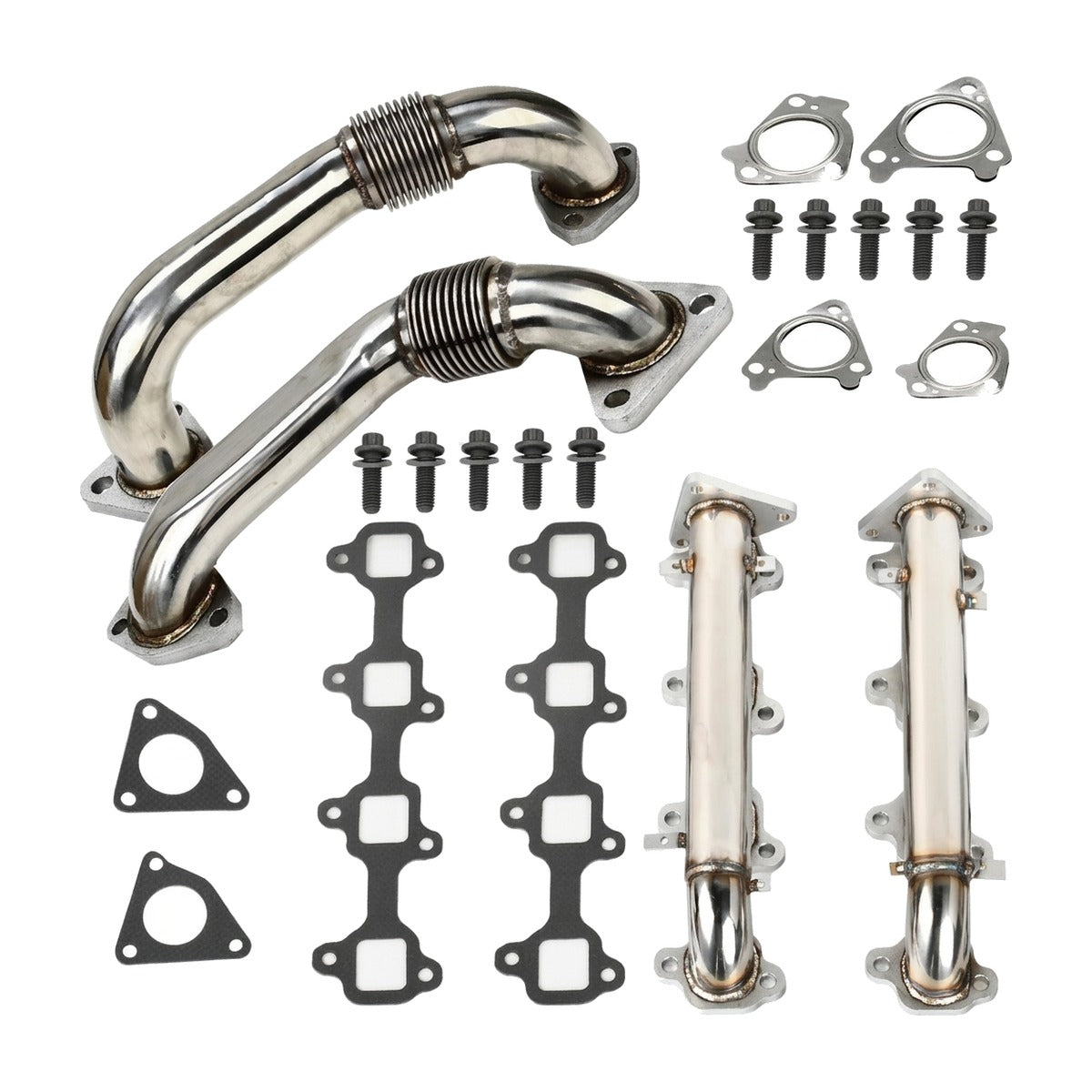

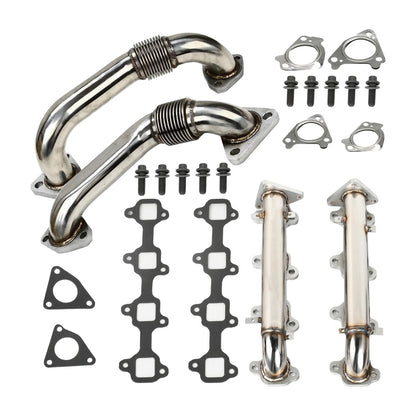

What's Included

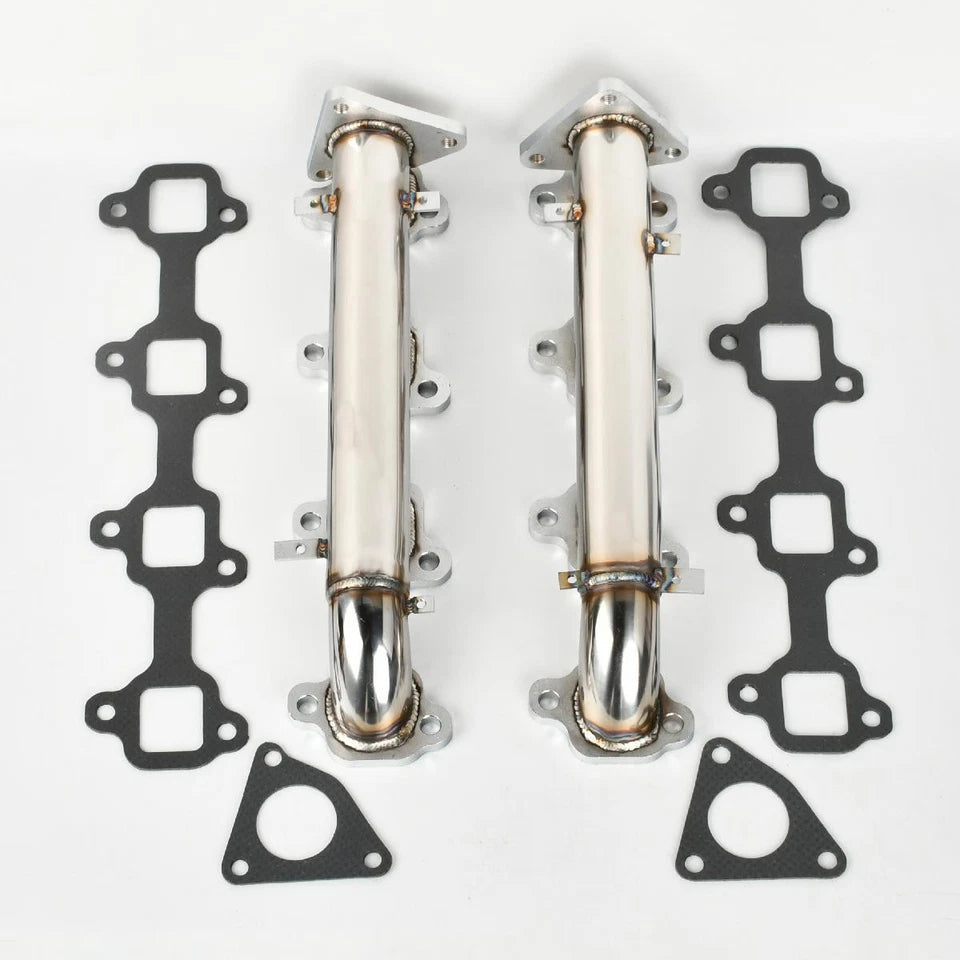

• 1 Driver Side Exhaust Manifold
• 1 Passenger Side Exhaust Manifold

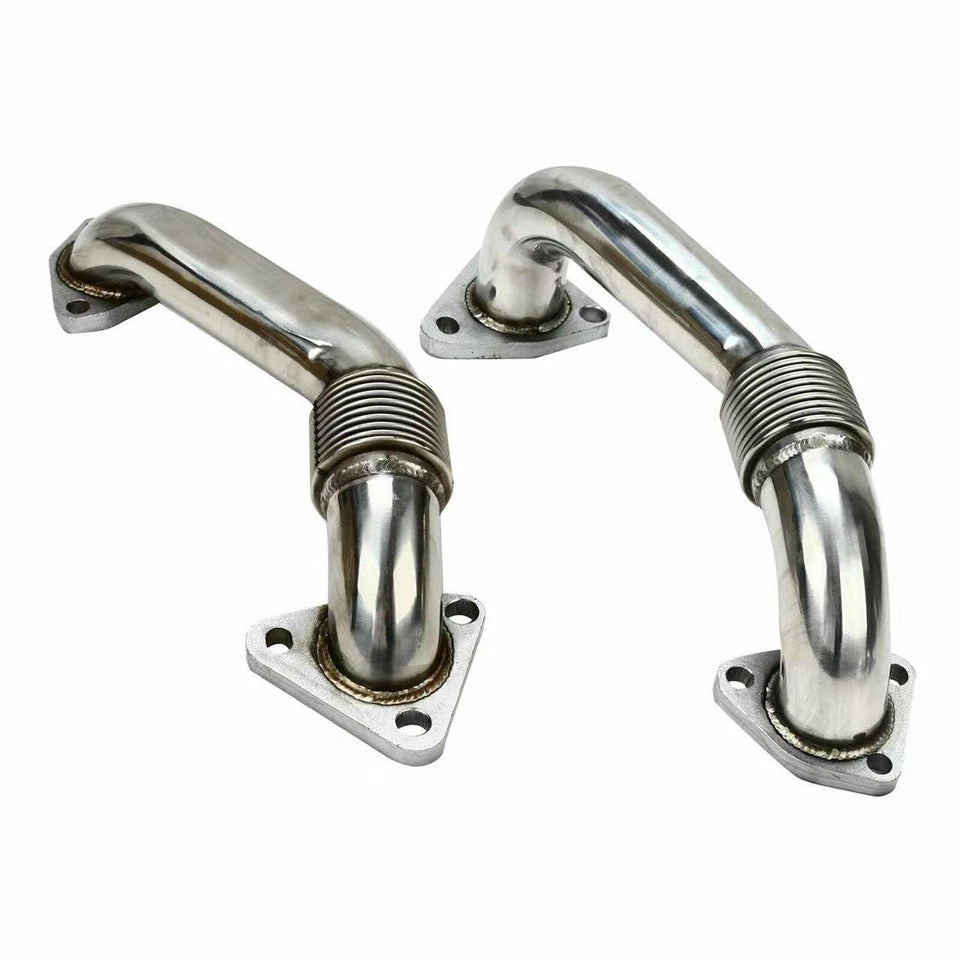

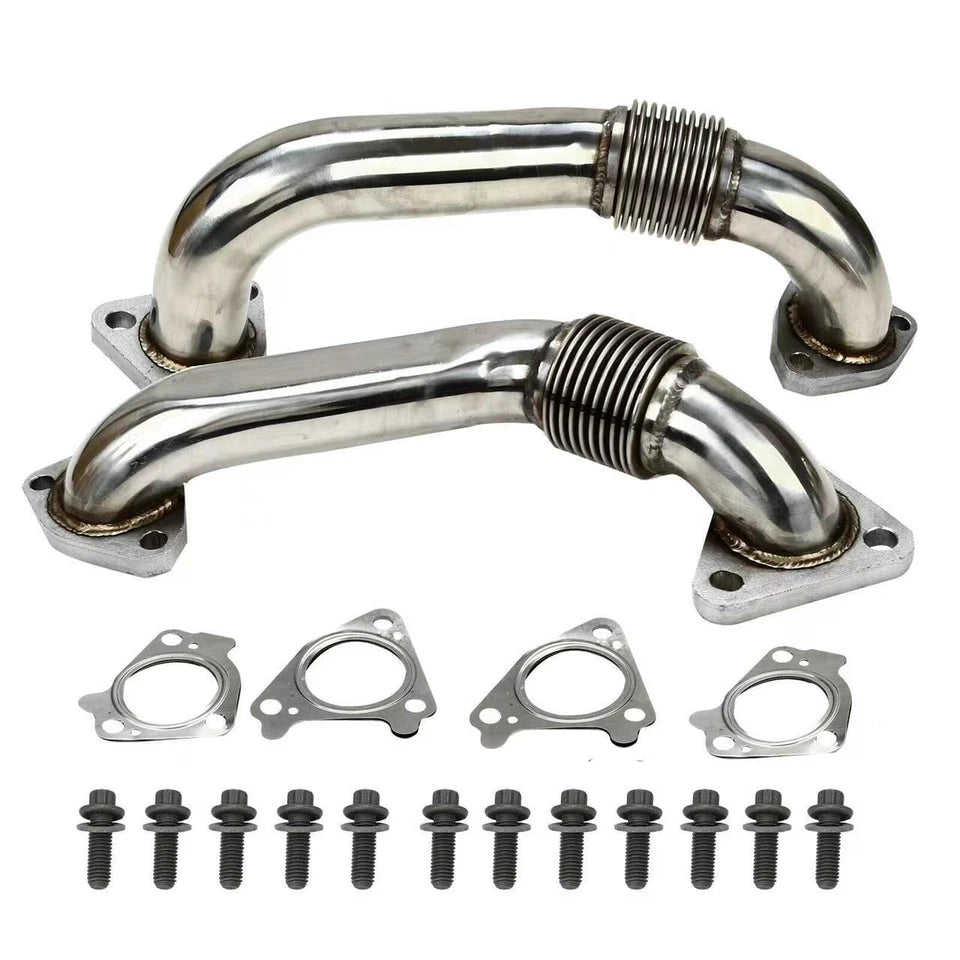

• 2 Up Pipes (Driver and Passenger)
• Driver and Passenger Side Manifold Gaskets
• Up Pipe Gaskets
• Manifold to Up Pipe Bolts and Washers

Technical Specifications

Compatibility

• 2001-2016 GMC Sierra 2500 HD 6.6L Duramax Diesel (2WD Only)
• 2001-2016 GMC Sierra 3500 6.6L Duramax Diesel (2WD Only)
• 2001-2016 GMC Sierra 3500 HD 6.6L Duramax Diesel (2WD Only)
• Covers LB7, LLY, LBZ, LMM, and LML engine variants

Frequently Asked Questions & Fitment Warnings

Does this fit the 4WD Sierra?

Yes, this is a direct fit for the 2001-2016 GMC Sierra equipped with the 6.6L Duramax engine. This kit is exclusively engineered for 2WD models and does NOT fit 4WD/AWD configurations or non-factory engine swaps.

Are aftermarket modifications required to install this kit?

This is a bolt-on assembly using factory mounting locations, but professional installation is highly recommended to ensure correct alignment and torque on all hardware.

The GMC Heavy-Duty Towing Standard

Built to handle severe commercial loads and high gross vehicle weight ratings, this stainless assembly ensures continuous thermal stability and reliability across grueling grades.
