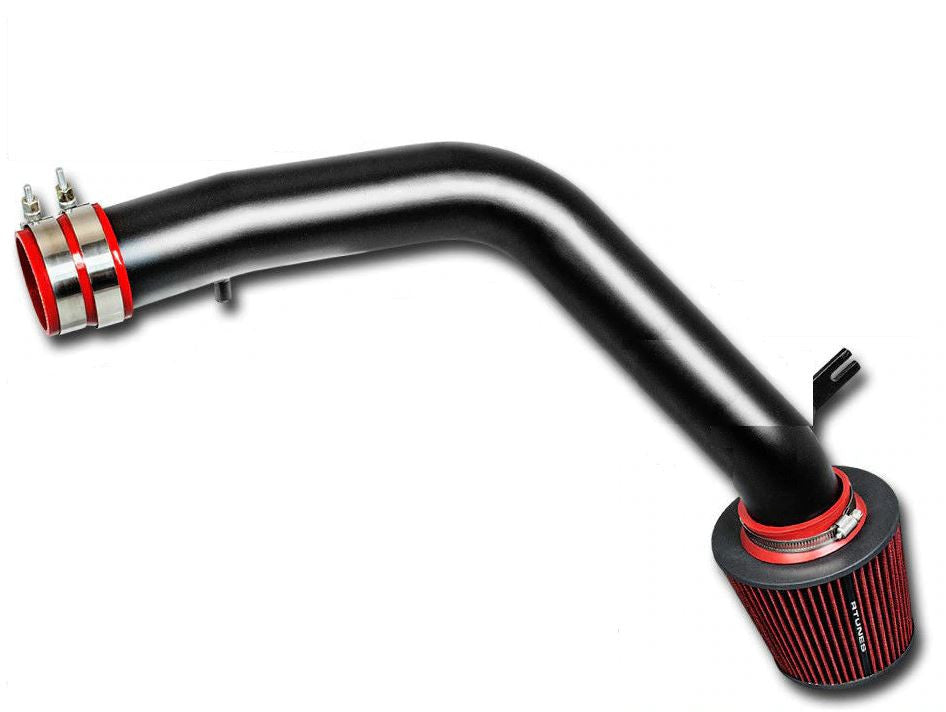

Admission d'air froid pour moteur Honda Accord (2003-2007) 3.0L

The Wrench Time

• Estimated Time: 60-90 Minutes
• Difficulty: 4/10 - Wrenching is easy, but accessing the J-series factory lower resonator requires patience and pulling back the fender liner.

Tools You Will Need

• 10mm shallow and deep sockets with a 6-inch extension
• 8mm socket or nut driver (for hose clamps)
• Panel popper tool (crucial for ancient, brittle Honda fender clips)
• #2 Philips head screwdriver
• Needle-nose pliers (for factory spring clamps on vacuum lines)

Phase 1: Removing the Factory Part

1. Disconnect the Battery: Always start by disconnecting the negative battery terminal on your 2003-2007 Honda Accord 3.0L using a 10mm wrench. This prevents accidental shorts and resets the ECU so it can learn the new airflow parameters.
2. Evacuate the Sensors: Locate the IAT sensor plugged into the factory rubber intake arm. Gently press the release tab and unplug the harness. Carefully wiggle the plastic IAT sensor out of the rubber grommet. Do not pry it with a screwdriver; the plastic element will snap. Set it aside in a safe place.
3. Release the Vacuum Lines: Using your needle-nose pliers, pinch the factory spring clamp holding the crankcase breather hose to the intake tube and slide it back. Pull the rubber hose off the intake nipple.
4. Remove the Upper Airbox: Grab your 8mm socket and loosen the hose clamp securing the intake tube to the throttle body. Use your 10mm socket and #2 Philips screwdriver to remove the bolts holding the upper airbox housing. Pull the entire upper assembly and rubber tube out of the engine bay.
5. Extract the Hidden Resonator: Peel back the driver’s side wheel well fender liner using your panel popper. Look up inside the bumper cavity to locate the remaining 10mm bolts securing the giant factory plastic resonator box. Unbolt it and slide it down and out of the vehicle to make room for your new cold air piping.

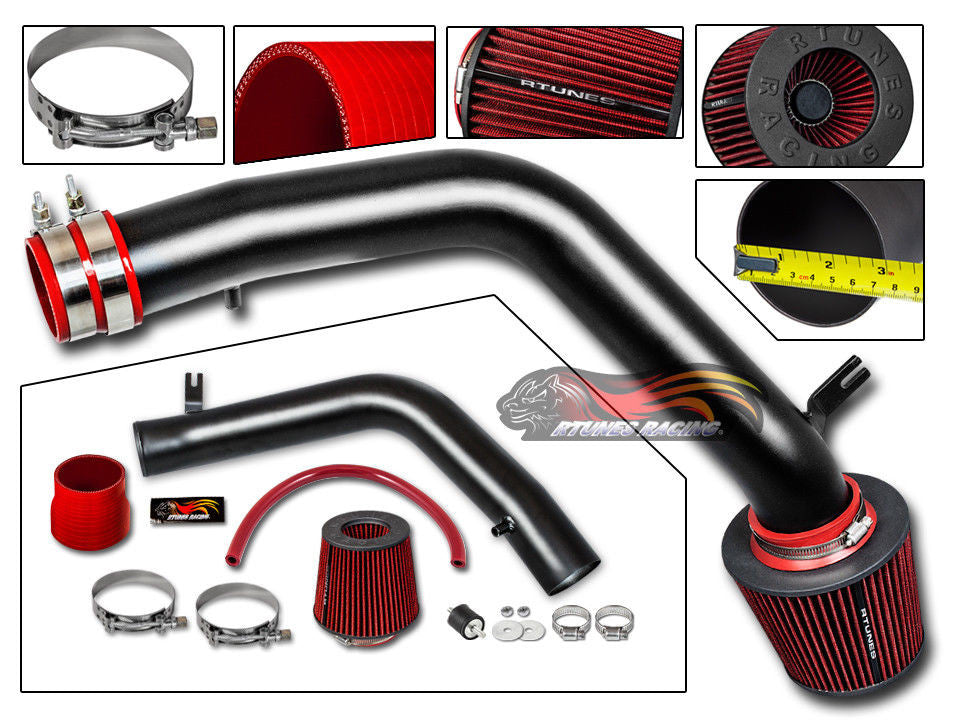

Phase 2: Installing the Cold Air Intake for Honda Accord (2003-2007) 3.0L Engine

1. Prep the Throttle Body: Slip the new silicone step-up coupler over the Accord’s factory throttle body. Loosely install two provided hose clamps over the coupler, but do not tighten them yet.
2. Route the Cold Air Pipe: Carefully snake the new aluminum intake pipe down through the hole left by the factory airbox, routing the lower half down into the empty driver’s side bumper cavity. Slide the top of the pipe into the silicone throttle body coupler.
3. Transfer the IAT Sensor: Take the fragile factory IAT sensor you saved earlier. Smear a single drop of clean engine oil on its rubber O-ring to prevent tearing, and gently push it into the pre-drilled grommet hole on your new intake pipe. Reconnect the electrical harness.
4. Secure the Hardware: Attach the factory crankcase breather hose to the welded nipple on the new intake pipe using the factory spring clamp and your pliers. Line up the pipe’s welded mounting bracket with the factory airbox mounting hole on the chassis. Secure it using a 10mm socket and the provided vibration-mount bolt.
5. Mount the Filter: From down inside the wheel well, slide the high-flow cone filter onto the bottom of the cold air pipe. Tighten the filter clamp down snugly using your 8mm socket. Reinstall all fender liner clips with your panel popper.
6. The Idle Relearn: Double-check all clamps and tighten the throttle body connections with your 8mm socket. Reconnect the negative battery terminal. Start the vehicle. Do not touch the gas pedal for at least 20 seconds. Let the J30 engine idle and allow the ECU to calibrate to the massive increase in cold airflow before you go out and enjoy that aggressive VTEC crossover roar.

Disclaimer: This is a general guide provided for the 2003-2007 Honda Accord 3.0L. Always refer to your factory service manual for exact torque specifications and safety procedures.
