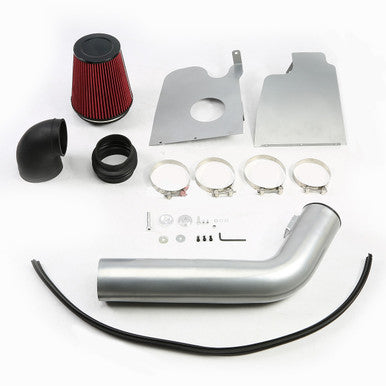

Admission d'air froid pour moteur Ford F-150 (2004-2008) V8 5,4 L



Prix habituel $129.95
Prix promotionnel $129.95 Prix habituel $199.95
Frais d'expédition calculés à l'étape de paiement.

  • Ajustement garanti
  • Approuvé par des milliers de personnes
  • Garantie à vie

Vous le voulez bientôt ? Commandez dès maintenant !

I18n Error: Missing interpolation value "end_date" for "Se termine le {{ end_date }}"
Jusqu'à 35% de réduction

Dominez la route : Admission d'air froid haute performance pour votre Ford F-150 5.4L Triton V8

À qui s'adresse-t-il : Conçu spécifiquement pour les propriétaires de Ford F-150 équipés du moteur Triton V8 de 2004 à 2008, que vous utilisiez votre véhicule au quotidien, que vous l'utilisiez le week-end ou que vous comptiez sur votre camion pour des opérations de remorquage et de transport importantes.

Le problème : Le système d'admission d'air d'origine du V8 Triton 5,4 L du F-150 a été conçu avant tout pour un fonctionnement silencieux et économique, et non pour des performances optimales. Après des années d'expérience sur ces camions, j'ai pu constater par moi-même comment la boîte à air d'origine, avec ses tubulures complexes et son filtre en papier restrictif, bride le puissant V8 Triton, surtout lorsqu'on sollicite sa puissance maximale : que ce soit pour transporter une charge lourde, tracter une remorque ou simplement rouler à vive allure sur l'autoroute. Elle limite la capacité du moteur à respirer correctement, ce qui entraîne une réponse à l'accélérateur poussive et une perte de puissance et de couple.

La solution : Nous avons conçu ce système d'admission d'air froid pour corriger directement les défauts de conception d'origine du V8 Triton, offrant ainsi des performances fiables et optimisées. En remplaçant les composants d'origine restrictifs par une conception à haut débit et à circuit direct, ce système garantit à votre V8 Triton de 5,4 L un apport constant et important d'air frais et riche en oxygène. Il ne s'agit pas d'une simple amélioration ; c'est redonner au moteur la puissance et la réactivité qu'il aurait dû avoir d'origine, rendant votre F-150 plus performant et plus dynamique.


Pourquoi il s'agit de la mise à niveau ultime

  • Puissance maximale et réactivité instantanée : ce système transforme les performances de votre F-150. En optimisant le volume d'air frais et riche en oxygène admis dans les chambres de combustion, vous constaterez un gain significatif de puissance et de couple sur toute la plage de régime. Le temps de réponse du système d'origine ? Disparu. Attendez-vous à une réponse plus vive de l'accélérateur, une meilleure traction pour le remorquage et une sonorité plus rauque du V8 Triton.
  • Durabilité et filtration supérieures : Fabriquée en aluminium T-304 de haute qualité, cette admission d'air n'est pas seulement conçue pour optimiser le flux d'air ; elle est faite pour durer. Le bouclier thermique intégré garantit que votre moteur aspire uniquement de l'air froid, même en cas de forte charge ou de températures extrêmes. Associée à un filtre à air haute performance lavable, elle assure une filtration optimale, protégeant ainsi votre moteur tout en garantissant un flux d'air maximal pour de nombreuses années.
  • Installation facile et optimisation du PCM : J’ai installé de nombreux kits de ce type, et celui-ci est conçu pour une installation simple et directe. Tous les raccords en silicone, les durites de dépression, les colliers et la visserie nécessaires sont inclus, pour un projet de week-end sans tracas. N’oubliez pas cette étape cruciale : débranchez la borne négative de votre batterie pendant quelques minutes après l’installation. Cela permet au PCM de votre F-150 de « réapprendre » et de s’adapter au débit d’air accru, vous assurant ainsi de bénéficier dès le départ de toute la puissance et de l’efficacité offertes par cette amélioration.

Spécifications techniques

Ajustement Ford F-150 2004–2008
Famille de moteurs Triton V8
Évaluations des usines 300 ch et 365 lb-pi de couple (5,4 L 3V Triton)
Numéros de pièces Non spécifié dans les données produit.

Compatibilité et références OEM

Convient aux véhicules suivants :

  • Ford F-150 (modèles 2004-2008 avec moteur V8 de 5,4 L)

Numéros de pièces interchangeables :

Non spécifié dans les données produit.


La promesse de performance

Achetez en toute confiance. Garantie de véritables experts automobiles et livraison rapide.


Cote de sécurité du moteur
Difficulté


Ajustement

Faire

Gué

Cylindrée

  • 5,4 L

Année

  • 2004
  • 2005
  • 2006
  • 2007
  • 2008

Installation

The Wrench Time

  • Estimated Time: 45-60 Minutes
  • Difficulty: 3/10 - Basic hand tools required, but extreme care is needed around brittle factory 3V Triton plastics.

Tools You Will Need

  • 8mm, 10mm, and 13mm sockets with a 1/4-inch ratchet and extension
  • T20 Torx driver (for the factory MAF sensor screws)
  • Flathead screwdriver or panel popper (for wire harness clips)
  • 3mm Allen wrench (for aftermarket MAF hardware)
  • 10mm combination wrench (for the battery terminal)
Mechanic’s Pro Tip (The "Gotcha"):
The 2004-2008 Ford F-150 5.4L 3V Triton engines are notorious for brittle PCV breather connections. When removing the hard plastic CCV (Crankcase Ventilation) line near the throttle body, do NOT force it with a screwdriver. Depress the locking tab fully before pulling. If it feels stuck, push inward first, squeeze the tab, then pull outward. Breaking this means an annoying trip to the dealership. Secondly, NEVER touch the delicate internal wire on the MAF sensor during the transfer.

Phase 1: Removing the Factory Part

  1. Disconnect the Battery: Always start by disconnecting the negative battery terminal using a 10mm wrench to prevent check engine lights and to force the ECU to reset its fuel trims for the 2004-2008 Ford F-150 5.4L engine.
  2. Unplug the MAF Sensor: Slide the red locking tab back, press the release clip, and disconnect the MAF wiring harness from the factory airbox. Unclip the wire loom from the plastic housing using a panel popper.
  3. Disconnect the PCV Line: Gently squeeze the locking tab on the CCV hose near the throttle body and pull straight back to release it from the factory intake tube.
  4. Remove the Factory Intake Tube and Resonator: Use an 8mm socket to loosen the hose clamp securing the intake tube to the TB (Throttle Body). Unbolt the massive factory resonator bracket using a 10mm socket and lift the entire bulky assembly off the engine. You will immediately notice how much easier it is to access your throttle body.
  5. Extract the Factory Airbox: Remove the four mounting bolts securing the lower airbox to the driver side fender well using a 10mm socket. Lift the box out. Finally, use a T20 Torx driver to carefully remove the two factory screws holding the MAF sensor. Pull the MAF out straight and set it safely aside on a clean microfiber towel.

Phase 2: Installing the Cold Air Intake for Ford F-150 (2004-2008) 5.4L V8 Engine

  1. Assemble and Mount the Heat Shield: Pre-assemble the aftermarket heat shield using the supplied rubber edge trim. Mount the new shield into the factory airbox fender location using your 10mm socket and the supplied hardware.
  2. Transfer the MAF Sensor: Carefully slide the factory MAF sensor into the new intake tube. Ensure the sensor orientation matches the factory direction (look for the airflow arrows pointing toward the throttle body). Secure it using a 3mm Allen wrench and the provided button-head screws. Do not overtighten, or you will strip the threads.
  3. Mount the Silicone Couplers: Slide the silicone step-down coupler onto the Throttle Body and the straight coupler onto the new air filter adapter. Slip the hose clamps over the couplers but do not lock them down yet.
  4. Install the New Intake Tube: Thread the new intake tube into the heat shield first, then seat the opposite end into the throttle body coupler. Once everything is aligned and free from rubbing against any metal brackets, lock it down by tightening all hose clamps with your 8mm socket.
  5. Reconnect the PCV and Harness: Push the factory CCV hose onto the new aluminum nipple on the intake tube until it clicks securely. Reconnect the MAF sensor harness and push the red locking tab back in to secure the connection.
  6. Final Check and ECU Learn: Reconnect the negative battery terminal using your 10mm wrench. Start the engine. Do not touch the gas pedal for 20 seconds while the ECU calibrates the idle air volume to the new, higher flow rate. Check for any whistling sounds indicating a vacuum leak.

Disclaimer: This is a general guide provided for the 2004-2008 Ford F-150 5.4L. Always refer to your factory service manual for exact torque specifications and safety procedures.
