Aluminum Radiator with Shroud for Chevrolet Impala (2006-2011) 3.5L 3.9L

High-Efficiency Aluminum Radiator and Fan Shroud Kit for 2006-2011 Chevrolet Impala

Primary Function: Directly replaces the failure-prone factory cooling assembly with an all-aluminum 3-row core and dedicated shroud system to maintain stable engine operating temperatures under continuous load.

The Stock Impala Thermal Bottleneck and Tank Failure

Factory W-Body cooling systems rely on lightweight cores mated to composite plastic end tanks via crimped aluminum tabs and rubber gaskets. Over repeated heat cycles in the transverse engine bay of the 3.5L and 3.9L V6, the factory plastic tanks become brittle, predisposing the assembly to hairline fractures, crimp seam weeping, and sudden pressure discharge. Furthermore, the shallow factory single-row core struggles with heat soak during extended idling or high ambient temperatures, diminishing air conditioning performance and raising transmission fluid temperatures.

The Engineering Solution

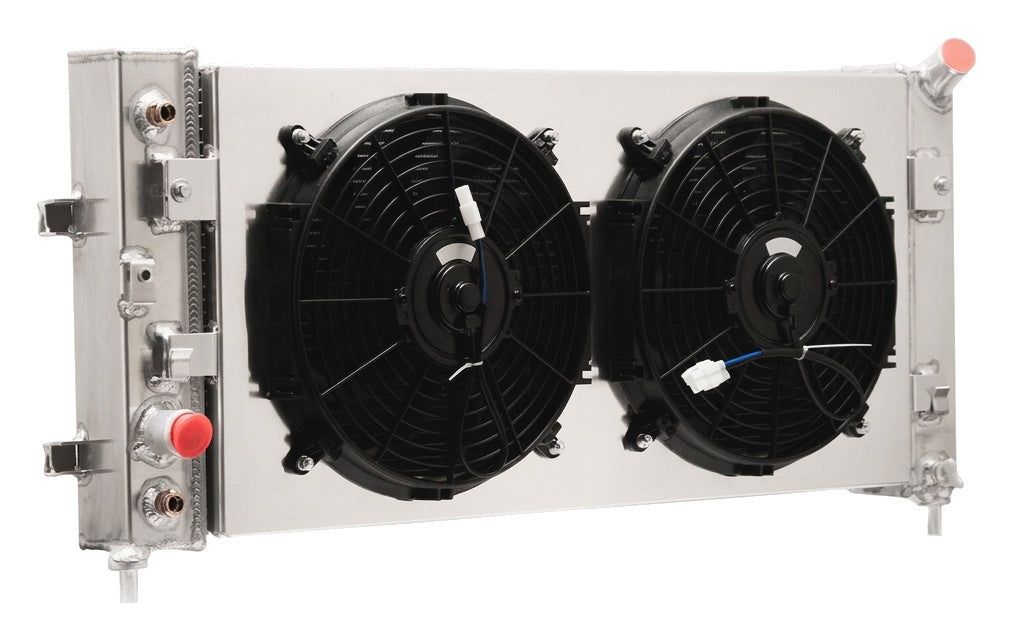

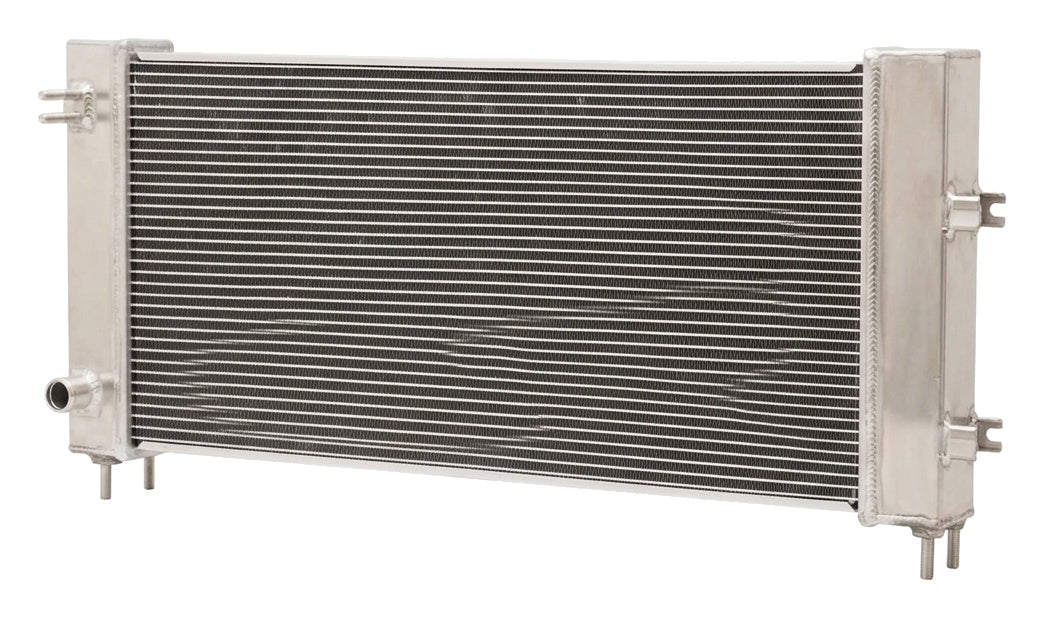

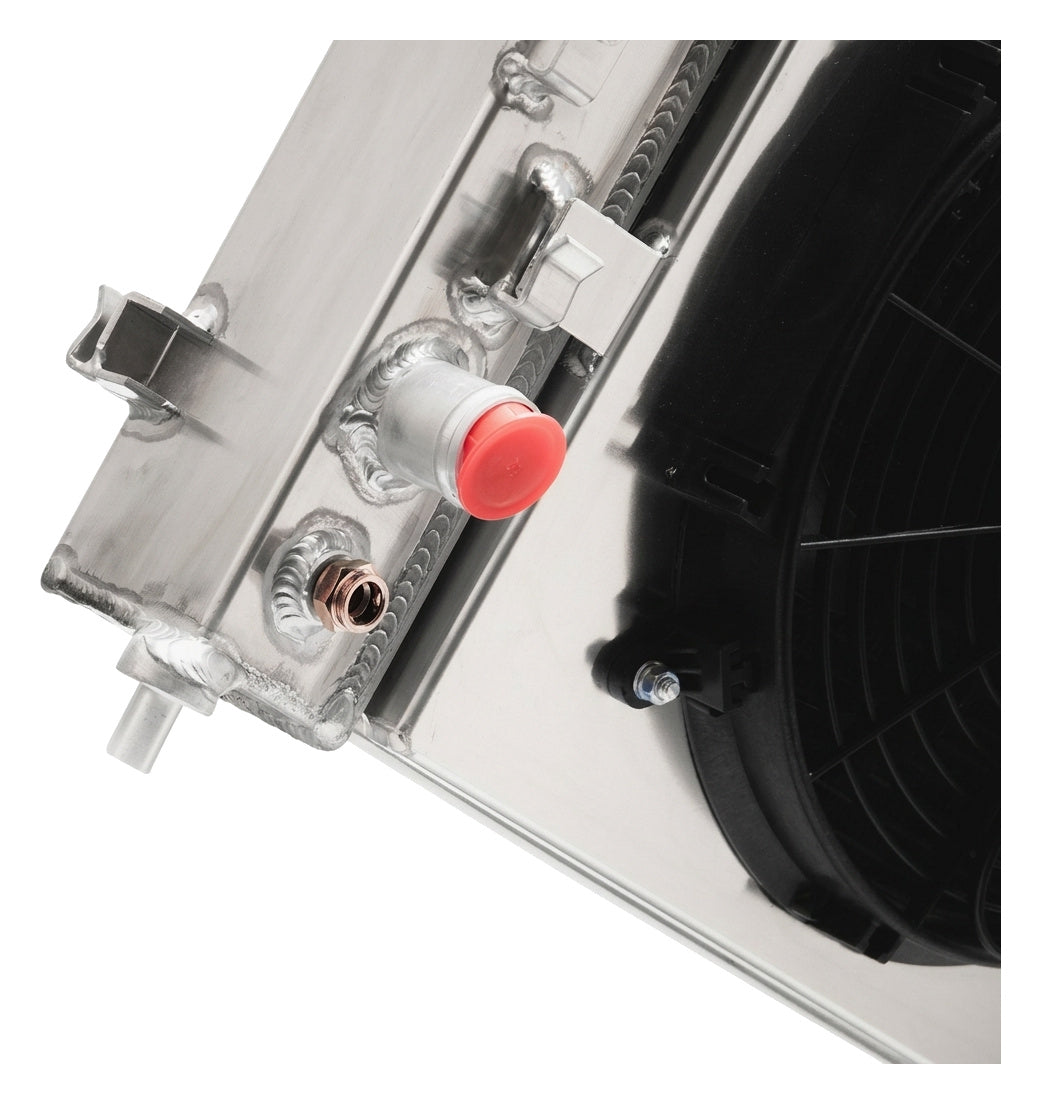

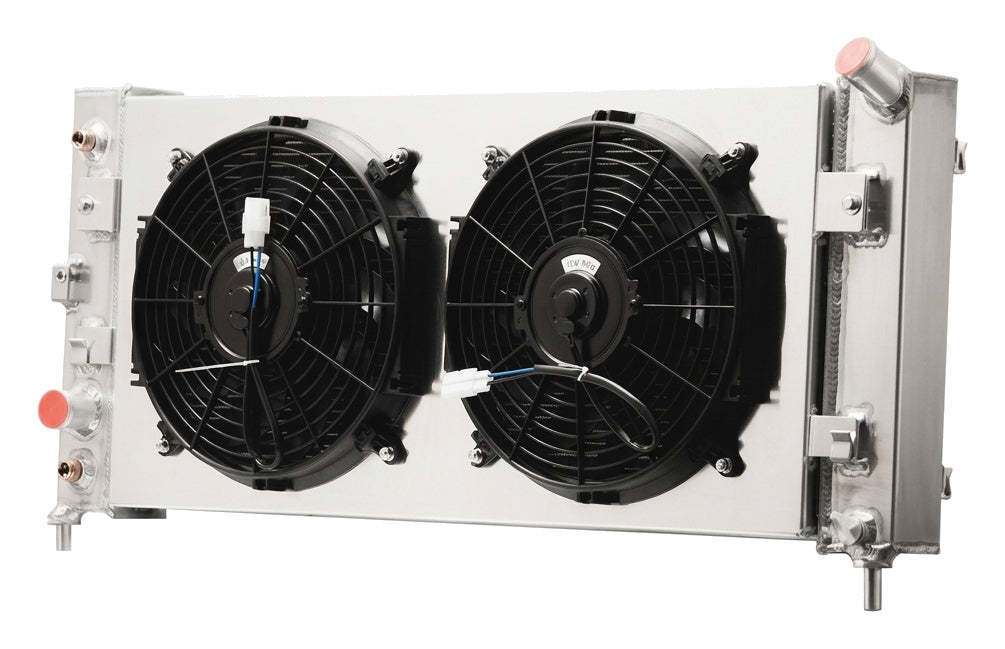

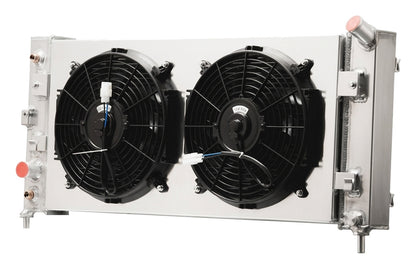

This cooling upgrade incorporates a high-density 3-row brazed aluminum tube-and-fin core with TIG-welded structural tanks, eliminating failure-prone elastomeric seals and plastic end caps. The high-conductivity aluminum matrix expands fluid capacity and maximizes heat rejection across the core face. Paired with a form-fitted aluminum fan shroud and high-output electric cooling fan with a relay harness, this assembly directs focused airflow across the entire fin surface to prevent hotspot formation and sustain thermal stability during heavy stop-and-go operation.

Technical Specifications

Compatibility

• 2006-2011 Chevrolet Impala LS (3.5L V6 LZ4)
• 2006-2011 Chevrolet Impala LT (3.5L V6 LZ4, 3.9L V6 LZ9)
• 2006-2010 Chevrolet Impala LTZ (3.9L V6 LZ9)

The Chevrolet Reliability Standard

Engineered to handle severe fleet and highway duty cycles, this all-aluminum cooling assembly delivers sustained heat management to preserve engine internals and integrated transmission circuits through heavy-load operation and high ambient conditions.
