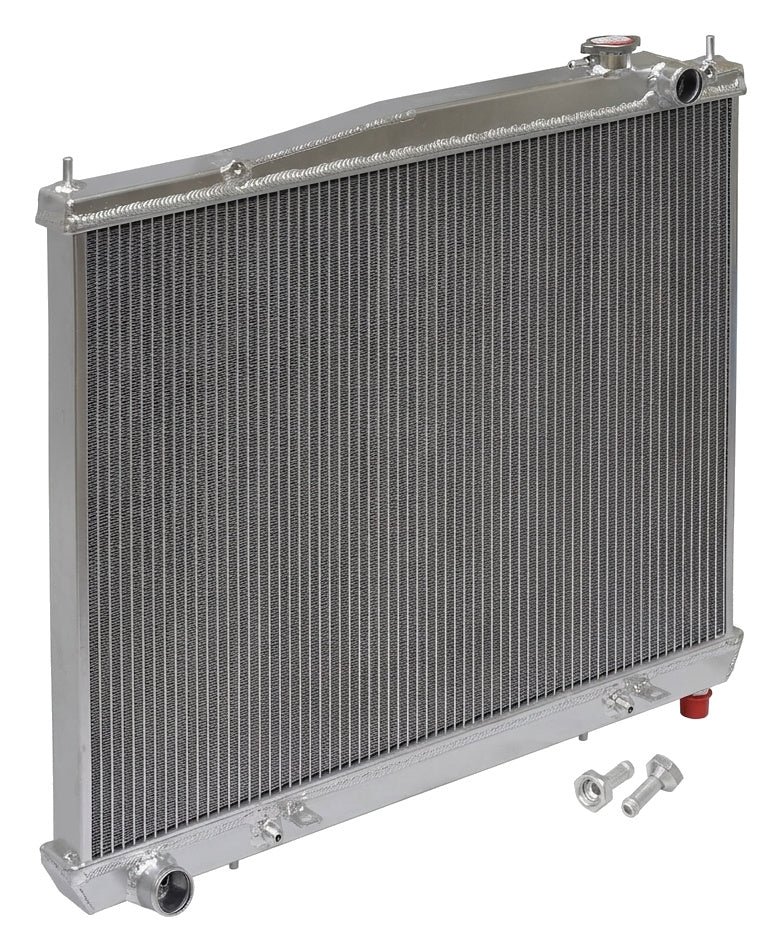

Aluminum Radiator for Nissan Pathfinder (2001-2004) 3.5L

Heavy-Duty All-Aluminum Radiator for 2001-2004 Nissan Pathfinder

What it Does: The high-efficiency aluminum radiator replaces the failure-prone factory unit on the 2001-2004 Nissan Pathfinder to maximize thermal heat rejection and eliminate coolant loss under heavy loads.

The Stock Nissan Pathfinder Cooling Vulnerabilities

Factory cooling systems in the R50 chassis rely on an OEM radiator constructed with crimped plastic end tanks mated to an aluminum core via elastomeric gaskets. Over continuous thermal cycling, these polymer tanks embrittle, degrade, and develop micro-fractures—most commonly along the upper tank inlet neck and crimp seams. When paired with the thermal output of the VQ35DE platform under towing or off-road low-speed crawling conditions, elevated cooling system pressures accelerate fatigue, introducing catastrophic coolant blowouts and severe cylinder head warping risks.

The Engineering Solution

This drop-in upgrade resolves OEM structural vulnerabilities by replacing plastic tanks with 100% aircraft-grade TIG-welded aluminum end tanks joined to a high-capacity 2-row brazed tube-and-fin core. The furnace-brazed core increases coolant contact surface area, significantly lowering coolant outlet temperatures and eliminating heat soak. Featuring precision-located brackets and direct-fit hose connections matching CU2459 and RD-931-754-B4 dimensions, it provides bulletproof structural integrity capable of handling elevated operating pressures without seam delamination.

Technical Specifications

Compatibility

• 2001-2004 Nissan Pathfinder LE 3.5L V6
• 2001-2004 Nissan Pathfinder SE 3.5L V6

Frequently Asked Questions

Does this fit the R50 Pathfinder?
Yes, this is a direct fit for the 2001-2004 Nissan Pathfinder equipped with the VQ35DE engine.

Does this unit retain internal transmission cooling circuits?
Verify your specific automatic transmission line fittings prior to installation, as auxiliary cooling line routing may require connection to the integrated lower tank cooler.

The Nissan Endurance Standard

Built to handle extreme trail conditions and sustained towing duty, this all-aluminum core ensures your powertrain maintains stable operating temperatures regardless of ambient thermal load.
