Turbocharger for Ford F-450,F-550 (2005-2007) 6.0L

$534.95

Envío calculado al finalizar la compra.

Pago totalmente seguro
Con la confianza de miles de personas
Calificado y revisado

¿Lo quieres pronto ? Haz tu pedido antes de

I18n Error: Missing interpolation value "end_date" for "Termina el {{ end_date }}"

Compre con seguridad

Asegure su experiencia de compra con varios métodos de pago seguros y confiables.

Compra segura con nosotros

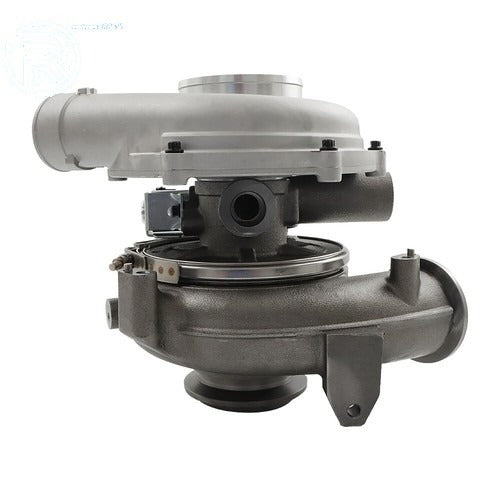

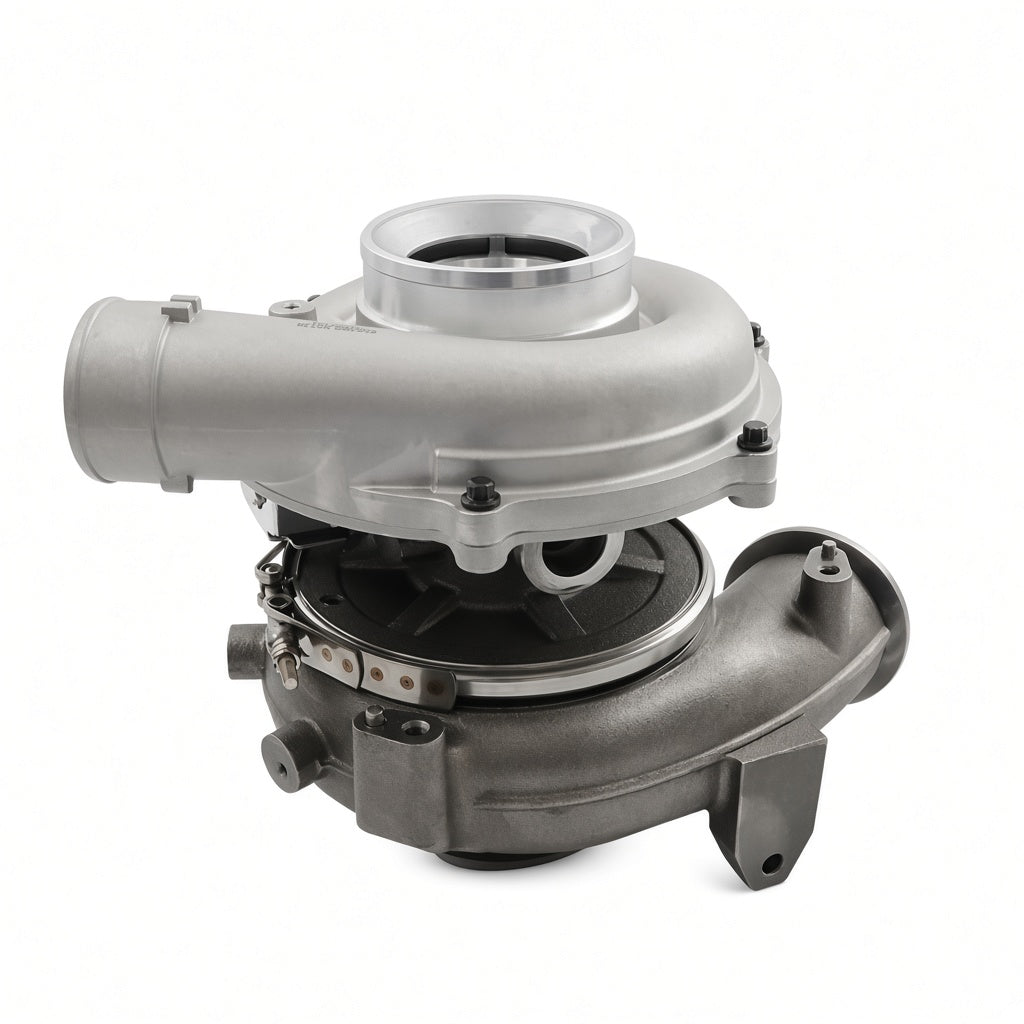

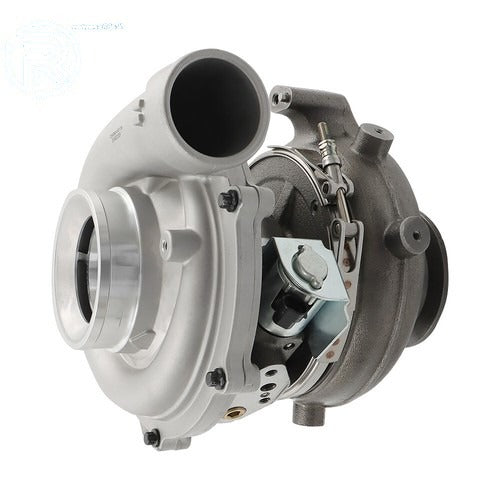

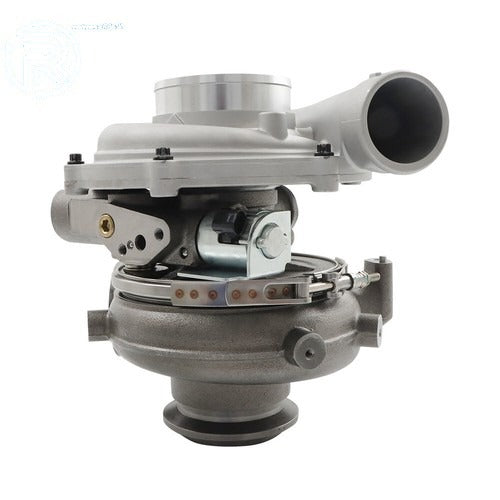

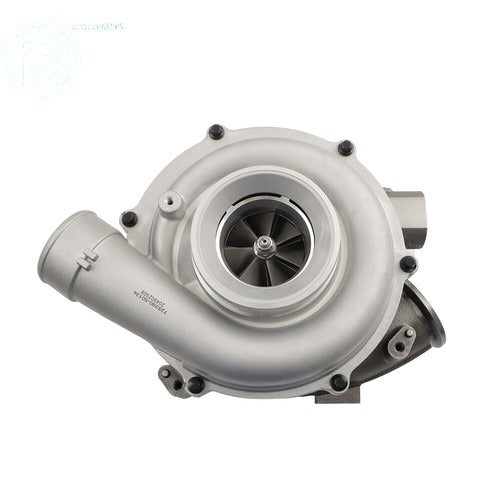

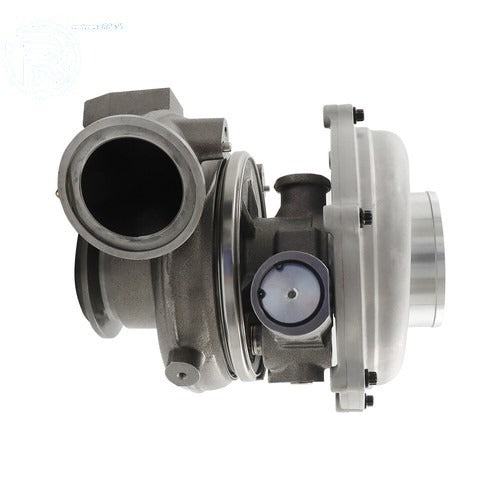

Direct-Fit Replacement GT3782VA Turbocharger for 2005-2007 Ford F-450,F-550 (P221)

What it Does: The direct-replacement GT3782VA turbocharger replaces seized or leaking factory turbochargers on the 2005-2007 Ford F-450 and F-550 to restore factory manifold boost pressure and severe-duty towing power.

The Stock Ford F-450,F-550 VGT Vane Seizure & Bearing Breakdown

The factory 6.0L Power Stroke variable geometry turbocharger (VGT) operates in extreme thermal conditions that cause severe carbon and soot accumulation. Over time, soot binds the unison ring and exhaust housing vanes, locking the variable geometry mechanism in place. A seized unison ring results in uncontrolled overboost—straining cylinder head bolts—or underboost, which elevates exhaust gas temperatures (EGTs) and drastically limits commercial hauling torque. Additionally, factory floating journal bearings frequently suffer from oil coking when heat-soaked oil lines feed depleted oil into the center housing rotating assembly (CHRA).

The Engineering Solution

This replacement turbocharger is engineered to factory tolerances with high-grade ductile iron turbine housing and precision-cast aluminum compressor geometry. The assembly features an independently balanced GT3782VA CHRA with heavy-duty floating journal bearings to withstand continuous commercial loads. Re-engineered vane clearances prevent soot binding, ensuring smooth spool-up across the entire operating band. Standard OE-style oil ports, coolant fittings, and exhaust flange mounting points ensure a leak-free drop-in replacement that pairs seamlessly with factory electronic actuators.

What's Included

1 × Turbocharger

Technical Specifications

Fitment	2005-2007 Ford F-450,F-550
Engine / Chassis	6.0L Power Stroke (VT365) / P221 Super Duty
Stock Output	325 hp / 570 lb-ft
Replaces OEM Part #	170025-0109, 1832255C91, 1832255C92, 1854593C91, 1854593C92, 1854593C93, 1854593C94, 1858116C91, 1876493C91, 1877831C91, 1877831C92, 1877831C93, 1877832C93, 1877834C91, 1879413C91, 1879413C92, 1879413C93, 1879413C94, 1882380C1, 1882380C2, 2005-07, 5010147R93, 5010399R91, 5010422R91, 5C3Z6K682A, 5C3Z6K682CA, 5C3Z6K682CARM, 5C3Z6K682CCRM, 743250-0005, 743250-0014

Compatibility

2005-2007 Ford F-450 Super Duty 6.0L V8 Diesel
2005-2007 Ford F-550 Super Duty 6.0L V8 Diesel

Frequently Asked Questions & Fitment Warnings

Does this fit the P221 F-450,F-550?

Yes, this is a direct fit for the 2005-2007 Ford F-450 and F-550 equipped with the 6.0L Power Stroke V8 engine.

Do I need to replace the oil lines during installation?

Yes, thoroughly flush or replace the turbocharger oil feed and drain lines, and change the engine oil and filter prior to installation to prevent bearing contamination.

The Ford Commercial Caliber

Built to handle heavy-duty hauling and commercial payload demands, this turbocharger restores the high-torque towing capability and thermal stability required by fleet operators.
