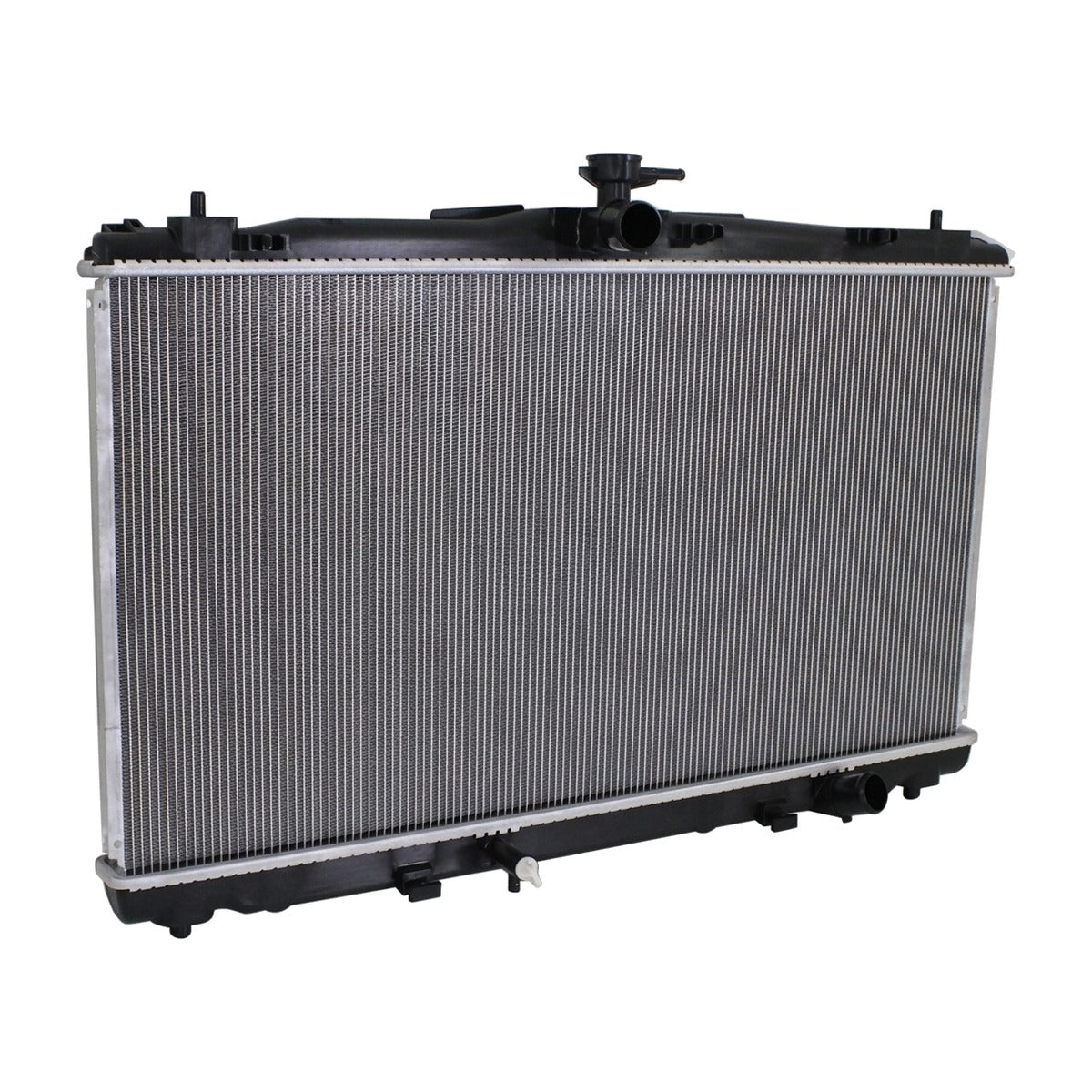

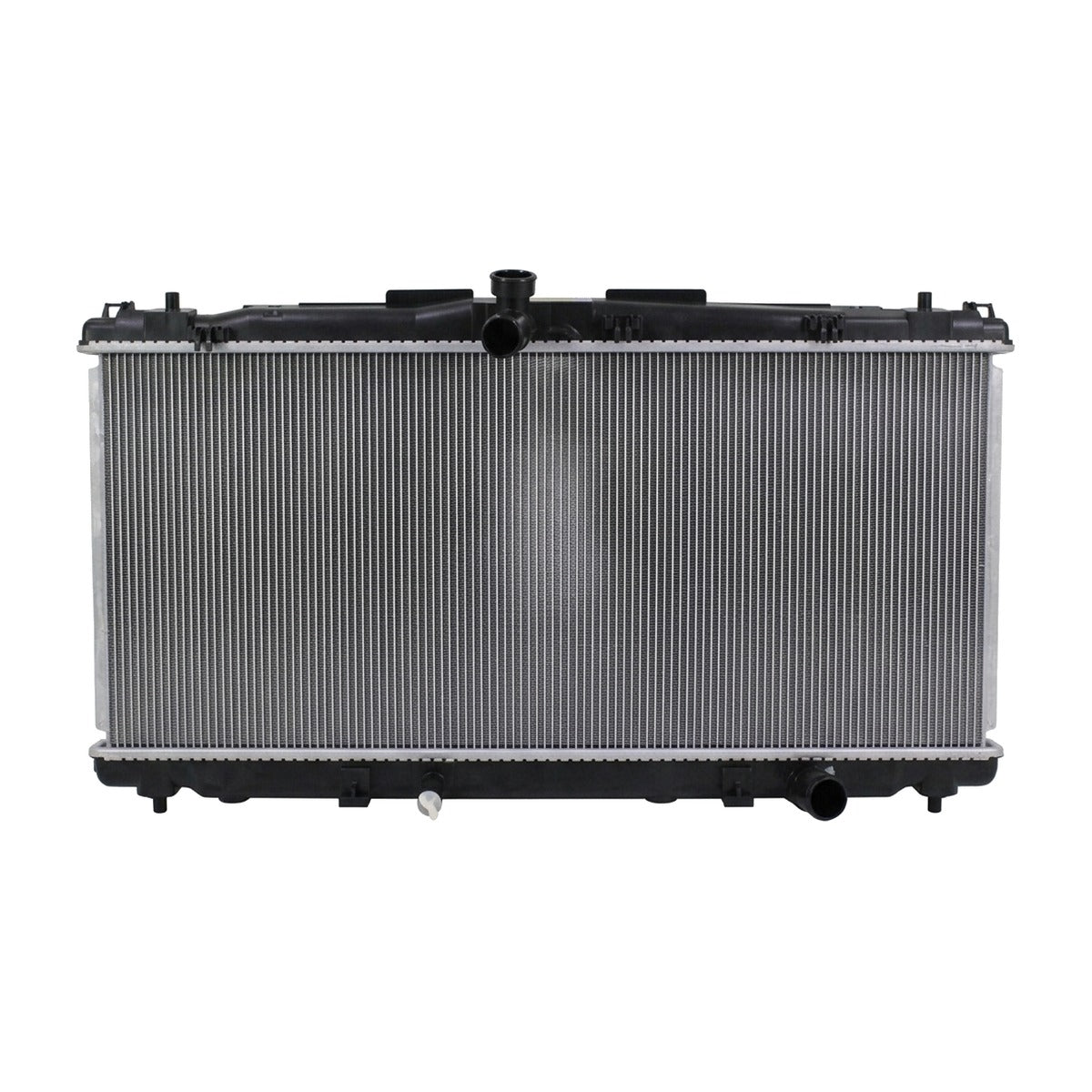

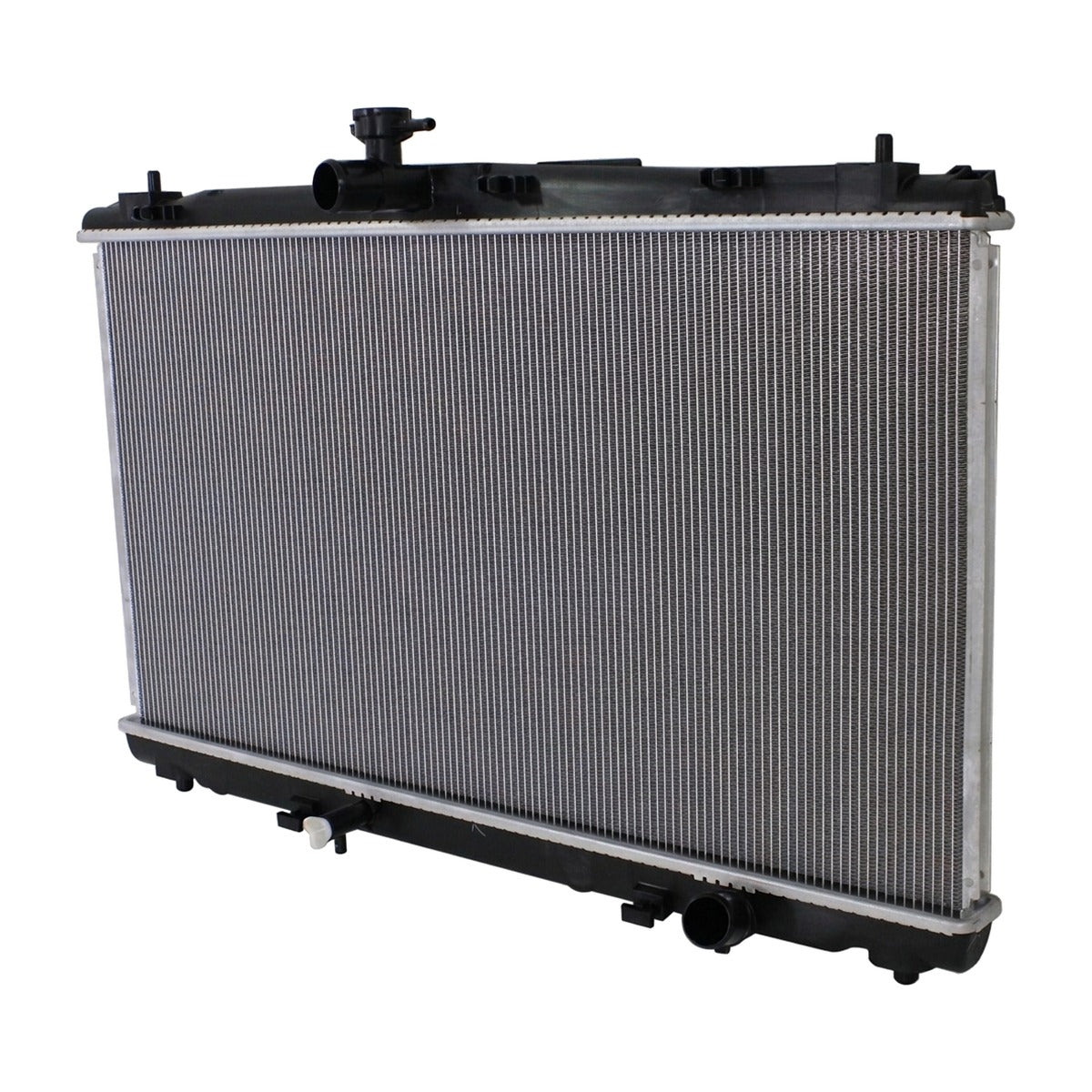

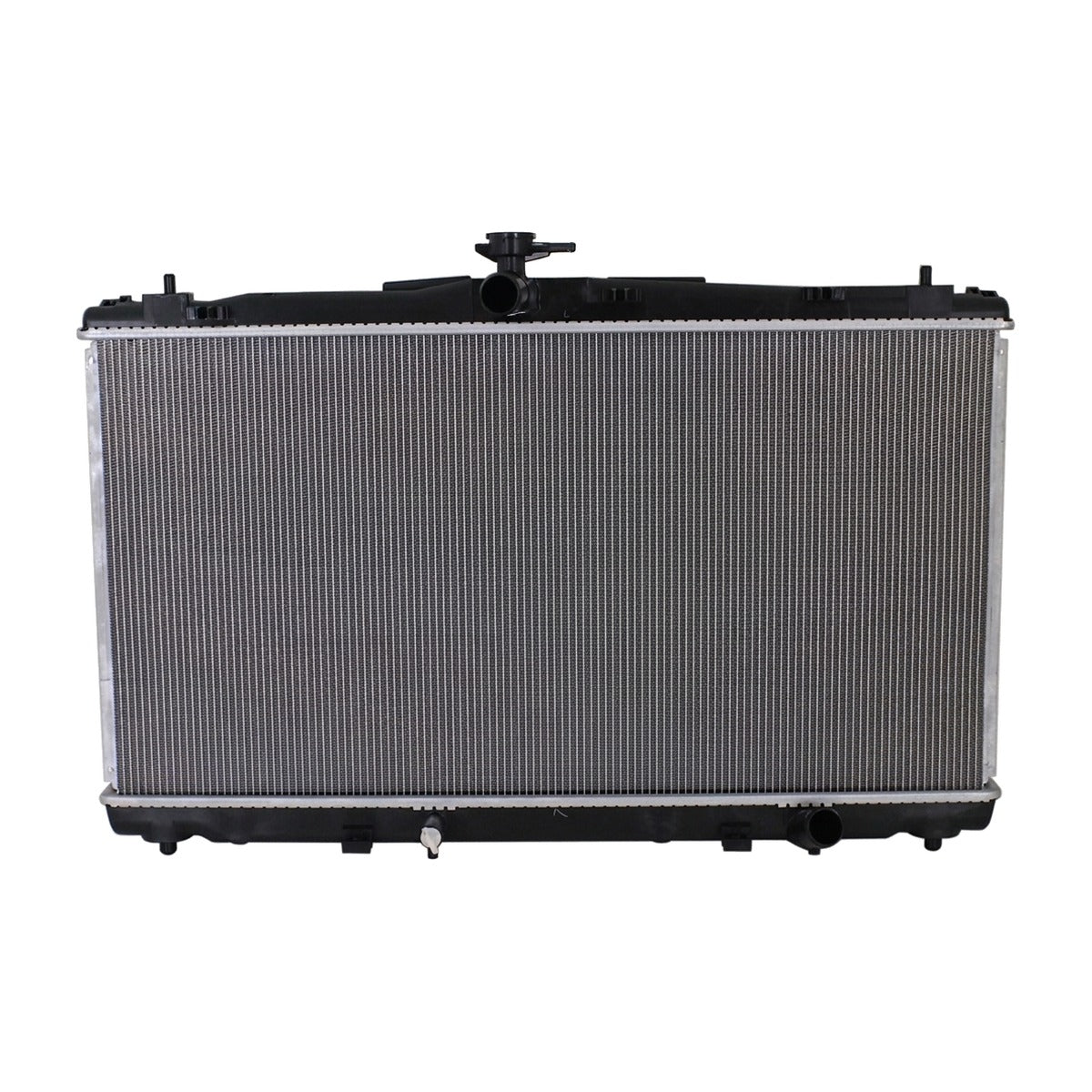

Radiator for Toyota Camry (2012-2017) 2.5L 3.5L

Direct-Fit Replacement Radiator for 2012-2017 Toyota Camry (XV50)

What it Does: The replacement radiator restores cooling system efficiency on the 2012-2017 Toyota Camry to prevent engine overheating and maintain optimal operating temperatures under load.

The Stock Toyota Camry Radiator Degradation

Factory radiators in the XV50 generation endure relentless thermal cycling and pressure spikes that compromise their structural integrity over time. The primary failure point on OEM units is the crimped bond between the aluminum core and the molded plastic end tanks. Over extended heat cycles, this synthetic material embrittles, leading to hairline fractures, weeping seam gaskets, and telltale pink crusting around inlet and outlet necks. Internal fin corrosion and sediment restriction further deteriorate thermal conductivity, impairing coolant heat rejection. If ignored, minor coolant loss escalates into severe heat soak, blown cylinder head gaskets, or warped aluminum deck surfaces on both 2AR-FE and 2GR-FE powerplants.

The Engineering Solution

This replacement radiator is built to factory geometric tolerances, ensuring a seamless drop-in installation without cutting, drilling, or bracket fabrication. Featuring a high-efficiency single-row aluminum core measuring 30-1/8 in x 15-3/4 in x 5/8 in, it employs densely packed louvered fins designed to maximize surface area and accelerate convective air-to-liquid heat transfer. High-strength polymer composite tanks are mechanically swaged with robust perimeter seals to withstand high cooling circuit pressures and prevent thermal shock leakage. Engineered to mate with stock 1.38-inch coolant hoses and OEM fan shroud mounts, this unit undergoes factory pressure testing to guarantee leak-free reliability straight out of the box.

What's Included

• 1 Replacement Radiator

Technical Specifications

Compatibility

• 2012-2017 Toyota Camry 2.5L L4 (Gas)
• 2012-2017 Toyota Camry 3.5L V6 (Gas)

Frequently Asked Questions & Fitment Warnings

Does this fit the XV50 Camry?

Yes, this is a direct fit for the 2012-2017 Toyota Camry equipped with the 2AR-FE 2.5L or 2GR-FE 3.5L engine; note this unit does not integrate internal transmission or engine oil coolers.

Do I need to bleed the cooling system after installing this radiator?

Yes, you must thoroughly bleed all air pockets from the cooling passages while refilling with factory-specified coolant to prevent localized hot spots and false temperature sensor readings.

The Toyota Reliability Standard

Engineered for high-mileage dependability, this direct replacement cooling unit restores factory thermal capacity to protect your Camry's engine through stop-and-go commuting and severe summer heat.
