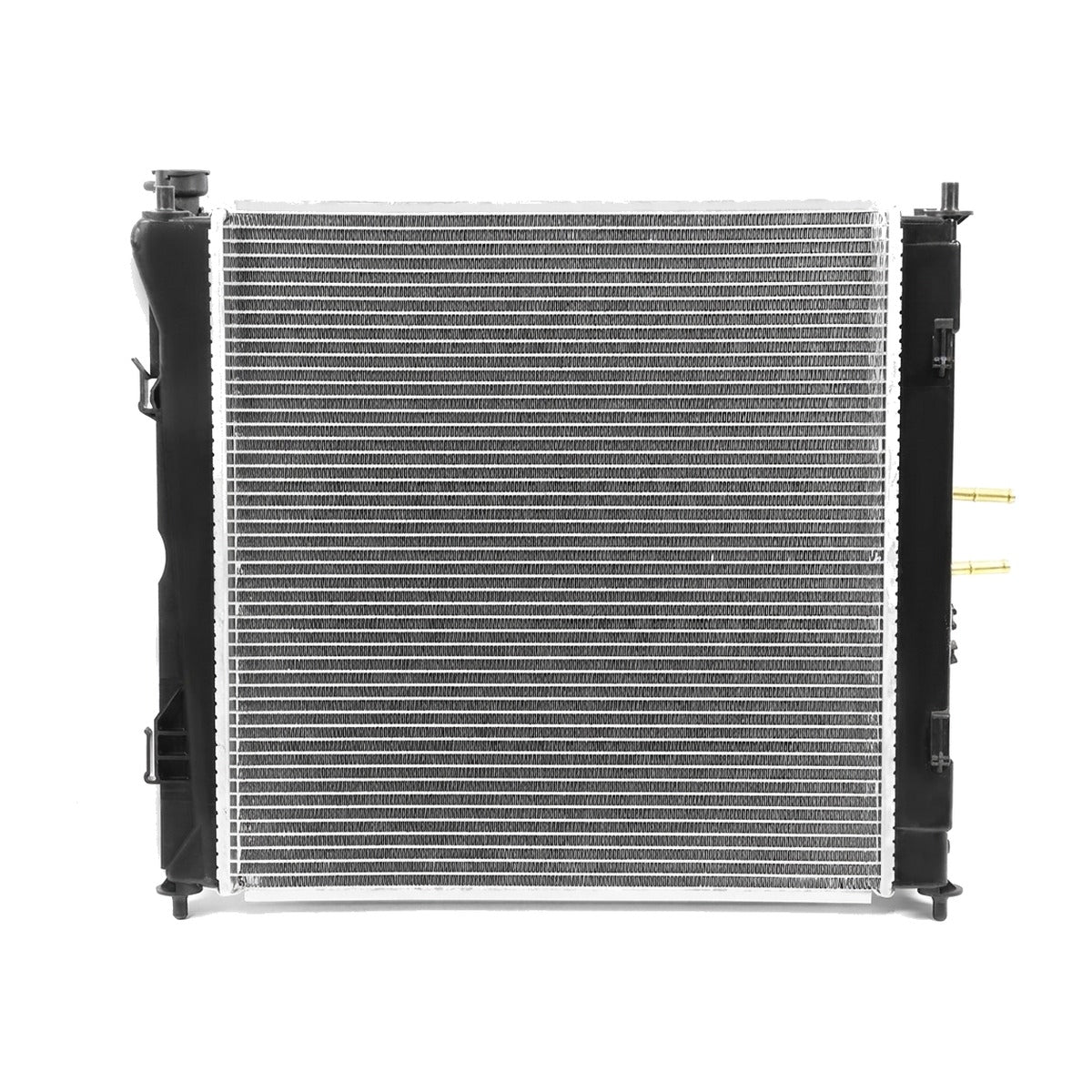

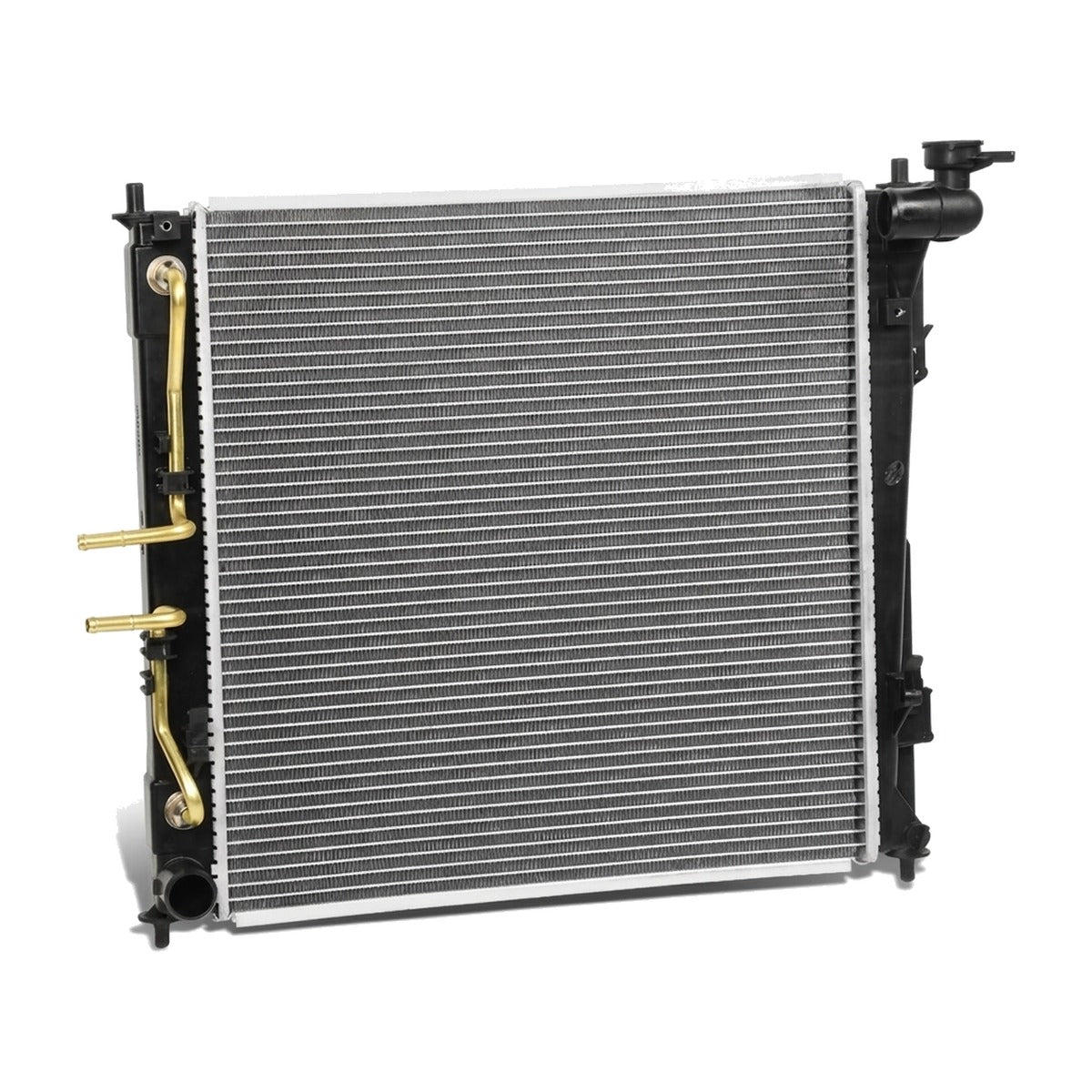

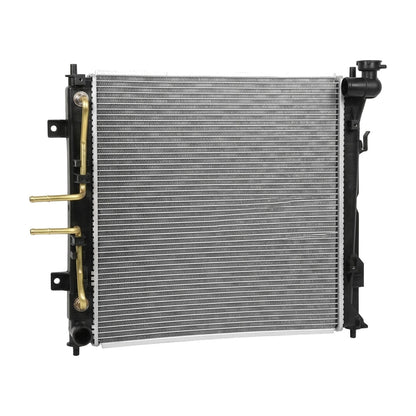

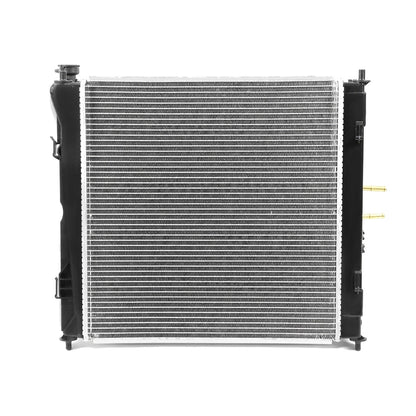

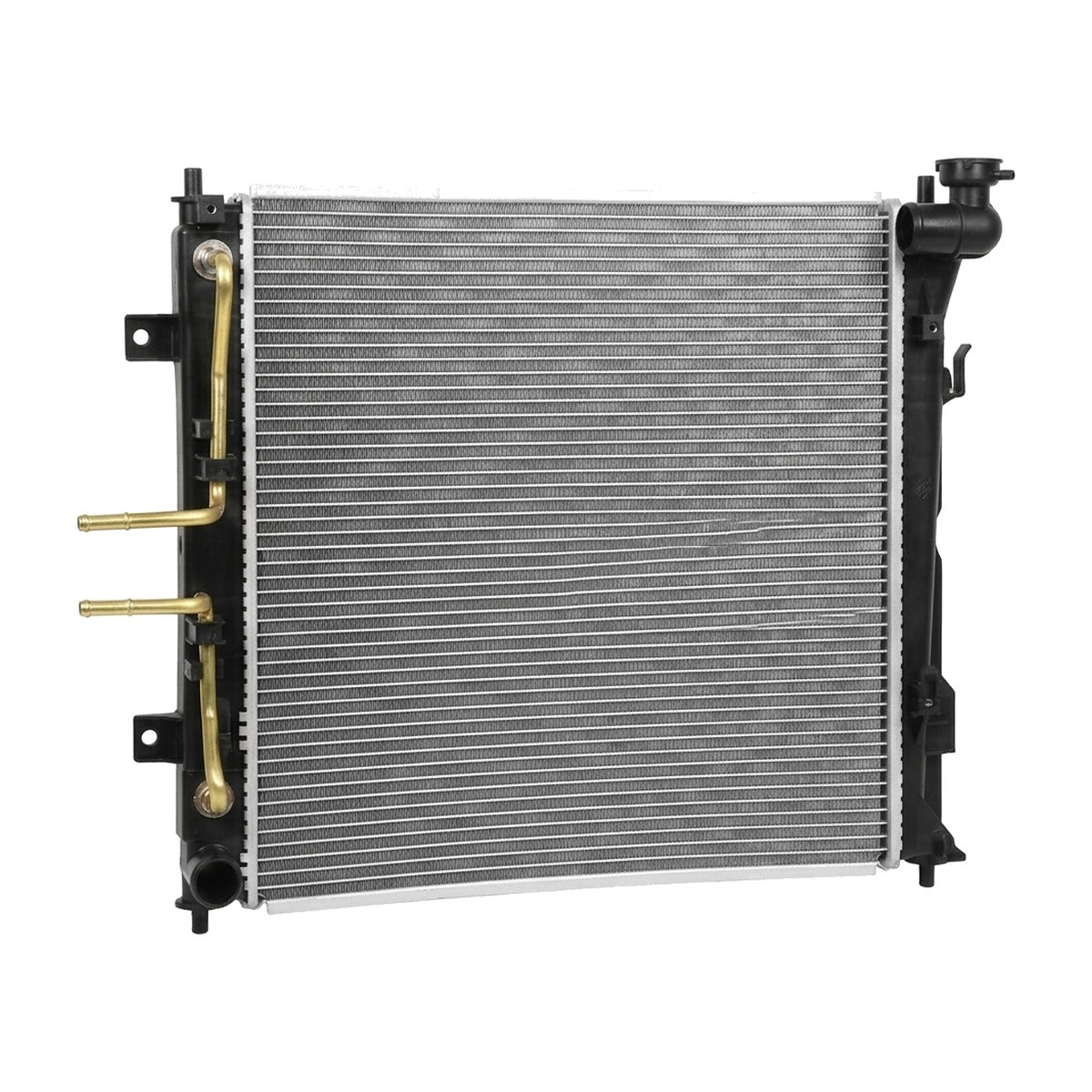

Radiator for Kia Optima (2011-2015) 2.0L Turbo

Direct-Fit Replacement Radiator for 2011-2015 Kia Optima (TF)

What it Does: The replacement radiator restores factory heat-exchange performance on the 2011-2015 Kia Optima 2.0L Turbo to prevent high-load coolant boiling, thermal breakdown, and catastrophic cylinder head warping.

The Stock Kia Optima Radiator Failure Points

Factory radiators in the TF chassis endure significant thermal expansion cycles caused by the high heat rejection of the forced-induction Theta II 2.0T engine. Over time, heat cycles degrade the vulcanized crimp seal between the core and the PA66 plastic end tanks. This structural fatigue results in hairline fractures along the inlet neck, micro-fissuring, and eventual crimp seam separation under system pressure. Once integrity fails, rapid coolant loss reduces the system boiling point, causing severe heat soak and risking blown head gaskets.

The Engineering Solution

This replacement radiator provides a true drop-in solution to stabilize operating temperatures. The unit features an efficient aluminum core utilizing high-density louvered fins engineered to maximize convective surface area and heat dissipation under heavy boost. High-strength polymer end tanks are mechanically crimped with durable header gaskets to resist internal pressure spikes. Built to original factory dimensions, it accommodates stock fan shrouds, hose diameters, and internal transmission cooler passages without chassis modification.

What's Included

• 1x Complete Radiator Assembly

Technical Specifications

Compatibility

• 2011-2015 Kia Optima 2.0L Turbo (Automatic and Manual Transmissions)

Frequently Asked Questions & Fitment Warnings

Does this fit the TF Optima?

Yes, this is a direct fit for the 2011-2015 Kia Optima equipped with the Theta II 2.0T engine. This radiator is designed exclusively for the 2.0L Turbo model and will not fit models equipped with the 2.4L naturally aspirated engine.

Do I need to bleed the cooling system after installing this radiator?

Yes, thoroughly burp and bleed the cooling system to clear trapped air pockets from the engine block and turbo cooling circuit before operating the vehicle under load.

The Kia Caliber

Designed to maintain exact OEM thermal parameters, this radiator provides factory-level cooling capacity and dependable pressure containment for everyday commuting and high-load turbo performance.
