Performance Radiator for Toyota 4Runner Pickup TL (1988-1995) 3.0L

High-Capacity Performance Radiator for 1988-1995 Toyota 4Runner, Pickup

Designed to prevent catastrophic overheating under heavy loads: Replaces the restrictive OEM cooling system with a high-flow 3-row aluminum core and integrated 2150 CFM electric fan setup for sustained temperature control.

The Stock 4Runner, Pickup Cooling Shortcoming

The factory radiator on the 3VZ-E engine is notoriously prone to heat soak and efficiency loss, particularly when hauling payloads, crawling on tight 4WD trails, or enduring stop-and-go traffic. OEM cooling relies heavily on single-row or narrow two-row cores coupled with an aging mechanical clutch fan that struggles to pull sufficient air at low RPMs. Over time, OEM plastic end tanks crack under thermal cycling, and the factory brass/copper elements corrode. This leads to restricted coolant flow, localized boiling, and the dreaded head gasket failures that frequently plague the 3.0L V6 platform.

The Engineering Solution

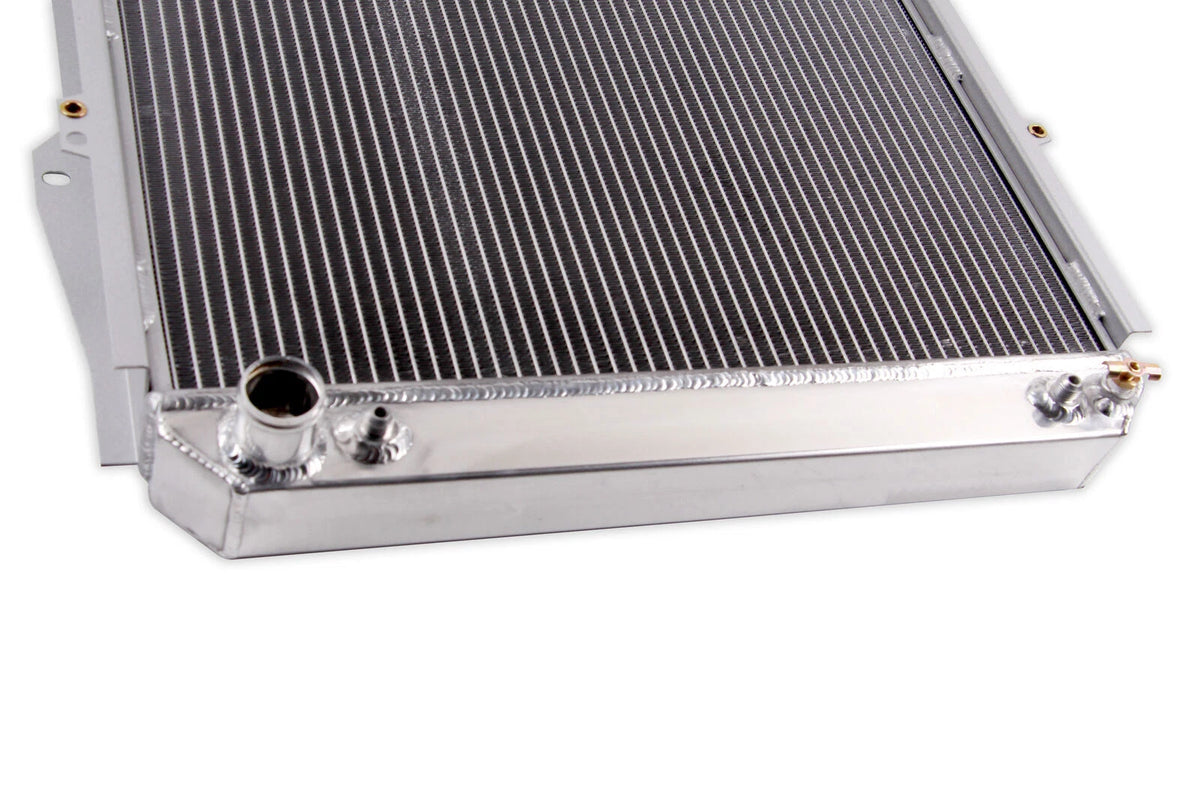

This heavy-duty upgrade completely overhauls the thermal management system by introducing a dense 3-row TIG-welded aluminum core measuring 1.65 inches thick, increasing fluid capacity and heat dissipation by over 30% compared to standard OEM radiators. By eliminating the parasitic drag and low-speed inefficiency of the stock mechanical fan, the included 16-inch, 10-blade electric fan and custom aluminum shroud continuously move a massive 2,150 CFM of air at 2,250 RPM. This ensures optimal thermal transfer across the 18.7" x 20.39" core regardless of engine speed, preventing coolant temperature spikes during low-speed rock crawling or steep-grade towing. The system features precise 1.38-inch inlet and outlet ports for high-volume coolant flow.

Technical Specifications

Compatibility

• Toyota 4Runner 3.0L V6 2959cc -ci 1990-1995 4WD
• Toyota 4Runner 3.0L V6 2959cc -ci 1989
• Toyota Pickup 3.0L V6 2959cc -ci 1988-1995 4WD
• For Both Manual MT And Automatic AT Vehicles

The Toyota Durability Standard

Built to endure the harshest backcountry trails and prolonged off-grid abuse, this complete radiator and fan system ensures your classic Toyota rig maintains optimal operating temperatures, protecting your powertrain when dependability matters most.
