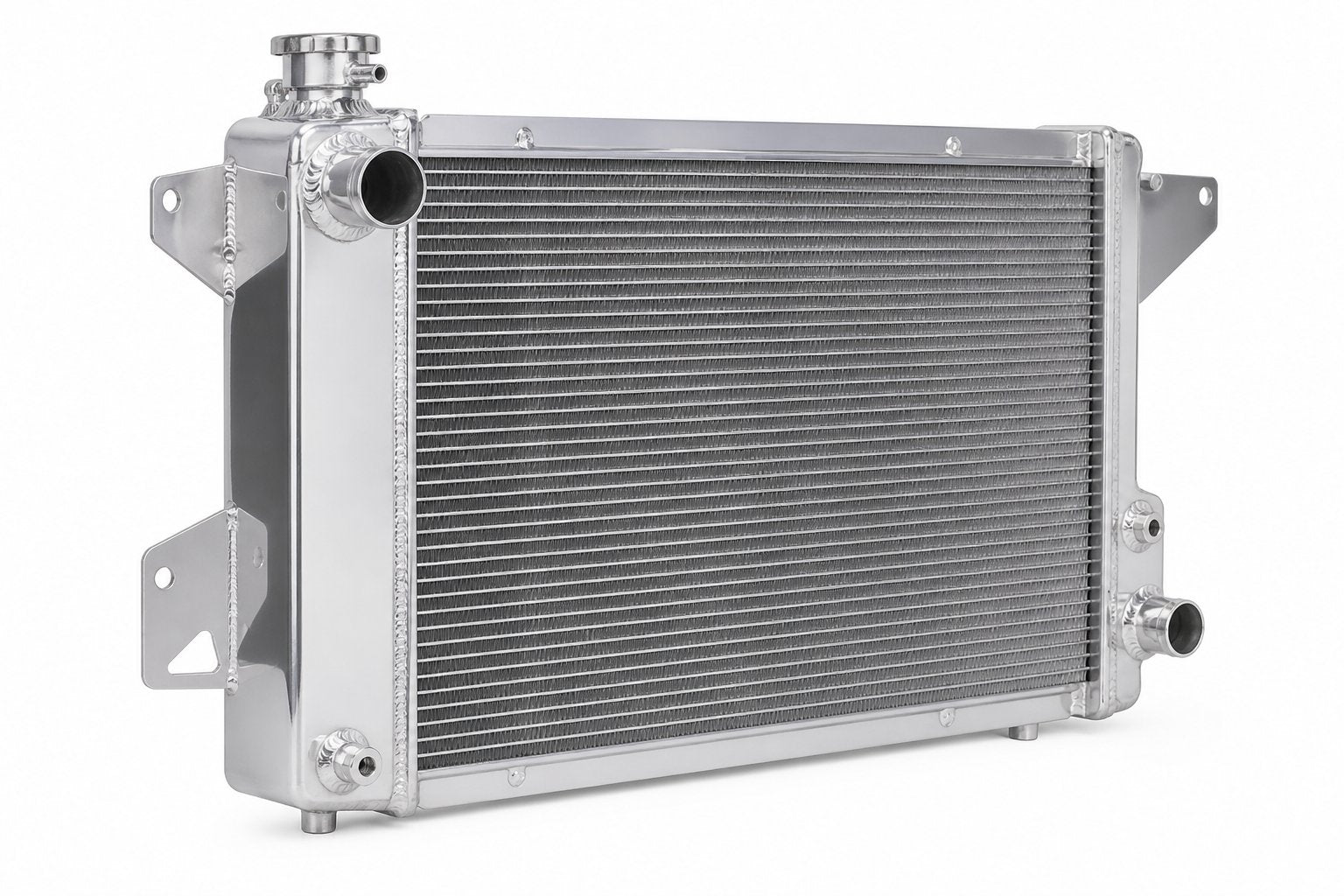

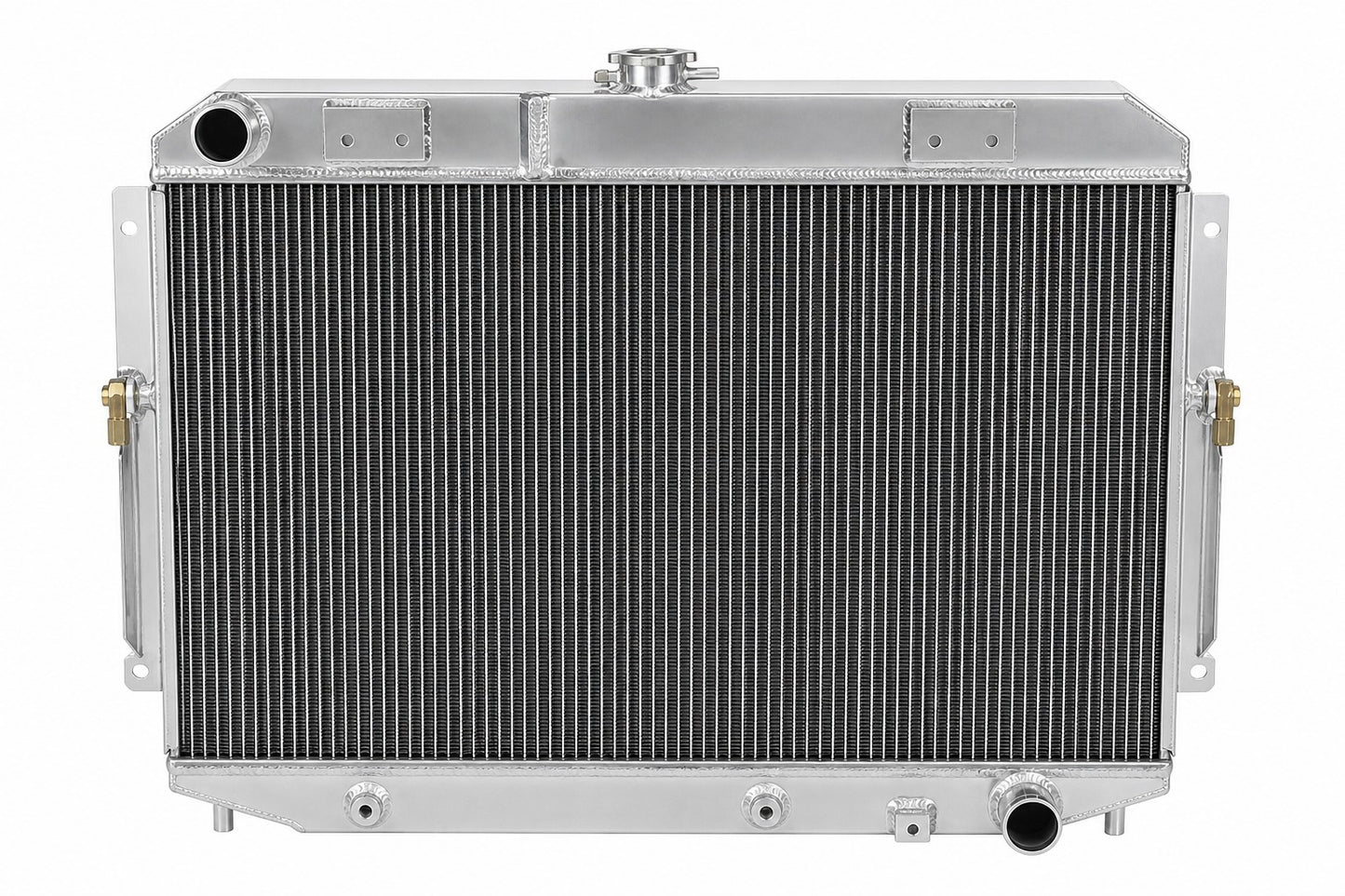

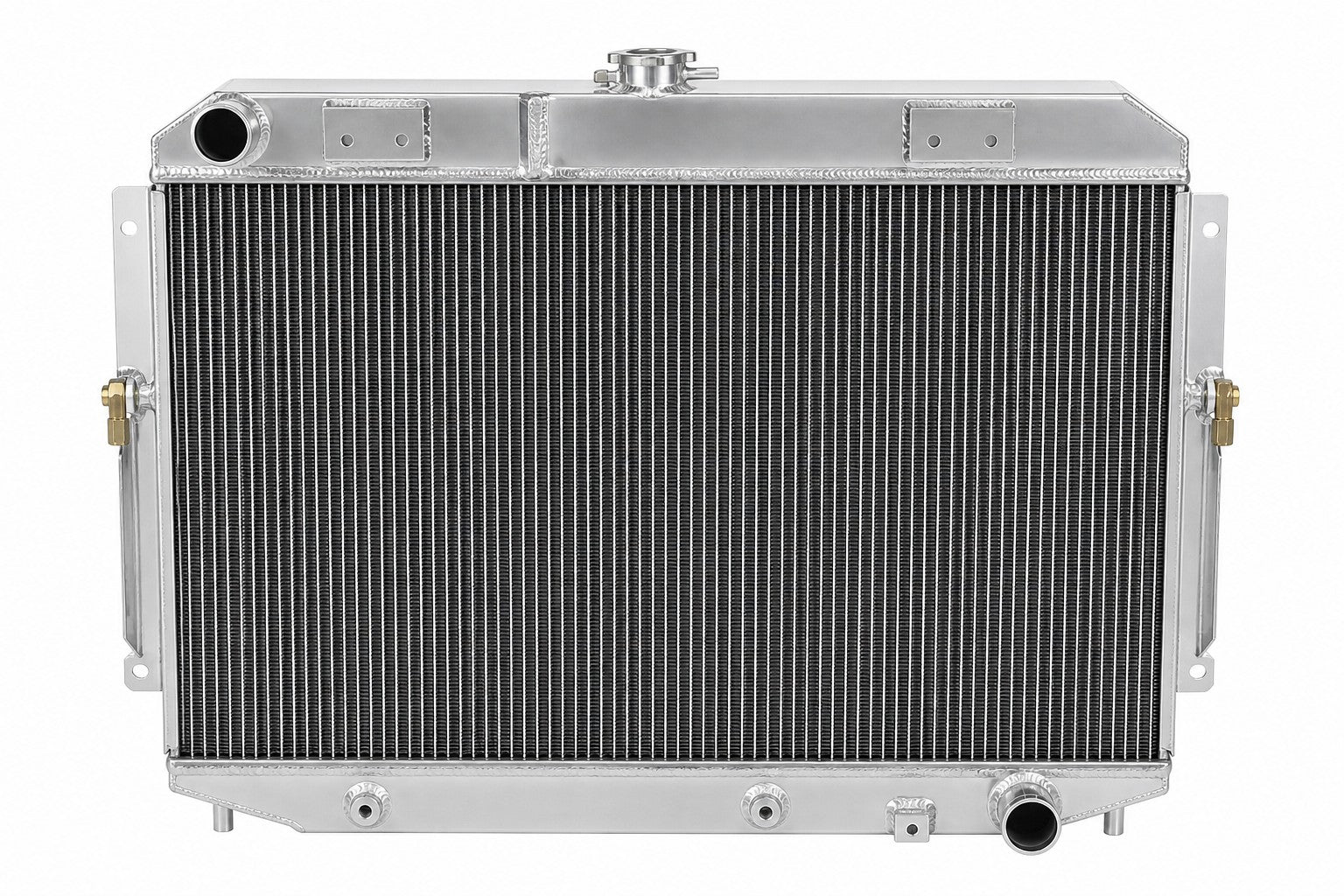

Performance Radiator for Suzuki Equator (2009-2012) 4.0L Automatic

Heavy-Duty All-Aluminum Performance Radiator for 2009-2012 Suzuki Equator

Primary Function: Replaces failure-prone factory composite radiators with a high-efficiency, all-aluminum brazed core assembly to permanently eliminate transmission fluid contamination and optimize heat dissipation during high-load hauling.

The Stock Equator Radiator Vulnerability

The OEM cooling unit on the D40-platform Equator utilizes crimped plastic end tanks bonded to an aluminum core with elastomer gaskets. Under repetitive thermal expansion cycles, these plastic tanks become brittle, leading to stress cracks and gasket blowouts. More critically, the integrated internal transmission oil cooler in factory automatic units is susceptible to internal fatigue failure. When this barrier breaches, engine coolant cross-contaminates the automatic transmission fluid (commonly known as SMOD), causing rapid clutch pack delamination, valve body failure, and catastrophic gearbox destruction.

The Engineering Solution

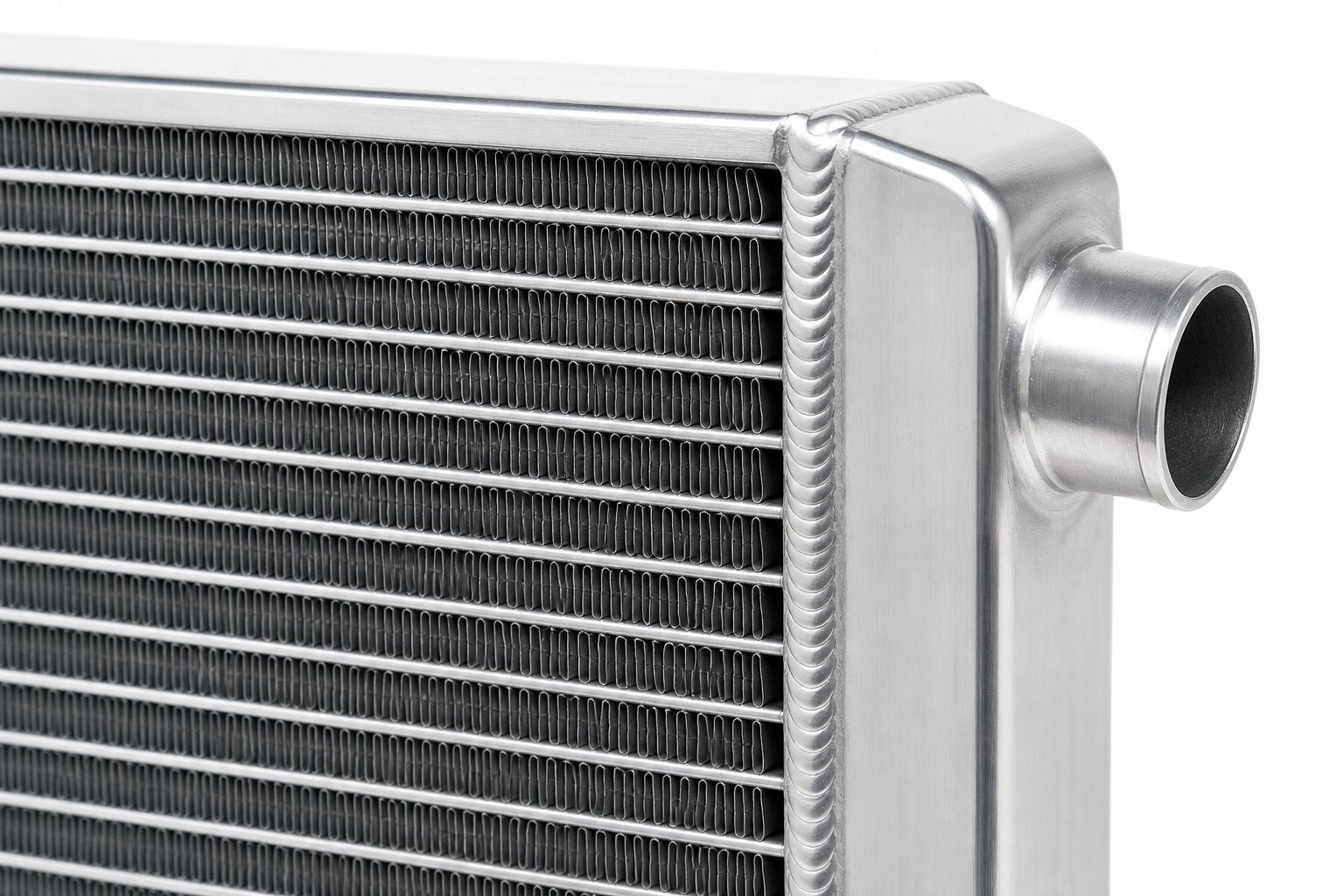

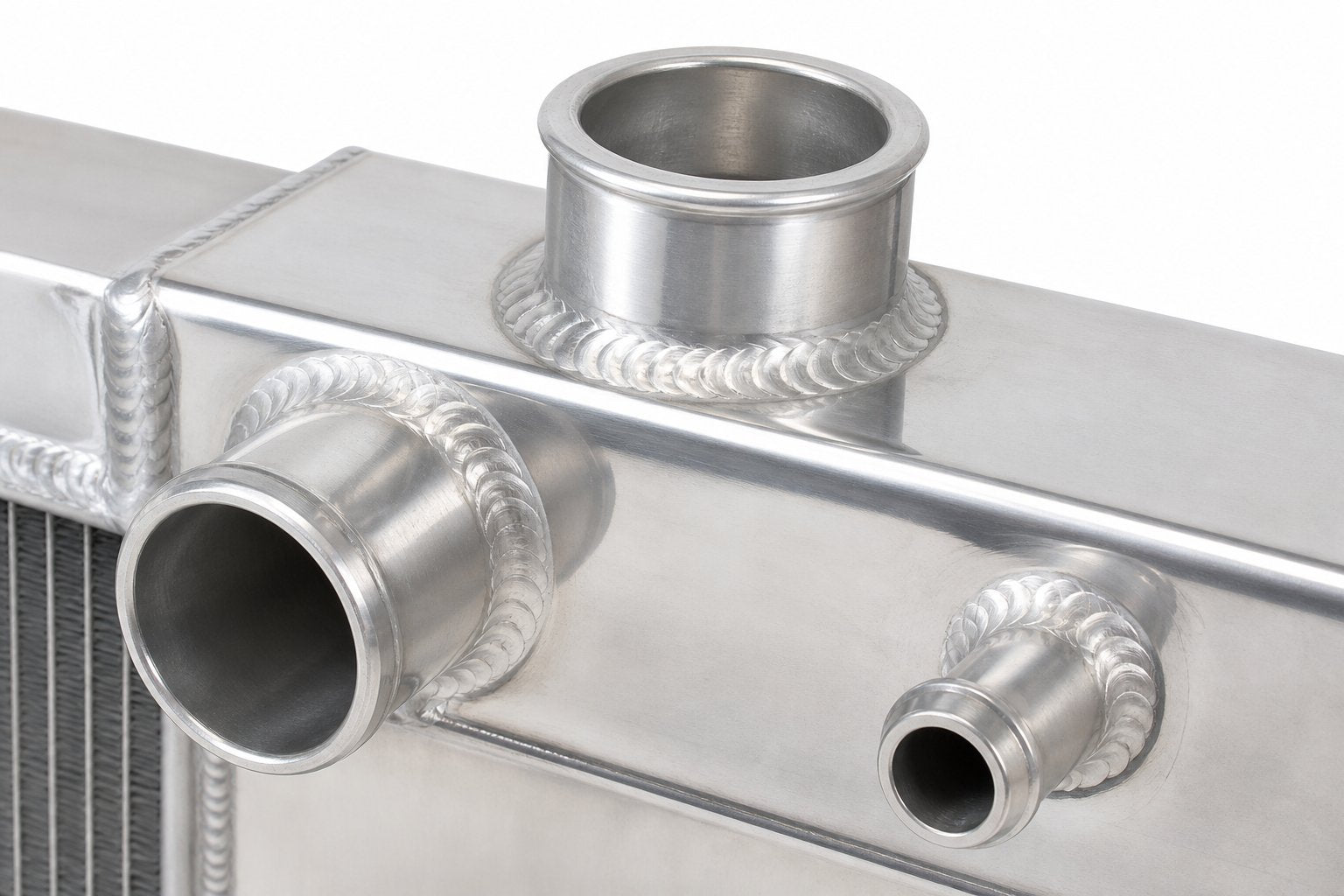

Engineered for maximum thermal efficiency and mechanical durability, this performance radiator features 100% TIG-welded aircraft-grade aluminum end tanks directly joined to a dual-row, furnace-brazed core. By eliminating crimped plastic seams, structural rupture risks are eradicated. The high-density louvered aluminum fin profile increases ambient air surface contact area, accelerating heat transfer coefficients and preventing thermal soak during sustained grade ascents or heavy towing with the 4.0L powertrain.

Technical Specifications

Compatibility

• 2009-2012 Suzuki Equator Base 4.0L V6 Automatic (Extended Cab, Crew Cab)
• 2009-2012 Suzuki Equator Premium 4.0L V6 Automatic (Extended Cab, Crew Cab)
• 2009-2012 Suzuki Equator Sport 4.0L V6 Automatic (Extended Cab, Crew Cab, 4WD/RWD)
• 2009-2012 Suzuki Equator RMZ-4 4.0L V6 Automatic (Crew Cab 4WD)

The Suzuki Truck Standard

Built to withstand extreme payload and off-road operating conditions, this radiator delivers continuous cooling reliability. It secures critical drivetrain components against overheating and pressure spikes when navigating demanding trails or hauling heavy payloads.
