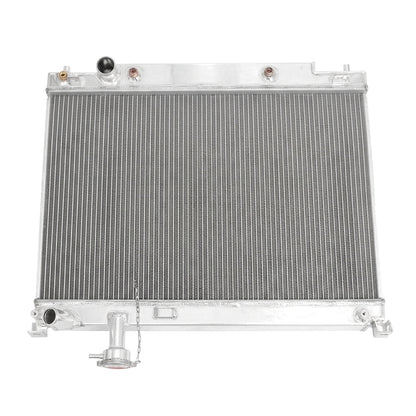

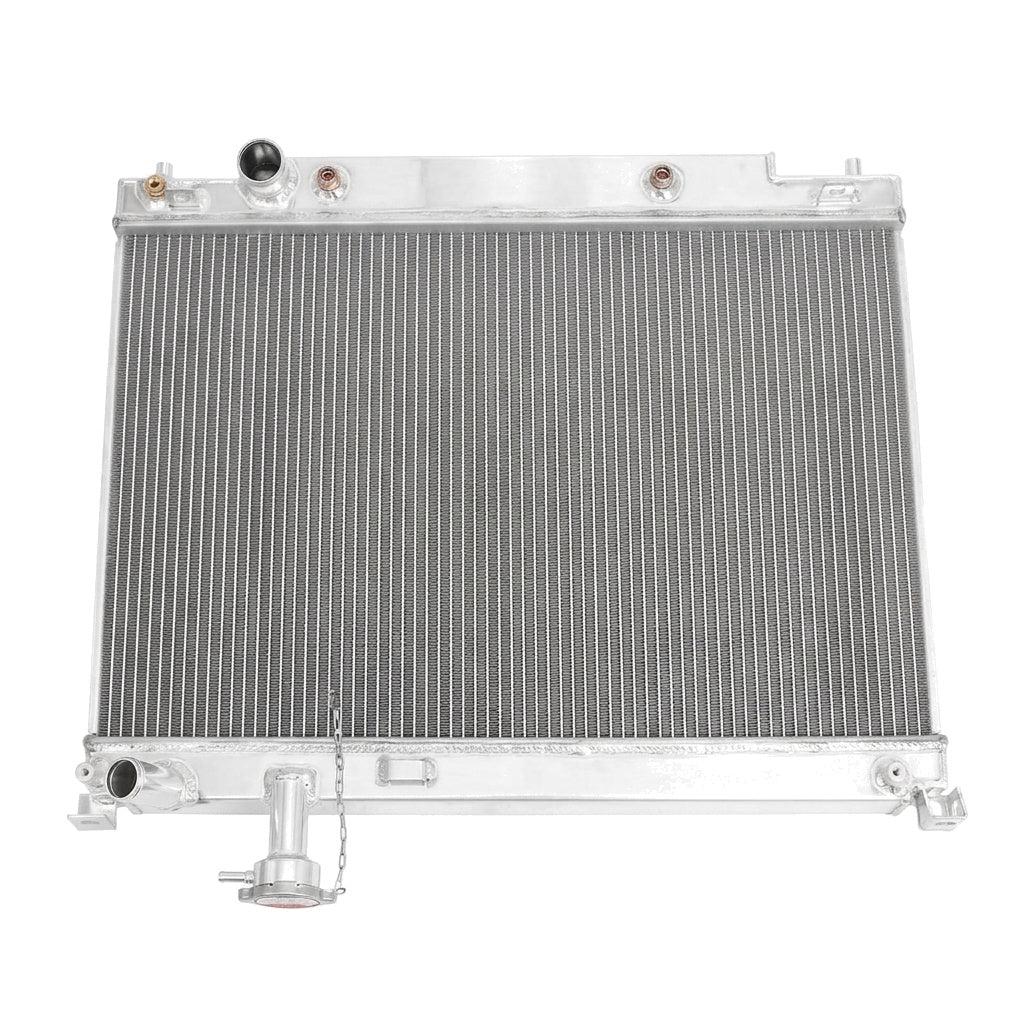

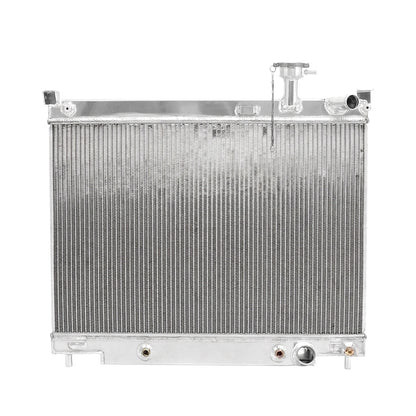

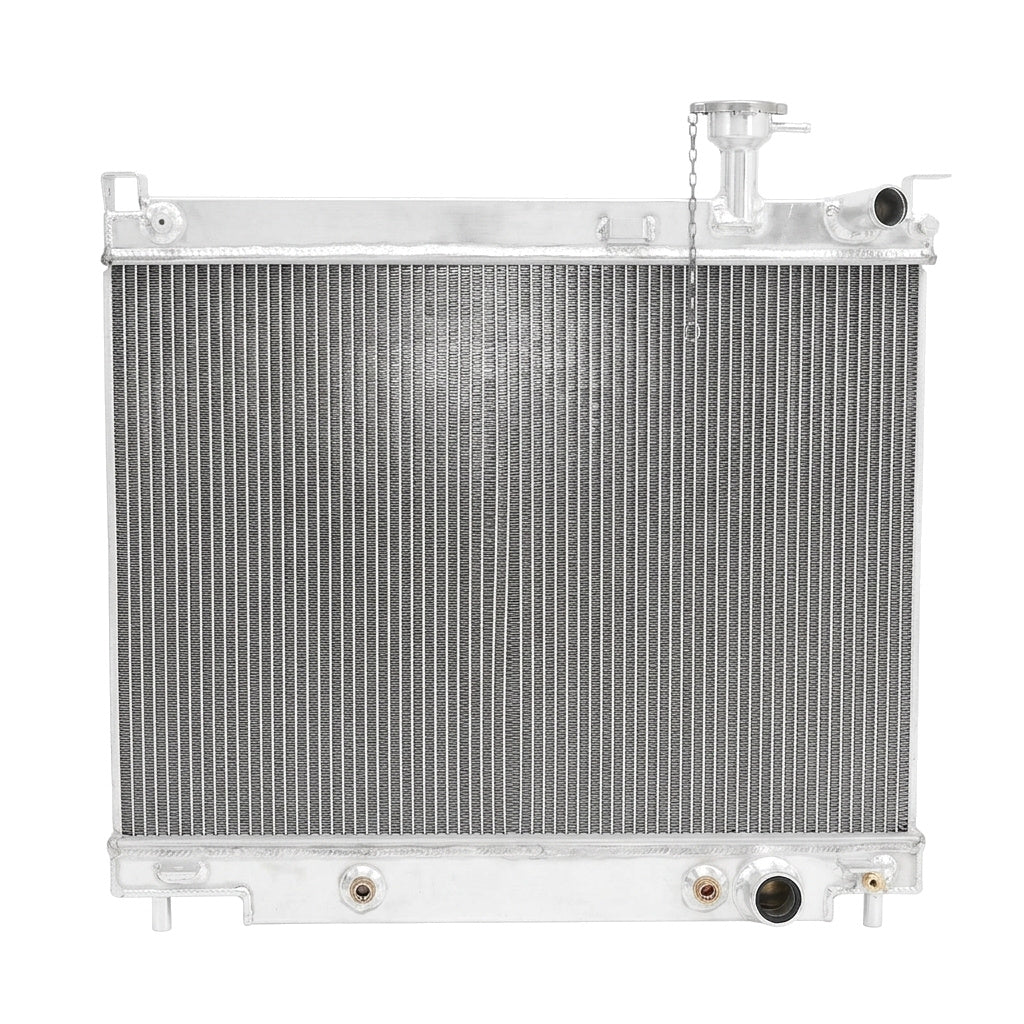

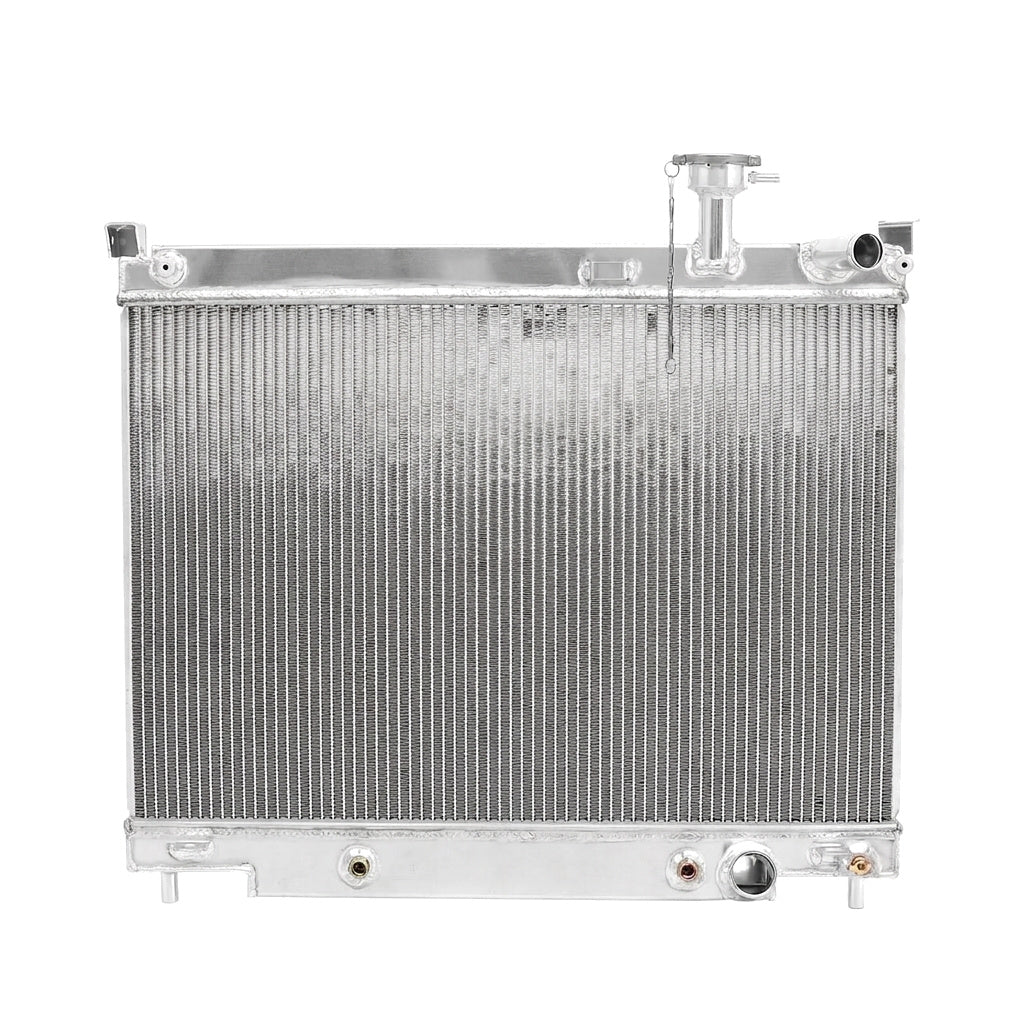

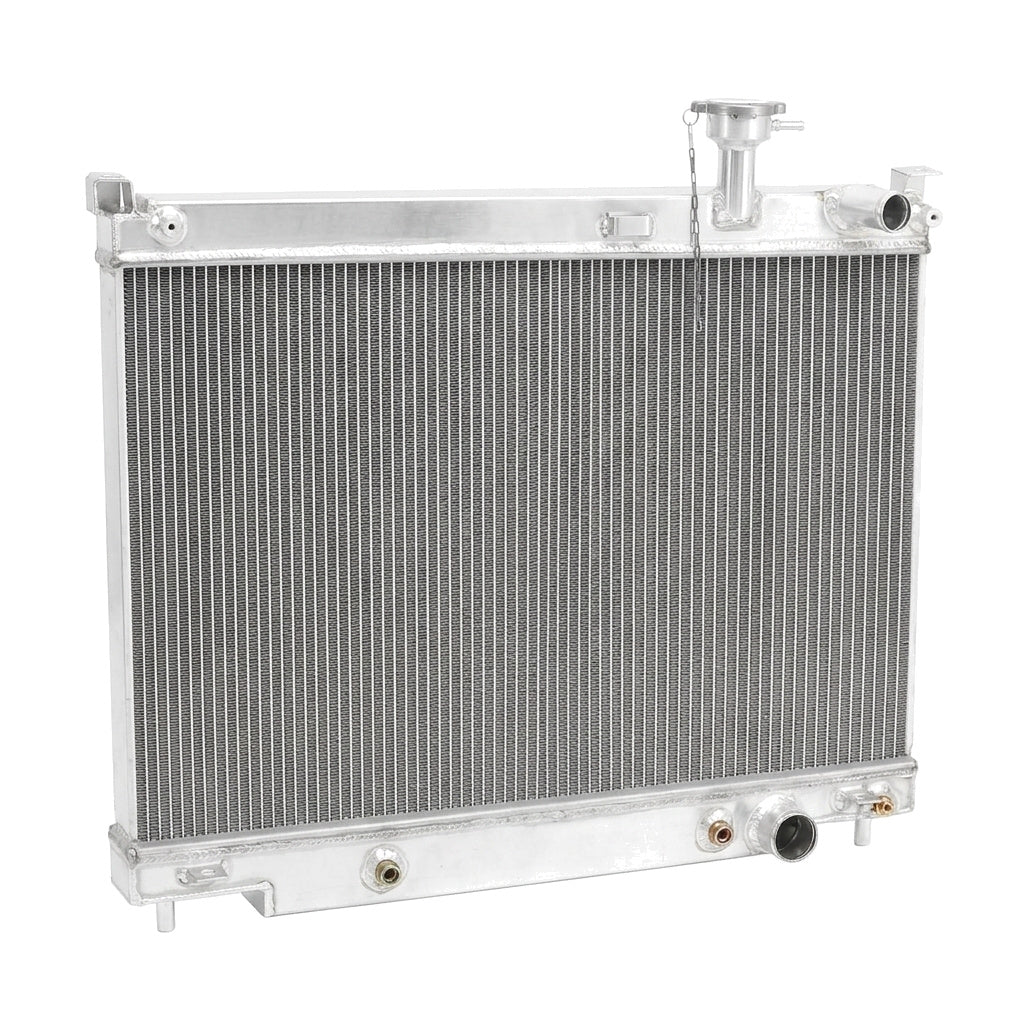

Performance Radiator for Chevrolet Trailblazer (2006-2009) 5.3L 6.0L

Direct-Fit All-Aluminum Performance Radiator for 2006-2009 Chevrolet Trailblazer

Upgrades OEM Thermal Efficiency: Replaces failure-prone composite end-tank units with a full AA5052 aluminum core and TIG-welded tanks to eliminate heat soak and structural coolant leaks in V8-equipped Trailblazer platforms.

The Stock Trailblazer Thermal & End-Tank Fatigue

Factory GMT360 cooling assemblies rely on plastic composite end tanks crimped to an aluminum core via rubber gaskets. Continuous thermal cycling from the Gen IV V8 engines degrades these polymer tanks over time, causing stress cracking, brittle tank failure, and leaks at the crimp joints. Under sustained towing or aggressive driving, the OEM core density struggles to shed heat efficiently, compromising both engine and automatic transmission operating temperatures.

The Engineering Solution

Constructed entirely from aircraft-grade AA5052 aluminum, this radiator features 100% TIG-welded tanks and a high-efficiency racing core design to eliminate mechanical crimp seams. The downflow core maximizes surface contact area to increase convective heat transfer under high thermal loads. It includes an integrated internal transmission oil cooler and a billet-style filler neck with radiator cap, providing a heavy-duty bolt-on replacement.

Technical Specifications

Compatibility

• 2006-2008 Chevrolet Trailblazer 5.3L V8 (LH6)
• 2006-2009 Chevrolet Trailblazer SS 6.0L V8 (LS2)
• Note: Excludes 4.2L Inline-6 models due to core and bracket variations.

The Chevrolet Heavy-Duty Caliber

Engineered to handle sustained high-load towing and high-displacement V8 heat cycles, delivering dependable cooling capacity and structural durability without the risk of plastic tank fatigue.
