Oil Cooler Kit for Subaru BRZ (2013-2019) 2.0L

Thermostatic Oil Cooler Kit for 2013-2019 Subaru BRZ (ZC6)

What it Does: The thermostatic oil cooler kit adds an external 19-row heat exchanger to the 2013-2019 Subaru BRZ to regulate operating temperatures and prevent thermal oil breakdown under sustained load.

The Stock Subaru BRZ Thermal Limitation

The factory FA20 engine in the ZC6 chassis lacks a dedicated air-to-oil cooler, relying on passive dissipation that quickly proves inadequate during aggressive driving or track events. Oil temperatures frequently exceed 260°F (127°C), causing standard motor oil to experience severe viscosity breakdown and thermal shearing. This drop in hydrodynamic film strength accelerates rod bearing wear, compromises camshaft journal lubrication, and risks catastrophic bottom-end engine failure.

The Engineering Solution

Engineered for maximum thermal dissipation, this direct-fit system utilizes a 19-row aluminum bar-and-plate core engineered to withstand high vibration and track-duty hydraulic pressures. An integrated 73°C (163°F) thermostatic sandwich plate bypasses the cooler core during initial operation to maintain fast engine warm-up, only opening fluid passages once operating threshold is reached. Paired with high-pressure reinforced lines and leak-free adapter fittings, this system stabilizes oil viscosity, preserves critical bearing clearances, and protects internal components during sustained high-rpm use.

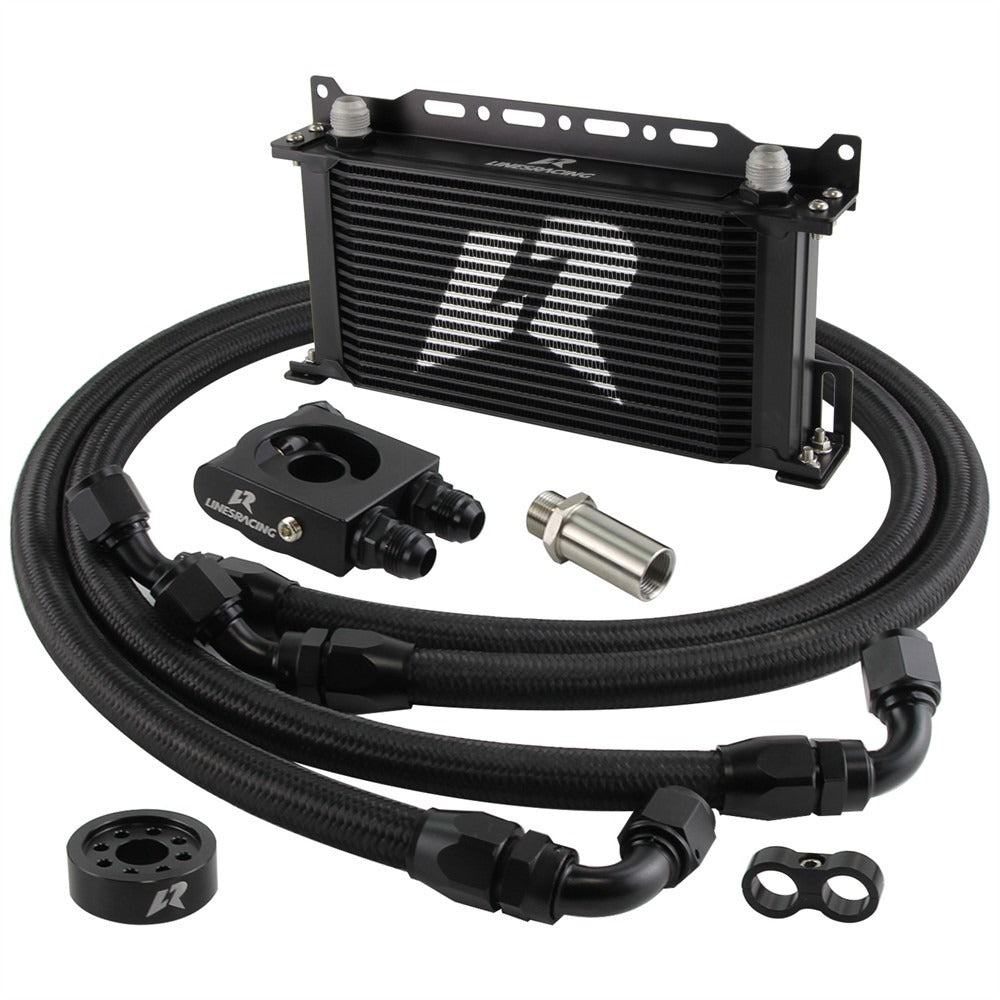

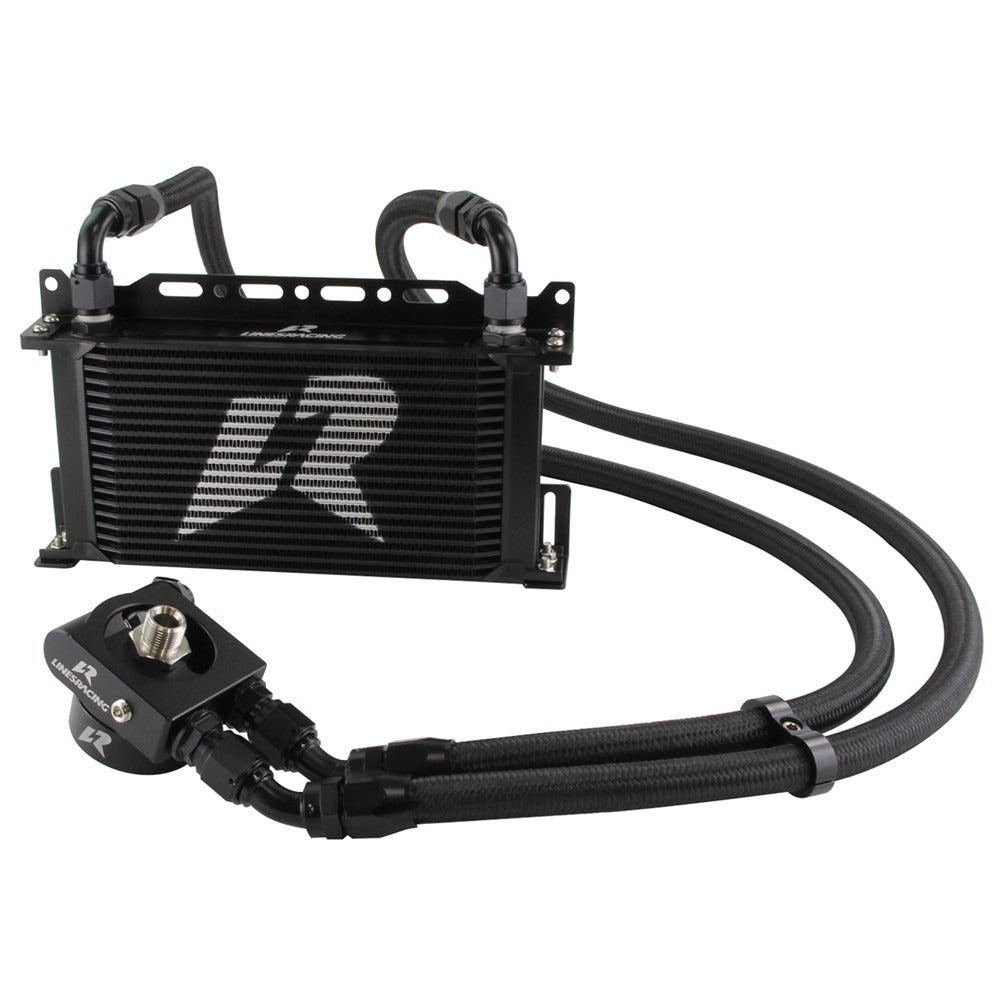

What's Included

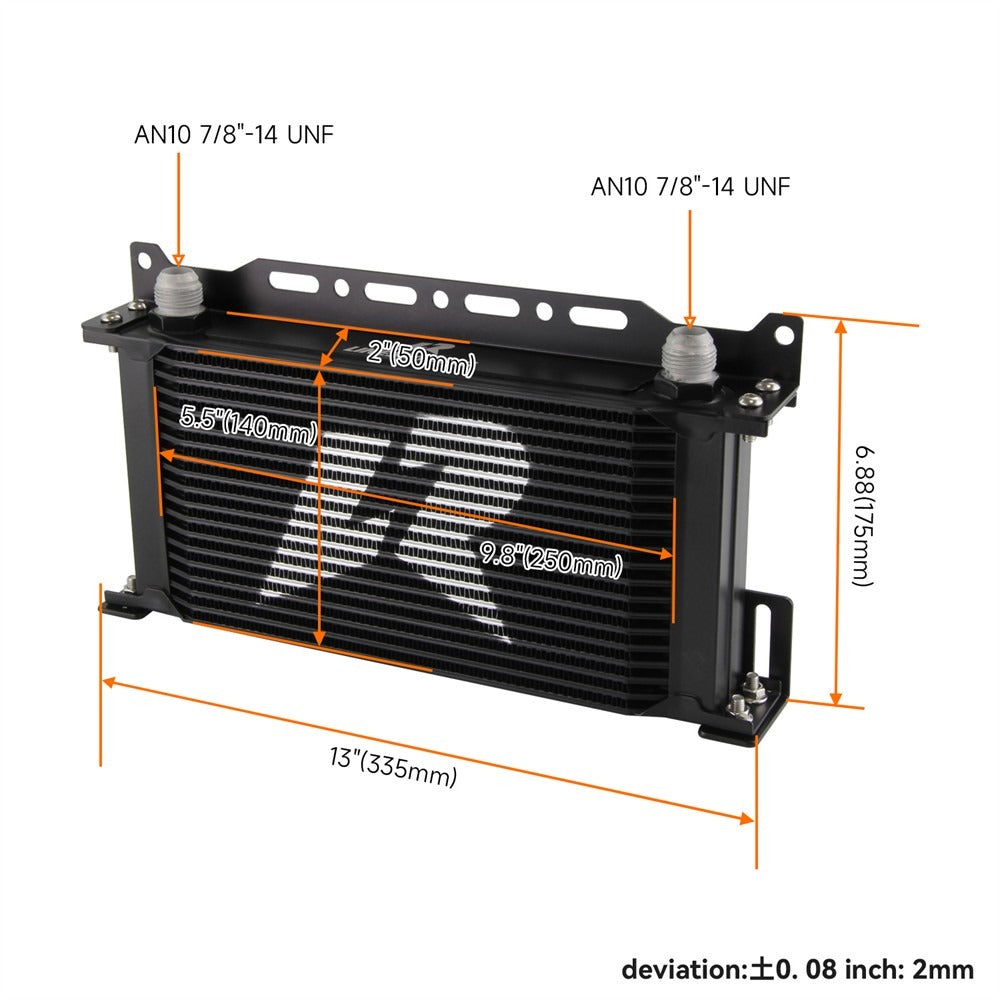

• 19-row aluminum oil cooler

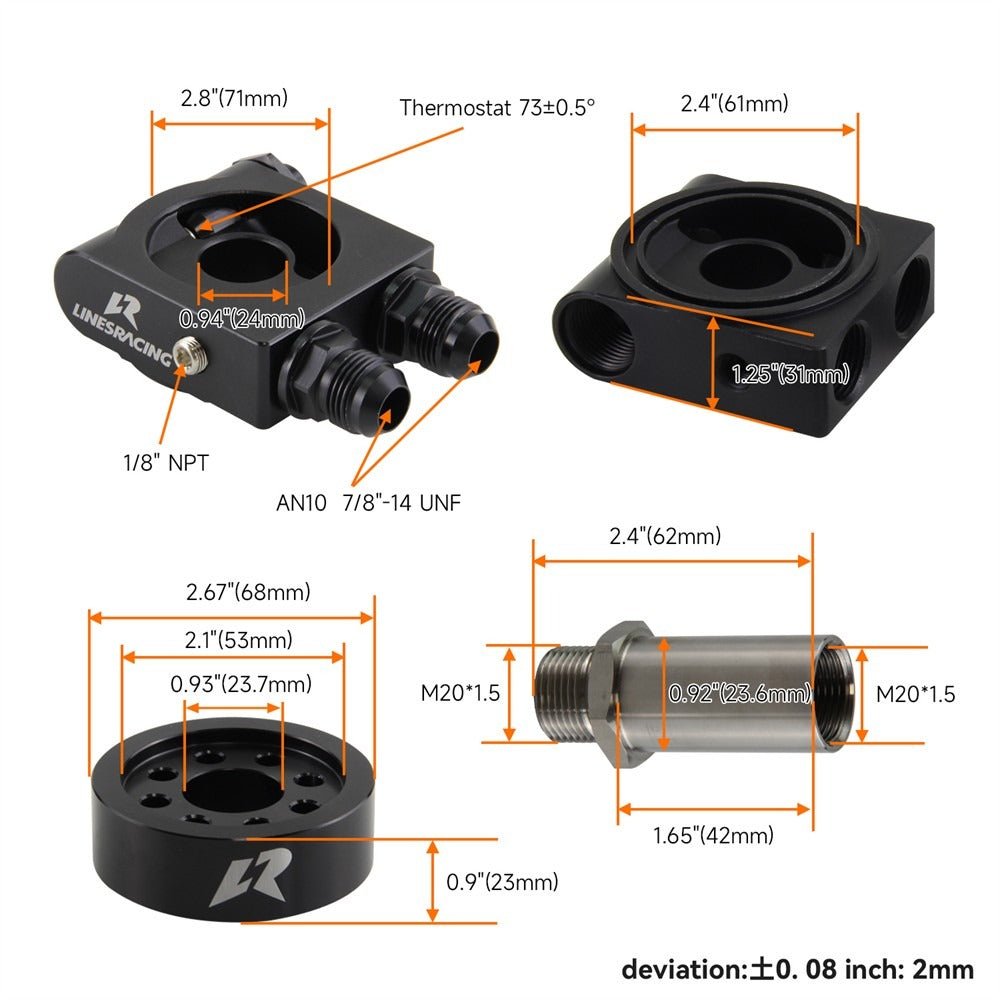

• 73°C thermostatic sandwich plate with spacer

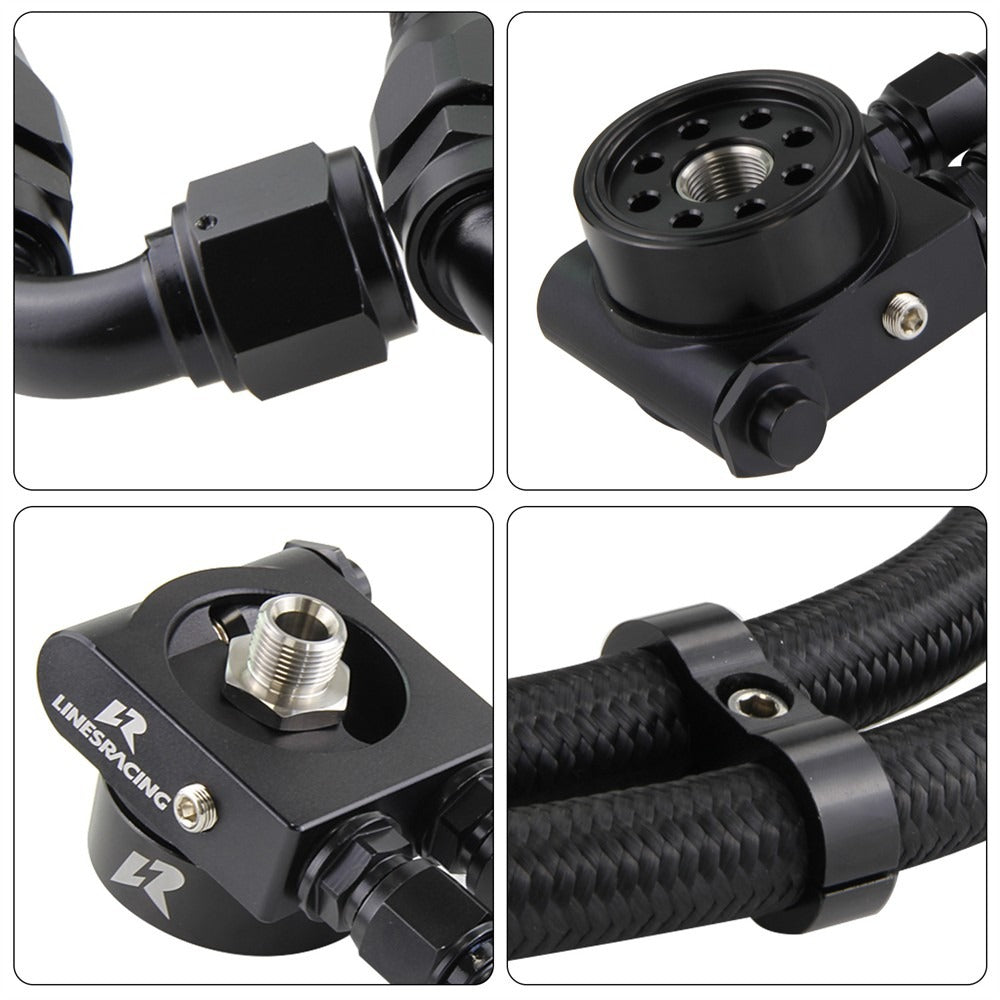

• 2 x high-pressure oil hoses
• Mounting bracket and installation fittings

Technical Specifications

Compatibility

• 2013-2019 Subaru BRZ (2.0L FA20)
• 2013-2015 Scion FR-S (2.0L FA20)
• 2013-2019 Toyota 86 / GT86 (2.0L FA20)

Frequently Asked Questions & Fitment Warnings

Does this fit the ZC6 BRZ?

Yes, this is a direct fit for the 2013-2019 Subaru BRZ equipped with the FA20 2.0L engine.

Will this system cause engine overcooling during street driving?

No, the integrated 73°C thermostatic sandwich plate prevents flow to the external core until engine oil reaches proper operating temperature.

The Subaru Performance Caliber

Engineered to handle the extreme lateral loads and sustained redline abuse common to the FA20 platform, this cooling package delivers the thermal headroom required to protect your boxer engine on street or track.
