Oil Cooler Kit for Chevrolet Corvette (1997-2019) 5.7L, 6.0L, 6.2L

High-Efficiency 16-Row Oil Cooler Kit for 1997-2019 Chevrolet Corvette (C5, C6, C7)

What it Does: The Oil Cooler Kit replaces factory thermal limitations on the 1997-2019 Chevrolet Corvette to stabilize crankcase fluid temperatures and prevent oil thinning under hard driving conditions.

The Stock Chevrolet Corvette Thermal Breakdown Weakness

Factory C5, C6, and C7 Corvettes relying on radiator end-tank heat exchangers frequently encounter extreme oil temperatures surpassing 260°F during sustained high-load or track conditions. Excess thermal load breaks down engine oil viscosity, weakening hydrodynamic lubrication across rod and main journal bearings. This oil shear increases friction, degrades valvetrain life on LS1, LS2, LS3, and LT1 engines, and leads to dangerous oil pressure drops at high engine speeds.

The Engineering Solution

This bolt-on kit introduces an external 16-row bar-and-plate aluminum oil cooler core engineered to withstand high dynamic operating pressures while maximizing heat rejection via ambient airflow. It features an integrated LS series oil filter adapter block and heavy-duty, braided -10AN (7/8"-14) lines that deliver unrestricted fluid volume without line collapse. By isolating oil cooling from the radiator, it maintains safe oil operating temperatures and safeguards critical internal engine components.

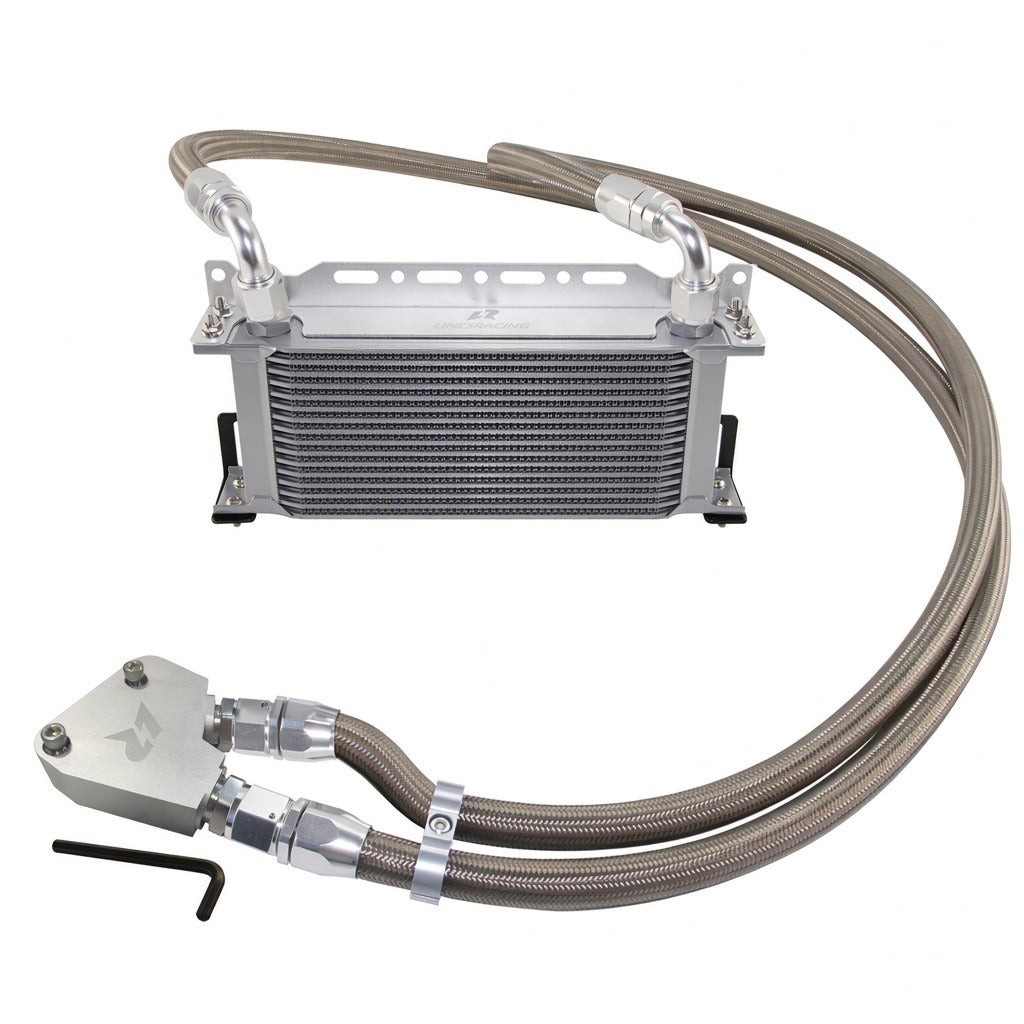

What's Included

• 16-Row Aluminum Oil Cooler Core

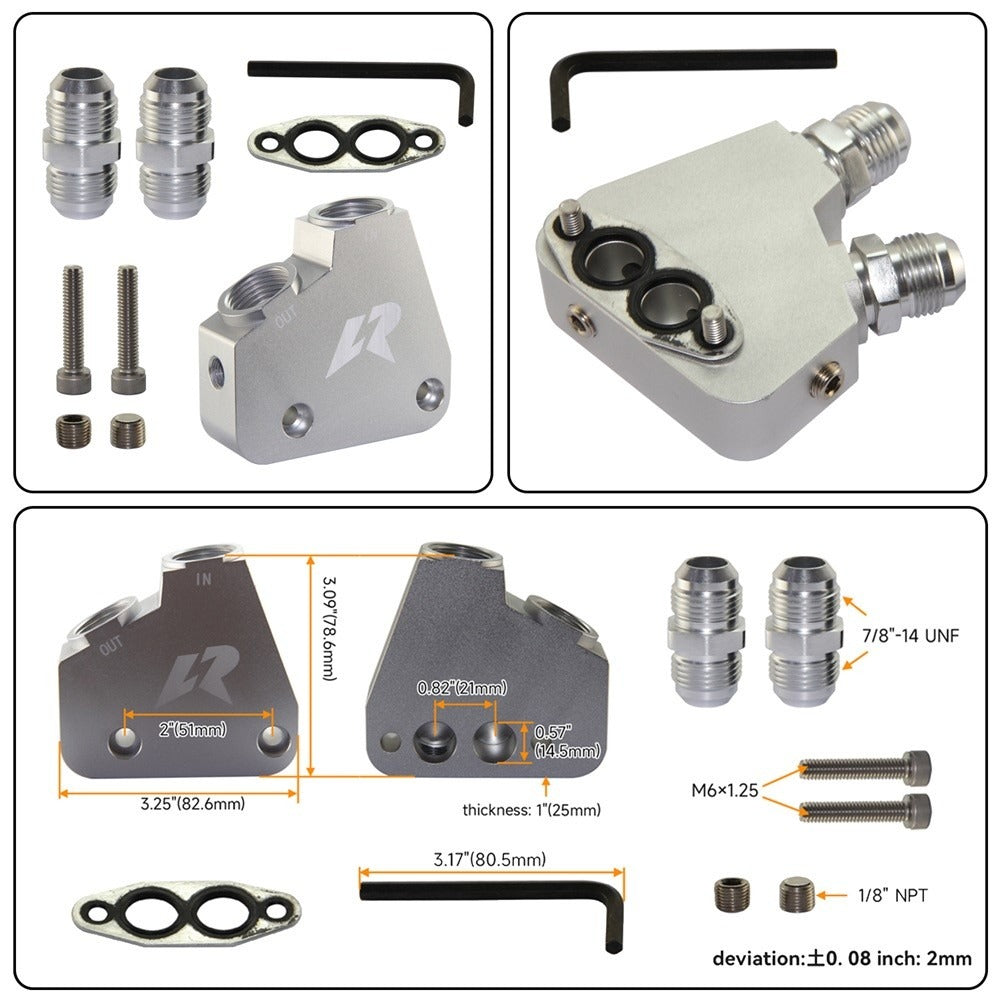

• LS Oil Filter Adapter Plate
• Braided -10AN High-Pressure Oil Lines

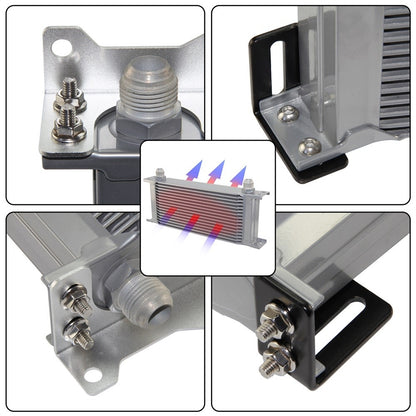

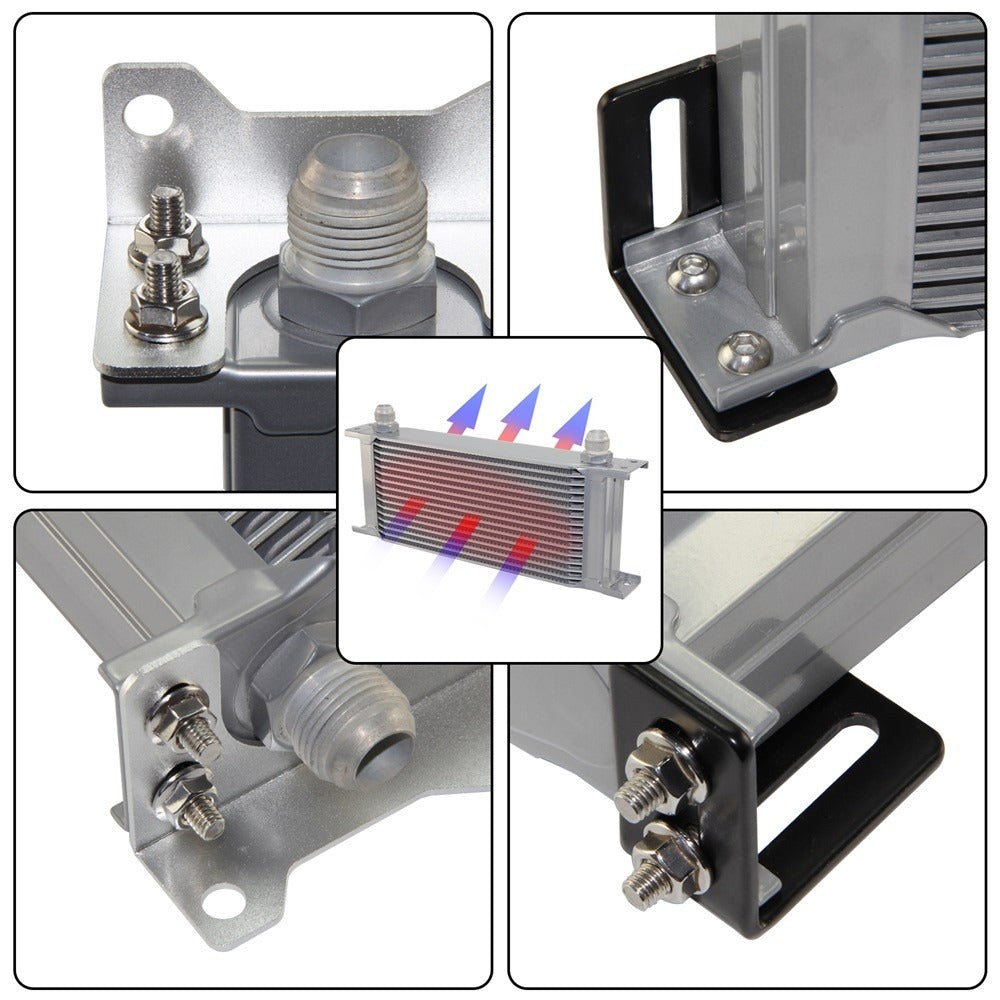

• Mounting Bracket and Installation Hardware

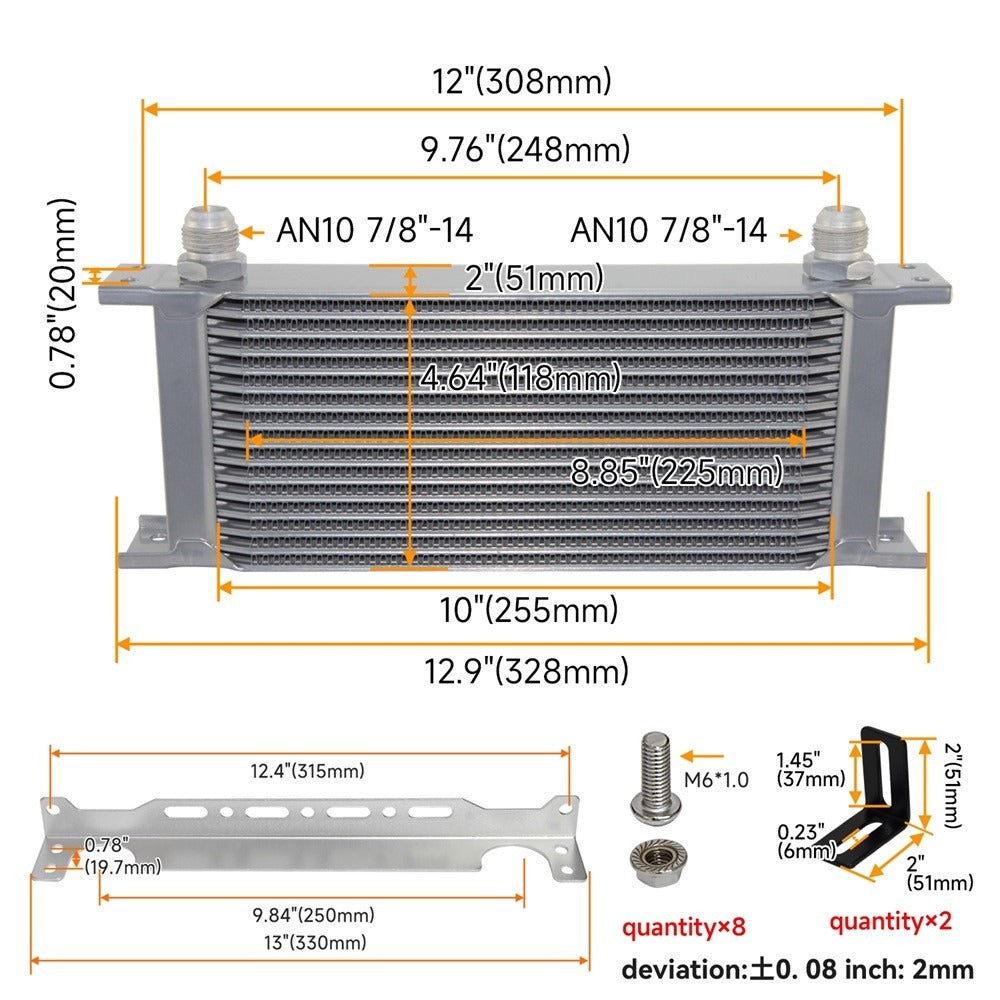

Technical Specifications

Compatibility

• 1997-2004 Chevrolet Corvette C5 (5.7L LS1 / LS6)
• 2005-2013 Chevrolet Corvette C6 (6.0L LS2 / 6.2L LS3)
• 2014-2019 Chevrolet Corvette C7 (6.2L LT1)

Frequently Asked Questions & Fitment Warnings

Does this fit the C5, C6, and C7 Corvette?

Yes, this is a direct fit for the 1997-2019 Chevrolet Corvette equipped with LS and LT series V8 engines. Does NOT fit 2004-2006 Pontiac GTO models due to oil pan and accessory clearance differences.

Will I need to add extra engine oil after installing this kit?

Yes, the addition of the 16-row heat exchanger core and -10AN braided lines will increase your system oil capacity by roughly 0.5 to 1.0 quart.

The Chevrolet Caliber

Chevrolet small-block V8 performance platforms demand consistent lubrication and thermal control to sustain reliable, high-RPM output without risking catastrophic bearing wear on the street or road course.
