Ignition Coil + Iridium Spark Plugs for Hyundai Sonata (1999-2001) 2.5L

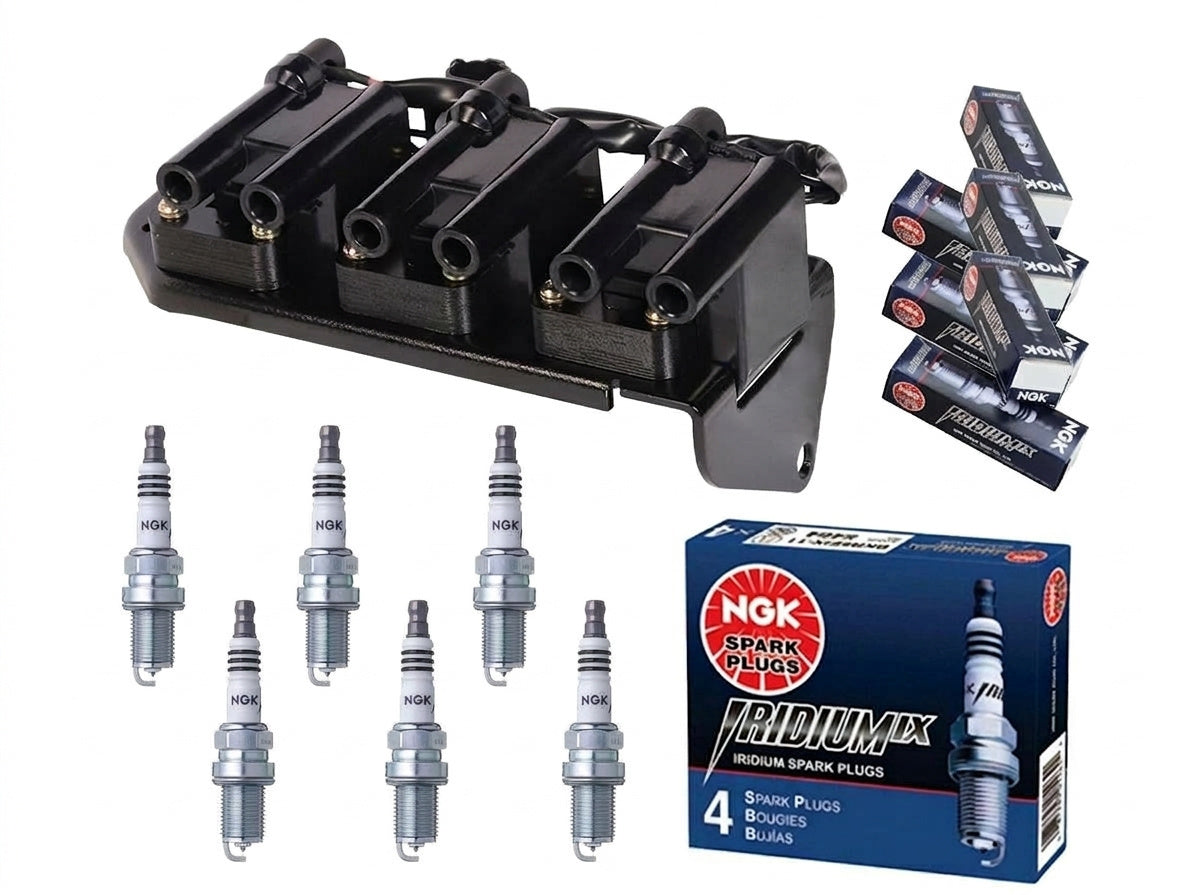

High-Dielectric Ignition Coil and NGK Iridium Spark Plug Kit for 1999-2001 Hyundai Sonata (EF)

What it Does: The ignition coil and NGK Iridium IX spark plug kit restores secondary ignition voltage and combustion efficiency on the 1999-2001 Hyundai Sonata to eliminate misfires and stabilize idle.

The Stock Hyundai Sonata EF Coil Degradation

The factory waste-spark ignition pack on the EF platform sits directly atop the engine bay where thermal cycling degrades internal epoxy potting and copper windings over time. In the 2.5L Delta G6BV, elevated underhood temperatures create micro-fractures in the coil body, causing dielectric breakdown, primary resistance drift, and high-voltage flashover to ground under load. Compounding this, standard copper or nickel factory plugs suffer rapid electrode erosion, expanding the spark gap beyond manufacturer tolerances and demanding higher firing voltages that accelerate total coil failure.

The Engineering Solution

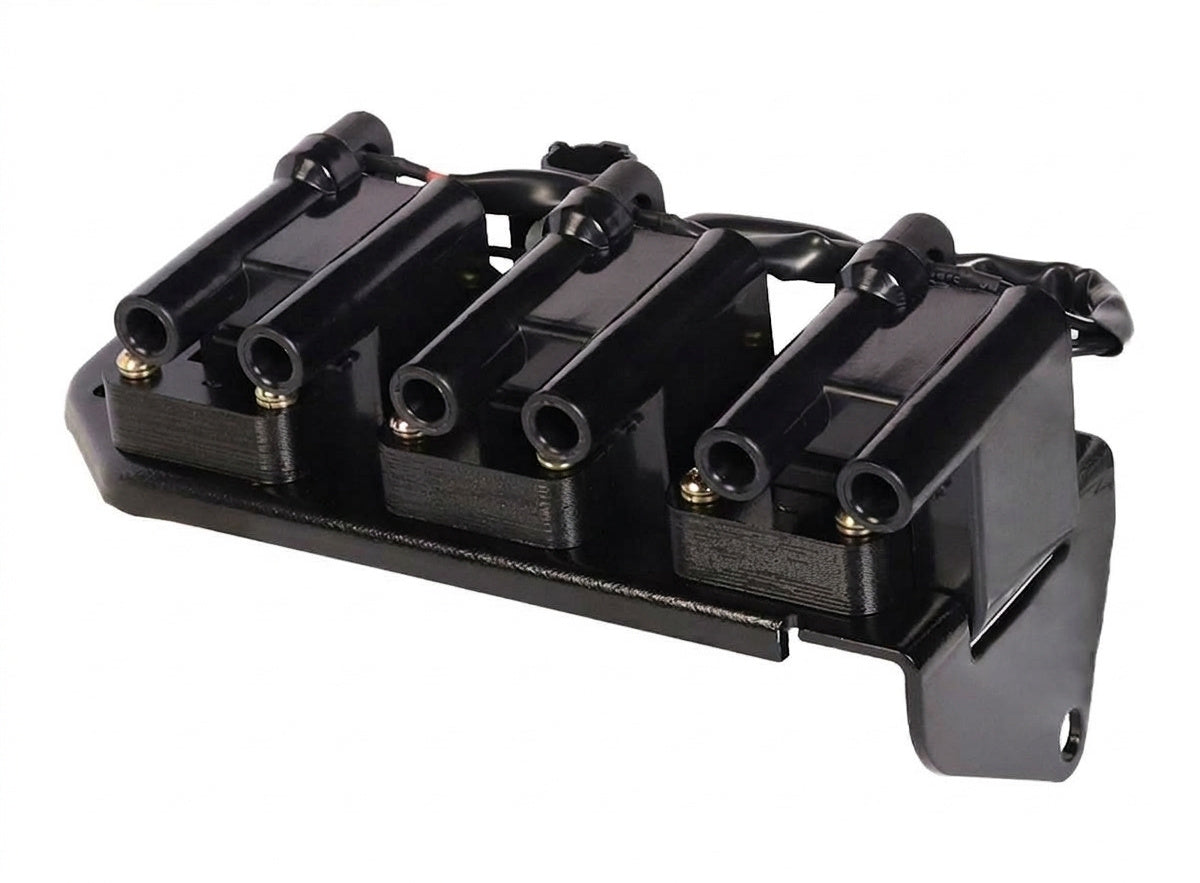

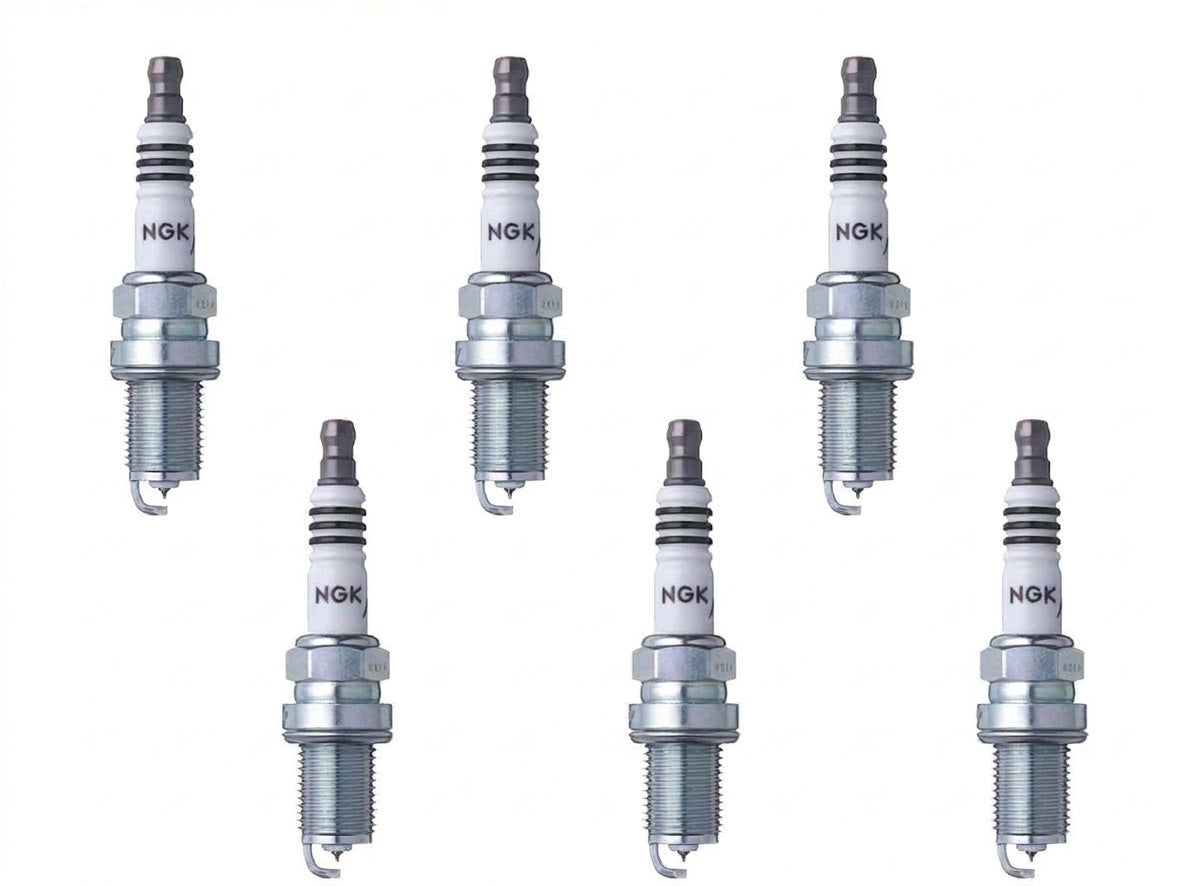

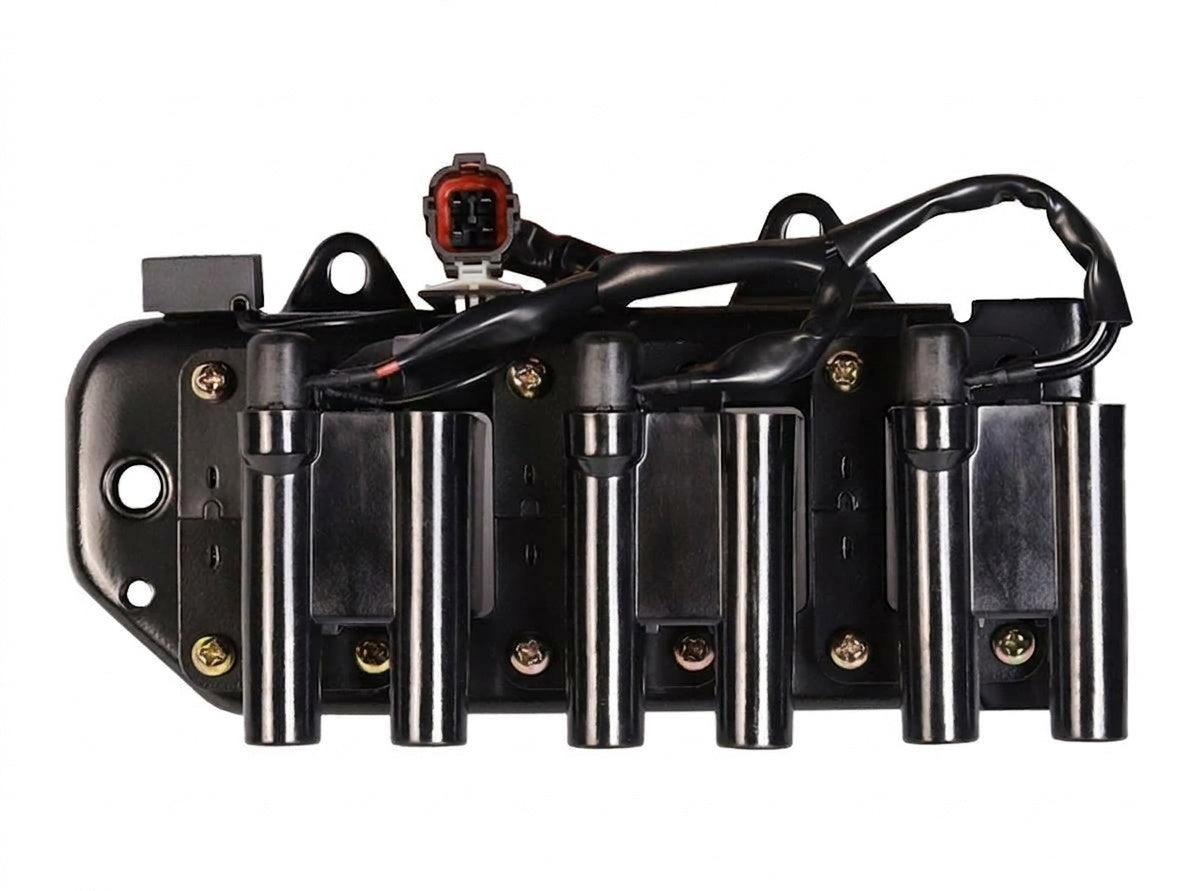

This replacement pack features heavy-duty thermoplastic housing sealed with high-thermal-conductivity epoxy resin, isolating internal windings against moisture and heat soak. Paired with laser-welded NGK Iridium IX (5464) spark plugs, the ultra-fine 0.6mm iridium center electrode substantially reduces required quenching voltage while promoting complete flame propagation. Designed to match factory dwell timing and secondary output curves, this matched system directly replaces OEM part 27301-37100 (UF284) to eliminate persistent cylinder misfire codes (P0300-P0306) and hesitation under heavy throttle.

Technical Specifications

Compatibility

• 1999 Hyundai Sonata Base / GLS 2.5L V6 (EF)
• 2000 Hyundai Sonata GLS 2.5L V6 (EF)
• 2001 Hyundai Sonata GLS 2.5L V6 (EF)

Frequently Asked Questions

Does this fit the EF Sonata?

Yes, this is a direct fit for the 1999-2001 Hyundai Sonata equipped with the 2.5L Delta G6BV engine.

Do the NGK Iridium IX plugs require manual gapping before installation?

No, the iridium center electrodes are pre-set and delicate; adjust only if verifying factory clearance with a non-contact feeler gauge.

The Hyundai Commuter Standard

Engineered to deliver clean combustion and factory-calibrated secondary voltage, this ignition kit keeps your commuter reliable and free of check-engine lights.
