Ignition Coil and Iridium Spark Plugs for Ford Flex (2009-2012) 3.5L

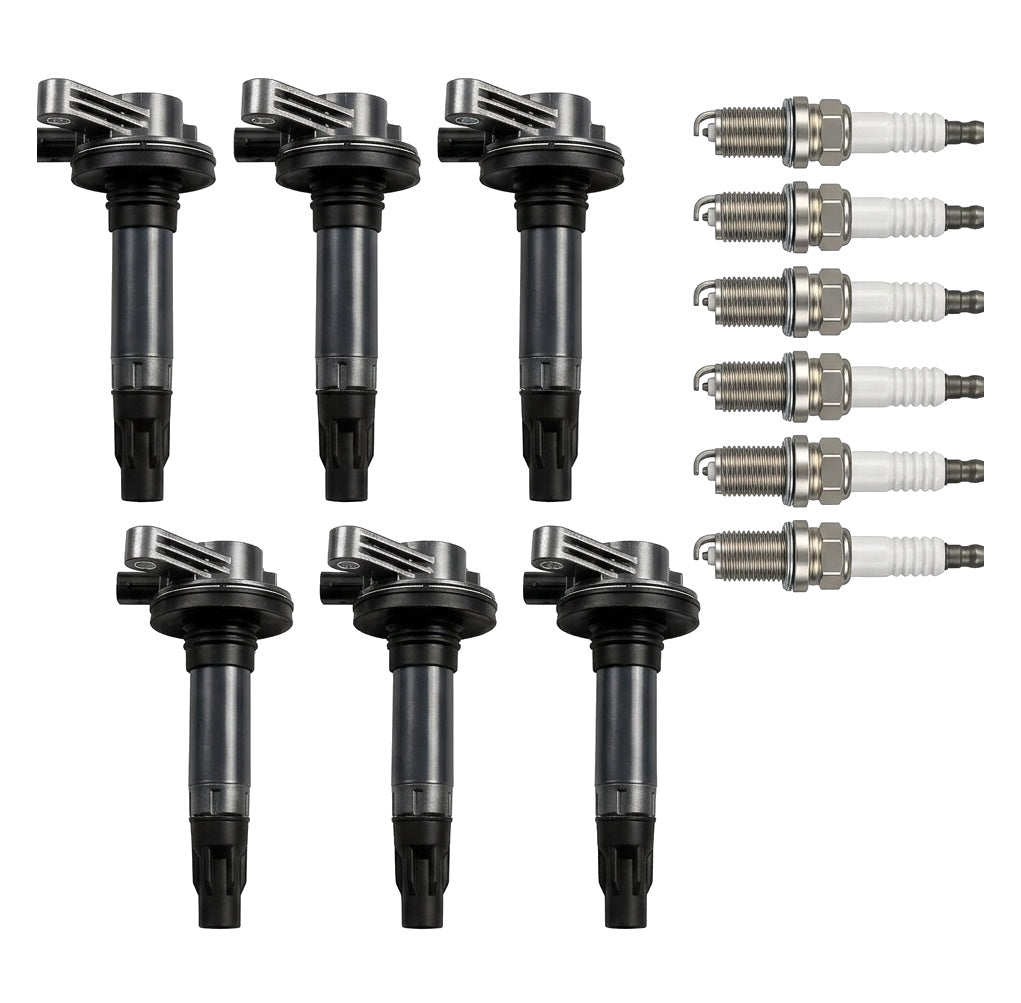

Direct-Fit Ignition Coil and Iridium Spark Plug Kit for 2009-2012 Ford Flex

Primary Function: Restores factory secondary ignition output and combustion efficiency across all six cylinders by replacing thermally degraded coils and worn spark plugs.

The Stock Flex Secondary Ignition Vulnerabilities

Over extended operating hours, the transverse engine layout in the Ford D4 chassis subjects the rear cylinder bank to high thermal soak. Factory ignition coils undergo dielectric breakdown within the silicone boots and epoxy potting, creating paths for secondary voltage leakage, carbon tracking, and intermittent misfire codes under load (P0300–P0306). Compounding this, standard factory spark plugs experience electrode gap erosion, increasing required breakdown voltage and over-stressing aged coil windings.

The Engineering Solution

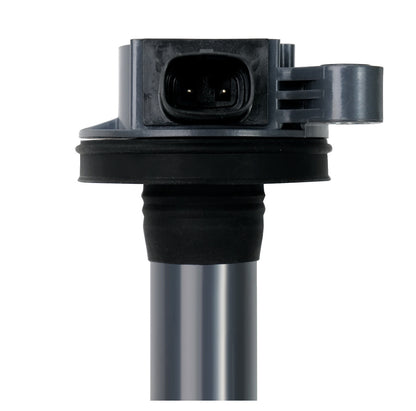

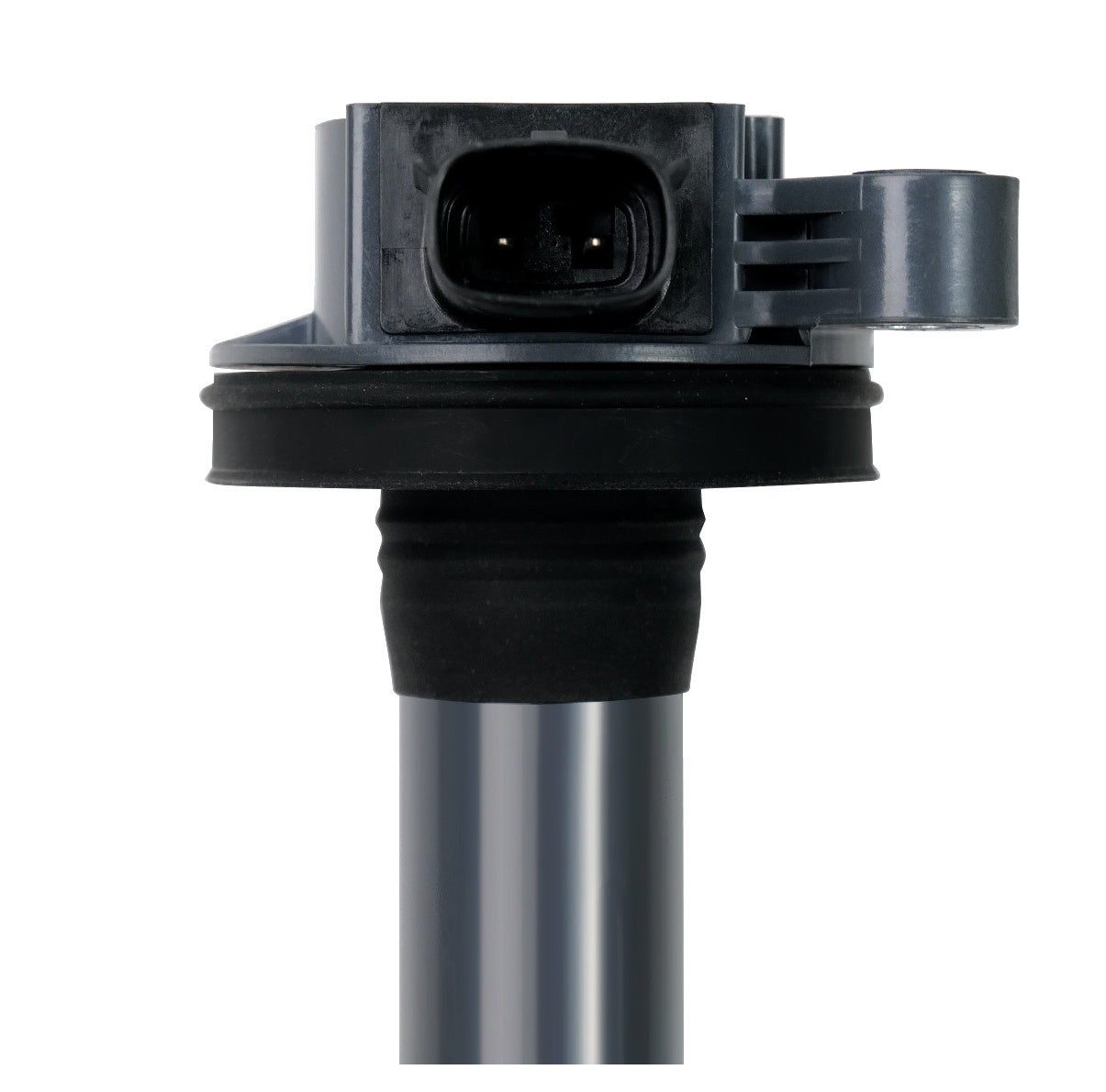

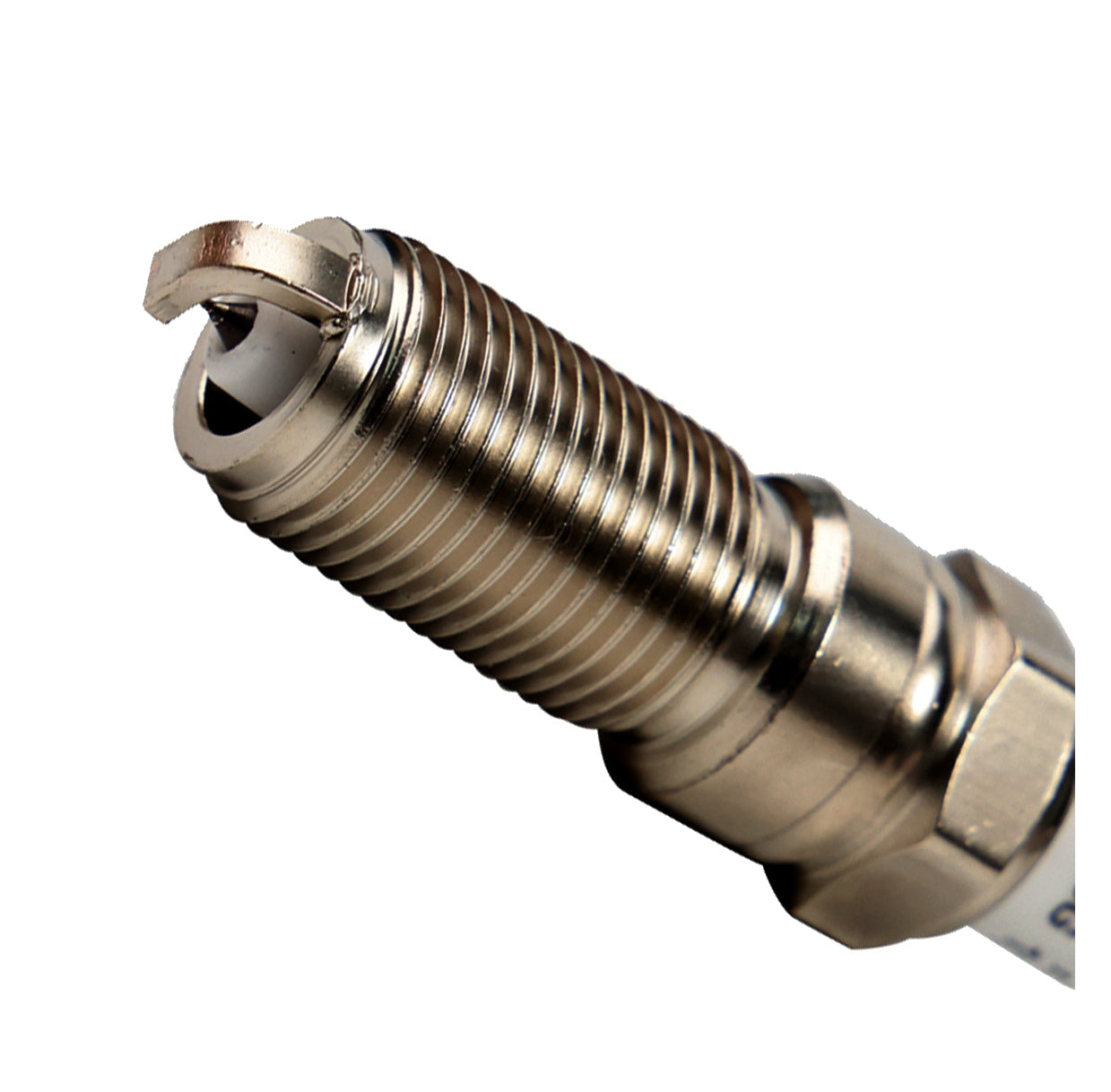

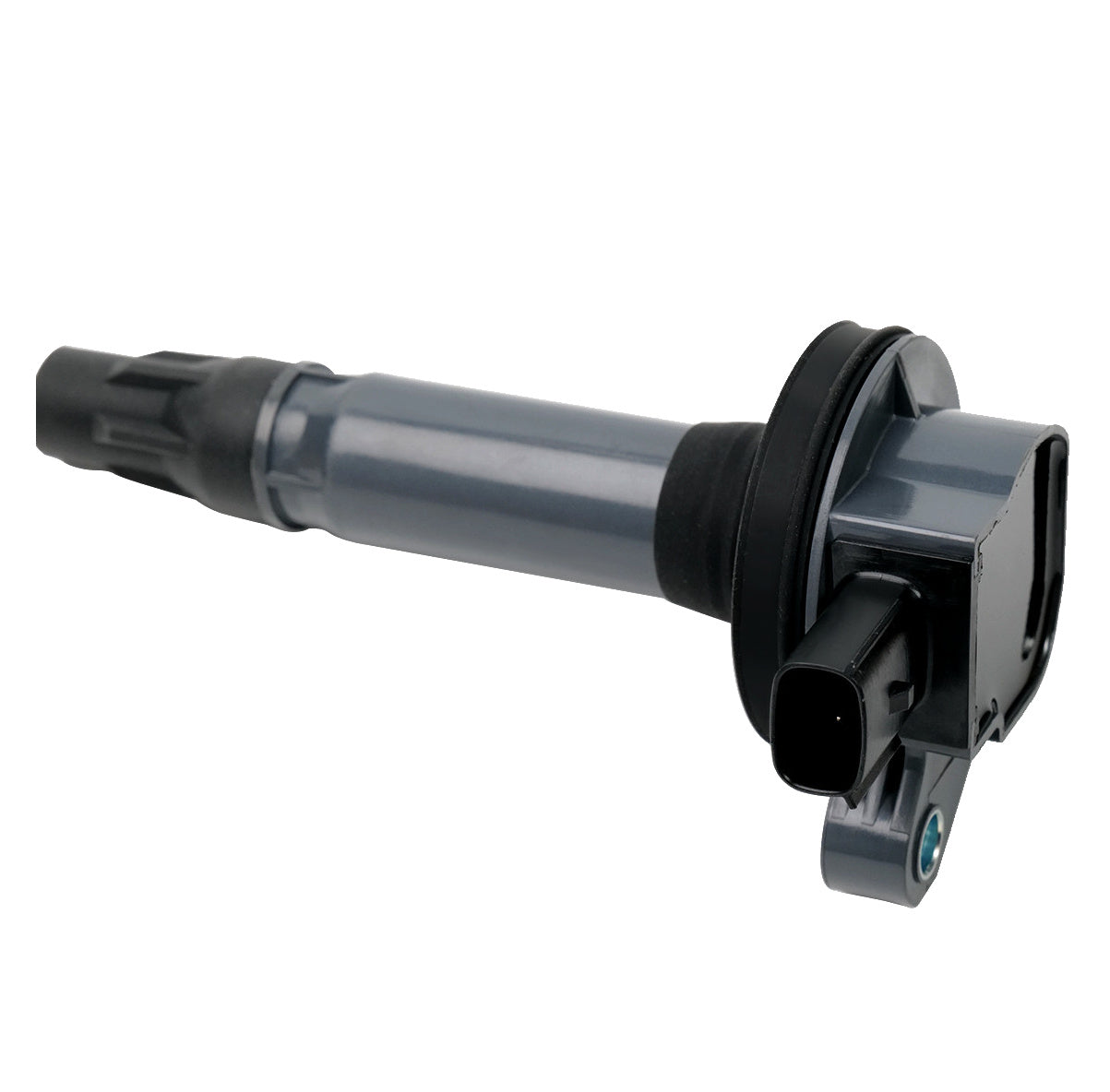

This comprehensive tune-up kit utilizes direct-fit coil-on-plug assemblies engineered with high-purity oxygen-free copper internal windings and high-temperature dielectric epoxy encapsulation to prevent voltage arcing. Precision blade terminals ensure minimal contact resistance with the OEM harness connectors. Paired with fine-wire iridium spark plugs, this setup reduces ignition voltage demand, resists high-temperature corrosion, and stabilizes flame kernel propagation for consistent combustion across all RPM bands.

Technical Specifications

Compatibility

• 2009-2012 Ford Flex SE 3.5L V6 Naturally Aspirated
• 2009-2012 Ford Flex SEL 3.5L V6 Naturally Aspirated
• 2009-2012 Ford Flex Limited 3.5L V6 Naturally Aspirated

The Ford Durability Caliber

Engineered to handle the constant thermal and mechanical loads of family transport and cross-country towing, this direct-fit ignition system eliminates rough idling, resolves cold-start hesitation, and restores powertrain efficiency without triggering check engine lights.
