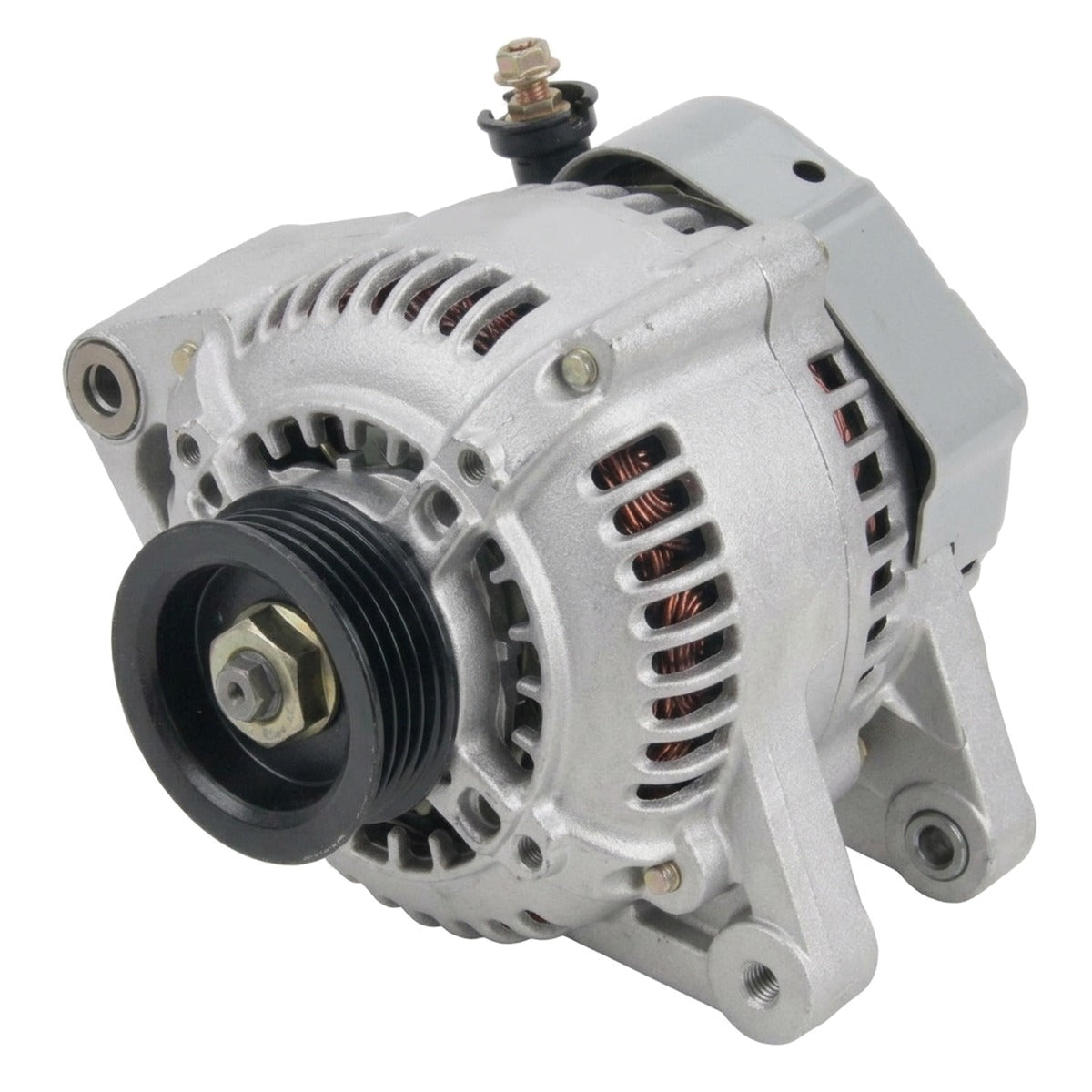

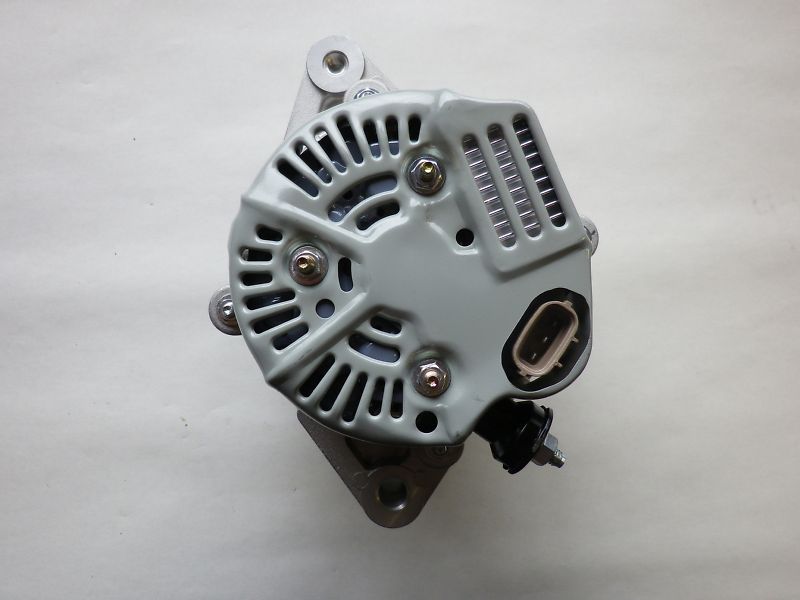

High Output Alternator for Toyota T100 (1993-1994) 3.0L

High-Amperage 120A Alternator for 1993-1994 Toyota T100 (VCK10/VCK20)

What it Does: The 120 Amp High Output Alternator upgrades the factory charging system on the 1993-1994 Toyota T100 to deliver stable, high-amperage electrical current under heavy electrical loads and low-RPM operation.

The Stock Toyota T100 Electrical Deficiencies

Factory charging systems on the early VCK10 and VCK20 platforms were equipped with low-output 60A to 70A Nippondenso units designed strictly for factory cabin electronics. When paired with the 3VZ-E 3.0L V6, these stock units struggle under the thermal stress of high engine bay temperatures and severe duty cycles. Operating auxiliary lighting, winches, sound systems, or dual batteries creates parasitic voltage drop, causing alternator diode overheating, battery starvation, and erratic ignition coil output during idle conditions.

The Engineering Solution

Engineered as a direct bolt-in replacement, this 120-amp unit features precision copper windings, heavy-duty rectifiers, and upgraded internal diodes to dissipate heat soak efficiently. By increasing standard amperage capacity by nearly double the OEM threshold, this alternator eliminates voltage sag across the electrical circuit, sustaining 14+ volts at low-RPM crawling or towing speeds. Built in the USA, it mates directly to the factory bracketry and harness locations, replacing failure-prone assemblies referenced under 27060-65040 and 101211-0130 without requiring bracket modifications.

What's Included

• 1 120-Amp High Output Alternator

Technical Specifications

Compatibility

• 1993 Toyota T100 Base / SR5 (3.0L V6 3VZ-E)
• 1994 Toyota T100 Base / DX / SR5 (3.0L V6 3VZ-E)

Frequently Asked Questions & Fitment Warnings

Does this fit the VCK10/VCK20 T100?

Yes, this is a direct fit for the 1993-1994 Toyota T100 equipped with the 3VZ-E 3.0L V6 engine; it does not fit later 3.4L 5VZ-FE or 2.7L 3RZ-FE models.

Is an upgraded "Big Three" power wire required for this 120A unit?

While this alternator utilizes the factory plug-and-play wiring connectors, upgrading the main battery charging lead to 4-gauge wiring is recommended to maximize full 120-amp throughput.

The Toyota Truck Caliber

First-generation T100 pickups rely on bulletproof drivetrain reliability under rigorous payload and trail demands. Installing this 120A high-output unit preserves ignition stability, electrical overhead, and onboard system longevity for years of dependable hauling.
