High Output Alternator for Toyota RAV4 (2010-2012) 3.5L

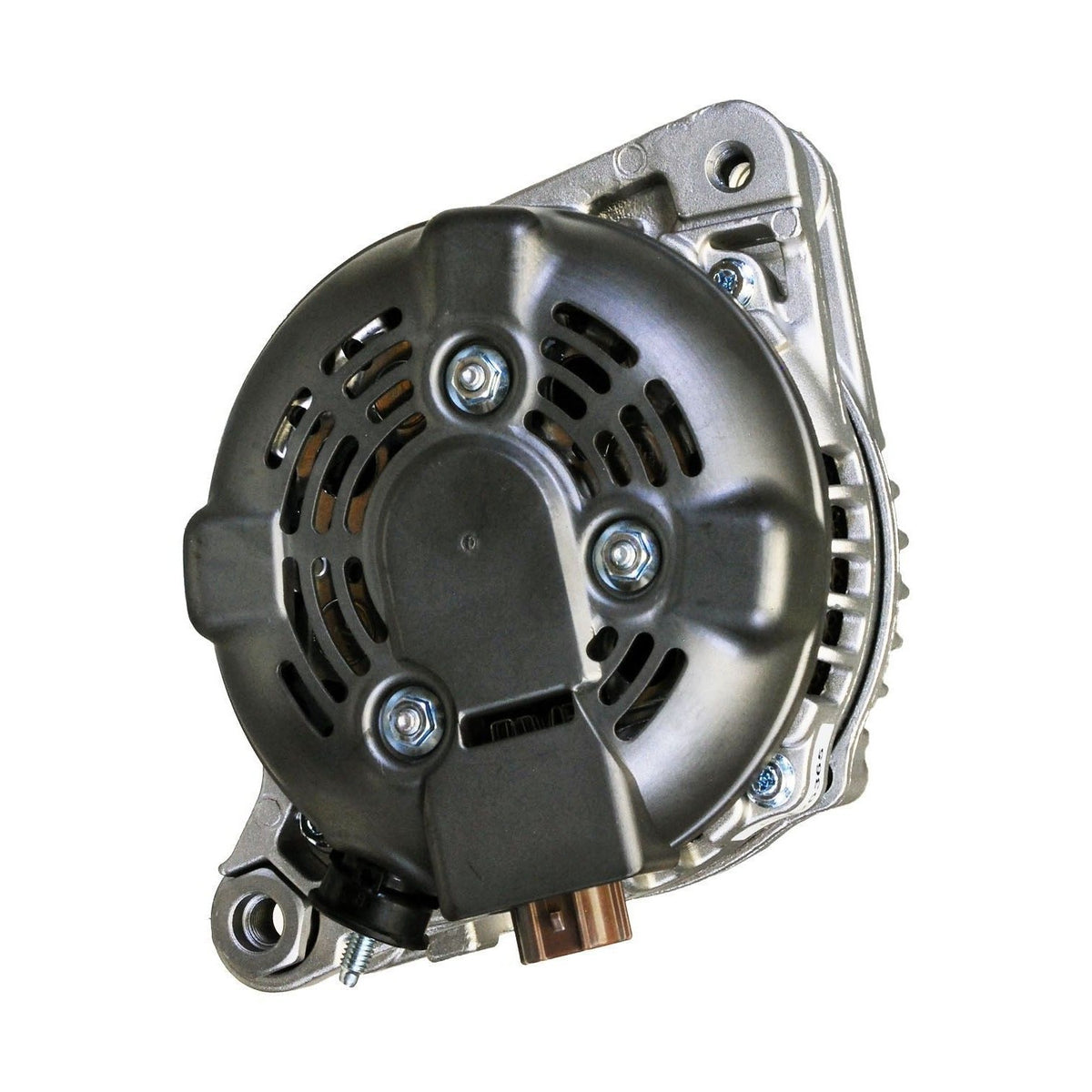

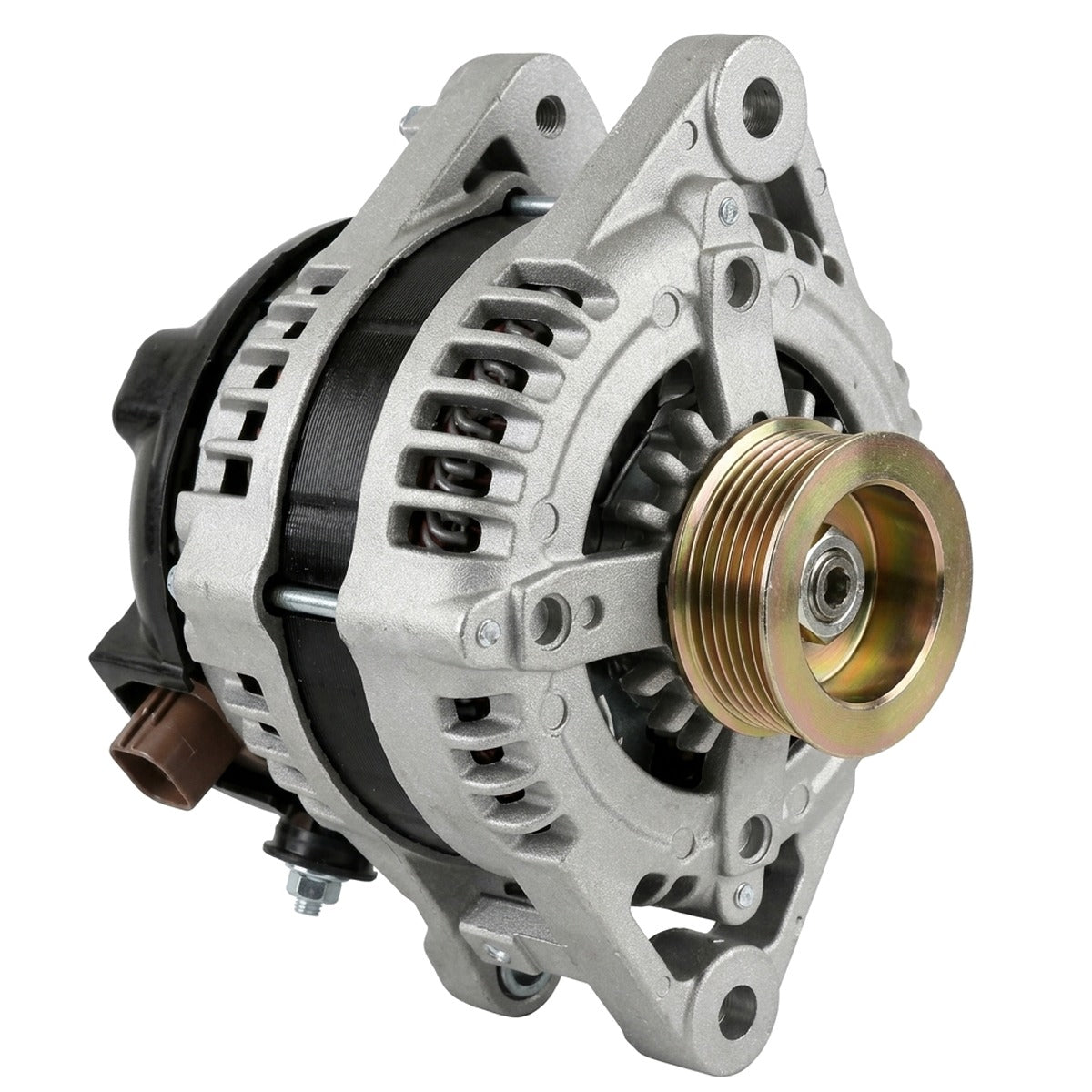

High-Output 250-Amp Alternator for 2010-2012 Toyota RAV4 (XA30)

What it Does: The 250-Amp High Output Alternator replaces the low-output factory charging unit on the 2010-2012 Toyota RAV4 to deliver steady, increased charging current and eliminate voltage sag under heavy electrical demands.

The Stock Toyota RAV4 Charging Limitations

Factory alternators equipped on the XA30 generation RAV4 with the 2GR-FE 3.5L V6 produce modest output (typically 100 to 150 amps) that rapidly drops off under sustained heat soak and low engine RPM. When supporting auxiliary accessories such as high-draw car audio amplifiers, auxiliary lighting, inverters, or winches, the factory diode bridge overheats, causing erratic voltage fluctuations, battery discharge at idle, and excessive stress on the vehicle's engine control module.

The Engineering Solution

This heavy-duty 250-amp unit is engineered specifically for transverse 2GR-FE engine bays, incorporating dense hairpin copper stator windings and high-capacity avalanche diode rectifiers to maximize current generation while minimizing thermal degradation. Built in the USA with heavy-duty internal heat sinks and a dynamically balanced rotor assembly, it provides maximum amp transfer across the rev band. Designed to replace factory units matching 27060-0P240 and 104210-5510, it bolts directly into the factory mounting bracket without custom fabrication.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2010 Toyota RAV4 3.5L V6 (Base, Sport, Limited)
• 2011 Toyota RAV4 3.5L V6 (Base, Sport, Limited)
• 2012 Toyota RAV4 3.5L V6 (Base, Sport, Limited)

Frequently Asked Questions & Fitment Warnings

Does this fit the XA30 RAV4?

Yes, this is a direct fit for the 2010-2012 Toyota RAV4 equipped with the 2GR-FE 3.5L V6 engine. Does not fit models equipped with the 2.5L 4-cylinder (2AR-FE) engine.

Do I need to upgrade my charging cables when installing a 250-amp alternator?

A "Big 3" power cable upgrade (0-gauge or 4-gauge B+ charge wire and engine-to-chassis grounds) is strongly recommended to safely carry 250 amps of current without thermal resistance.

The Toyota Durability Standard

Engineered to match the high-output requirements of demanding accessories while upholding the dependable electrical integrity of Toyota's proven V6 platform.
