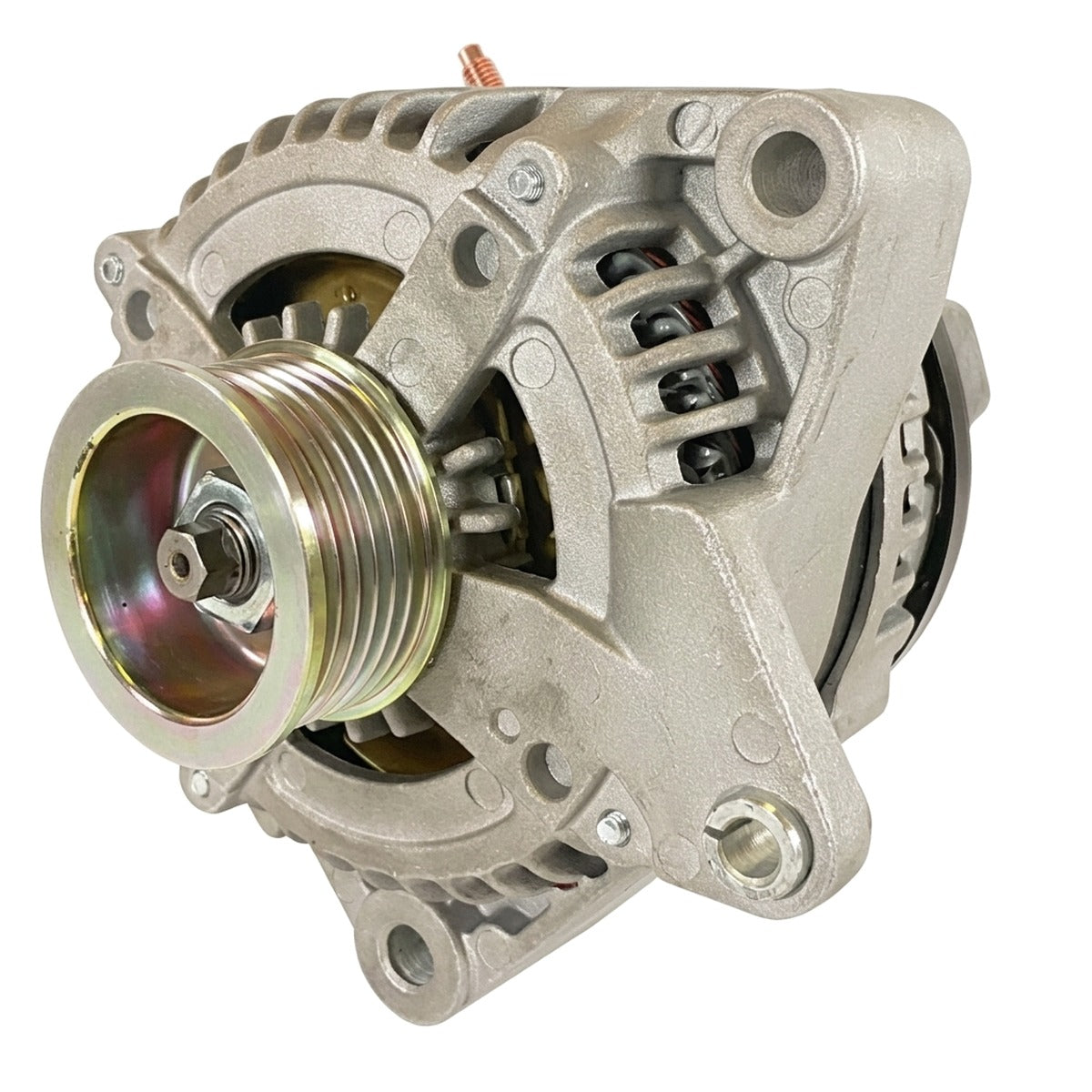

High Output Alternator for Toyota Land Cruiser (2006-2007) 4.7L

High-Capacity 250A High Output Alternator for 2006-2007 Toyota Land Cruiser (UZJ100)

What it Does: The 250-amp high output alternator replaces the factory unit on the 2006-2007 Land Cruiser to supply sustained high-amperage current for overland power accessories, recovery winches, and auxiliary battery banks without systemic voltage drops.

The Stock Toyota Land Cruiser Electrical Bottleneck

The factory 130-amp charging system on the UZJ100 platform was engineered solely for factory cabin electronics. When subjected to overland outfitting—such as multi-battery setups, 12V refrigeration, communication radios, and high-draw recovery gear—the stock alternator suffers from severe stator heat soak. At low engine speeds or crawling RPM, factory output collapses, dropping system voltage below 12.6V. This continuous undercharging causes excessive cyclic degradation to AGM batteries, stresses ignition coils, and overheats the factory internal rectifiers until catastrophic diode failure occurs.

The Engineering Solution

Manufactured in the USA, this direct-replacement 250-amp high-output charging unit addresses the electrical load threshold of the 4.7L V8. Built using heavy-gauge copper windings and high-temperature insulation, the alternator maintains stable charging voltage even under intense underhood thermal load. A heavy-duty internal rectifier paired with high-amperage avalanche diodes resists ripple current and voltage spikes, ensuring steady amperage delivery across the entire 2UZ-FE powerband without housing modification.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2006 Toyota Land Cruiser Base 4.7L V8 (2UZ-FE)
• 2007 Toyota Land Cruiser Base 4.7L V8 (2UZ-FE)

Frequently Asked Questions & Fitment Warnings

Does this fit the UZJ100 Land Cruiser?

Yes, this is a direct fit for the 2006-2007 Toyota Land Cruiser equipped with the 2UZ-FE 4.7L V8 engine, mounting directly into the factory accessory bracket location.

Do I need to upgrade the primary charging wiring?

Yes, a "Big 3" wiring upgrade utilizing minimum 2 AWG or 1/0 pure copper cable with appropriate inline fusing is required to handle the increased 250-amp flow without creating resistive heat in the factory harness.

The Toyota Durability Standard

The 100-Series chassis is recognized globally for uncompromising overland durability. Upgrading to a 250A charging architecture protects vital vehicle electronics and ensures uncompromised recovery and towing capabilities in extreme remote environments.
