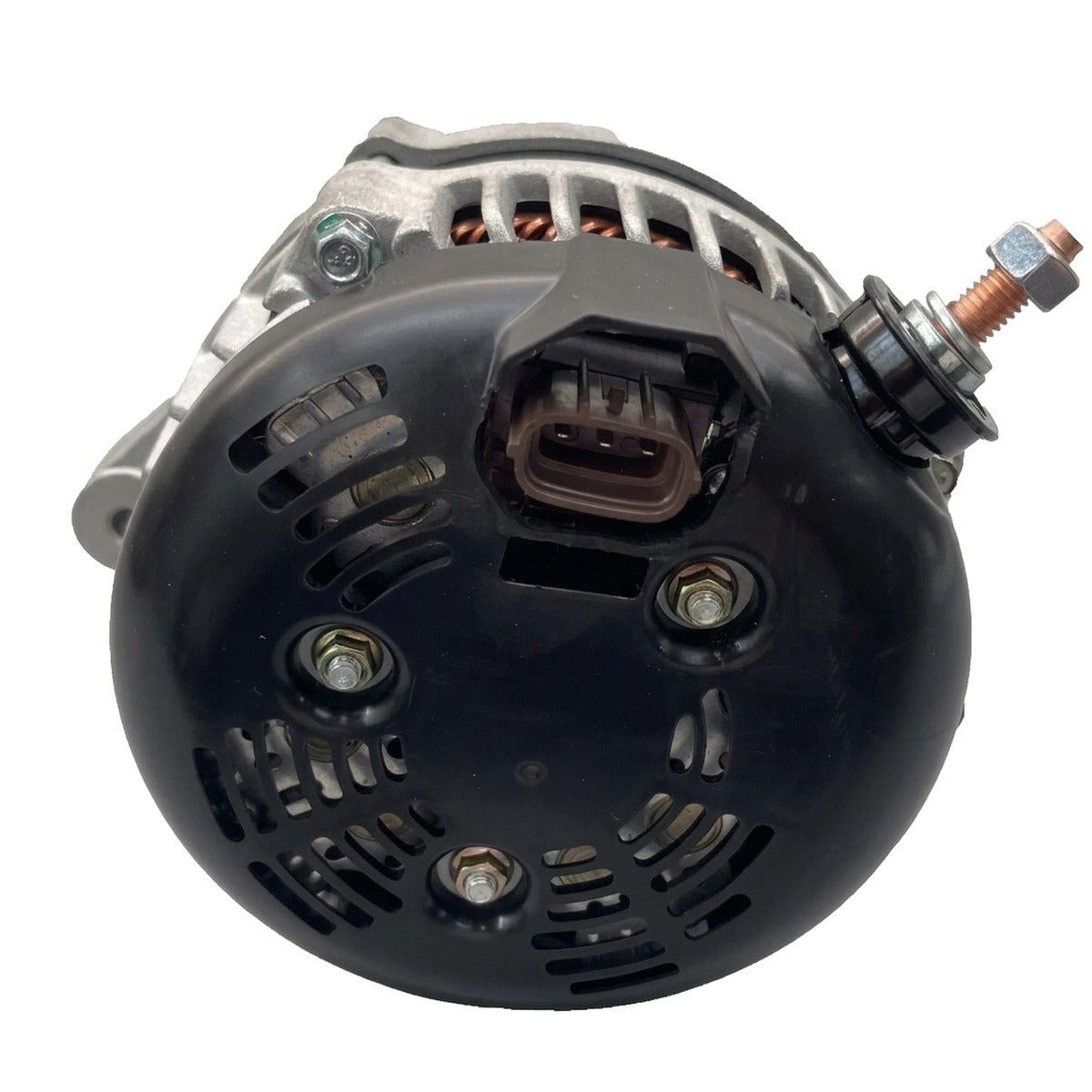

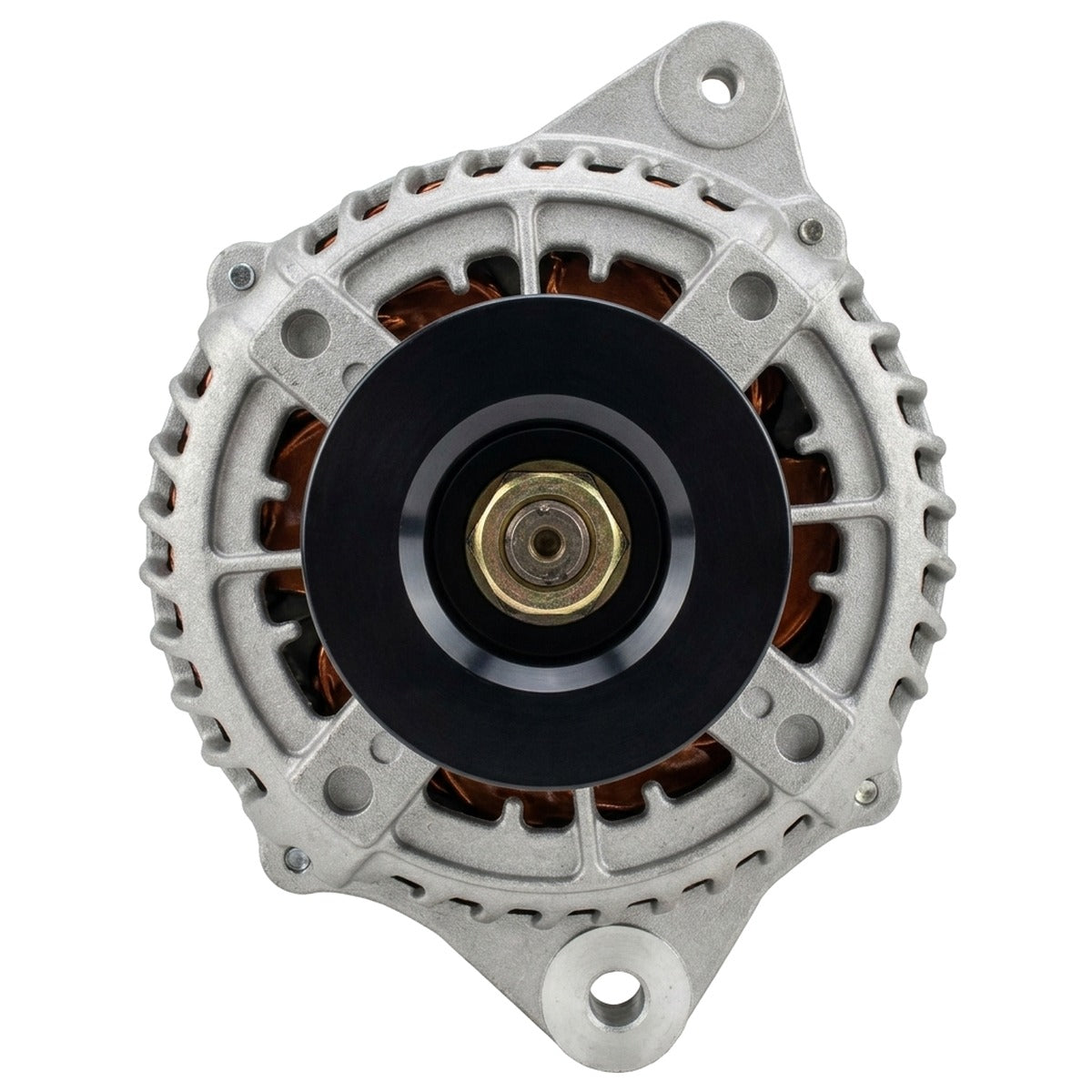

High Output Alternator for Toyota Land Cruiser (1993-1997) 4.5L

High-Output 400-Amp Alternator for 1993-1997 Toyota Land Cruiser (FZJ80)

What it Does: The 400-amp high-output alternator replaces the factory charging unit on the 1993-1997 Land Cruiser to supply stable, high-amperage 12V power under heavy electrical loads from winches, dual-battery systems, and off-road lighting.

The Stock Toyota Land Cruiser Charging Deficit

The factory Nippon Denso alternator on the FZJ80 platform produces a modest 80 to 90 amps at cruising speed and significantly drops amperage at idle. When overland rigs add auxiliary electrical draws—such as recovery winches drawing 400+ amps, high-output auxiliary lighting, 12V overland refrigeration, and onboard air compressors—the stock stator and diode bridge suffer severe thermal saturation. This leads to heavy voltage drop, compromised battery charging cycles, diode failure, and drained batteries during technical low-RPM off-road operation.

The Engineering Solution

Manufactured in the USA, this heavy-duty 400-amp alternator features precision copper hair-pin windings, oversized heavy-duty press-fit diodes, and high-temp internal voltage regulation to maintain continuous charging voltage above 14.2V even at low engine idle. Built within a direct-bolt OE-footprint housing, it provides massive electrical reserve capacity, runs cooler under heavy continuous loads, and prevents voltage sag without requiring custom bracket modifications. Upgraded 0-gauge power and ground wiring is recommended to support maximum current transfer.

What's Included

• 1 x 400 AMP High Output Alternator

Technical Specifications

Compatibility

• 1993 Toyota Land Cruiser Base 4.5L L6 Gas (1FZ-FE / FZJ80)
• 1994 Toyota Land Cruiser Base 4.5L L6 Gas (1FZ-FE / FZJ80)
• 1995 Toyota Land Cruiser Base 4.5L L6 Gas (1FZ-FE / FZJ80)
• 1996 Toyota Land Cruiser Base 4.5L L6 Gas (1FZ-FE / FZJ80)
• 1997 Toyota Land Cruiser Base 4.5L L6 Gas (1FZ-FE / FZJ80)

Frequently Asked Questions & Fitment Warnings

Does this fit the FZJ80 Land Cruiser?

Yes, this is a direct bolt-in fit for the 1993-1997 Toyota Land Cruiser equipped with the 1FZ-FE 4.5L inline-six engine; it does not fit 1990-1992 3F-E or diesel-equipped 80-series models.

Do I need to upgrade my main battery charge cables?

Yes, running a "Big 3" electrical upgrade using 1/0 or 2/0 AWG pure copper cable with an inline 400-amp ANL fuse is mandatory to safely carry the increased current load.

The Toyota Caliber

Built for remote expedition and demanding recovery situations, this heavy-duty electrical platform delivers continuous, reliable amperage needed to run auxiliary winches and overland gear in harsh backcountry terrain.
