High Output Alternator for Toyota Highlander (2001-2003) 3.0L

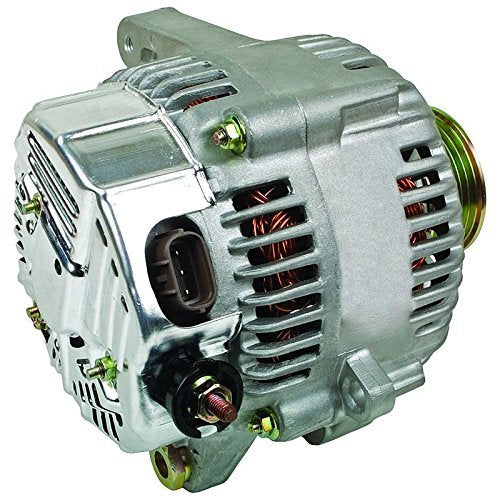

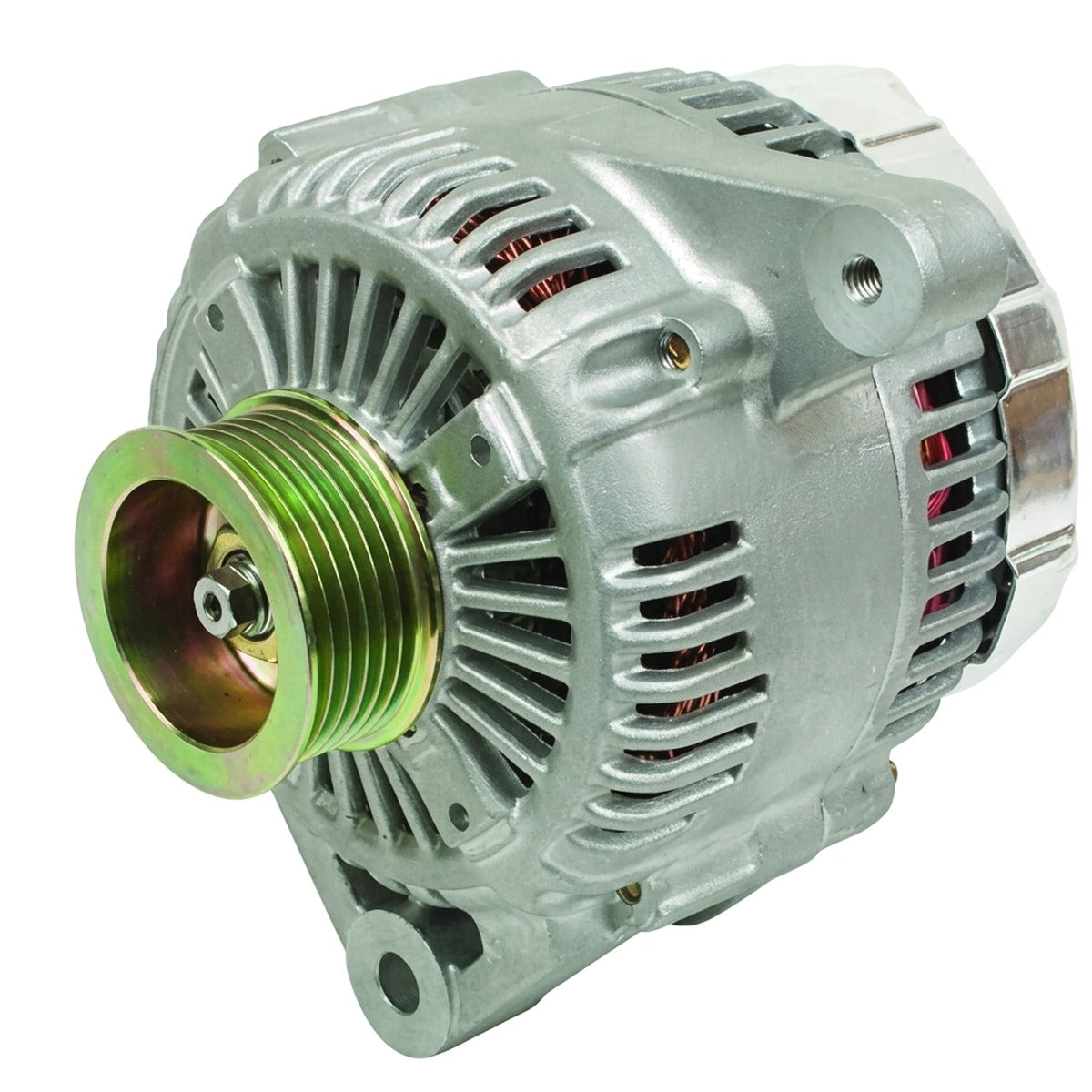

High-Output 200A Alternator for 2001-2003 Toyota Highlander (XU20)

What it Does: The 200-amp high output alternator replaces the low-output factory charging unit on the 2001-2003 Highlander to stabilize system voltage and supply reliable current for high-draw aftermarket accessories.

The Stock Toyota Highlander Charging Bottleneck

The factory charging system on the first-generation XU20 platform was engineered around a modest 100-amp to 130-amp output rating. When subjected to continuous duty from aftermarket audio amplifiers, auxiliary lighting, inverter systems, or dual-cooling fan setups, the stock unit suffers severe heat soak and rotor stator saturation. This electrical starvation leads to noticeable voltage drops below 12.8V at idle, excessive ripple current, flickering lighting, and premature diode rectifier burnout in the 1MZ-FE engine compartment.

The Engineering Solution

Engineered to resolve charging deficits without custom fabrication, this direct bolt-in unit delivers 200 amps of stable continuous power. Built in the USA with heavy-gauge, high-temperature copper stator windings, precision-balanced rotors, and heavy-duty avalanche diodes, it maximizes current output even at lower RPM bands. The cast aluminum housing dissipates internal heat efficiently, protecting the solid-state voltage regulator and maintaining consistent 14.2V–14.6V charging across varying thermal environments.

What's Included

• 1 High Output 200-Amp Alternator

Technical Specifications

Compatibility

• 2001 Toyota Highlander Base / Limited 3.0L V6 (1MZ-FE)
• 2002 Toyota Highlander Base / Limited 3.0L V6 (1MZ-FE)
• 2003 Toyota Highlander Base / Limited 3.0L V6 (1MZ-FE)

Frequently Asked Questions & Fitment Warnings

Does this fit the XU20 Highlander?

Yes, this is a direct fit for the 2001-2003 Toyota Highlander equipped with the 1MZ-FE 3.0L V6 engine.

Do I need to upgrade my charging cables?

Executing a 4-gauge or 1/0-gauge "Big Three" power and ground wiring upgrade is recommended to handle the full 200-amp capacity safely without voltage drop.

The Toyota Caliber

Built to sustain the legendary endurance of the 1MZ-FE platform, this high-output alternator provides the amperage headroom needed for modern utility, heavy towing electronics, and auxiliary gear without compromising charging reliability.
