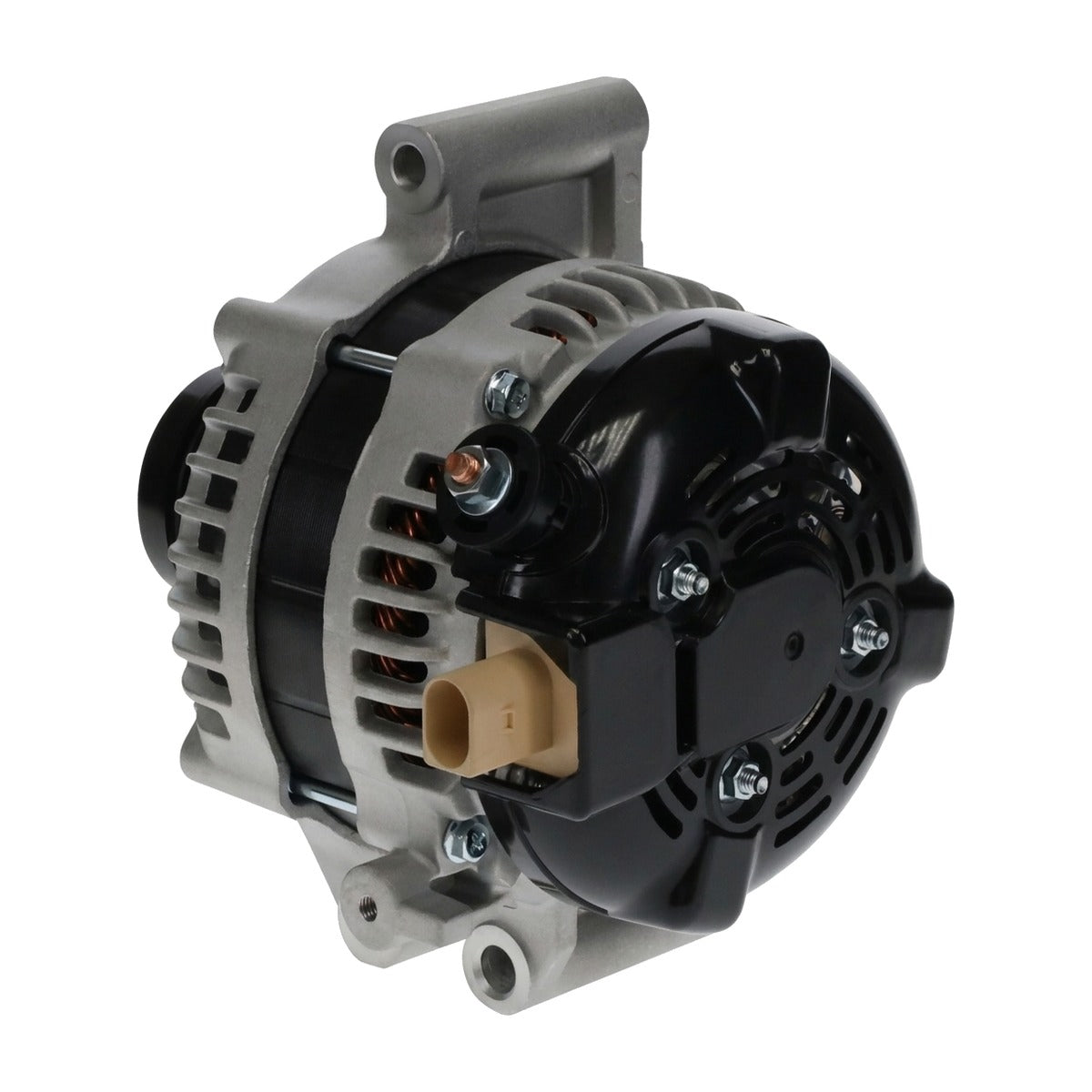

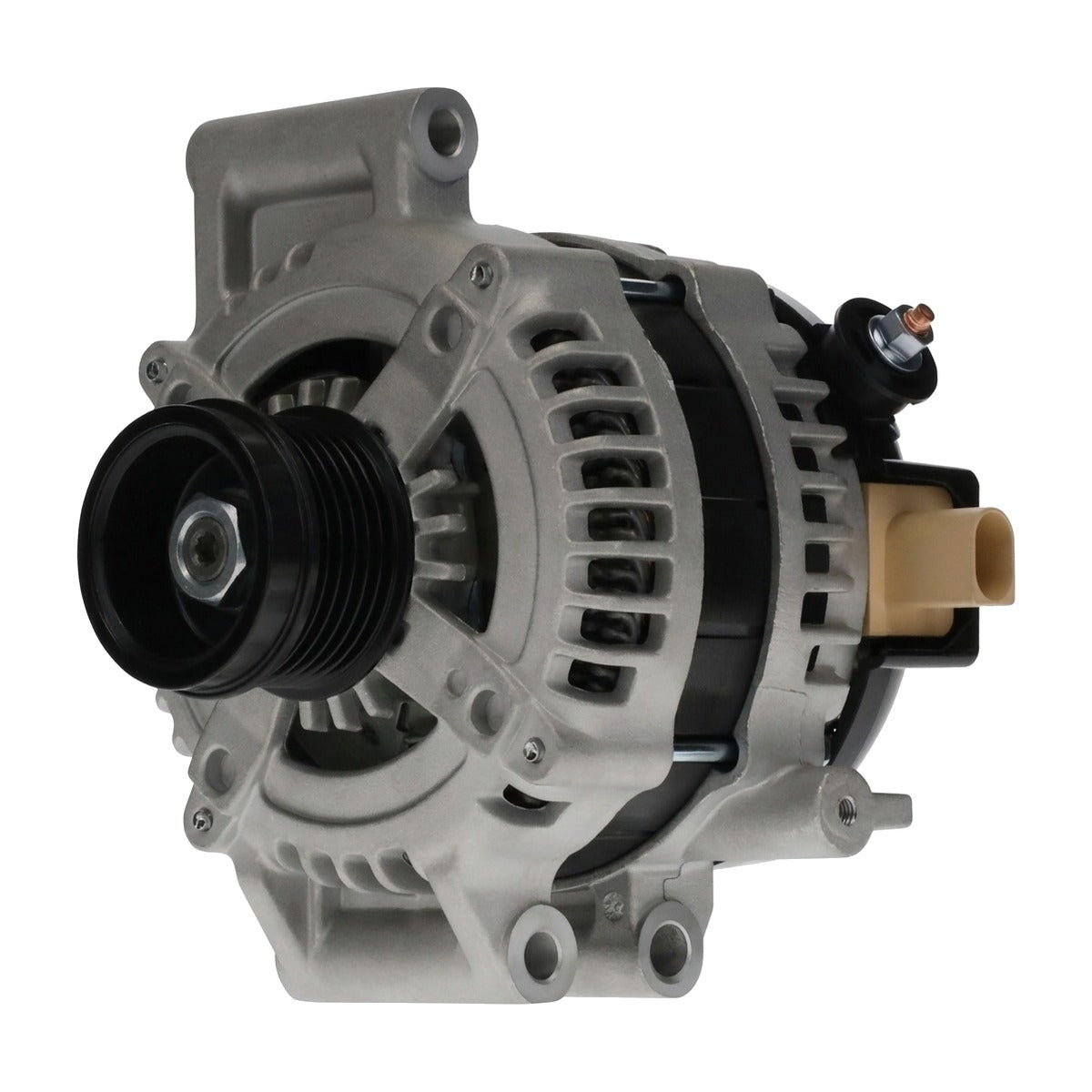

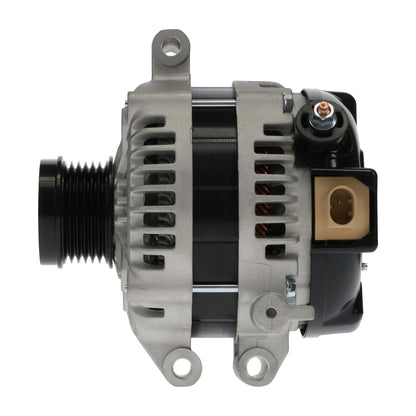

High Output Alternator for Toyota Grand Highlander (2024-2025) 2.4L

High-Capacity 250A Charging Alternator for 2024-2025 Toyota Grand Highlander (AS10)

What it Does: The 250-amp high output alternator replaces the lower-capacity factory charging unit on the 2024-2025 Toyota Grand Highlander to provide sustained auxiliary electrical current and prevent system voltage drop at idle.

The Stock Toyota Grand Highlander Electrical Shortfall

The factory charging system on the AS10 chassis is engineered strictly for standard baseline vehicle electronics. Adding aftermarket accessories—such as high-wattage sound systems, multi-channel amplifiers, auxiliary LED light bars, or onboard 12V inverters—exceeds factory charging capacity. Under sustained electrical loads, the stock alternator suffers from internal heat soak, high diode resistance, and voltage drop below the required 13.5V threshold at idle. This deficit results in dimming cabin electronics, compromised battery reserve, sluggish starter cranking, and premature charging system component failure.

The Engineering Solution

Engineered for high-amperage demands, this direct-fit alternator generates a continuous 250 amps at 12 volts without requiring fabrication. The assembly features dense, heavy-gauge copper stator windings to maximize electrical efficiency, a precision-balanced rotor for high-RPM stability, and premium sealed bearings to reduce rotational drag. An internal heavy-duty voltage regulator maintains clean, regulated charging between 13.5V and 14.5V to protect sensitive vehicle computers. Designed to match the factory 27060-0W020 architecture, it retains original pulley dimensions, clocking, and OEM harness plug pinouts for straightforward installation.

What's Included

• 1x 250-Amp High Output Alternator (Part #22335)

Technical Specifications

Compatibility

• 2024 Toyota Grand Highlander 2.4L Turbo 4-Cylinder (Gas)
• 2025 Toyota Grand Highlander 2.4L Turbo 4-Cylinder (Gas)

Frequently Asked Questions & Fitment Warnings

Does this fit the AS10 Grand Highlander?

Yes, this is a direct fit for the 2024-2025 Toyota Grand Highlander equipped with the T24A-FTS 2.4L turbocharged gas engine; it does not fit Hybrid MAX or naturally aspirated hybrid powertrains.

Should I upgrade my battery cables with this 250A unit?

While the unit bolts directly into the factory location, upgrading the primary positive B+ cable and engine ground straps with larger gauge wire is strongly recommended to handle full 250-amp flow without thermal bottlenecking.

The Toyota Caliber

Modern family haulers and utility platforms depend entirely on solid bus voltage; this high-output alternator delivers stable current to ensure auxiliary accessories function reliably without draining your battery reserve or upsetting factory CAN bus modules.
