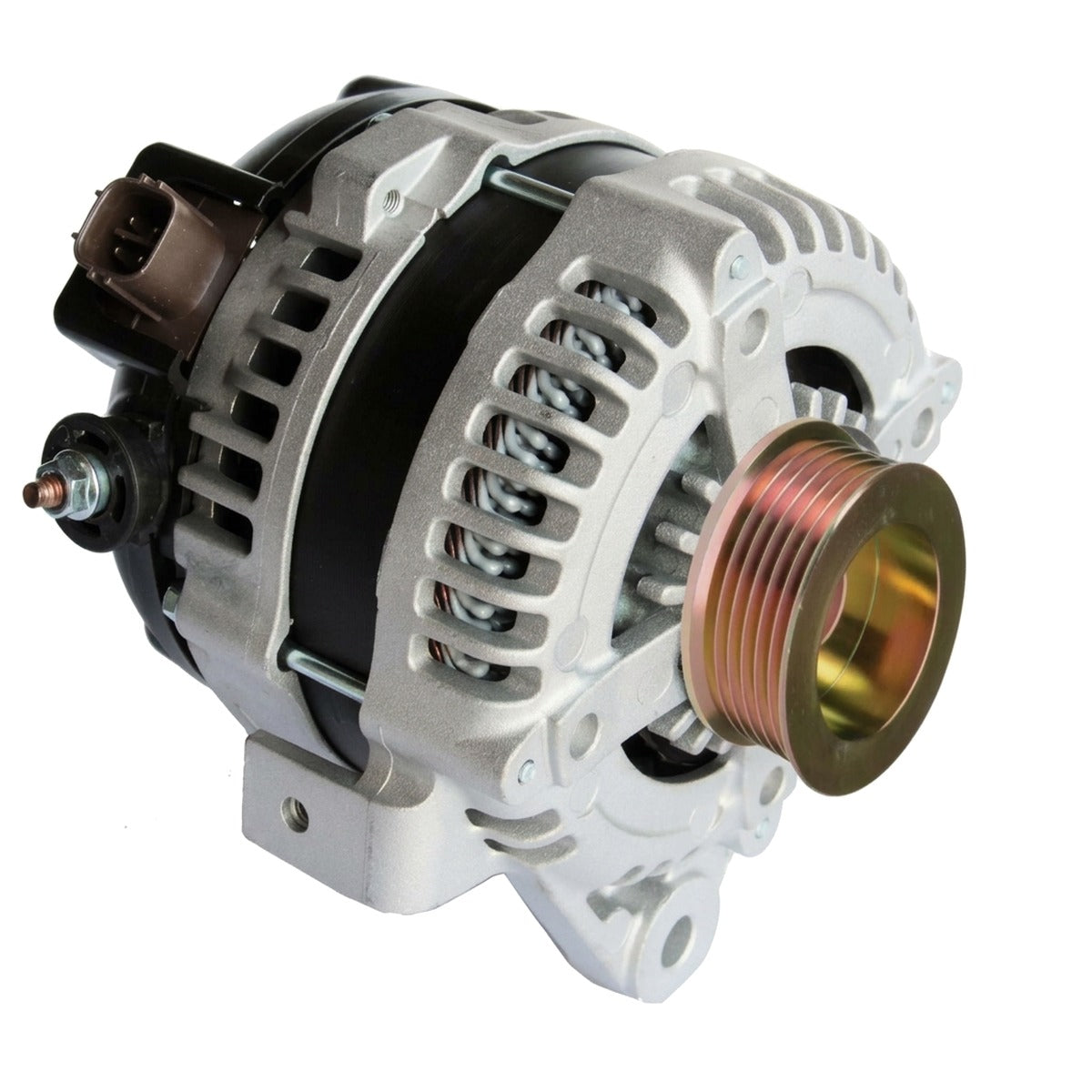

High Output Alternator for Toyota Corolla Matrix (2009-2013) 2.4L

High-Output 250-Amp Alternator for 2009-2013 Toyota Corolla,Matrix (E140)

What it Does: The 250-Amp High Output Alternator replaces the low-output factory charging unit on the 2009-2013 Toyota Corolla and Matrix 2.4L to maintain stable 14.4V system voltage under extreme electrical demands.

The Stock Toyota Corolla,Matrix Charging Limitations

Factory E140 chassis models powered by the 2AZ-FE engine came standard with an OEM alternator rated at roughly 100 amps. While adequate for baseline factory electronics, the stock unit suffers significant thermal saturation and heavy voltage sag under high-draw auxiliary setups—such as aftermarket audio systems, air suspension compressors, and auxiliary lighting. Under heavy electrical loads at idle speeds, the stock stator cannot dissipate heat effectively, leading to cooked diode bridges, dimming headlights, intermittent ECU sensor voltage errors, and premature battery failure.

The Engineering Solution

Engineered for high-current reliability, this heavy-duty 250-amp alternator significantly upgrades electrical capacity across the entire RPM range, delivering strong amperage even at curb idle. Built in the USA with heavy-gauge precision-wound copper stators, an oversized rotor assembly, and high-temperature avalanche diodes, this unit suppresses heat soak and prevents voltage ripple. Direct-fit mounting ears and factory-aligned pulley dimensions guarantee proper serpentine belt alignment without custom bracketry, matching OEM specifications for 27060-28320, 27060-0H110, and 104210-4880.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2009-2013 Toyota Corolla 2.4L
• 2009-2013 Toyota Matrix 2.4L

Frequently Asked Questions & Fitment Warnings

Does this fit the E140 Corolla,Matrix?

Yes, this is a direct fit for the 2009-2013 Toyota Corolla and Matrix equipped with the 2AZ-FE 2.4L engine. This unit does not fit base 1.8L (2ZR-FE) engine models.

Is a "Big 3" wiring upgrade required for this 250A unit?

A 1/0 AWG "Big 3" wiring upgrade (alternator positive to battery, engine block to chassis ground, and battery to ground) is strongly advised to prevent line resistance and harness heat from restricting the 250-amp flow.

The Toyota Caliber

The 2.4L Toyota platform is renowned for long-term endurance, and upgrading your charging system protects vital electronics, ignition modules, and aftermarket accessories from under-voltage wear.
