High Output Alternator for Toyota Corolla Matrix (2003-2008) 1.8L

High-Amp 200A Alternator for 2003-2008 Toyota Corolla, Matrix (E130)

What it Does: The High Output 200 Amp Alternator delivers stable, high-amperage electrical current to the 2003-2008 Toyota Corolla and Matrix charging system to prevent voltage drops under heavy electrical loads.

The Stock Toyota Corolla, Matrix Electrical Bottleneck

Factory charging systems on the E130 chassis utilize an OEM Denso alternator rated at a modest 80 to 90 amps. When running auxiliary lighting, aftermarket audio amplifiers, inverter setups, or high-draw cooling fans, current demand rapidly outpaces alternator production. At idle, the stock unit suffers significant thermal derating and output drops below 50 amps. This excessive electrical load causes battery drain, parasitic voltage drops, dimming headlights, ignition coil voltage starvation, and premature diode pack burnout.

The Engineering Solution

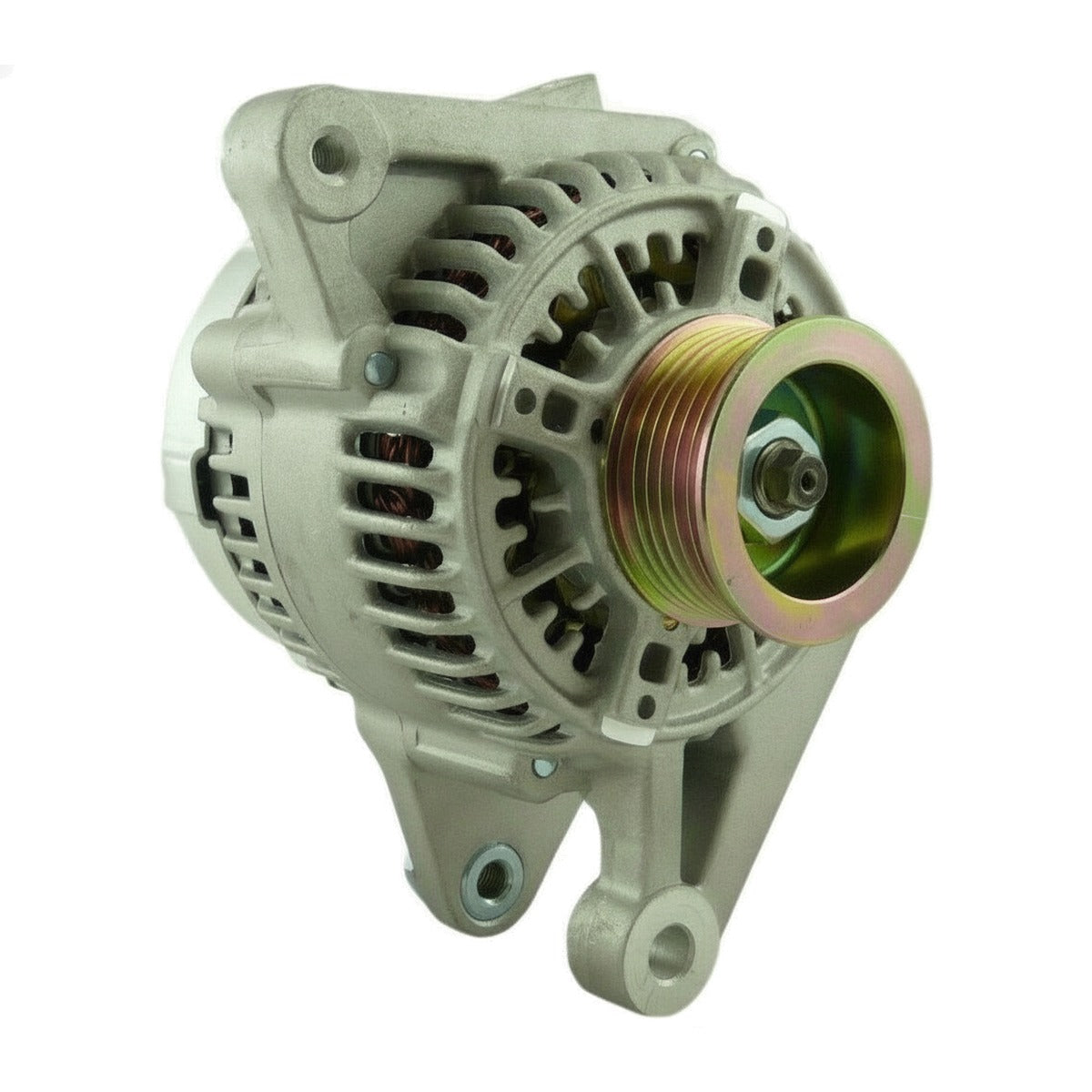

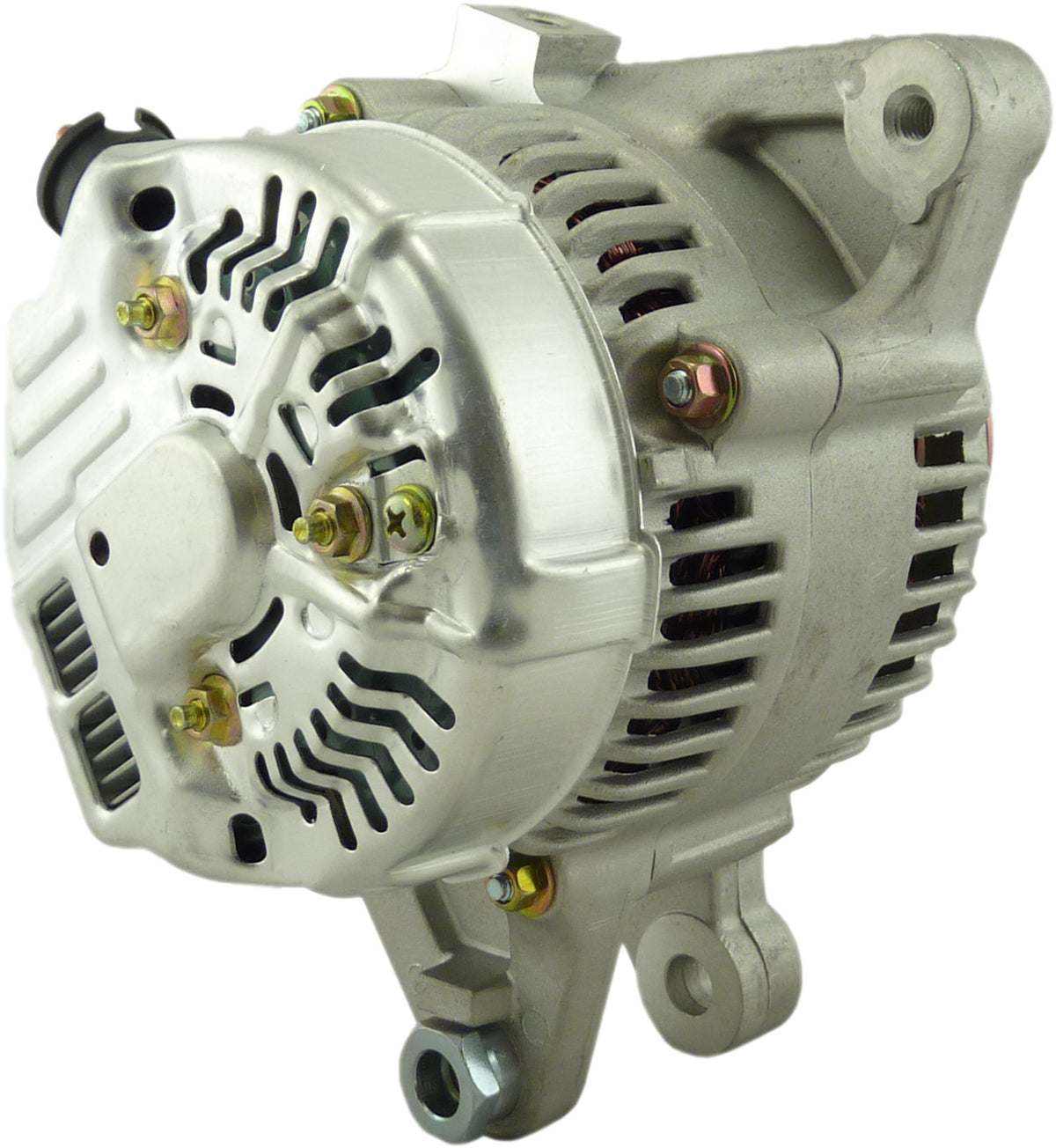

Engineered as a direct bolt-on upgrade, this 200-amp high-output alternator features heavy-duty internal copper stator windings and an upgraded avalanche diode rectifier bridge to handle severe electrical draw without heat soak. The hairpin winding design maximizes surface contact and copper density, delivering robust charging output at both low-RPM idle and highway cruising speeds. Assembled with precision balanced rotor assemblies and oversized bearings, it direct-mounts into factory brackets and retains exact serpentine belt alignment.

What's Included

• 1 x 200 Amp High Output Alternator

Technical Specifications

Compatibility

• 2003-2008 Toyota Corolla 1.8L
• 2003-2008 Toyota Matrix 1.8L

Frequently Asked Questions & Fitment Warnings

Does this fit the E130 Corolla, Matrix?

Yes, this is a direct fit for the 2003-2008 Toyota Corolla and Matrix equipped with the 1ZZ-FE 1.8L engine.

Do I need to upgrade the primary charging wiring?

Yes, executing a "Big 3" wiring upgrade with 4-gauge or 0-gauge power and ground cables is strongly recommended to handle 200 amps safely.

The Toyota Caliber

Maintain consistent ignition voltage, stabilize onboard electronics, and eliminate parasitic voltage sags across the rev range with proven JDM-grade electrical durability.
