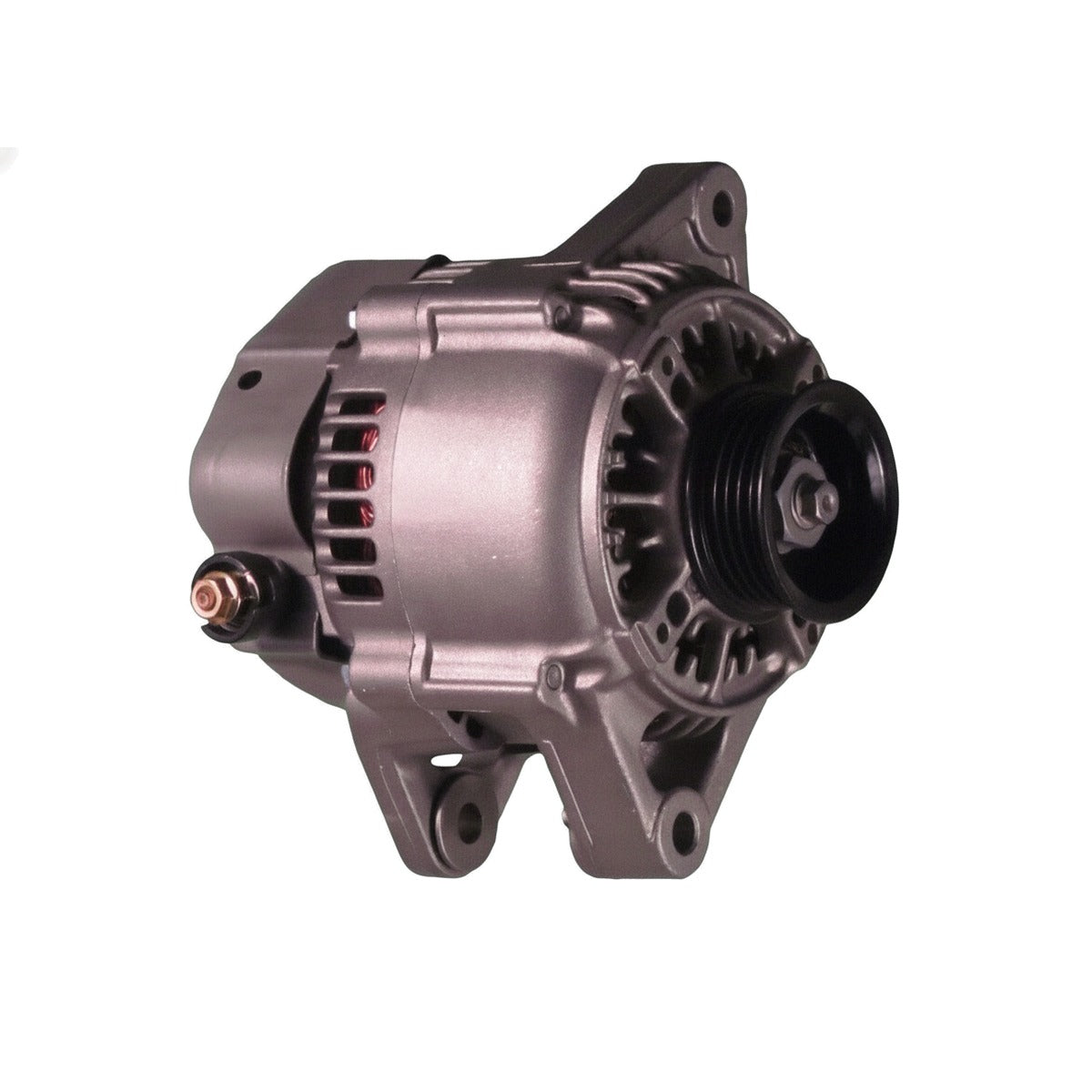

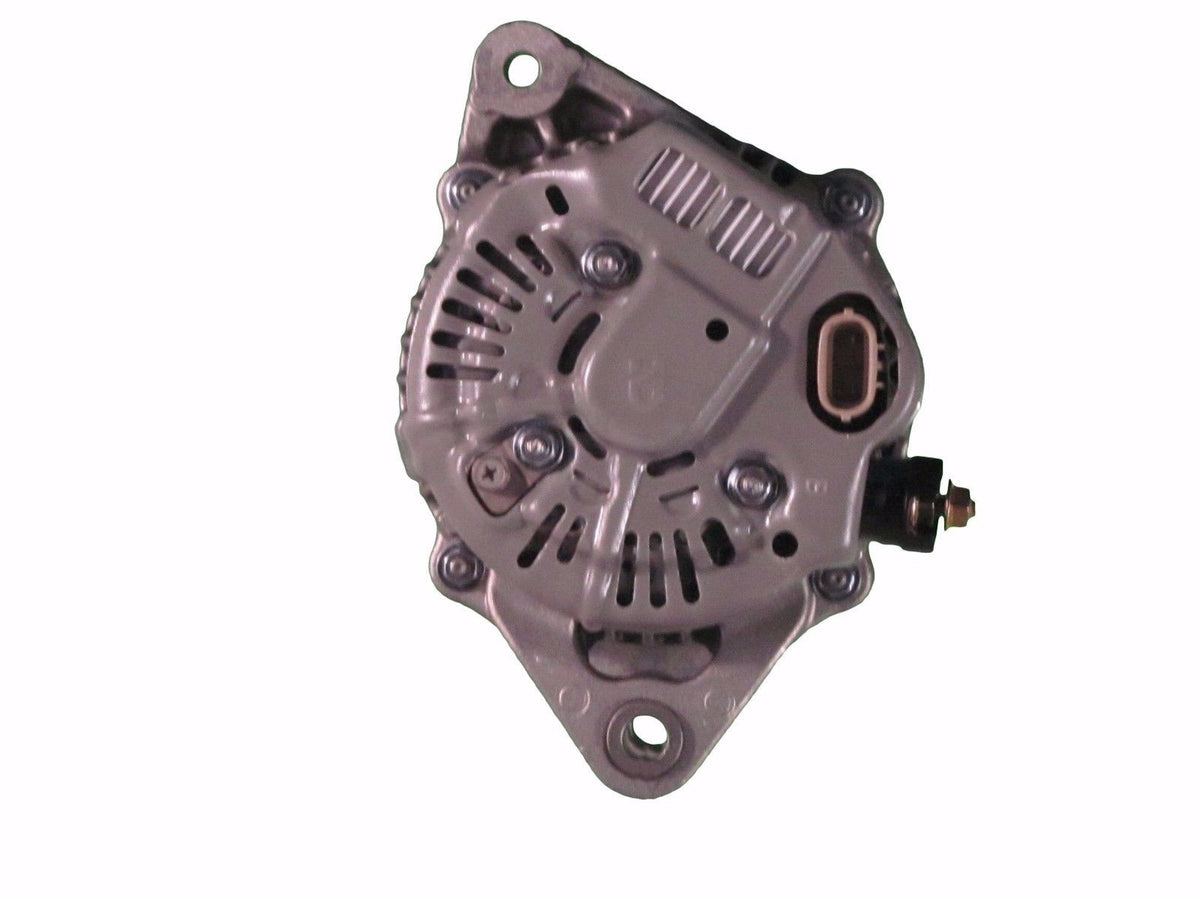

High-Amp 165A Alternator for 1993-1997 Toyota Corolla (E100)
What it Does: The high output alternator replaces the factory charging unit on 1993-1997 Toyota Corollas to deliver a sustained 165 amps of current, stabilizing rail voltage under heavy electrical loads.
The Stock Toyota Corolla Electrical Deficit
The OEM charging system on seventh-generation E100 chassis Corollas utilizes a standard Denso unit rated at a modest 60 to 70 amps. While sufficient for bare-bones factory accessories, adding aftermarket audio equipment, auxiliary lighting, or high-draw cooling fans quickly overtaxes the OEM stator windings and internal diode bridge. Under heavy amperage demand—especially at idle—system voltage drops below 12.6V, causing ignition brownouts, dimming headlights, excessive heat soak within the factory casing, and accelerated battery degradation.
The Engineering Solution
Manufactured in the USA, this upgraded direct-bolt alternator provides 165 amps of reliable current output. Built with heavy-gauge pure copper hairpin stator windings, low-resistance silicon avalanche diodes, and an internal heavy-duty solid-state voltage regulator, this unit resists thermal degradation and minimizes internal AC ripple. The upgraded rotor and stator package maintains clean 14.4V charging output even under heavy continuous loads, bolted directly in place of OEM part 27060-15080 without custom mounting brackets.
What's Included
- 1 x 165 Amp High Output Alternator
Technical Specifications
| Fitment | 1993-1997 Toyota Corolla |
|---|---|
| Engine / Chassis | 1.6L 4A-FE, 1.8L 7A-FE / AE101, AE102 (E100) |
| Stock Output | 105-115 hp / 100-115 lb-ft |
| Replaces OEM Part # | 334-1175, AL3254N, AL3254X, 10463613, RM4039, 101211-0060, 101211-0120, 9761211-006, 210-0101, 210-0316, 94854169, 13481, 13482, 27060-15080, 2760-15080-84, 27060-15100, 13482N, 13482R, 13481N, 13481R |
Compatibility
- 1993-1997 Toyota Corolla 1.6L L4 (4A-FE)
- 1993-1997 Toyota Corolla 1.8L L4 (7A-FE)
Frequently Asked Questions & Fitment Warnings
Does this fit the E100 Corolla?
Yes, this is a direct bolt-on fit for 1993-1997 Toyota Corolla AE101 and AE102 chassis powered by the 4A-FE or 7A-FE inline-four engines.
Do I need to upgrade my main charging wire?
Yes, upgrading to a 4-gauge or larger "Big 3" charge lead with an inline 200A fuse is mandatory to safely carry the increased 165-amp load without melting stock wiring.
The Toyota Caliber
Engineered to match bulletproof Japanese reliability, this direct-fit alternator provides steady, uninterrupted ignition power and accessory voltage for high-demand street and track builds.
