High Output Alternator for Toyota Camry (2013-2017) 3.5L

High-Amp Replacement Alternator for 2013-2017 Toyota Camry (XV50)

What it Does: The 250-amp high output alternator replaces the factory charging unit on the 2013-2017 Toyota Camry to provide substantial auxiliary electrical reserve and eliminate system voltage drops under heavy accessory load.

The Stock Toyota Camry Charging Limitations

The factory charging system on the XV50 platform utilizes an OEM Denso unit rated between 100 to 130 amps, engineered strictly to support basic cabin electronics and standard ignition requirements. When running auxiliary electrical loads—such as aftermarket multi-channel amplifiers, high-draw cooling fans, or auxiliary lighting—the factory copper stator windings experience severe thermal saturation. At idle, rotor RPM drops and OEM units struggle to maintain the required 13.5 to 14.5 charging voltage. This continuous electrical deficit leads to deep cycle drain on the starter battery, flickering dash assemblies, premature diode bridge failure, and sluggish starter engagement.

The Engineering Solution

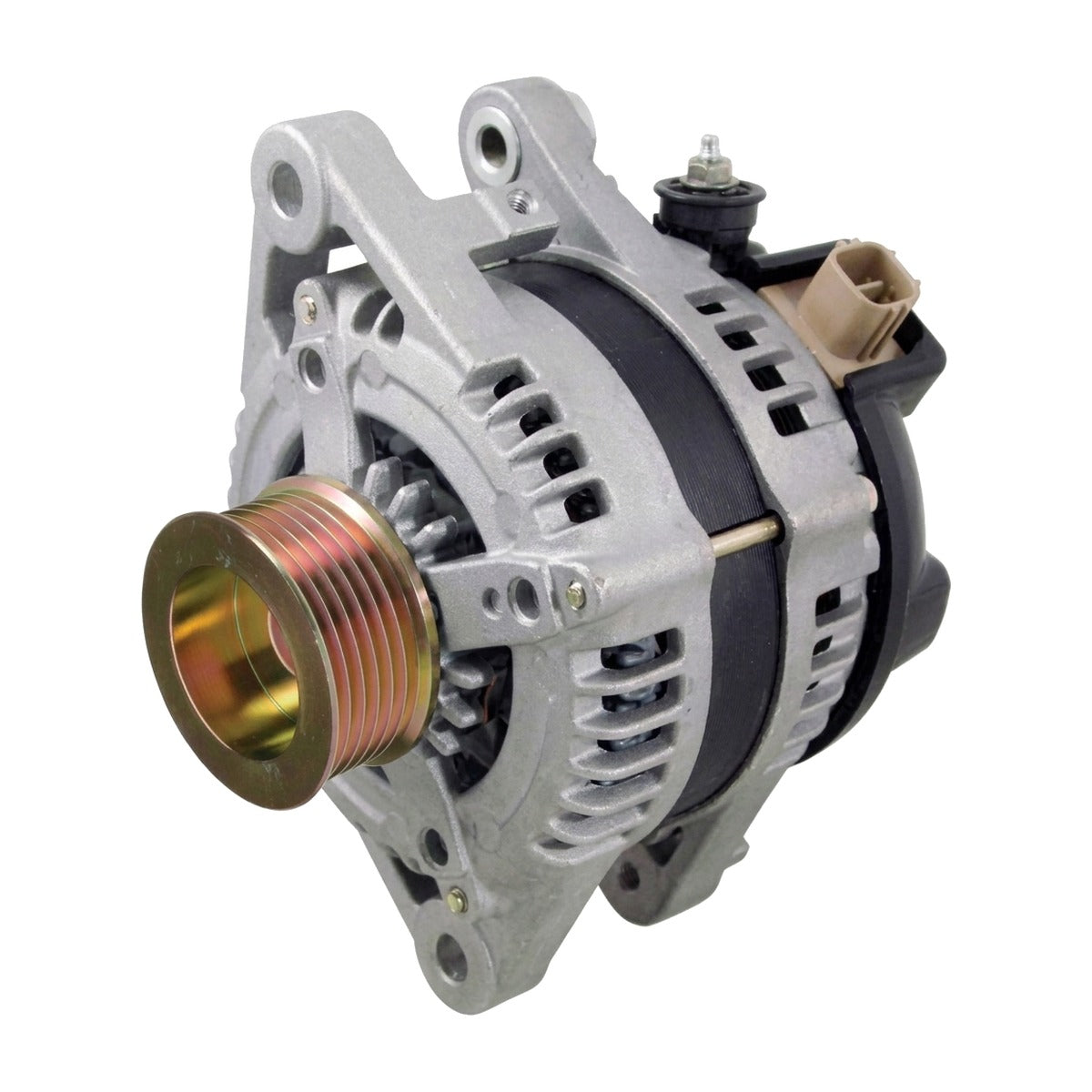

Engineered as a drop-in replacement for the 2GR-FE V6, this heavy-duty 250-amp alternator significantly expands continuous amperage overhead. Built with heavy-gauge, high-temperature copper stator windings and a dynamically balanced precision rotor, this unit minimizes rotational resistance and excessive operational heat. Premium sealed bearings resist bearing race galling and high-RPM wear, while an integrated internal solid-state voltage regulator ensures ripple-free voltage stabilization across the powerband. Bench-tested prior to dispatch, it bolts directly into the factory accessory bracket geometry and interfaces with OEM connector 27060-0P140 with zero harness splicing required.

What's Included

• 1 High Output 250 Amp Alternator (Part # 11136-250A)

Technical Specifications

Compatibility

• 2013 Toyota Camry 3.5L V6
• 2014 Toyota Camry 3.5L V6
• 2015 Toyota Camry 3.5L V6
• 2016 Toyota Camry 3.5L V6
• 2017 Toyota Camry 3.5L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the XV50 Camry?

Yes, this is a direct fit for the 2013-2017 Toyota Camry equipped with the 2GR-FE 3.5L V6 engine; it does not fit 2.5L 4-cylinder or Hybrid models.

Do I need to upgrade my charging wiring for this 250A alternator?

While it works on the OEM harness, performing a "Big 3" heavy-gauge power and ground wire upgrade is highly recommended to safely flow maximum charging current without cable resistance.

The Toyota Caliber

Constructed to meet rigorous Japanese OEM standards, this unit maintains factory-smooth accessory drive harmonics while delivering the raw amperage required for high-draw electrical systems.
