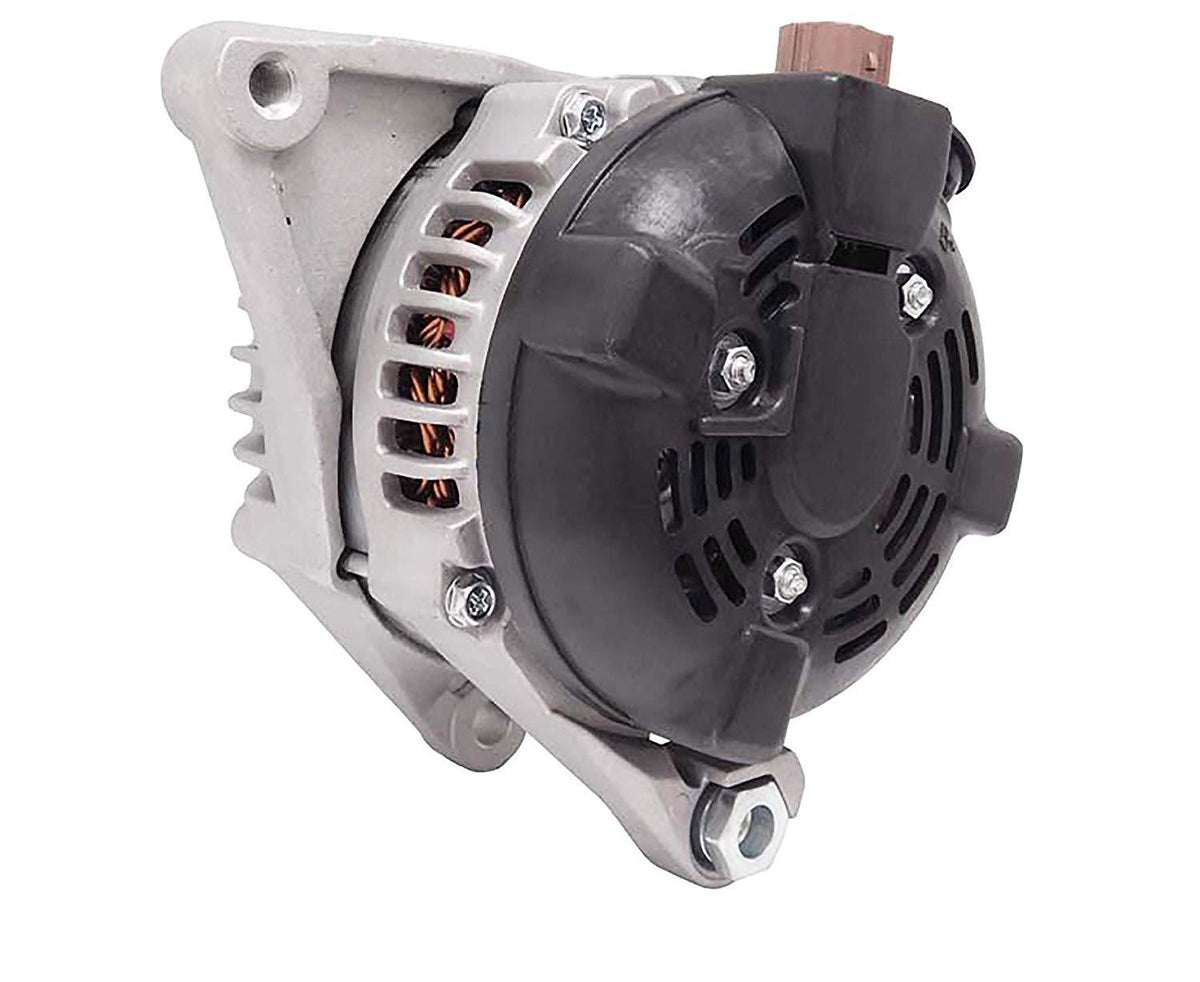

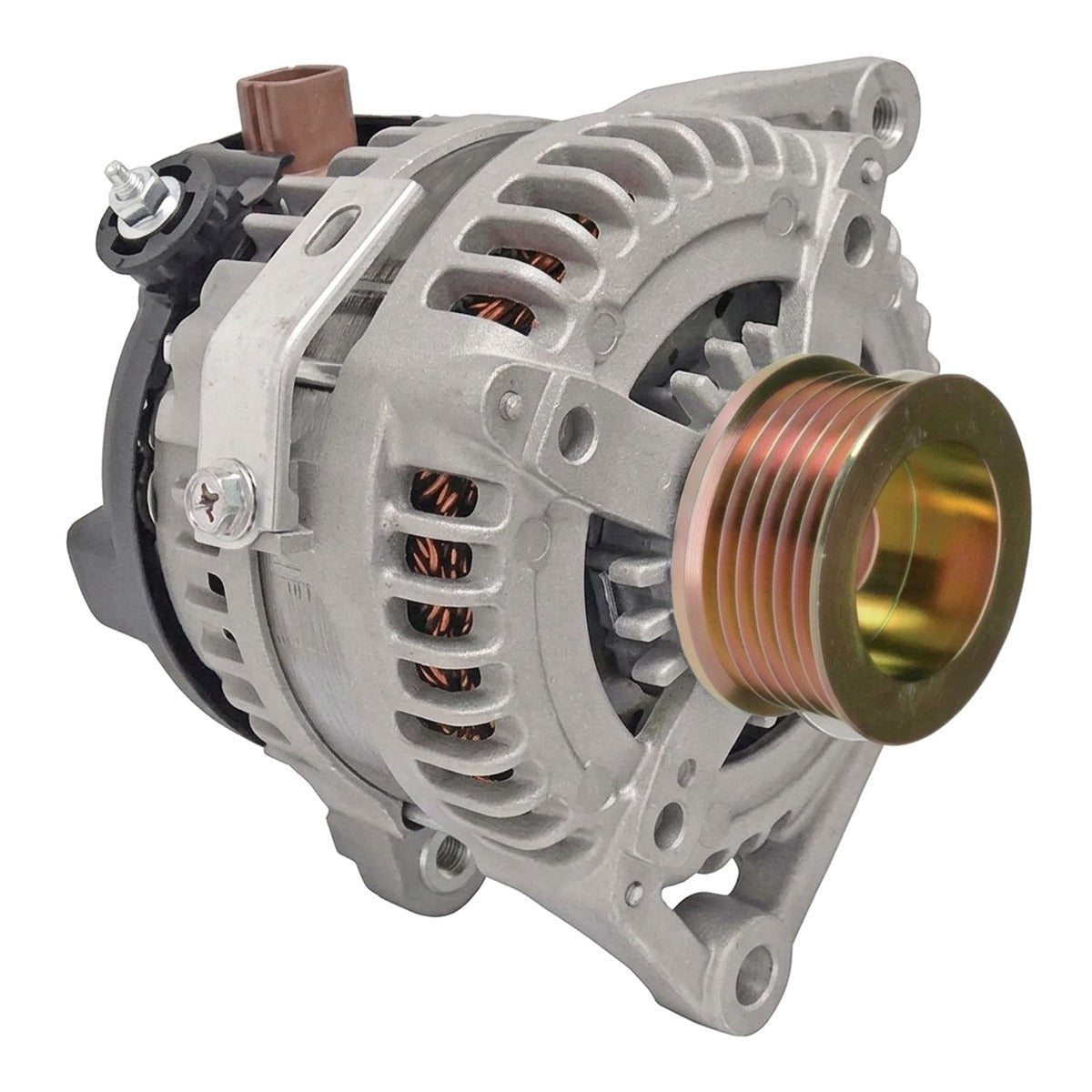

High Output Alternator for Toyota Camry (2010-2011) 2.5L

High-Output 250-Amp Alternator for 2010-2011 Toyota Camry (XV40)

What it Does: The High Output Alternator replaces the factory charging unit on the 2010-2011 Toyota Camry to supply 250 amps of electrical current, stabilizing system voltage and preventing electrical sag under heavy auxiliary loads.

The Stock Toyota Camry Charging Limitations

The OEM charging system on the XV40 platform relies on a modest 100-amp factory alternator that lacks the overhead required for modern aftermarket accessories. When loaded with aftermarket audio amplifiers, auxiliary lighting, or continuous inverters, the factory 2AR-FE alternator suffers significant voltage drop, frequently sagging below 12.6 volts at idle. Under sustained draw, the small OEM diode rectifiers and tight internal windings generate excessive thermal soak, degrading internal regulator components and drastically shortening battery service life.

The Engineering Solution

Assembled in the USA, this 250-amp high-output replacement upgrades the XV40 electrical backbone with precision-wound, heavy-gauge copper stators and high-efficiency silicon diode rectifiers. Engineered to dissipate heat rapidly through a vented casing design, this unit delivers high amperage at low RPMs (typically 140+ amps at curb idle) and a steady 250 amps at operating speeds. It utilizes a direct-fit casting that aligns directly with factory mounting points and OE belt tracks while maintaining stable 14.4-volt to 14.8-volt regulation across the powerband.

What's Included

• 1 Alternator

Technical Specifications

Compatibility

• 2010 Toyota Camry Base 2.5L 4-Cylinder
• 2010 Toyota Camry LE 2.5L 4-Cylinder
• 2010 Toyota Camry SE 2.5L 4-Cylinder
• 2010 Toyota Camry XLE 2.5L 4-Cylinder
• 2011 Toyota Camry Base 2.5L 4-Cylinder
• 2011 Toyota Camry LE 2.5L 4-Cylinder
• 2011 Toyota Camry SE 2.5L 4-Cylinder
• 2011 Toyota Camry XLE 2.5L 4-Cylinder

Frequently Asked Questions & Fitment Warnings

Does this fit the XV40 Camry?

Yes, this is a direct fit for the 2010-2011 Toyota Camry equipped with the 2AR-FE 2.5L engine. Does not fit 3.5L V6 (2GR-FE) models or earlier 2007-2009 2.4L (2AZ-FE) configurations.

Do I need to upgrade my wiring when installing this unit?

Yes, executing a "Big 3" wiring upgrade with 0-gauge or 4-gauge power and ground cables is required to safely handle 250 amps of current and avoid thermal resistance in the factory harness.

The Toyota Caliber

Engineered to uphold the rock-solid reliability expected of the Toyota platform, this alternator provides uninterrupted electrical stability without tripping factory charging system warnings or check engine lights.
