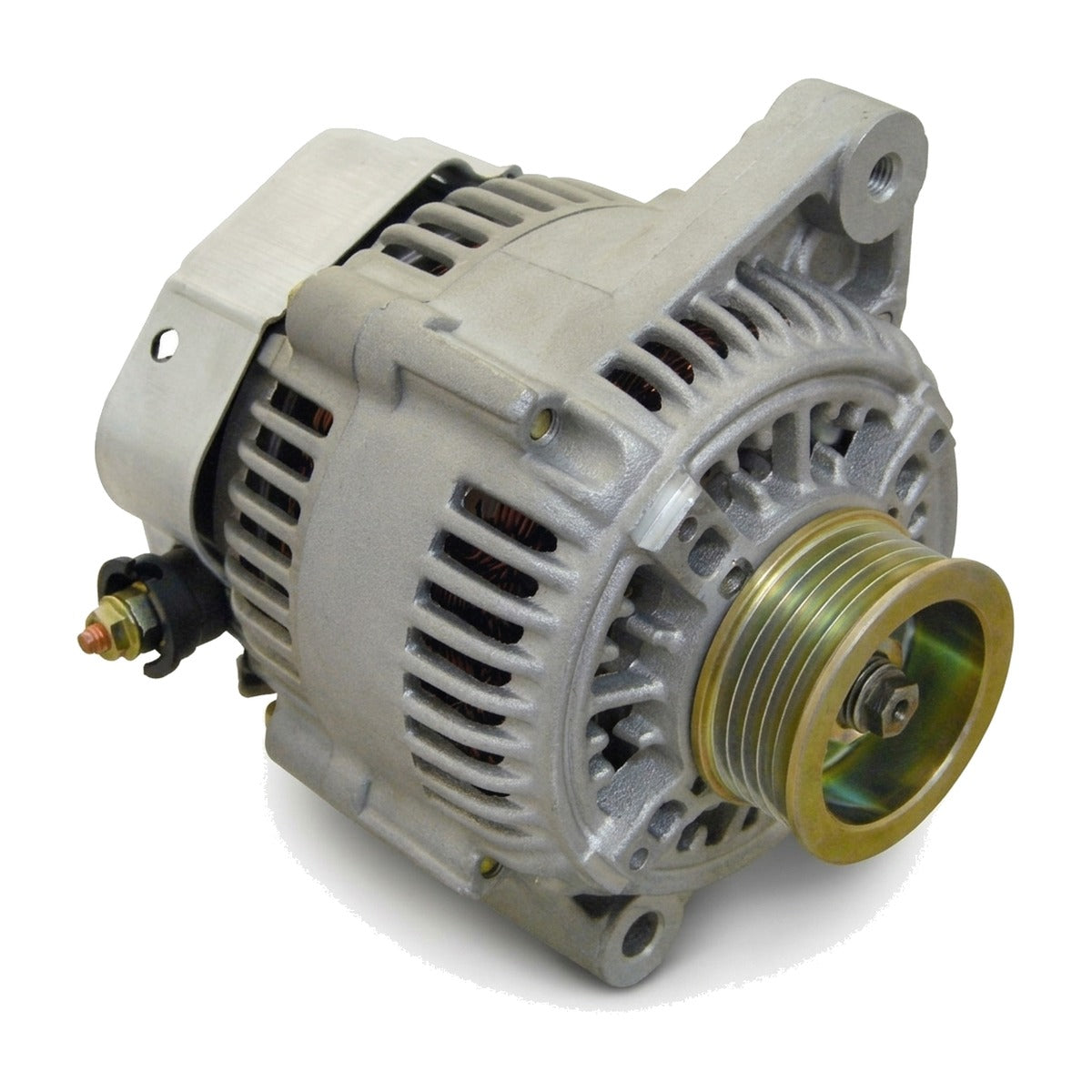

High Output Alternator for Toyota Camry (1992-1993) 2.2L

High-Amp Output Alternator for 1992-1993 Toyota Camry (XV10)

What it Does: The high output alternator replaces the factory 70-80 amp charging unit on the 1992-1993 Toyota Camry to deliver 160 amps of continuous electrical current, preventing voltage sag under heavy auxiliary accessory loads.

The Stock Toyota Camry Charging Deficit

The factory charging system on the XV10 chassis was engineered around a low-amperage platform tailored only to stock electrical draws like halogen lighting and basic cabin blowers. Powered by the 5S-FE engine, the OEM unit outputs marginal amperage at curb idle. Adding modern high-draw electrical equipment—such as aftermarket amplifiers, electric radiator fans, or upgraded lighting—causes severe voltage drop below the critical 13.5V threshold. Under thermal stress, stock stator windings overheat and degrade, leading to battery starvation, dimming instrument clusters, and accelerated diode failure.

The Engineering Solution

Engineered as a direct bolt-on upgrade, this 160-amp alternator utilizes heavy-gauge copper stator windings and a precision-balanced rotor to maximize output without generating excessive parasitic drag. Premium sealed bearings reduce rotational friction and counter heat soak, while an internal solid-state voltage regulator maintains a steady 13.5V to 14.5V output band across the rev range. Designed to direct-mount using factory brackets, it utilizes OEM-spec rotation, factory pulley alignment, and the original plug connector, cross-referencing OEM numbers 27060-03010 and 100211-8560.

What's Included

• 1 High Output 160-Amp Alternator (Part # 13407)

Technical Specifications

Compatibility

• 1992 Toyota Camry 2.2L 4-Cylinder (DX, LE, XLE)
• 1993 Toyota Camry 2.2L 4-Cylinder (DX, LE, XLE)

Frequently Asked Questions & Fitment Warnings

Does this fit the XV10 Camry?

Yes, this is a direct fit for the 1992-1993 Toyota Camry equipped with the 5S-FE 2.2L 4-cylinder engine; it does not fit 3.0L V6 3VZ-FE configurations.

Do I need to upgrade my wiring with this 160-amp unit?

While it plugs directly into the factory harness, upgrading the main charging lead and ground cables (Big 3 upgrade) is recommended to safely handle peak 160-amp delivery.

The Toyota Reliability Standard

Built to sustain Japanese commuter durability while driving modern high-load accessories, this bench-tested unit guarantees steady charging across all RPM ranges without compromising OE mounting geometry.
