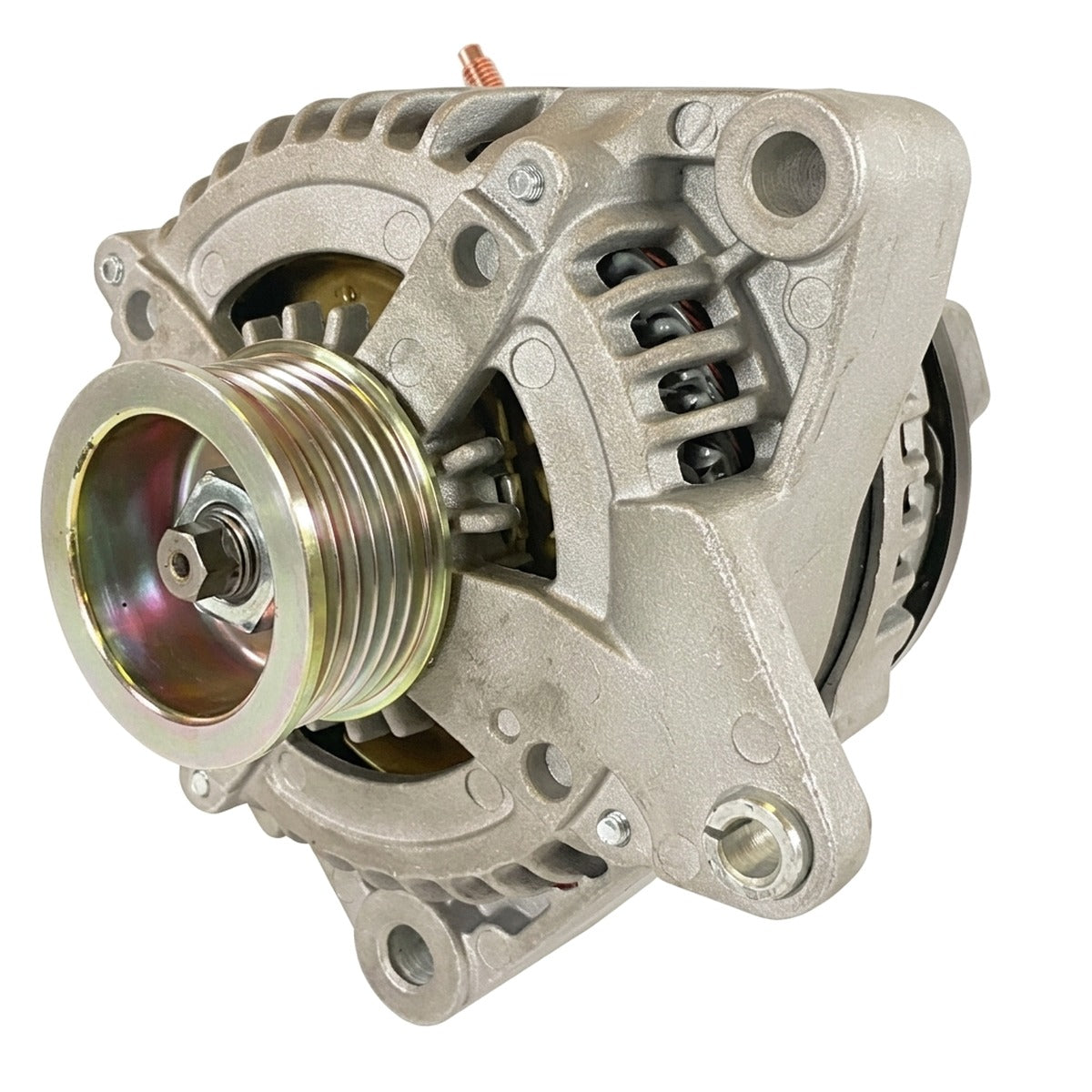

High-Amperage 250-Amp Alternator for 2003-2009 Toyota 4Runner, Sequoia, Tundra (N210 / XK30 / XK50)
What it Does: The 250-Amp High Output Alternator replaces the low-output factory charging unit on 2003-2009 Toyota trucks and SUVs to deliver stable electrical current under severe accessory loads and eliminate system voltage drop.
The Stock Toyota 4Runner, Sequoia, and Tundra Electrical Limitations
Factory charging systems on the 2UZ-FE engine utilize OEM alternators rated at only 80 to 130 amps. When running modern aftermarket demands—such as high-capacity winches, 12V overland refrigeration, high-draw audio amplifiers, and multi-channel auxiliary light bars—the stock unit suffers severe heat soak and thermal saturation. Overloading the factory stator leads to persistent voltage sag at idle, premature diode bridge failure, and incomplete charging cycles on dual-battery configurations.
The Engineering Solution
Manufactured in the USA, this high-output direct-replacement unit increases current generation to a continuous 250 amps. Built with heavy-duty hairpin copper stator windings and high-temp press-fit avalanche diodes, it efficiently sheds thermal buildup during sustained loads. An upgraded heavy-duty solid-state internal regulator maintains flat 14.4-volt delivery across both low-RPM crawling and highway speeds, safeguarding vital vehicle electronics without requiring bracket modification.
What's Included
- 1x 250-Amp High Output Alternator
Technical Specifications
| Fitment | 2003-2009 Toyota 4Runner, Sequoia, Tundra |
|---|---|
| Engine / Chassis | 2UZ-FE / N210, XK30, XK50 |
| Stock Output | 235-282 hp / 315-325 lb-ft |
| Replaces OEM Part # | AL3327X, 104210-3380, 9664219-338, 210-0537, 27060-0F040, 27060-0F040-84, 13994R, 13994N, 13994 |
Compatibility
- 2003-2009 Toyota 4Runner 4.7L V8
- 2003-2009 Toyota Sequoia 4.7L V8
- 2003-2009 Toyota Tundra 4.7L V8
Frequently Asked Questions & Fitment Warnings
Does this fit the N210, XK30, and XK50 4Runner, Sequoia, and Tundra?
Yes, this is a direct bolt-in fit for the 2003-2009 Toyota 4Runner, Sequoia, and Tundra equipped with the 2UZ-FE 4.7L V8 engine.
Do I need to upgrade my charging cables to run this 250-amp alternator?
Yes, completing a "Big 3" wiring upgrade with 1/0-gauge or 2-gauge cabling from the alternator output stud to the battery and chassis ground is required to safely handle the 250-amp current.
The Toyota Durability Standard
Engineered for relentless off-road endurance and heavy towing demands, this component delivers reliable current output under intense winching and continuous overland electrical draws.
