High Output Alternator for Toyota 4Runner (2003-2009) 4.0L

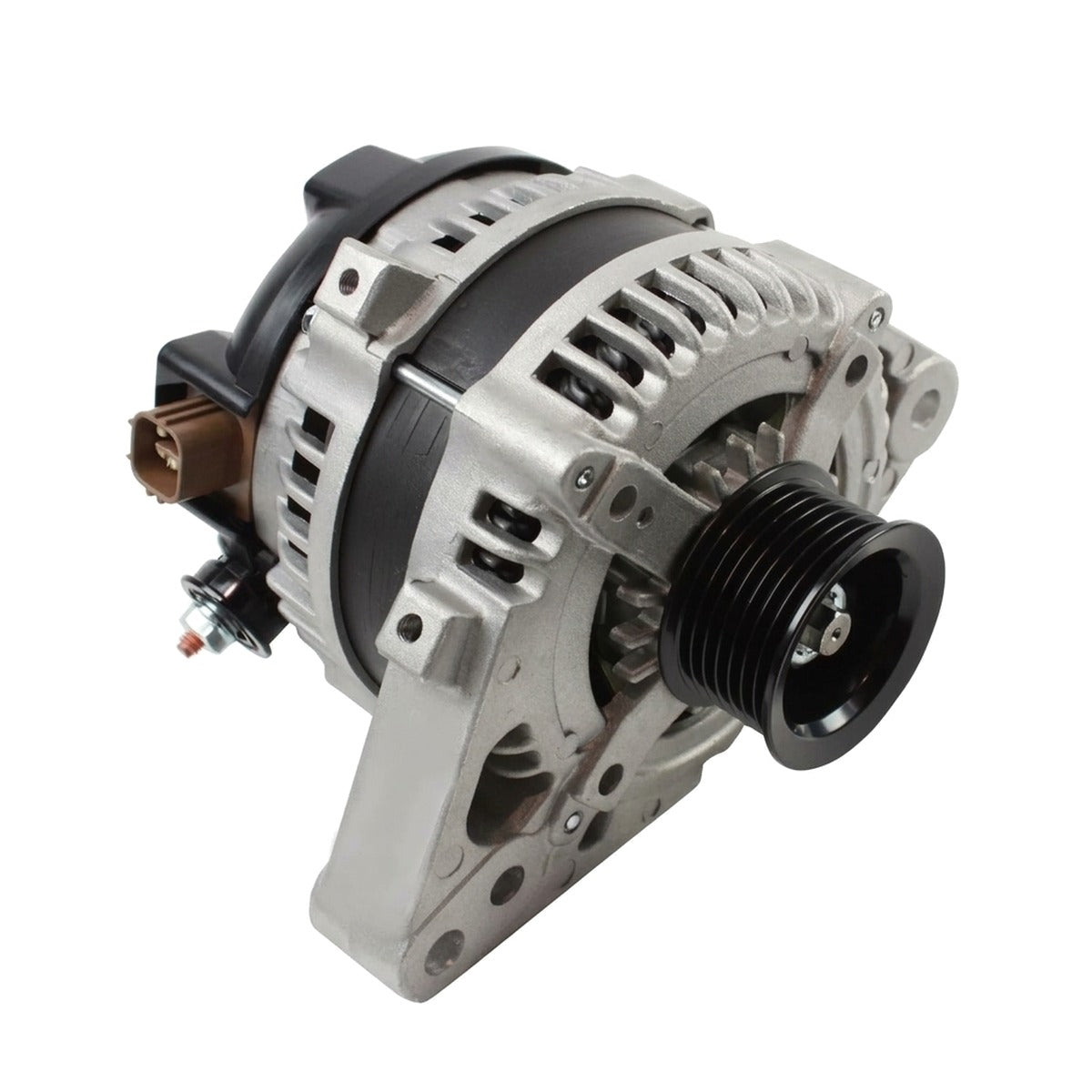

High-Output 250-Amp Alternator for 2003-2009 Toyota 4Runner (N210)

What it Does: The High Output 250 Amp Alternator replaces the factory charging unit on the 2003-2009 Toyota 4Runner to provide elevated, stable amperage required for high-draw electrical accessories, off-road winches, and dual-battery systems without voltage drop.

The Stock Toyota 4Runner Charging Limitation

Factory 2003-2009 Toyota 4Runner units equipped with the 1GR-FE V6 carry standard OEM alternators rated between 80 and 130 amps, which easily bottleneck under modern overland electrical demands. Simultaneous operation of recovery winches, high-intensity LED light bars, onboard 12V refrigeration, and dual battery banks pulls more current than the factory stator can generate. This results in heavy heat soak within the stock windings, premature diode bridge failure, and severe voltage drops below 12.4V that starve the ignition system and electronic modules under load.

The Engineering Solution

This Made-in-USA 250-amp unit delivers massive current reserves, sustaining stable 14.2V-14.6V charging profiles even during extended low-RPM rock crawling. Built with high-temperature copper hairpin stator windings, heavy-duty internal rectifiers, and high-amperage avalanche diodes, it disperses thermal load efficiently to prevent output fade. Precision-balanced internal rotors and heavy-duty bearings eliminate vibration-induced fatigue during extreme off-road cycles, directly replacing failure-prone stock units like OEM 27060-31020 with true bolt-in fitment.

What's Included

• 1 x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 2003-2009 Toyota 4Runner 4.0L V6 (SR5, Sport Edition, Limited)

Frequently Asked Questions & Fitment Warnings

Does this fit the N210 4Runner?

Yes, this is a direct fit for the 2003-2009 Toyota 4Runner equipped with the 1GR-FE 4.0L V6 engine. Does not fit 4.7L 2UZ-FE V8 models.

Do I need to upgrade my battery charging wiring?

Yes, executing a "Big 3" electrical upgrade using 1/0 or 4-gauge wiring is strongly advised to safely transfer 250 amps to your primary battery without overstressing factory fusible links.

The Toyota Trail Standard

The 4th Gen 4Runner platform is engineered for rigorous off-grid use; integrating this high-output charging system guarantees full operational capacity for high-amperage trail recovery and overland equipment without stranding your rig in the backcountry.
