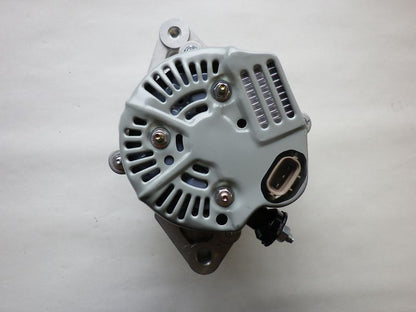

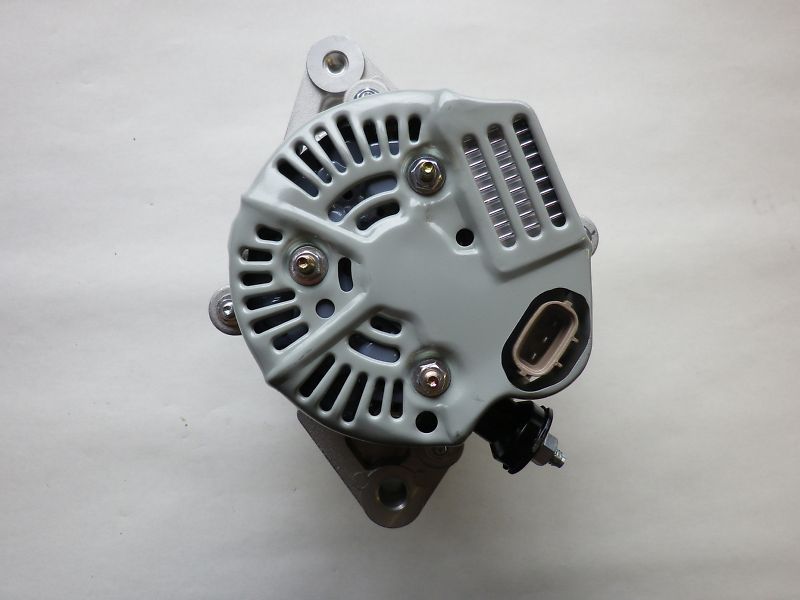

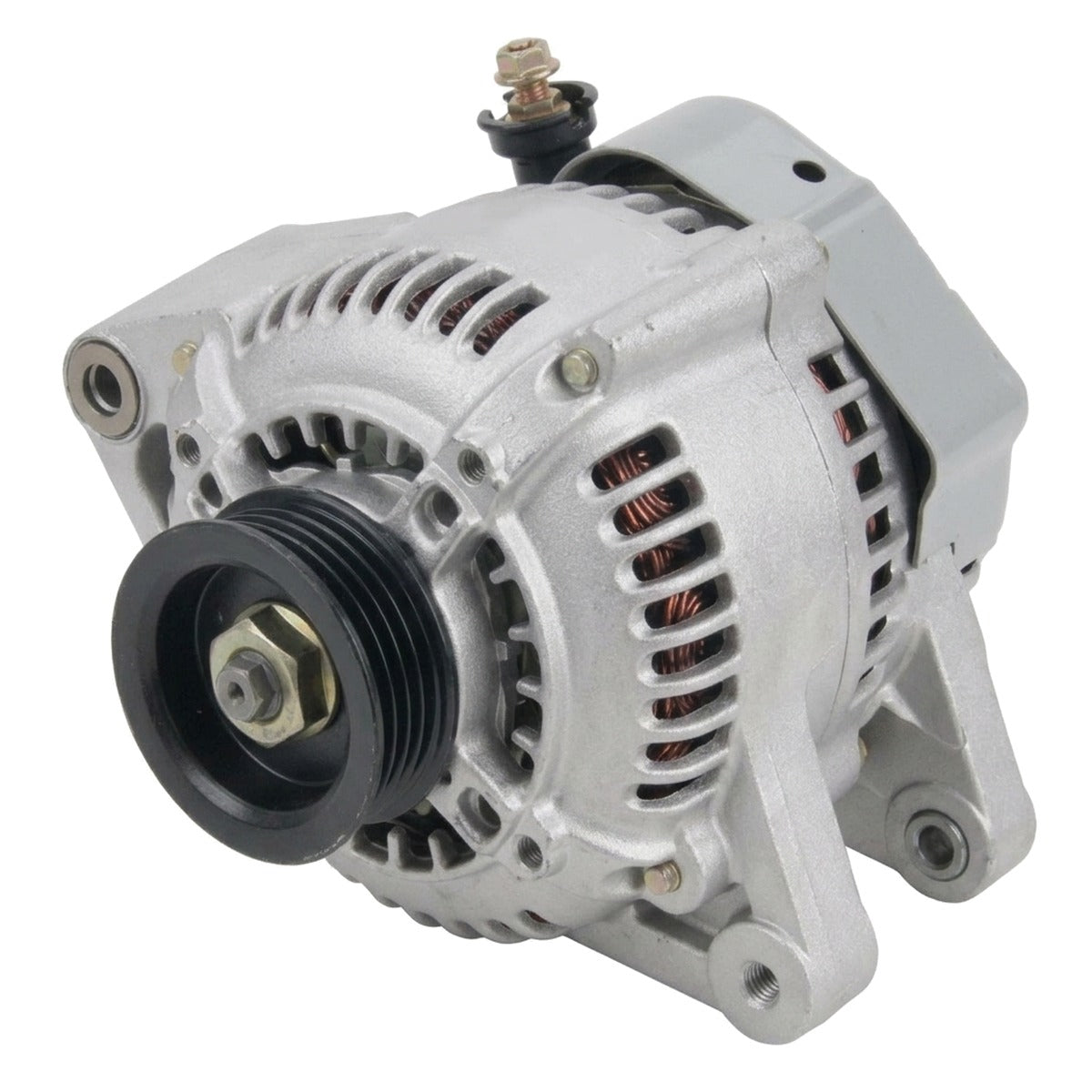

High Output Alternator for Toyota 4Runner (1993-1995) 3.0L

High-Output 120A Alternator for 1993-1995 Toyota 4Runner (N130)

What it Does: The 120-amp high-output alternator replaces the low-output factory charging unit on the 1993-1995 4Runner to provide stable, elevated amperage for overland accessories, lighting, and heavy electrical loads.

The Stock Toyota 4Runner Electrical Bottleneck

The factory charging system on the N130 platform was engineered for basic 1990s cabin electronics, relying on an anemic 60-amp OEM unit (referencing 2706065040 and 1012110130). When owners add modern overland gear—such as high-draw winches, auxiliary LED light bars, dual-battery systems, and 12V trail fridges—the stock alternator suffers severe voltage sag, especially at idle. Continuous heavy draw causes thermal saturation in the factory stator windings, rapidly degrading the internal diode pack and leaving the 3VZ-E engine vulnerable to battery depletion and intermittent ignition voltage loss on remote trails.

The Engineering Solution

This high-output unit doubles OEM charging output to a true 120 amps, engineered specifically to handle high current demands without excessive heat build-up. Hand-assembled in the USA, it utilizes high-temperature heavy-gauge copper stator windings, an upgraded heavy-duty avalanche diode rectifier, and a robust internal solid-state voltage regulator. Housed in a precision cast-aluminum casing designed for direct bolt-on installation, this alternator fits factory mounting brackets without clearance issues, delivering consistent high-amperage output right off idle to safeguard battery health during technical trail recovery.

What's Included

• 1 x 120 Amp High Output Alternator

Technical Specifications

Compatibility

• 1993 Toyota 4Runner 3.0L V6 (3VZ-E)
• 1994 Toyota 4Runner 3.0L V6 (3VZ-E)
• 1995 Toyota 4Runner 3.0L V6 (3VZ-E)

Frequently Asked Questions & Fitment Warnings

Does this fit the N130 4Runner?

Yes, this is a direct bolt-in fit for the 1993-1995 Toyota 4Runner equipped with the 3VZ-E 3.0L V6 engine. Does not fit 4Runner models equipped with the 2.4L 22R-E 4-cylinder engine.

Do I need to upgrade my charging cable?

Yes, to safely carry 120 amps and prevent line-resistance drops, upgrading to a 4-gauge battery charge lead with an inline fuse ("Big 3" upgrade) is strongly advised.

The Toyota Trail Standard

Built to handle extreme trail vibration, harsh weather exposure, and sustained recovery winching loads, this upgrade delivers uncompromising electrical reliability for your off-road rig.
