High Output Alternator for Toyota 4Runner (1988-1992) 3.0L

High-Amp 170A Heavy-Duty Alternator for 1988-1992 Toyota 4Runner (N60/N130)

What it Does: The High Output Alternator replaces the factory 60-amp charging unit on the 1988-1992 Toyota 4Runner 3.0L to deliver 170 amps of stable electrical output for high-demand trail accessories and winches.

The Stock Toyota 4Runner Electrical Bottleneck

The OEM Denso charging system fitted to the 3VZ-E 3.0L V6 was engineered with an output of only 60 amps—adequate for late-1980s incandescent bulbs and a factory radio, but wholly insufficient for modern trail setups. Adding auxiliary LED bars, high-draw recovery winches, dual-battery banks, or an overland fridge rapidly pushes system demand past factory capacity. Under heavy electrical loads at idle (750–800 RPM), the stock stator output plunges, forcing the battery into a continuous discharge state. This chronic thermal load leads to baked diode bridge rectifiers, degraded stator insulation, burned-out brushes, and dead batteries on remote trails.

The Engineering Solution

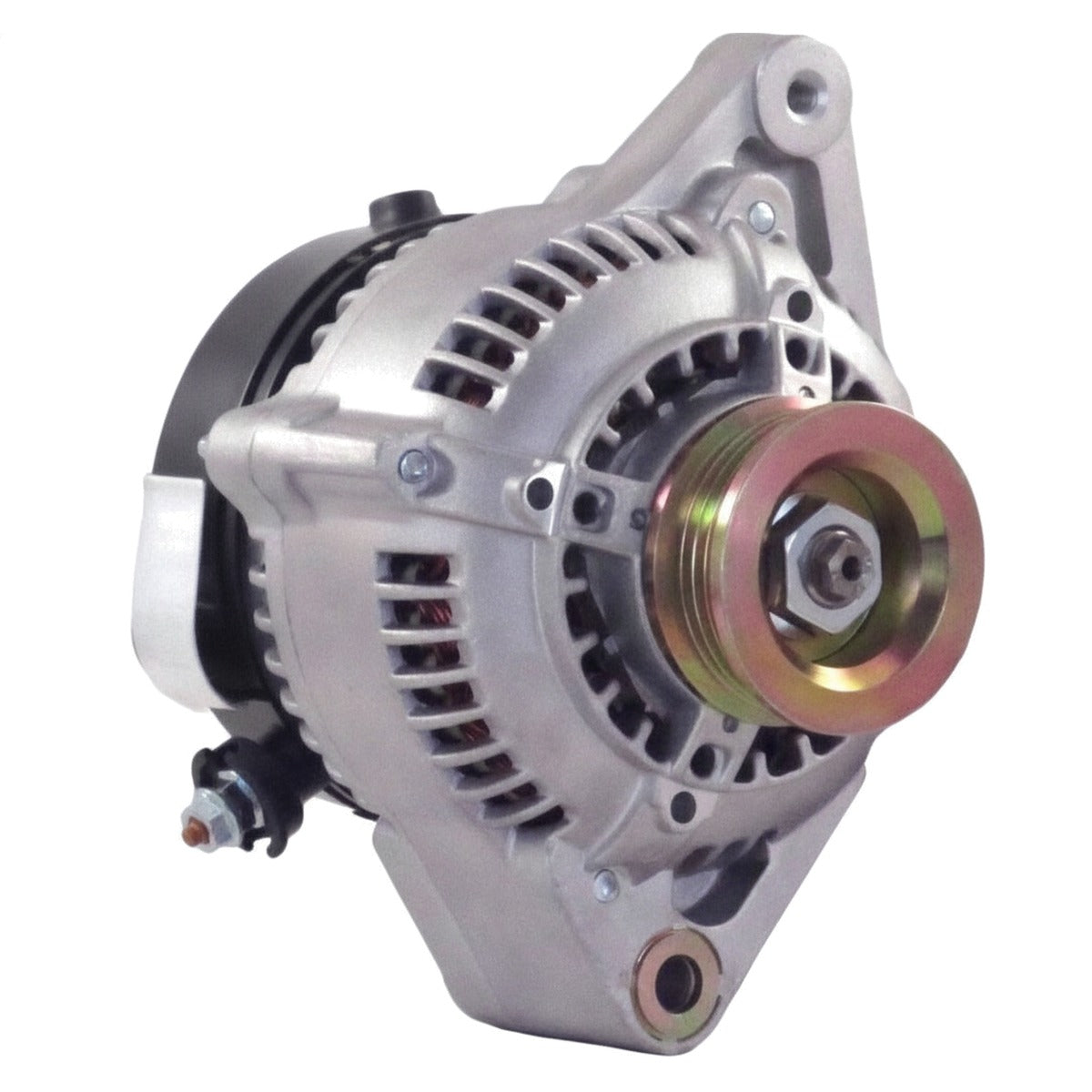

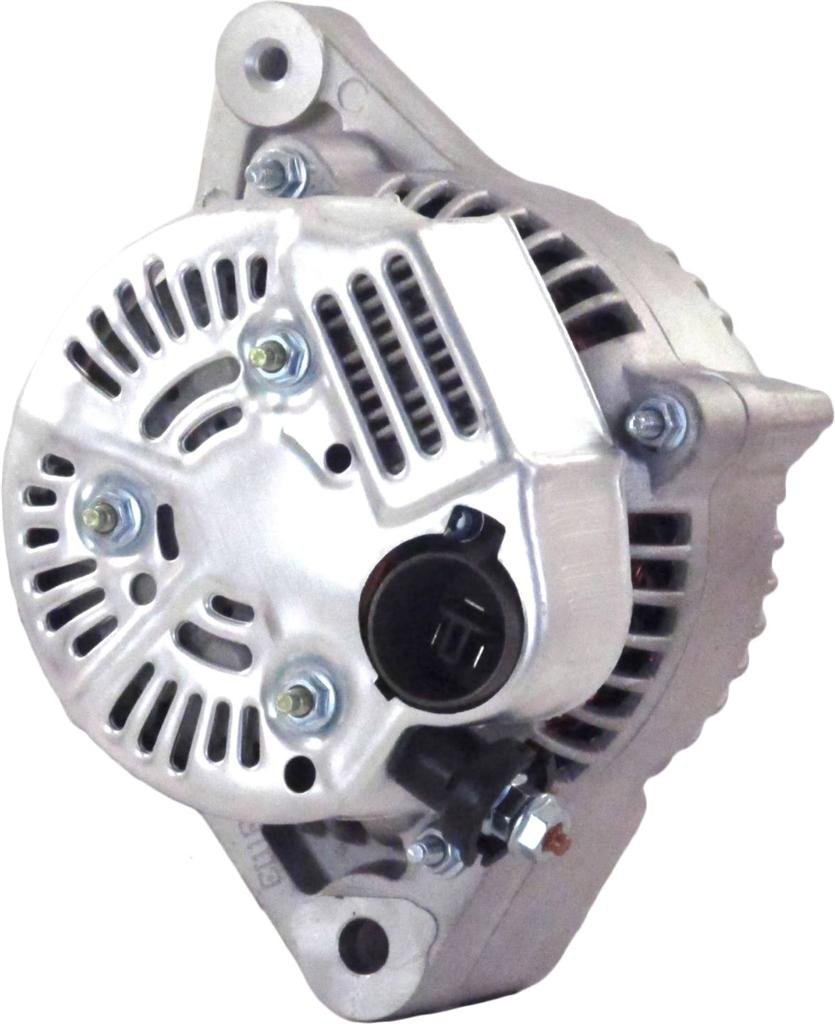

Manufactured in the USA, this 170-amp high-output alternator features upgraded high-temperature copper windings and low-loss rotor laminations to maximize efficiency and minimize heat build-up. The unit incorporates a high-amperage avalanche diode rectifier package and an internal solid-state voltage regulator calibrated to sustain 14.2–14.6V across varying engine load bands. Engineered to match the factory 27060-65010 mounting footprint, it bolts directly into the factory 3VZ-E bracketry without requiring custom spacers, retaining correct V-belt alignment and factory pulley geometry while almost tripling stock electrical capacity.

What's Included

• 1 x 170-Amp High Output Alternator

Technical Specifications

Compatibility

• 1988-1989 Toyota 4Runner 3.0L V6 (Chassis: N60)
• 1990-1992 Toyota 4Runner 3.0L V6 (Chassis: N130)

Frequently Asked Questions & Fitment Warnings

Does this fit the N60/N130 4Runner?

Yes, this is a direct fit for the 1988-1992 Toyota 4Runner equipped with the 3VZ-E 3.0L V6 engine. Does not fit 2.4L (22R/22R-E) 4-cylinder engine configurations.

Do I need to upgrade the main charging cable?

Yes, a heavy-gauge 4 AWG or 1/0 AWG fused power wire upgrade (Big 3 upgrade) directly from the alternator B+ stud to the battery positive terminal is required to safely transfer 170 amps without harness overheating.

The Toyota Off-Road Standard

Engineered for backcountry reliability and continuous duty, this heavy-duty charging upgrade ensures uninterrupted winching, high-draw lighting, and sustained trail capability without the risk of low-voltage dropouts.
