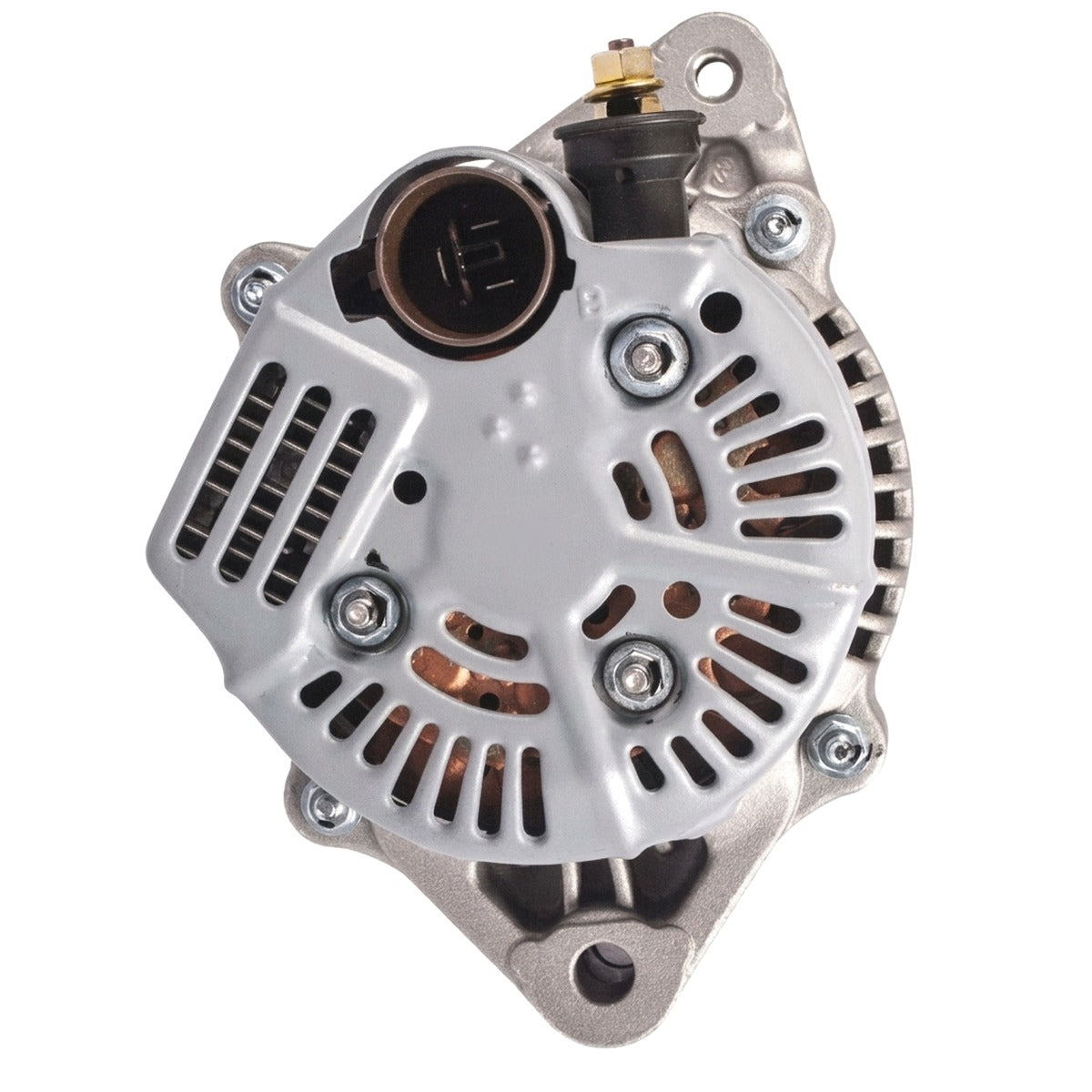

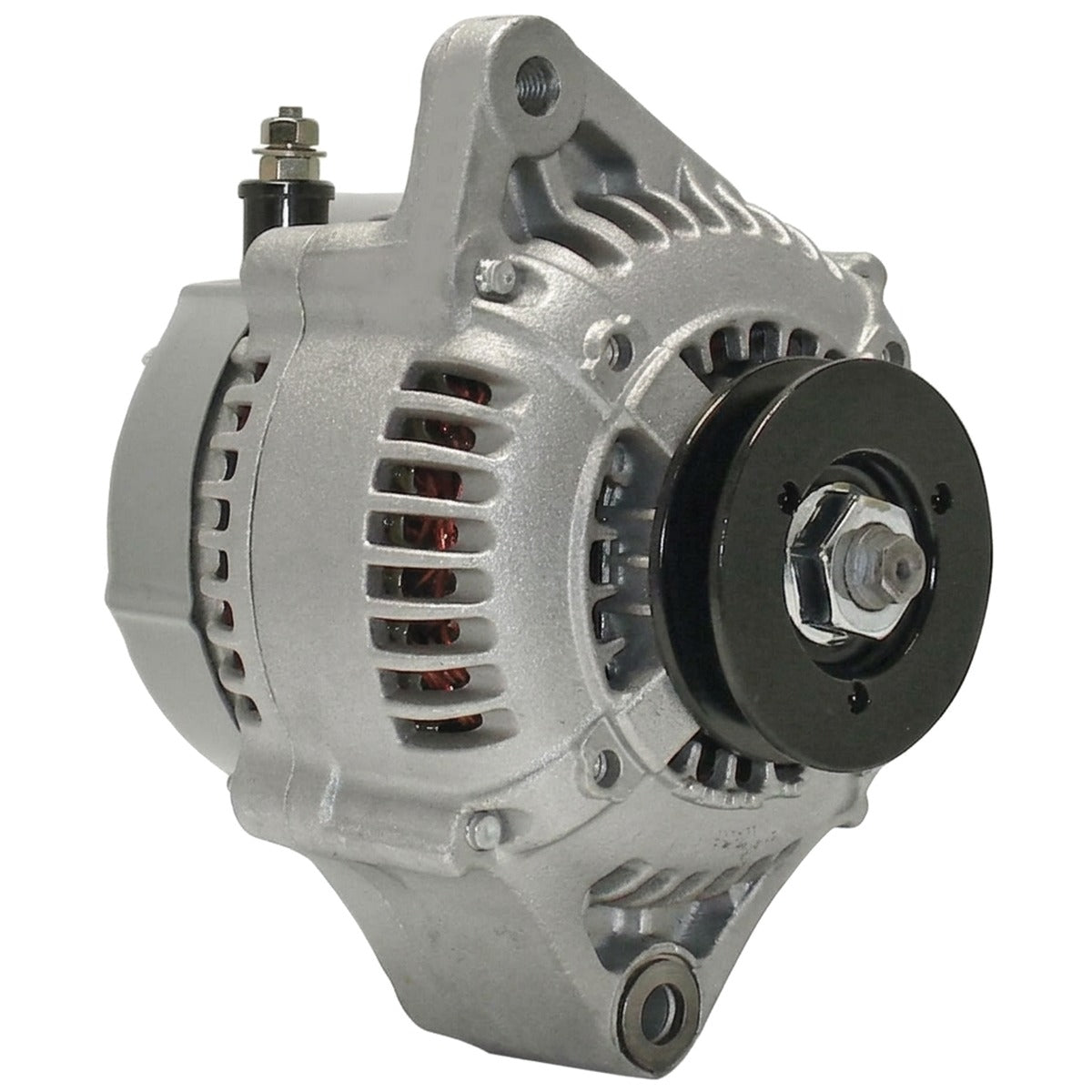

High-Output 120-Amp Alternator for 1985-1991 Toyota 4Runner (N60 / N130)
What it Does: The High Output 120 Amp Alternator replaces the low-output factory 60A charging unit on the 1985-1991 Toyota 4Runner to prevent system voltage drop and supply dependable current to auxiliary off-road equipment.
The Stock Toyota 4Runner Charging Limitation
Factory N60 and N130 4Runners running the 22R-E came equipped with a modest 60-amp NipponDenso alternator designed strictly for basic 1980s vehicle electronics. Once modern recovery winches, high-intensity LED light bars, dual-battery systems, or aftermarket audio are wired in, the OEM stator wire gauge and internal rectifier bridge overheat rapidly. This causes severe idle voltage sag down to 11.5 volts, triggering rough engine idling, ignition spark weakness, battery drain, and premature diode pack burnout under trail load.
The Engineering Solution
This 120-amp high-output unit doubles current generation within a compact, precision-cast aluminum housing engineered for direct bolt-on mounting to factory 22R-E engine brackets. Built with heavy-gauge copper hairpin stator windings, upgraded rotor assemblies, and a heavy-duty 12-diode bridge rectifier, it maintains stable 14.2–14.6V charging levels even under low-RPM crawling conditions. Precision rotor balancing and heavy-duty radial bearings prevent armature deflection and withstand persistent high-RPM engine harmonics during tough trail recovery.
What's Included
- 1x High Output 120-Amp Alternator
Technical Specifications
| Fitment | 1985-1991 Toyota 4Runner |
|---|---|
| Engine / Chassis | 22R-E 2.4L / N60 & N130 |
| Stock Output | 113 hp / 140 lb-ft |
| Replaces OEM Part # | AL3236X, 100211-7570, 100211-7571, 210-0299, 27060-35120, 2706035120, 1002117570, 14668N, 14668R, 14668, 14668-120A |
Compatibility
- 1985-1989 Toyota 4Runner (N60) 2.4L I4
- 1990-1991 Toyota 4Runner (N130) 2.4L I4
Frequently Asked Questions & Fitment Warnings
Does this fit the N60 / N130 4Runner?
Yes, this is a direct fit for the 1985-1991 Toyota 4Runner equipped with the 22R-E 2.4L engine.
Do I need to upgrade the primary charging wire?
To safely transfer the full 120-amp capacity, running an upgraded 4-gauge B+ charge lead directly to the battery positive terminal is strongly recommended.
The Toyota Trail Durability Standard
Built to handle harsh backcountry washboards and relentless winch draws, this heavy-duty charging upgrade ensures uninterrupted electrical power when you are miles away from civilization.
