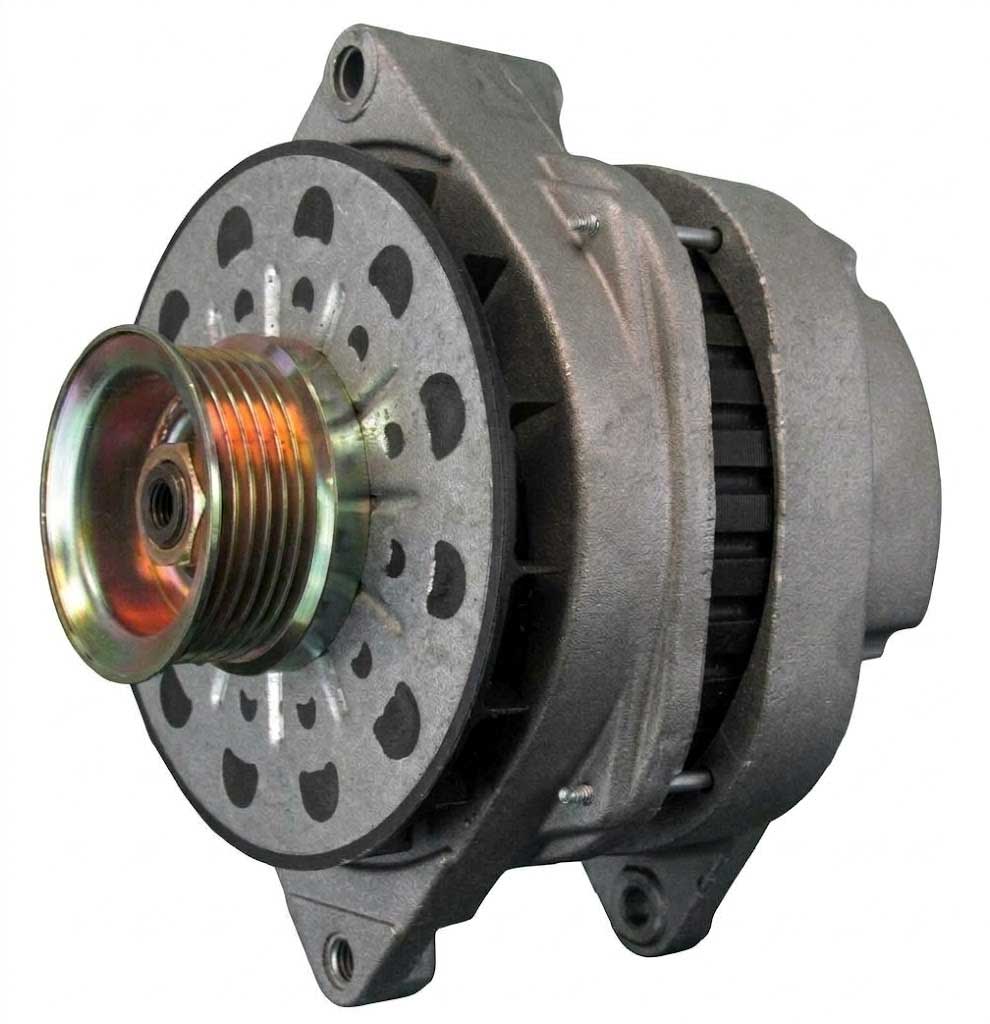

High Output Alternator for Pontiac Firebird (1994-1997) 5.7L

High-Output 200-Amp Alternator for 1994-1997 Pontiac Firebird (F-Body)

What it Does: The High Output 200 Amp Alternator supplies stable, high-amperage charging current to the 1994-1997 Pontiac Firebird electrical system to prevent voltage drops under high electrical and ignition loads.

The Stock Pontiac Firebird Charging Limitations

Factory Delco CS-series units on the F-Body platform typically generate only 100 to 140 amps, which drops off sharply at idle. When subjected to underhood heat soak alongside the reverse-flow cooled LT1, the factory diodes and internal regulators degrade rapidly. Adding modern electric cooling fans, secondary fuel pumps, aftermarket ignition boxes, or stereo systems forces the OE unit beyond its thermal threshold, creating voltage sags that compromise spark delivery and Optispark sensor stability.

The Engineering Solution

Engineered as a direct bolt-in replacement, this 200-amp unit utilizes precision heavy-gauge copper windings, premium dual-sealed bearings, and a high-efficiency rotor/stator combination to produce substantial current even at low engine RPM. Built with a heavy-duty rectifier assembly and durable internal heatsinking, it resists high-temperature thermal saturation to maintain continuous voltage regulation. It directly replaces factory numbers including 10480111 and 10480203 without bracket modifications.

What's Included

• 1 x 200 Amp High Output Alternator

Technical Specifications

Compatibility

• 1994-1997 Pontiac Firebird Formula 5.7L V8
• 1994-1997 Pontiac Firebird Trans Am 5.7L V8
• 1994-1997 Pontiac Firebird Trans Am GT / WS6 5.7L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the F-Body Firebird?

Yes, this is a direct fit for the 1994-1997 Pontiac Firebird equipped with the LT1 5.7L engine. Does not fit 3.4L or 3.8L V6 models.

Should I upgrade my battery charge cable with a 200A alternator?

Yes, running a minimum 4-gauge heavy-duty power lead from the alternator B+ post directly to the battery positive terminal is required to safely manage the increased current capacity.

The Pontiac Muscle Standard

Fourth-generation V8 platforms rely heavily on uniform voltage to maintain crisp ignition timing, peak fuel delivery, and aggressive throttle response under full-load acceleration.
