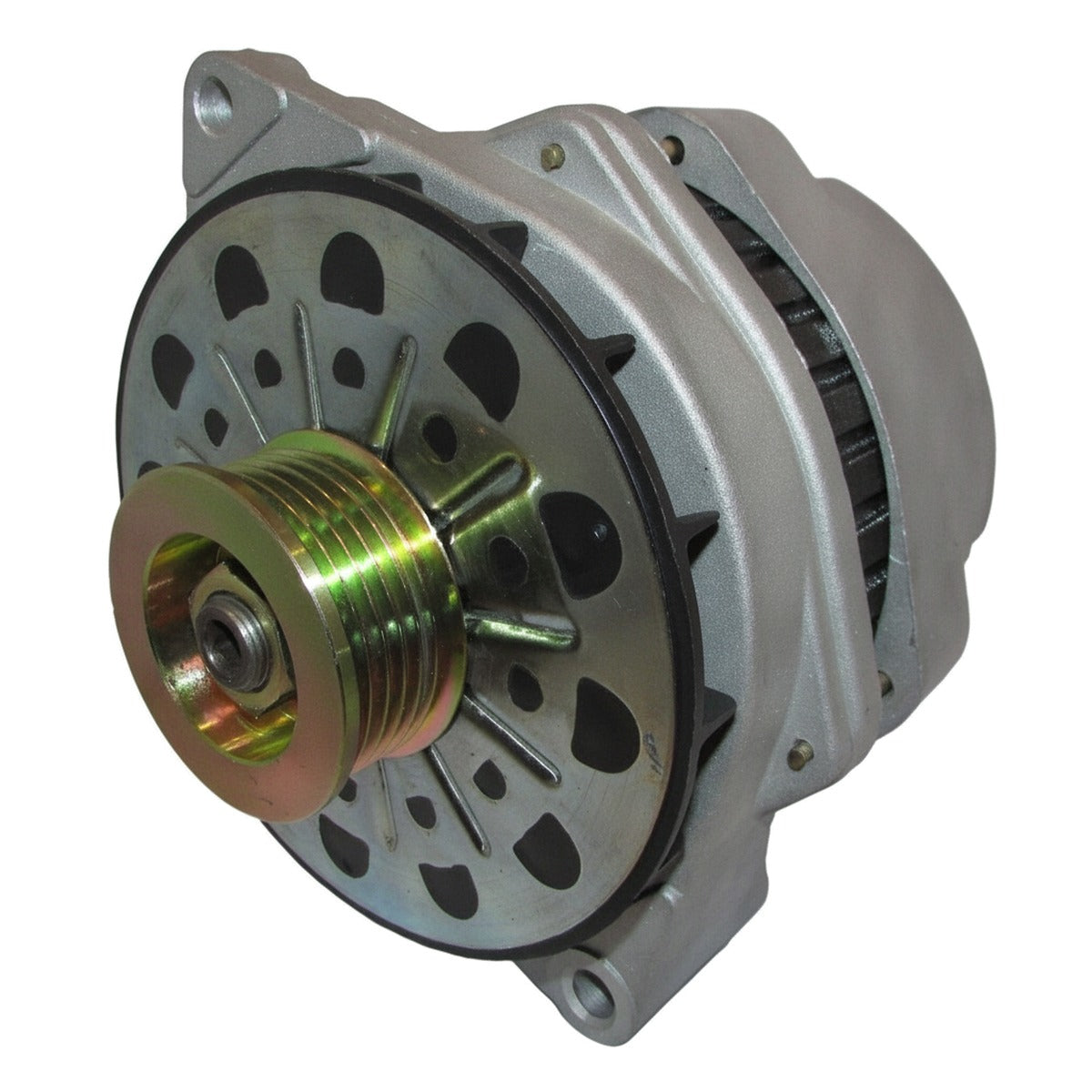

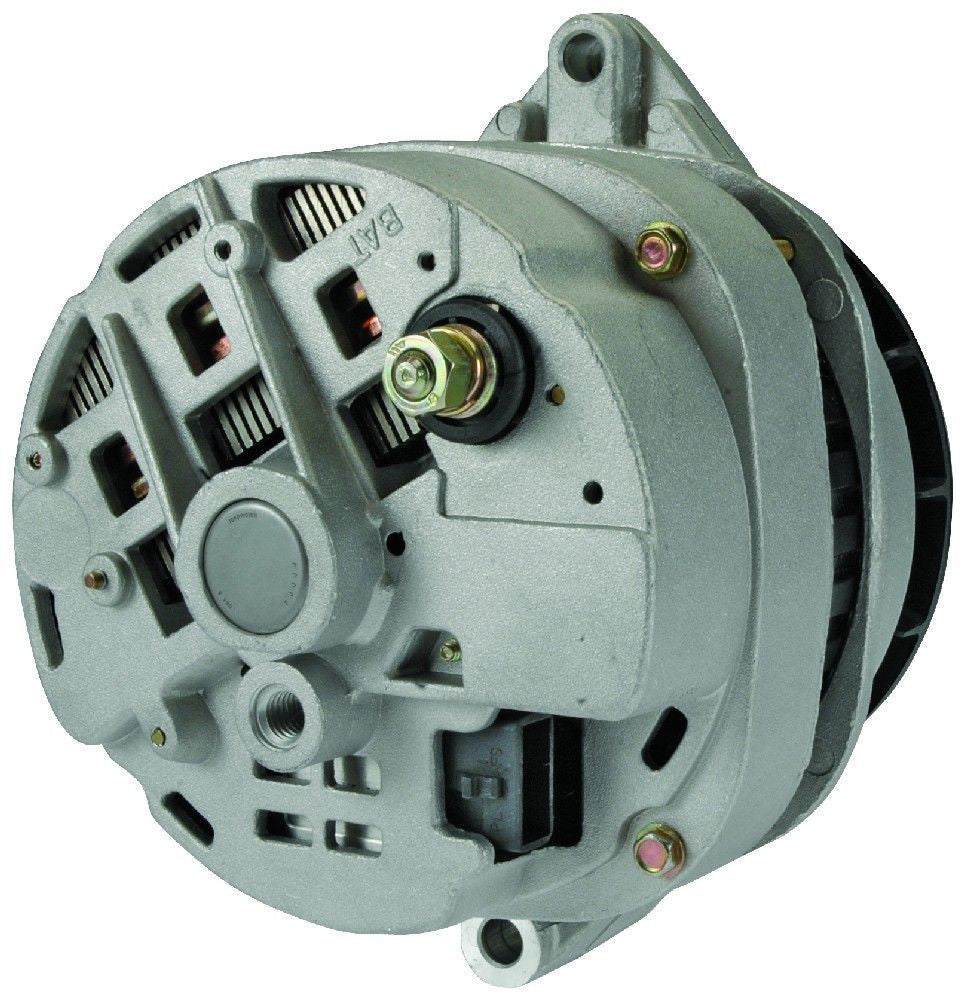

High Output Alternator for Oldsmobile Silhouette (1992-1995) 3.8L

Heavy-Duty 300-Amp Alternator for 1992-1995 Oldsmobile Silhouette (U-Body)

What it Does: The 300-amp high-output alternator replaces the low-output factory charging unit on the 1992-1995 Oldsmobile Silhouette to deliver sustained electrical current for high-demand accessories and prevent system voltage drop.

The Stock Oldsmobile Silhouette Electrical Bottleneck

Factory charging systems on the first-generation U-body platform were equipped with standard CS130 or CS130D units rated around 96 to 105 amps. Under continuous electrical load—such as upgraded audio systems, secondary rear climate control blowers, or power conversions—the stock stator windings and diodes suffer thermal overload. Elevated underhood temperatures inside the compact GM 3800 L27 engine bay cause internal rectifier diode breakdown and brush bounce, resulting in battery drain, dimming interior lamps, and critical voltage sags below 12.2V at idle.

The Engineering Solution

Engineered for sustained heavy amperage, this 300A high-output unit features heavy-gauge copper stator windings, dual internal rectifiers, and a high-efficiency solid-state internal regulator. Built in the USA using a precision-machined heavy-duty casing, it dissipates internal heat soak rapidly to safeguard electrical throughput under load. The upgraded rotor and stator assembly generates high idle output while maintaining standard belt alignment for seamless integration on the serpentine drive of the L27 platform.

What's Included

• 1 Alternator

Technical Specifications

Compatibility

• 1992 Oldsmobile Silhouette Base 3.8L V6
• 1993 Oldsmobile Silhouette Base 3.8L V6
• 1994 Oldsmobile Silhouette Base 3.8L V6
• 1995 Oldsmobile Silhouette Base 3.8L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the U-Body Silhouette?

Yes, this is a direct bolt-in fit for the 1992-1995 Oldsmobile Silhouette equipped with the 3.8L L27 V6 engine.

Do I need to upgrade the main charging wire?

Yes, running an upgraded heavy-gauge power cable (Big 3 upgrade, 1/0 or 4 AWG) directly from the alternator output stud to the battery positive terminal is required to safely handle 300 amps.

The Oldsmobile Reliability Standard

Built to handle continuous duty cycles, this alternator provides the stable voltage and charging overhead required to eliminate electrical brownouts and ensure dependable electrical performance for your passenger van.
