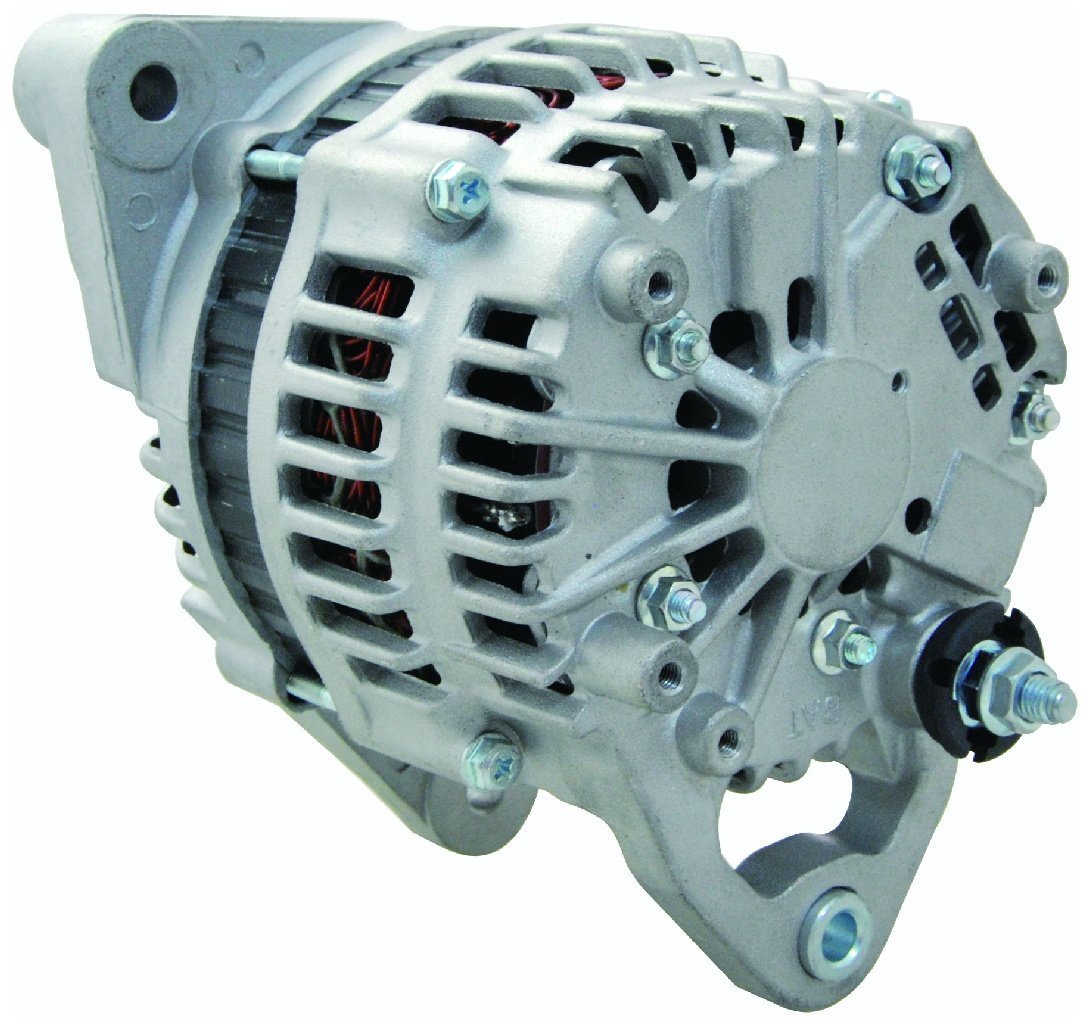

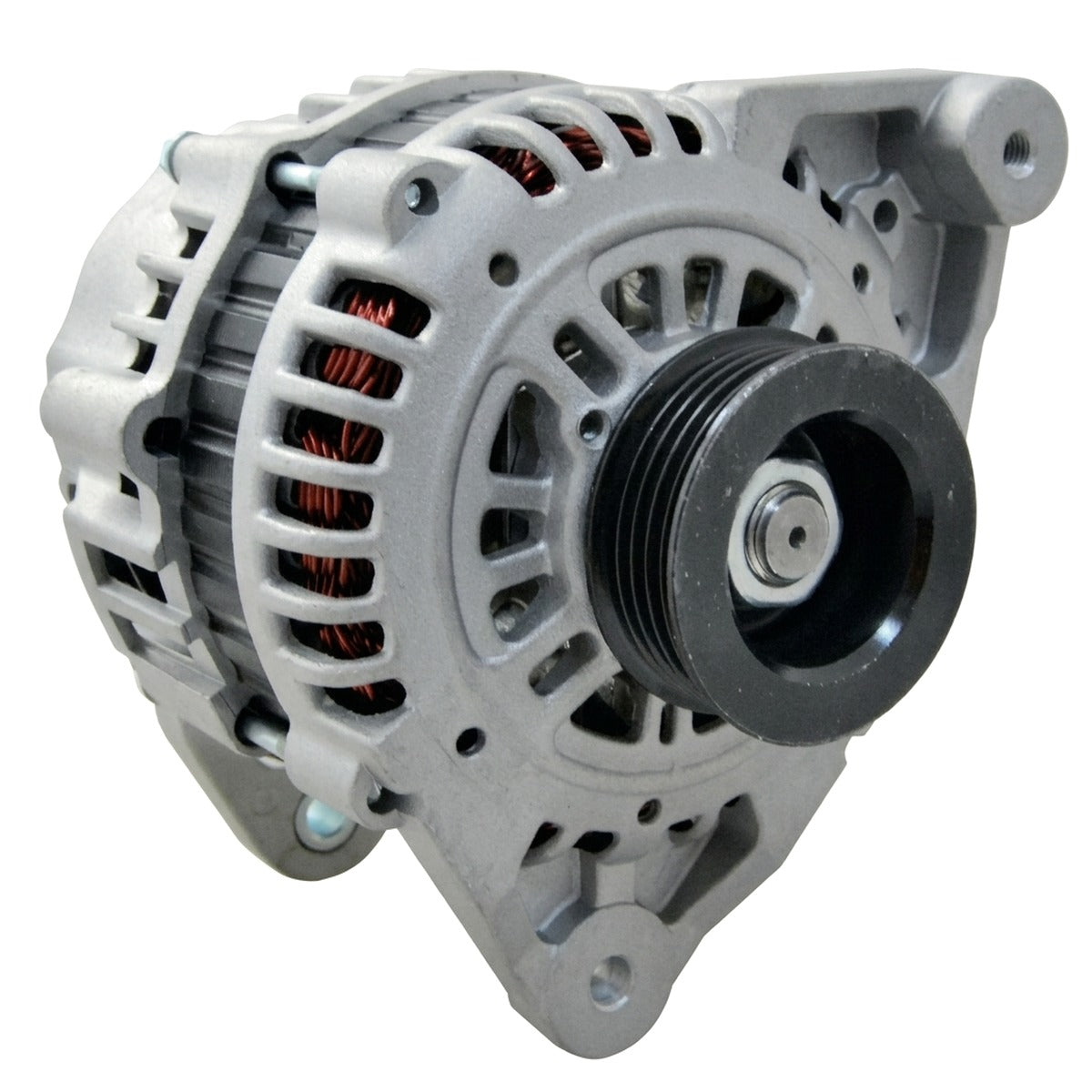

High Output Alternator for Nissan Xterra (2000-2002) 3.3L

High-Output 185-Amp Alternator for 2000-2002 Nissan Xterra (WD22)

What it Does: The High Output Alternator replaces the factory low-amperage charging unit on the 2000-2002 Nissan Xterra to deliver 185 amps of continuous electrical current and eliminate voltage drop under heavy auxiliary loads.

The Stock Nissan Xterra Charging Deficiencies

Factory 2000-2002 Nissan Xterra models equipped with the 3.3L engine left the assembly line with an OEM alternator rated at only 70 to 80 amps. On the trail-ready WD22 platform, running aftermarket accessories such as winches, onboard air compressors, auxiliary LED lighting, and audio equipment immediately overburdens the stock charging circuit. Under high electrical demand, system voltage plummets below 12.8 volts at idle, causing excessive thermal breakdown in the factory diodes, battery deep-cycling, and premature stator burnout.

The Engineering Solution

Engineered and manufactured in the USA, this 185-amp heavy-duty alternator solves electrical starvation on the VG33E platform. Built with dense, high-grade copper windings and low-resistance internal rectifiers, it provides increased amperage at both idle and highway RPMs. Heavy-duty internal avalanche diodes dissipate operating heat rapidly to counter heat soak, while precision-balanced rotors reduce rotational drag and bearing wear under high-draw conditions.

What's Included

• 1 185-Amp High Output Alternator

Technical Specifications

Compatibility

• 2000 Nissan Xterra 3.3L V6
• 2001 Nissan Xterra 3.3L V6
• 2002 Nissan Xterra 3.3L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the WD22 Xterra?

Yes, this is a direct bolt-in fit for the 2000-2002 Nissan Xterra equipped with the VG33E 3.3L engine using OEM interchange number 23100-4S100.

Do I need to upgrade my charging wiring?

Upgrading the primary alternator charge cable to 4-gauge or larger (Big 3 upgrade) is recommended to safely handle the full 185-amp output without resistance loss.

The Nissan Overlanding Standard

The WD22 chassis is proven for rugged back-country exploration and heavy recovery duty, but modern off-grid expeditions demand reliable power. Installing a high-output charging source ensures reliable winch recovery, continuous aux-battery charging, and dependable ignition performance across harsh terrain.
